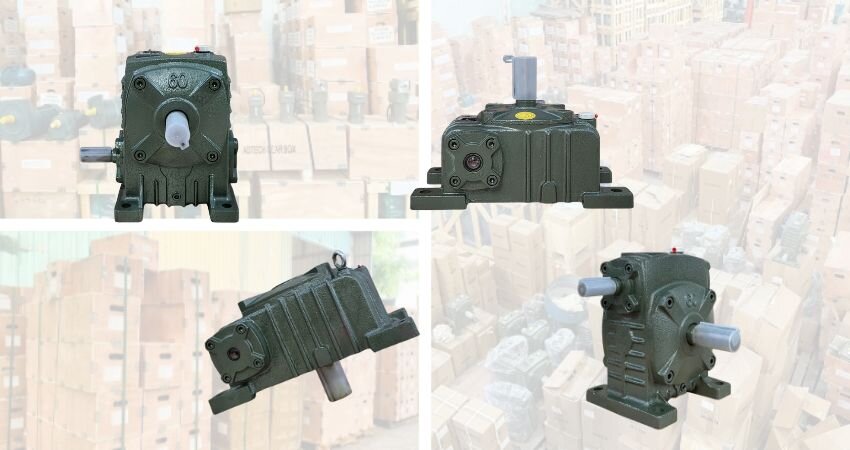

A Worm Gearbox (also known as a worm and wheel gearbox) is a crucial transmission device responsible for reducing rotational speed and increasing torque from an electric motor. When combined with an electric motor, this device forms a geared motor, helping the system operate stably, efficiently, and with energy savings. With its special construction between the worm shaft and the worm wheel, this type of Gearbox ensures smooth power transmission for various industrial machinery across different sectors.

Structure of Worm Gearboxes

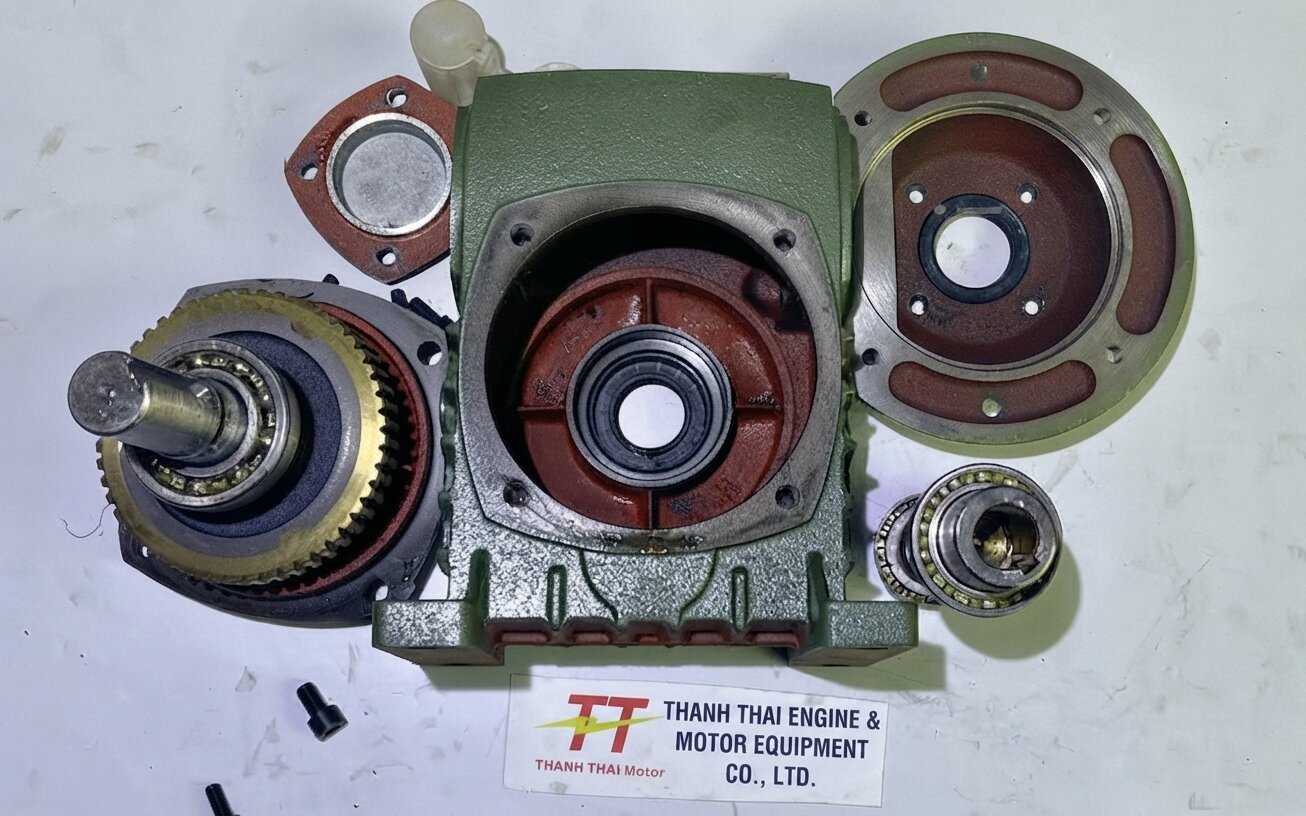

A Worm Gearbox (also referred to as a worm gear set) is a special transmission mechanism that operates based on the meshing between a worm (resembling a screw) and a worm wheel (a gear with teeth angled to match the worm). The main components of this type of gearbox are as follows:

Gearbox Casing

• Typically cast from aluminum or cast iron depending on the power and load capacity.
• The casing protects internal components from dust, impact, and also helps dissipate heat during operation.
• Smaller models (such as NMRV sizes 30-90) usually feature aluminum casings, which are lightweight and easy to install in elevated positions.
• Larger models (sizes 110-150) use cast iron casings to increase rigidity and withstand heavy loads.

Worm Shaft

• It is a precisely machined steel shaft with helical threads, acting as the input drive from the electric motor to the worm wheel.
• The worm shaft is usually heat-treated and polished to reduce friction, increase durability, and improve working efficiency.
• When the worm shaft rotates, it causes the worm wheel to rotate slower - creating the speed reduction effect.

Worm Wheel (Bronze Gear)

• The worm wheel is made from a bronze-steel alloy, with helical teeth that perfectly mesh with the worm shaft.
• It is the main load-bearing component, capable of transmitting high torque and operating smoothly.
• Thanks to this design, Worm Gearboxes achieve high efficiency and significantly reduce noise.

Bearings

• Positioned at both ends of the shaft to reduce friction and maintain stable rotational movement.
• The bearings are sealed, dust-proof, and retain lubricating grease inside.

Gaskets, Oil Seals, and Retaining Rings

• Their function is to prevent lubricating oil from leaking out and to protect against dust and water ingress into the gearbox.
• Ensures durable, long-lasting operation of the gearbox in industrial environments.

Lubricating Oil

• An indispensable component that reduces friction between the worm shaft and worm wheel, dissipates heat, and protects metal surfaces from corrosion.
• Oil needs to be changed periodically after approximately 3,000-5,000 hours of operation to ensure stable performance.

Operating Principle of Worm Gearboxes

Worm Gearboxes operate based on the principle of power transmission between a helical worm shaft and a correspondingly meshing worm wheel. When the worm shaft rotates, it causes the worm wheel to rotate at a slower speed but with greater torque, thereby increasing the load capacity of the system. The gear ratio is determined by dividing the number of teeth on the worm wheel by the number of starts on the worm shaft, allowing for very high speed reduction (from 1/10 to 1/100 times).

Thanks to their special construction, Worm Gearboxes also possess self-locking capability, meaning the worm wheel cannot rotate the worm shaft in reverse when the motor stops - which ensures safe and stable operation. With the advantages of smooth transmission, 90° direction change, compact size, and high durability, this type of gearbox is widely used in lifting machines, conveyor belts, mixers, and industrial mechanical equipment.

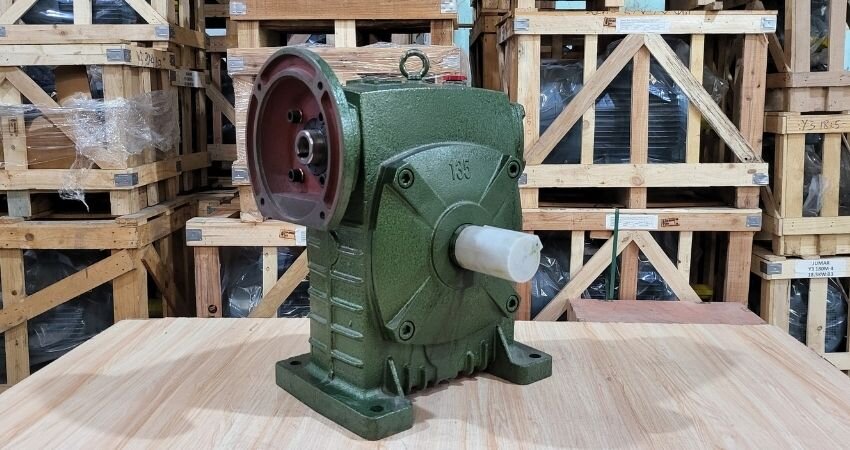

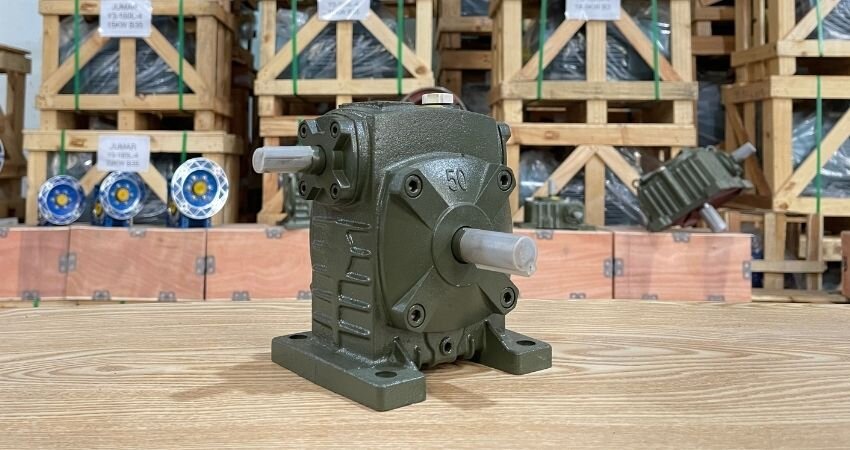

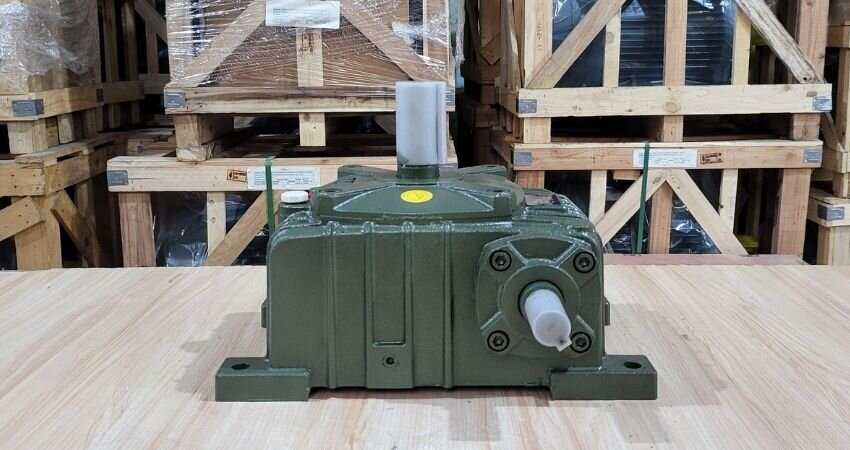

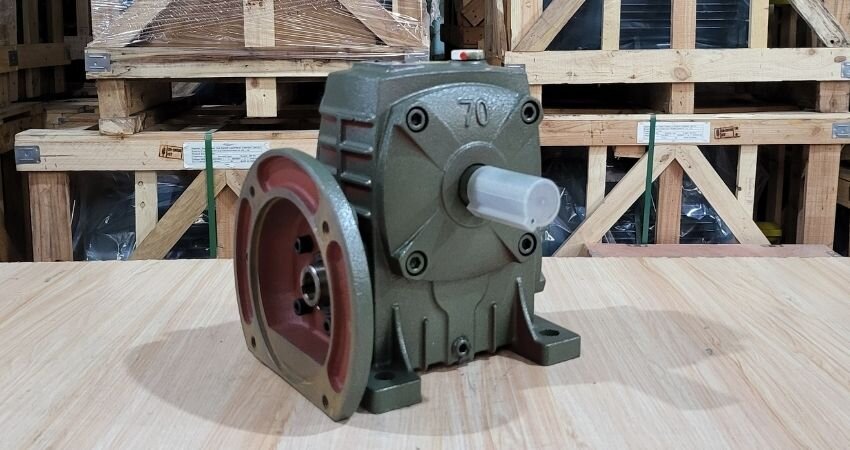

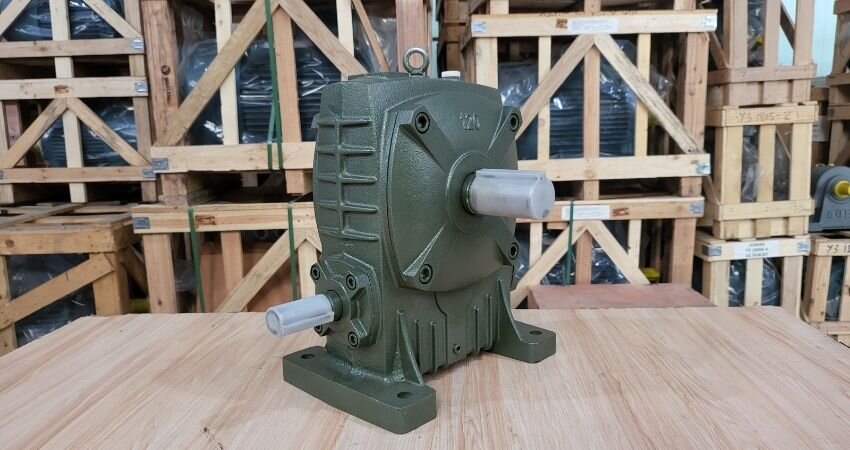

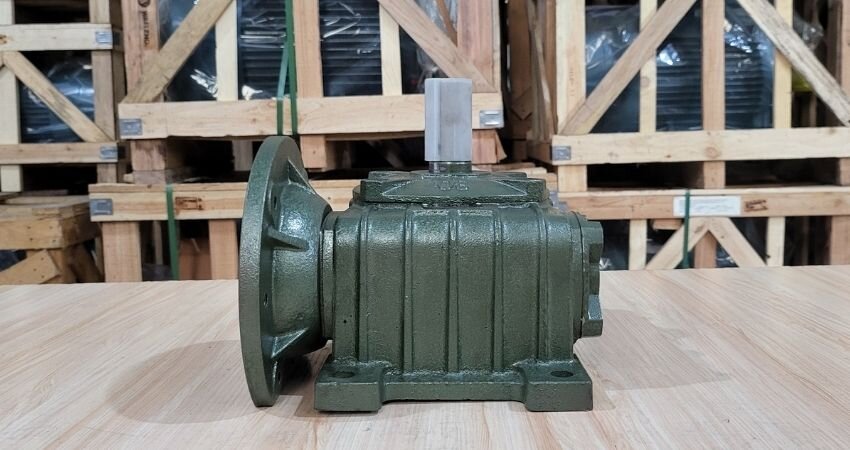

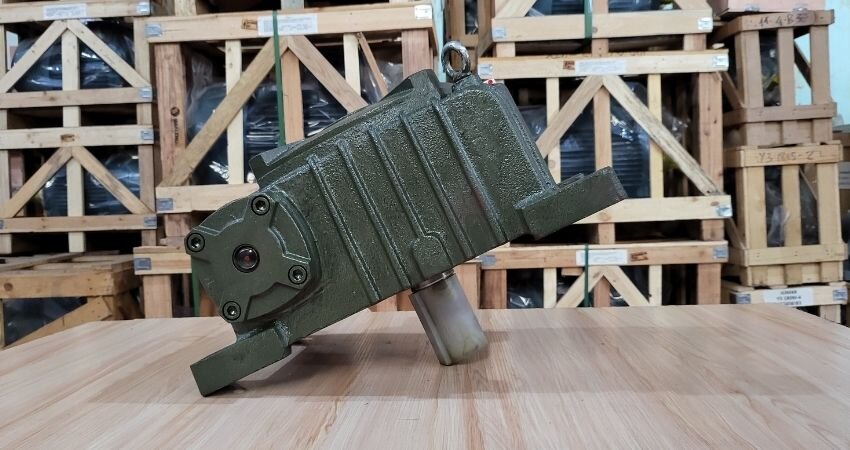

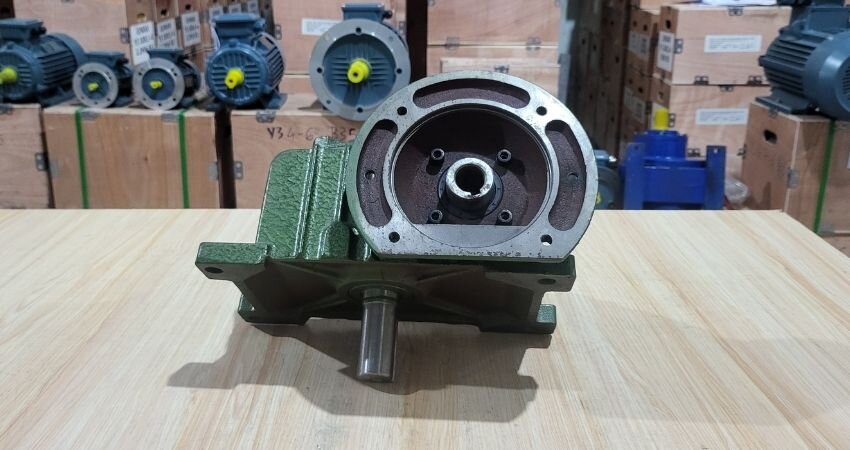

Classification of Worm Gearboxes

Worm Gearboxes are classified based on their construction, shaft orientation, and manufacturing material. Below are the common types available today:

By Number of Reduction Stages:

1-Stage Gearbox: Featuring a single worm shaft - worm wheel pair, a 1-Stage Worm Gearbox provides moderate gear ratios, suitable for light to medium load applications.

2-Stage Gearbox: Comprising two consecutive reduction stages, this type offers higher gear ratios, meeting the demand for deep speed reduction and heavy loads.

By Shaft Orientation:

• Perpendicular Input - Output Shafts: This is the most common type, saving space and facilitating installation in machinery systems.
• Parallel Input - Output Shafts: Less common, typically used for systems requiring co-directional power transmission.

By Manufacturing Material:

• Aluminum Casing: Lightweight, good heat dissipation, often used for low-power gearboxes like NMRV.
• Cast Iron Casing: Rigid, capable of heavy loads, suitable for heavy industrial environments.

By Output Shaft Type:

• Solid Shaft: Commonly used in direct drive applications.
• Hollow Shaft: Popular for applications mounted directly onto the machine’s shaft to save installation space.

Advantages of Worm Gearboxes

Worm Gearboxes offer many outstanding advantages, making them a popular choice in various industrial transmission systems:

• Efficient speed reduction, high torque increase: Thanks to the worm shaft meshing with the worm wheel, the gearbox significantly reduces rotational speed and powerfully amplifies output torque.
• Smooth, low-noise operation: The sliding transmission structure helps reduce vibration and noise, suitable for environments requiring high quietness.
• Good self-locking capability: When rotation stops, the worm wheel cannot easily drive the worm shaft in reverse, creating a self-locking effect - highly safe for lifting mechanisms.
• Compact, space-saving design: The right-angle shaft configuration facilitates easy installation in machinery with limited space.
• High durability, low maintenance: Components are lubricated with oil or grease, reducing friction and extending lifespan.
• Reasonable cost: Compared to many other types of gearboxes, Worm Gearboxes have lower investment and operating costs, and are easy to replace and repair.

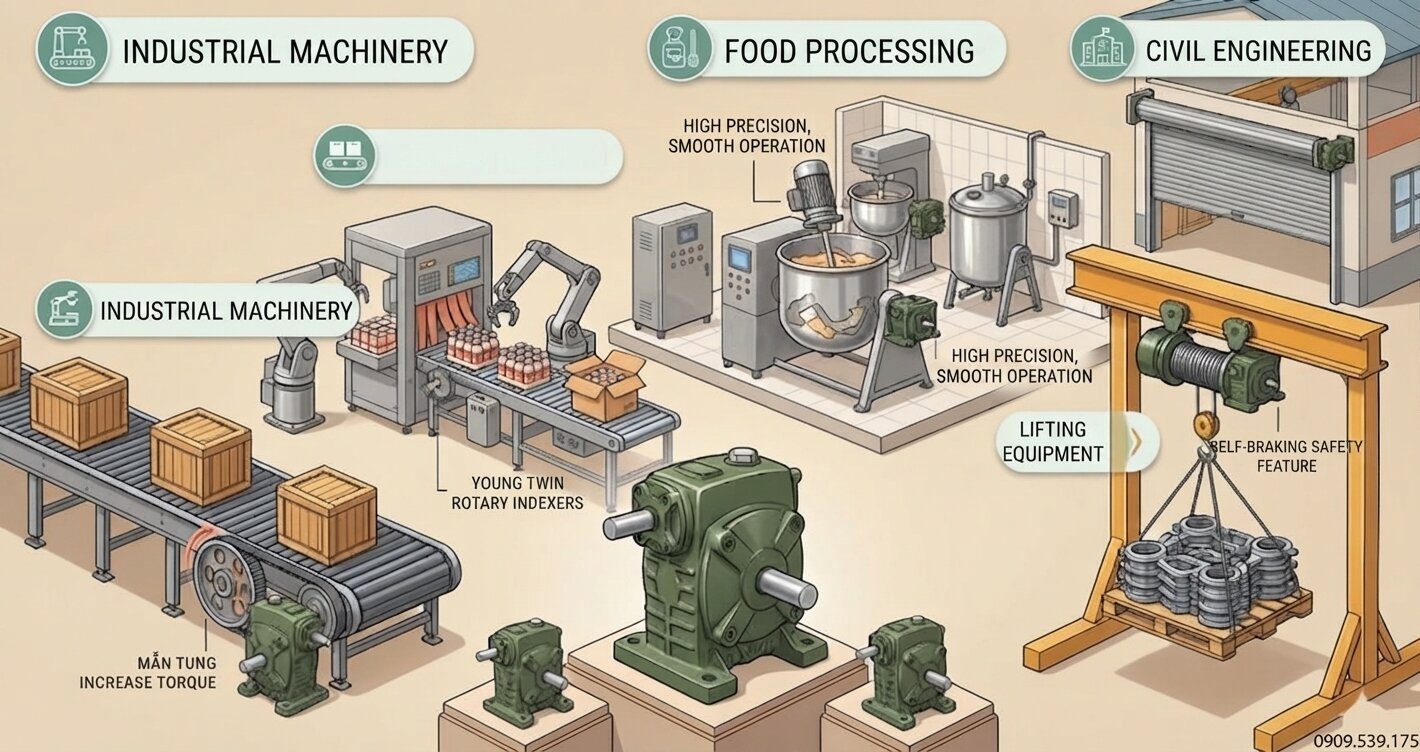

Applications of Worm Gearboxes

Worm Gearboxes are very widely used in many fields thanks to their strong speed reduction capability, smooth operation, and safe self-locking feature. Some common applications include:

• Industrial machinery: used in packaging machines, mixers, rolling mills, textile machines, and automated production lines.
• Conveyor systems: help regulate stable travel speed, increasing torque for heavy material transport.
• Lifting equipment: such as elevators, cranes, lifting tables - leveraging the self-locking feature to ensure safe operation.
• Food processing and pharmaceutical industries: operates smoothly, without vibration, suitable for environments requiring high precision.
• Civil mechanical equipment: industrial fans, rolling doors, mixers, presses…
• Thanks to their compact design, high efficiency, and good durability, Worm Gearboxes are an optimal choice for both heavy industry and civil applications.
