2-Stage Cycloidal Gearboxes are a type of gearbox (speed reducer) transmission that uses a cycloidal gear mechanism through two reduction stages, helping to increase the transmission ratio while maintaining high load capacity, smooth operation, and long-lasting durability. When the gearbox is combined with an electric motor to form a gear motor, specifically a heavy duty gear motor, it delivers superior transmission efficiency.
Unlike 1-stage cycloidal gearboxes, the 2-stage type is designed with an additional transmission stage, allowing for a very large transmission ratio within a compact device. This is an ideal choice for applications requiring high traction, low speed, and long-term stable operation.
2-stage cycloidal gearbox at Thanh Thai Motor.
Advantages of 2-Stage Cycloidal Gearboxes
High transmission ratio: 2-stage cycloidal gearboxes can reduce speed to very low levels without using many external transmission stages, helping to save installation space.
Good load and overload capacity: The cycloidal transmission mechanism uses multiple power transmission pins simultaneously, so the load is evenly distributed, minimizing stress concentration at a single point.
High output torque: Suitable for systems that frequently start under load or work with heavy loads for long periods.
Stable operation in industrial environments: The gearbox is capable of continuous operation in manufacturing plants, building material production lines, mineral mining, and industrial processing.
Sturdy cast iron housing: Most 2-stage cycloidal lines use high-hardness cast iron housing, offering good vibration resistance and limiting deformation when working with heavy loads.
Low maintenance cost: Durable structure, few minor breakdowns, and relatively common replacement parts, helping to reduce long-term operating costs.

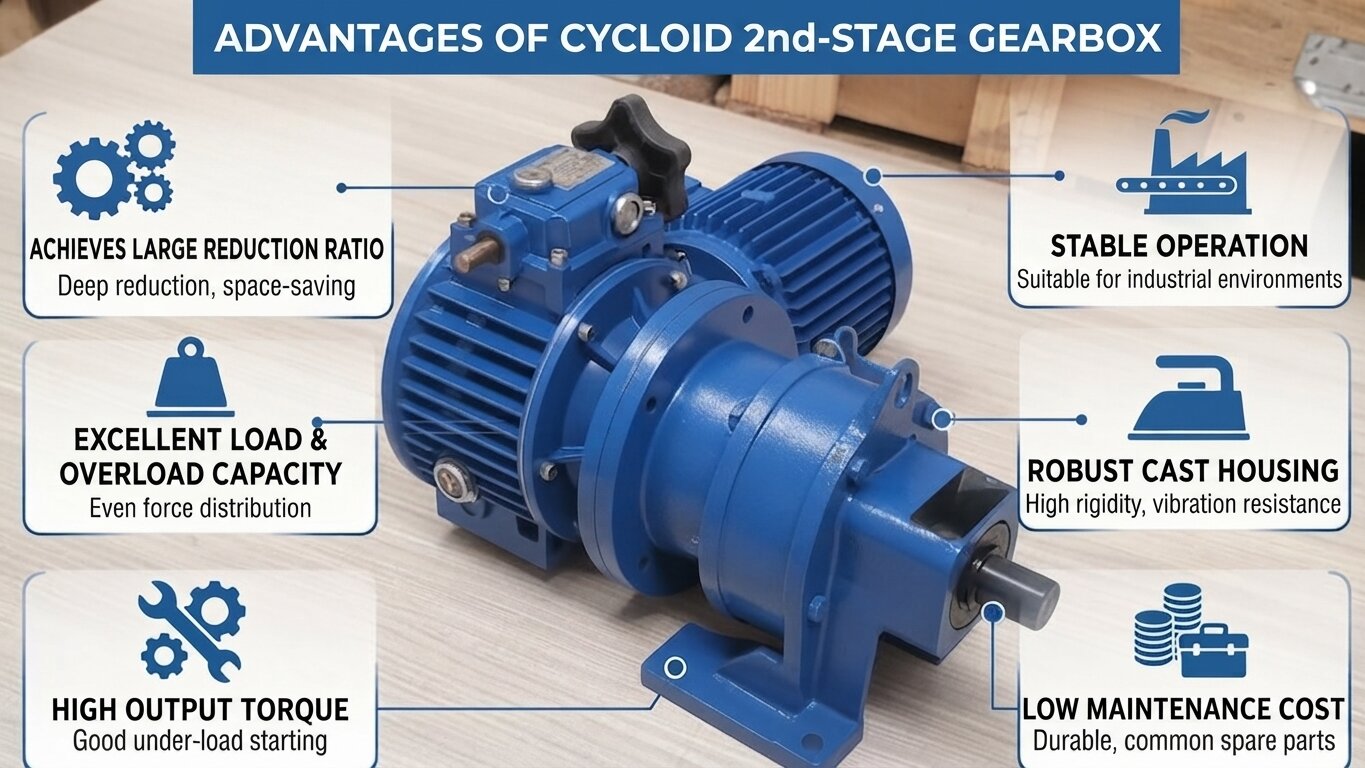

Advantages of 2-stage cycloidal gearboxes.
Applications of 2-Stage Cycloidal Gearboxes
Industrial bucket elevator systems: Help pull loads stably when transporting materials upward in cement plants, animal feed mills, and building material facilities.
Concrete mixers and material mixing plants: Meet high torque requirements upon startup and maintain stable rotation speed throughout the mixing process.
Crushers: Suitable for equipment that frequently bears heavy loads and generates impact forces during operation.
Animal feed production lines: Installed on mixers, pellet mills, conveyors, and feeding units that require continuous operation.
Wastewater treatment equipment: Used for settling tank agitators, reaction tanks, or slow-speed sludge scraping systems.
Turntables and industrial rotation mechanisms: Suitable for systems requiring low speed, high stability, and long-term working capacity.

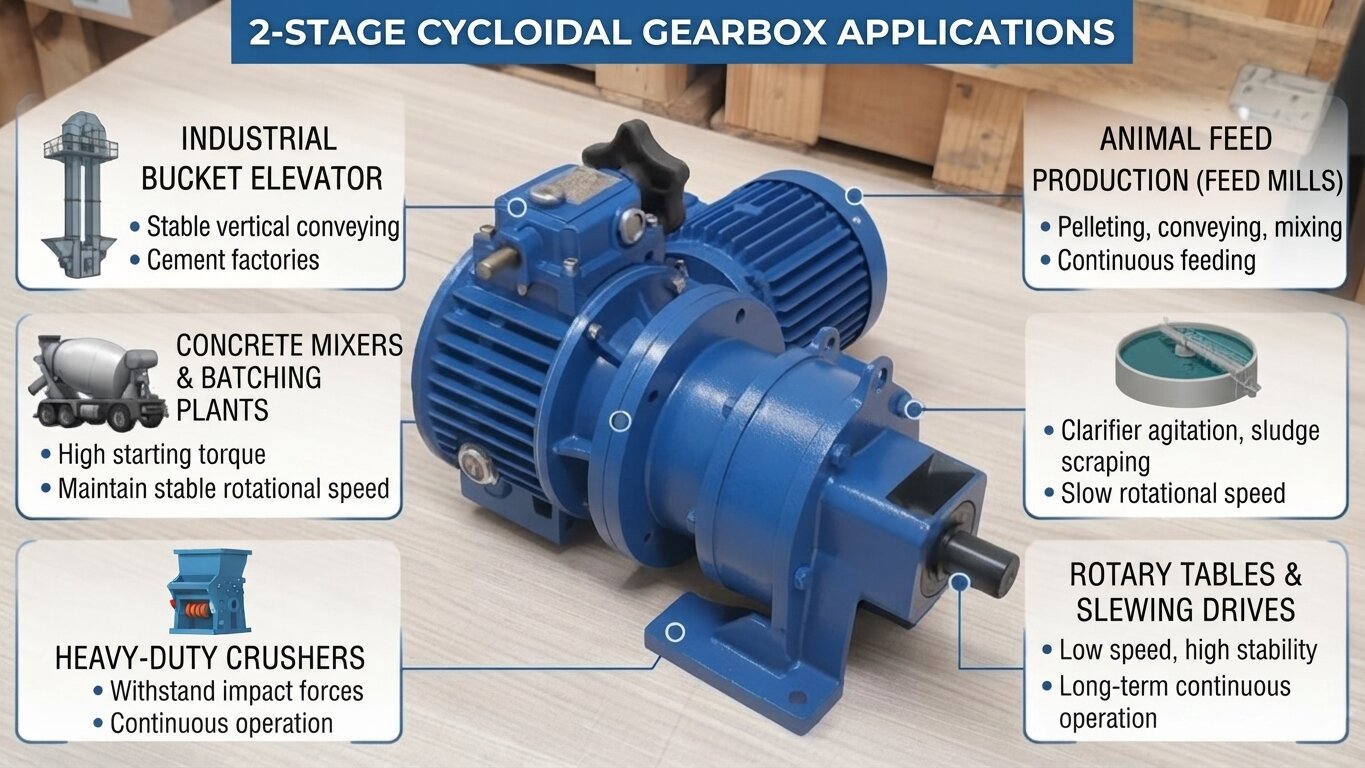

Applications of 2-stage cycloidal gearboxes.
Price List for 2-Stage Cycloidal Gearboxes at Thanh Thai Motor
Below is the price list for 2-stage cycloidal gearboxes currently sold at Thanh Thai Motor. Customers can refer to each size, transmission ratio, and load capacity to select the model that suits the actual operating requirements of the system.
Criteria for Purchasing 2-Stage Cycloidal Gearboxes
Determine the correct torque: This is a more important parameter than just looking at the motor power.
Check the load: Especially for systems that frequently start under load or have impact loads.
Evaluate radial loads acting on the output shaft: If using pulleys, sprockets, or belt wheels, radial loads can significantly affect bearing lifespan.
Working environment conditions: High temperature, heavy dust, or high humidity will affect the selection of seals and lubricants.
Check maintainability: Priority should be given to lines with readily available spare parts for convenient future repairs.
Compare installation dimensions: Including feet, flanges, input and output shafts before placing an order.
In addition, customers can refer to the comprehensive video on 2-stage cycloidal gearboxes produced by Thanh Thai Motor. The gearbox video content introduces the internal structure, common transmission ratio levels, how to select motor power according to load, and some common installation and maintenance experiences during use.
Frequently Asked Questions
The machine runs normally, but the 2-stage cycloidal gearbox is often hotter than before. What is usually the cause?
In practical repair cases, common causes are deteriorating bearings, insufficient lubricant, or operating loads that have increased compared to the initial design. These are items that should be inspected before completely disassembling the gearbox.
What should be noted when using 2-stage cycloidal gearboxes for stone crushers or wood grinders?
This is a load group with very large impulse forces. When selecting, priority must be given to overload capacity and starting torque rather than just motor power. In many cases, gearboxes fail early due to selecting the right power but lacking backup torque.
After replacing the bearings, why does the 2-stage cycloidal gearbox still vibrate during operation?
If the bearings have been replaced according to technical standards but vibration persists, it is necessary to check the wear of the power transmission pins, cycloidal discs, concentricity between the motor and the gearbox, or shaft misalignment of the driven equipment at the rear.
