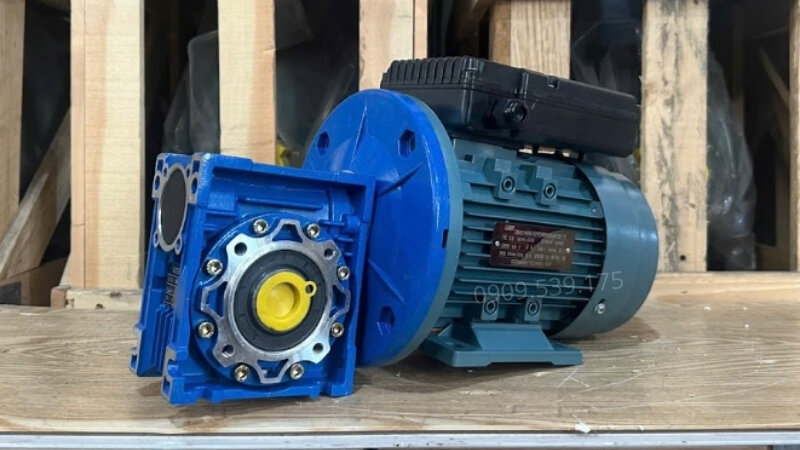

What is NMRV gear motor?

An NMRV gear motor is a line of gear motor products utilizing a worm gear reducer design with a modern, compact square housing. Thanks to this special construction, the motor operates smoothly, reduces vibration effectively, and saves installation space. The gearbox is usually made of aluminum alloy, ensuring lightweight yet maintaining rigidity and durability during operation.

A prominent advantage of the NMRV series is its self-braking (self-locking) capability when power is cut off, helping to maintain stable load holding and increase operational safety. In addition, the NMRV gear motor can be easily combined with various installation styles such as foot-mounted, flange-mounted, or shaft-mounted, making it suitable for conveyors, packaging machines, mixers, lifting systems, and many modern automated mechanical equipment.

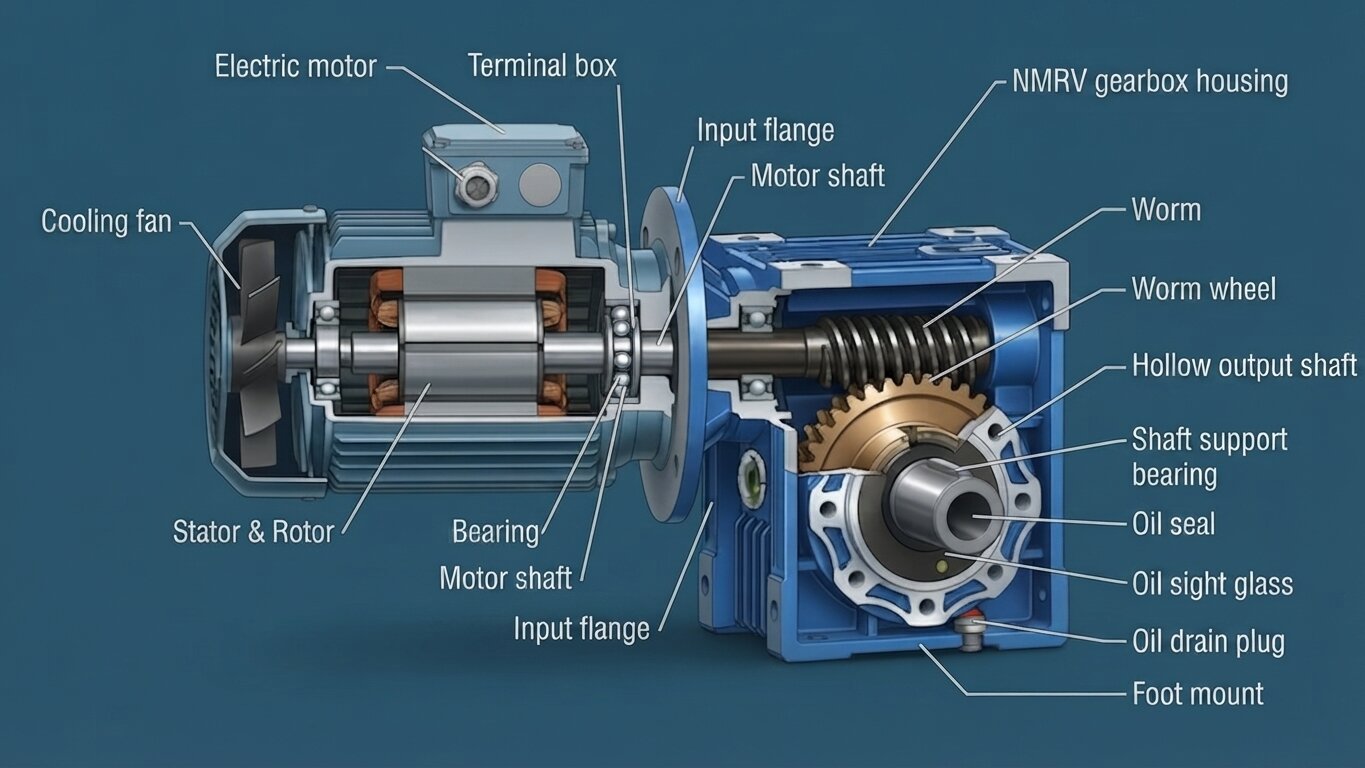

NMRV gear motor structure

The NMRV gear motor is designed with a worm gear configuration, featuring a compact structure while ensuring stable transmission, smooth operation, and high durability. The basic structure of the device includes the following components:

• Gearbox housing: Usually made of aluminum alloy or solid cast iron, offering good load-bearing capacity and effective heat dissipation support. The lightweight housing design allows for easy installation in various spaces while ensuring rigidity during operation.
• Worm and worm wheel: This is the most important part of the NMRV gearbox. The worm is typically made of hardened steel with high precision, while the worm wheel uses a bronze alloy to reduce friction, ensure smoother operation, and minimize wear during long-term use.
• Electric motor: This is the component that generates the initial rotational motion for the entire system. Depending on the application requirements, the motor can be 1-phase or 3-phase and is usually directly coupled with the gearbox to form an integrated drive assembly.
• Bearings and oil seals: Responsible for supporting stable shaft rotation, reducing friction, and minimizing vibration during operation. The oil seals also help prevent lubricating oil leakage and restrict dust or moisture from entering the inside of the gearbox.
• Cooling fins and protective cover: Help cool the motor and protect internal parts from external environmental impacts, contributing to an extended lifespan for the NMRV gear motor.

Operating principle of NMRV gear motor

The NMRV gear motor operates based on the transmission mechanism between the worm and the worm wheel to reduce rotational speed and increase output torque. When the electric motor runs, rotational motion is transmitted from the motor shaft to the worm inside the gearbox. The worm then meshes with the worm wheel in a sliding transmission manner, allowing the worm wheel to rotate at a slower speed while generating a greater pulling force.

The gear ratio of the gearbox depends on the structure between the number of starts of the worm and the number of teeth on the worm wheel. As a result, the NMRV gear motor can flexibly meet various practical requirements regarding speed and load.

With this operating principle, the NMRV gear motor offers advantages such as quiet operation, low vibration, good self-braking capability, and stable long-term operation. The device is commonly used in conveyors, mixers, packaging machines, lifting systems, and many modern industrial production lines.

Classification of NMRV gear motors

NMRV gear motors can be classified based on the power supply used and power rating, helping you easily select the product that suits your needs.

Classification by power supply

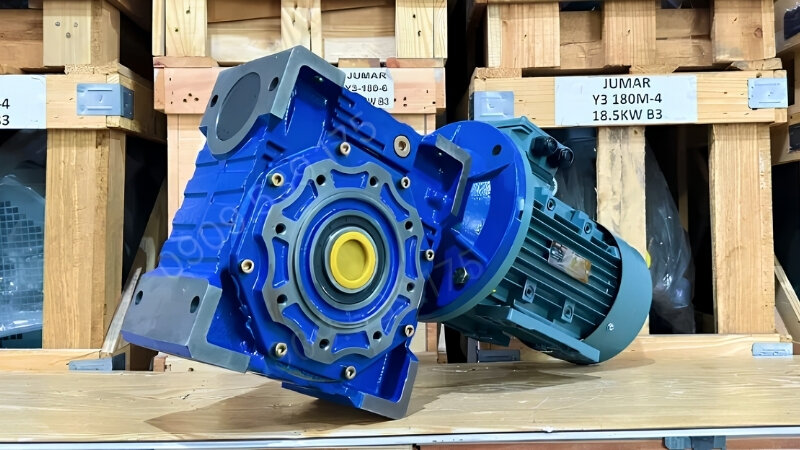

1-Phase NMRV gear motor: Uses a 220V household power supply, suitable for small workshops, business households, or small and medium-capacity mechanical equipment. This motor series features easy installation, energy savings, and convenience when used in places without 3-phase power.

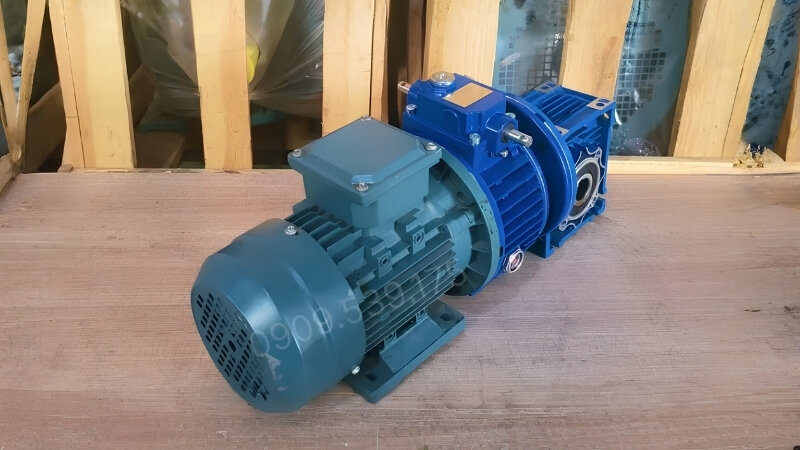

3-Phase NMRV gear motor: Operates on a 380V industrial power supply, providing powerful and more stable performance over long periods. This series is commonly applied in conveyors, mixers, production lines, lifting systems, and mechanical equipment requiring heavy loads.

Classification by power rating

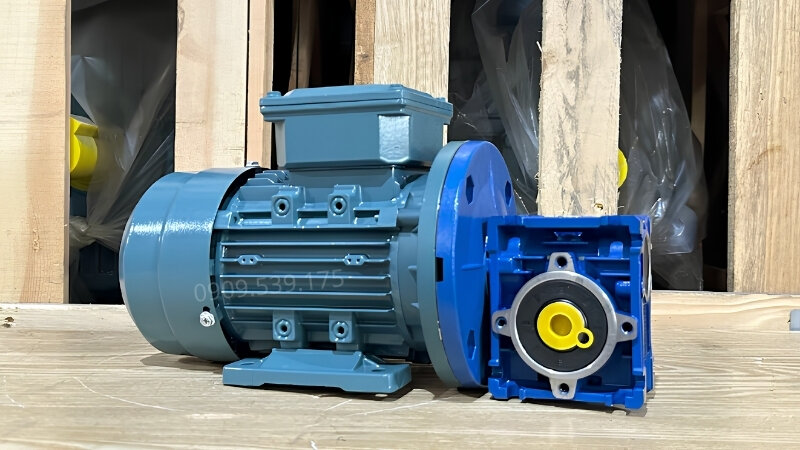

NMRV gear motor under 1.1kW: A small power series featuring a compact design and relatively quiet operation. It is commonly used for light-load applications such as packaging machines, mini mixers, food conveyors, or small automation systems.

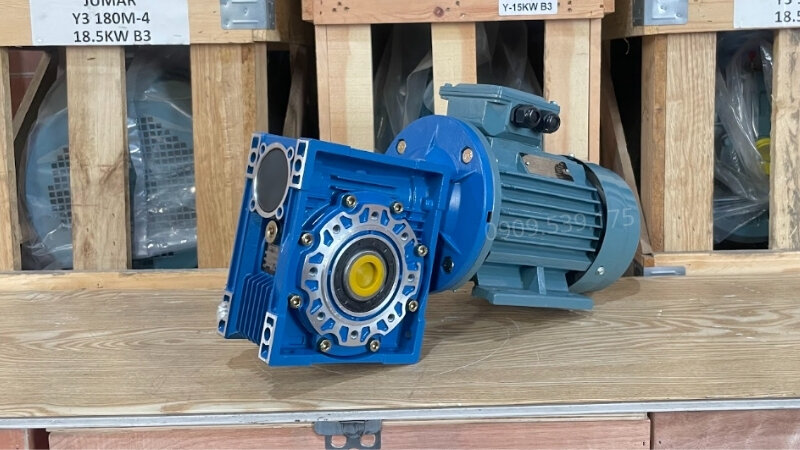

NMRV gear motor from 1.1kW to 3.7kW: This is the most popular power range today thanks to its ability to well meet various transmission requirements. This motor series is suitable for small and medium-sized production machinery, conveyor systems, mixers, or mechanical equipment requiring continuous operation.

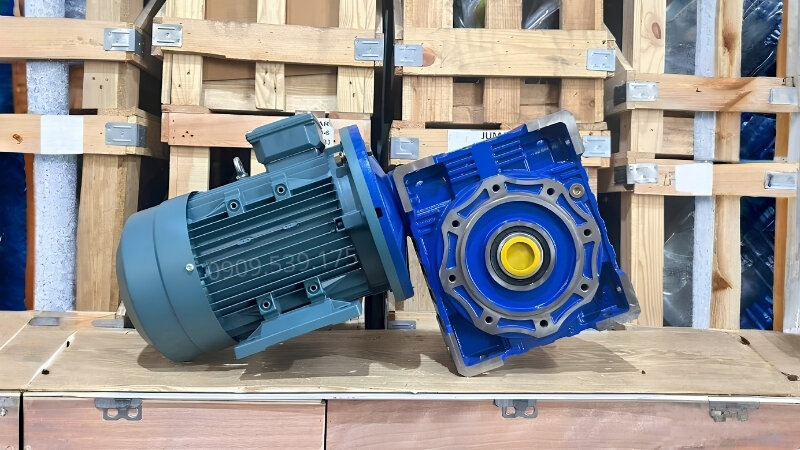

NMRV gear motor over 3.7kW: Belonging to the large power group, specialized for heavy industrial applications requiring high torque and good load-bearing capacity. The equipment frequently appears in large-scale production lines, presses, crushers, or drive systems operating continuously at high intensity.

NMRV gear motor price at Thành Thái Motor

Below is the latest updated NMRV gear motor price at Thành Thái Motor with various gear ratios, mounting styles, and power ratings for your convenient reference and selection.

Notes on choosing and using an NMRV gear motor

To ensure the NMRV gear motor operates stably, durably, and suits application requirements, users should note the following important factors:

• Choose the correct power and gear ratio: It is necessary to determine the load, output speed, and operating environment to select a motor with appropriate power and gear ratio, avoiding overload or inefficient operation.
• Check the power supply used: NMRV gear motors come in both 1-phase and 3-phase types, so it is necessary to choose the correct voltage suitable for the actual electrical system at the installation site.
• Prioritize quality gearbox materials: You should choose series using bronze alloy worm wheels and hardened steel worms to increase durability, reduce wear, and help the motor operate more smoothly.
• Correct technical installation: Ensure that the motor is installed securely, balanced, and in the correct position to minimize vibration and noise, and increase the lifespan of the gearbox.
• Regularly check lubricating oil: Gearbox oil plays an important role in reducing friction and cooling gears. Users should inspect and change oil periodically according to the manufacturer’s recommendations.
• Choose a reputable supplier: Prioritize products with clear technical specifications, full warranty, and easy component replacement when maintenance or repair is needed.

To better understand the operational capability, practical construction, and how to select the right model, customers can view additional gear motor videos in the comprehensive video section shared by Thành Thái Motor.

Frequently Asked Questions [FAQ]

Do NMRV gear motors need gearbox oil changes?

Yes. Users should check and change oil periodically to ensure lubrication, reduce wear, and increase gearbox lifespan.

How to choose a suitable NMRV gear motor?

Users should choose based on load, output speed, motor power, and installation space to ensure stable system operation.

Why are NMRV gear motors widely used?

The NMRV series offers advantages such as being compact, easy to install, quiet in operation, and reasonably priced. Additionally, the right-angle shaft design helps save space for the system.
