NMRV 1-Stage Gearboxes are worm gear reducers designed with a single transmission stage, functioning to reduce the motor rotation speed and increase the output torque for the system.
In terms of structure, the NMRV gearbox consists of main components such as an aluminum alloy or cast iron housing, worm shaft, worm wheel, bearings, oil seals, and a lubrication system. The worm and worm wheel drive mechanism provides effective speed reduction, stable operation, and minimized noise during operation. With various gear ratios, this gearbox series meets diverse speed reduction needs in production and automation.

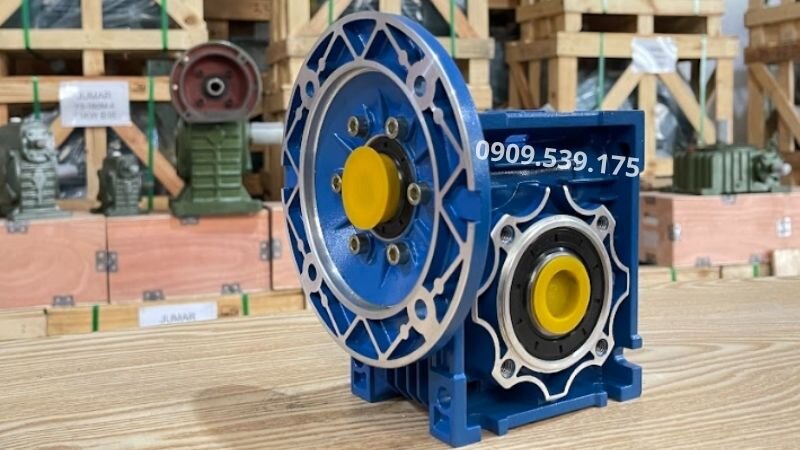

NMRV 1-Stage Gearbox at Thành Thái Motor.
Applications of NMRV 1-Stage Gearboxes
Cargo conveyor systems: The gearbox helps reduce the motor speed to an appropriate level, ensuring that the conveyor transports products stably and continuously during production.
Automatic packaging machines: Used to drive film pulling, feeding, or conveying mechanisms in packaging lines, helping to control speed more precisely.
Agitators and mixing tanks: The NMRV gearbox helps reduce rotation speed and increase torque, suitable for mixing liquid or powder materials.
Food processing machines: Installed in mixing, stirring, feeding, or material handling equipment, helping the system operate smoothly and stably.
Automatic production lines: The gearbox participates in drive mechanisms requiring low speed and high torque in automation systems.
Automatic gates: The gearbox helps reduce the motor rotation speed, creating stable traction for the automatic door opening and closing system.

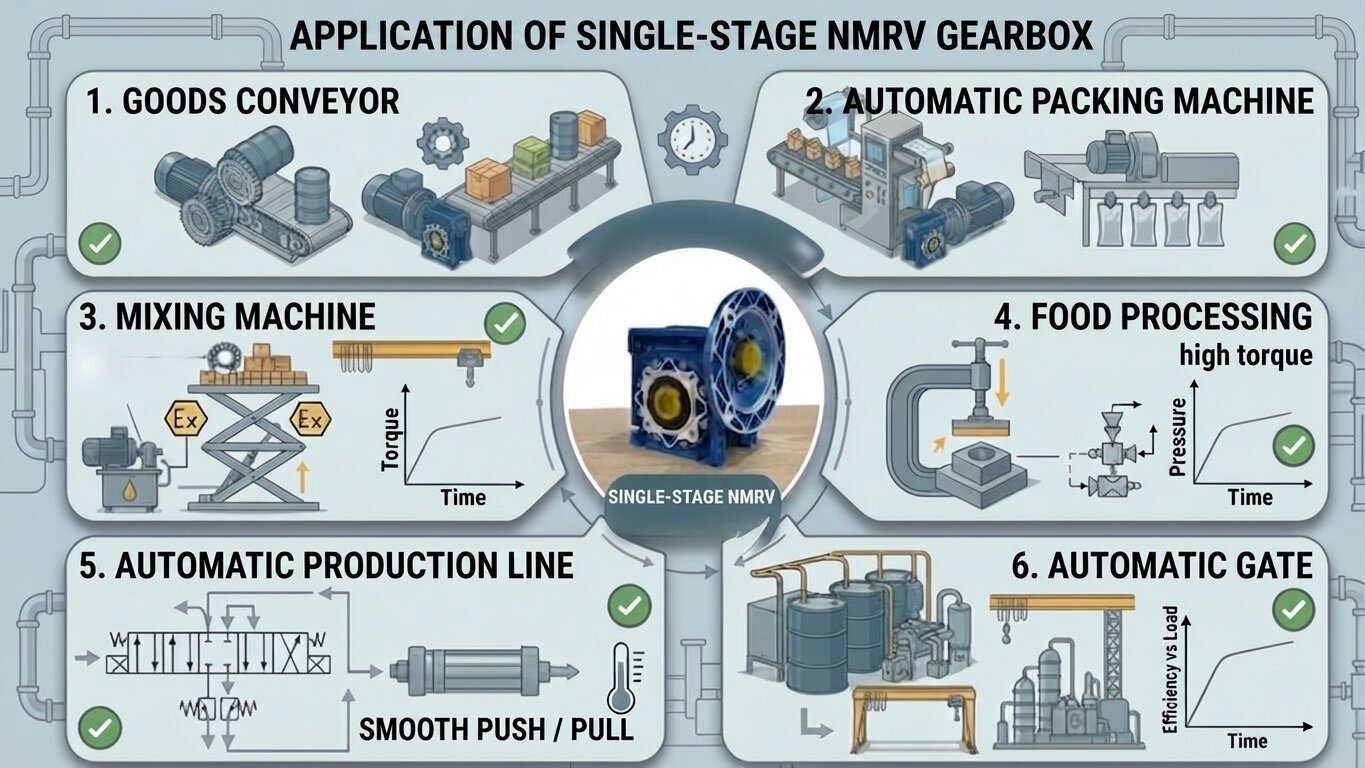

Applications of NMRV 1-Stage Gearboxes.
Key advantages of NMRV 1-Stage Gearboxes
Sturdy design, easy installation: The square housing structure allows the NMRV gearbox to be easily installed in various positions, suitable for systems with limited space.
Smooth operation, low noise: The worm and worm wheel drive mechanism helps reduce vibration and noise during operation, suitable for continuous production lines.
Diverse gear ratios: There are multiple gear ratio stages to choose from, meeting the speed reduction requirements of various machinery and transmission systems.
Torque boosting capability: After speed reduction, the gearbox helps increase output traction, supporting equipment to operate more stably under load.
Durable aluminum alloy or cast iron housing: Depending on size and power, the gearbox is made from high-durability materials, ensuring good heat dissipation and extending product lifespan.
Flexible motor coupling: It can be combined with various motor lines via standard flanges or couplings, convenient for replacement and maintenance.

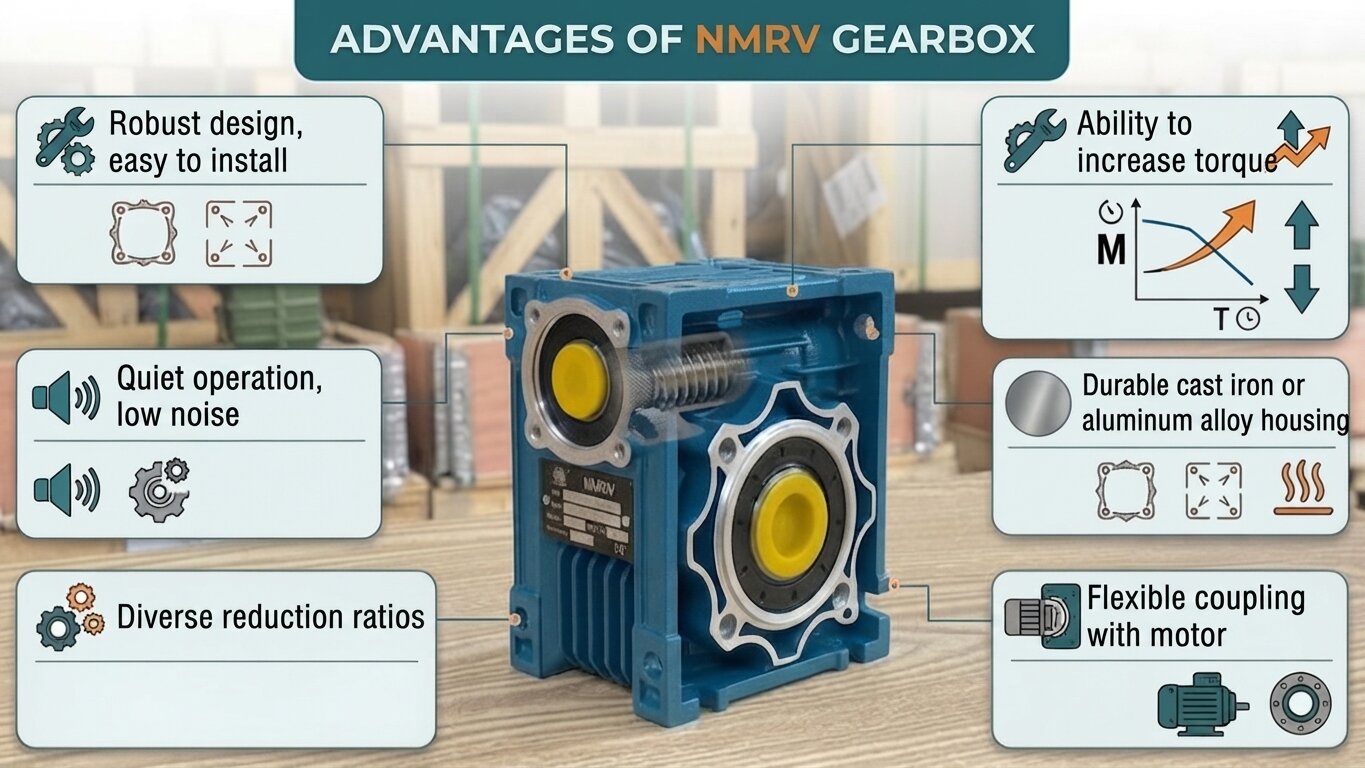

Key advantages of NMRV 1-Stage Gearboxes.
Price list for NMRV 1-Stage Gearboxes at Thành Thái Motor
Below is the reference price list for NMRV 1-StageGearboxes at Thành Thái Motor, updated according to each size and popular gear ratio, helping customers easily choose the product that suits their usage needs and actual transmission systems.
Determine the correct gear ratio: The gear ratio determines the output speed of the gearbox. It is necessary to calculate the output shaft speed to match the operating requirements of the machinery before selection.
Check output torque: The gearbox must meet actual loads such as 50kg, 100kg, 200kg of the system to avoid overload, which causes gearbox heating or reduces the lifespan of the worm wheel and worm shaft.
Choose suitable housing material: For light load applications, aluminum housings can be used, while continuous working environments or heavy loads should prioritize cast iron housing gearboxes to increase durability.
Pay attention to installation style and shaft dimensions: It is necessary to check the input shaft, output shaft, flange dimensions, and installation position to ensure connectivity with the motor and transmission equipment.
Prioritize reputable suppliers: Customers should choose products with clear origins, complete technical specifications, and warranty policies to facilitate future maintenance and repair.
In addition, customers can refer to the gearbox video section at Thành Thái Motor. The compiled video shares a lot of practical information regarding structure, gear ratios, how to choose appropriate motor power, installation instructions, and technical notes during the operation of NMRV 1-Stage Gearboxes.
Frequently Asked Questions
Why does the NMRV 1-Stage Gearbox leak oil at the shaft end even after replacing with a new seal?
Besides a damaged seal, this phenomenon can also stem from a worn shaft journal, loose bearings, or a clogged vent hole, which increases the internal pressure inside the gearbox.
Why does the NMRV gearbox emit a loud humming noise when operating at high loads?
The cause is often related to a lack of lubricating oil, misalignment of the meshing clearance between the worm shaft and worm wheel, or internal bearings being damaged after long-term use.
Why does the NMRV 1-Stage Gearbox heat up above 80°C even though the amount of lubricating oil is sufficient?
Besides overloading, this phenomenon is usually related to worn bronze worm wheels increasing sliding friction, poor concentricity between the motor and gearbox, or a gear ratio unsuited to actual working conditions.
