NMRV Gearbox 130

A gearbox is a vital component in heavy industrial machinery systems and conveyors. The NMRV gearbox is a popular choice due to its robust design and high durability. Specifically, the NMRV Gearbox 130 is available in various sizes and rotational speeds, effectively meeting user requirements.

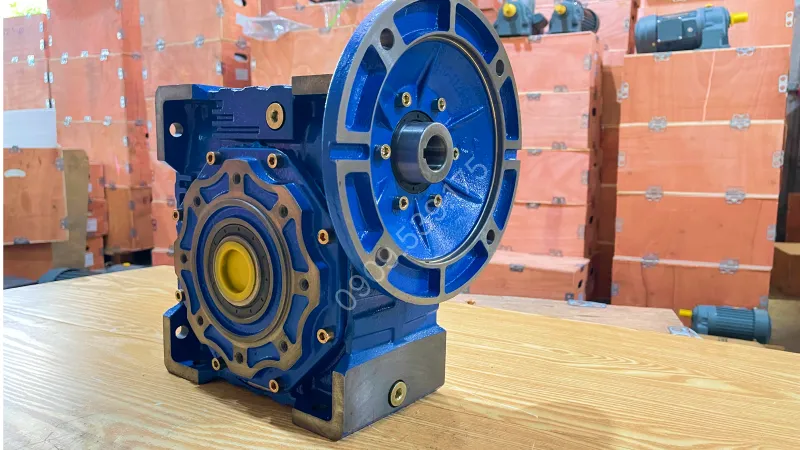

Overall Design of NMRV Gearbox 130

The NMRV Gearbox 130 features a robust cast iron casing, characterized by its distinctive blue color, which is favored by many customers. The cast iron material not only withstands high temperatures but also enhances the product’s durability. The gears of the gearbox are heat-treated to improve hardness and ensure long-lasting, stable operation.

This product can be combined with an electric motor to form a complete geared motor, providing efficient power transmission for various industrial equipment such as conveyors, packaging machines, and other automation systems.

Internal Structure of NMRV Gearbox 130

The NMRV Gearbox 130 has a compact size, suitable for many types of machinery. With its robust construction, the NMRV Gearbox 130 can withstand significant loads, meeting stringent industrial requirements. The internal structure includes:

• Gears are the main components, generating the necessary gear ratio and converting speed and torque.
• The drive shaft connects to the gearbox, facilitating rotation and achieving the desired rotational speed.

This structure not only delivers high efficiency but also ensures the product’s durability and lifespan.

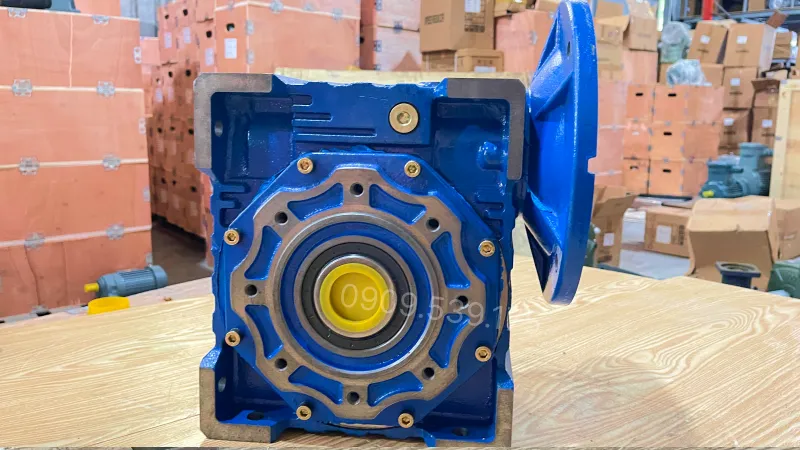

Functions and Applications of NMRV Gearbox 130

The NMRV Gearbox 130 is a 1-stage gearbox, designed to handle heavy loads. The use of this gearbox depends on the needs and load capacity of the machinery. Some typical applications include:

• Conveyors in the rice industry: Supports efficient material transportation.
• Concentrated solution mixing machines: Ensures uniform and efficient mixing processes.
• Wood pellet and rice husk pellet presses: Enhances pressing capacity with high torque.
• Hoist elevators: Used for transporting goods and people, ensuring safety and efficiency.

Outstanding Advantages of NMRV Gearbox 130

The NMRV Gearbox 130 is popular in the industry due to its superior advantages:

• Robust design: The gearbox is designed simply yet ensures durability and heavy-load capacity, suitable for various applications.
• Easy installation and transport: This system does not require high technical expertise during assembly and disassembly, saving users time and effort.
• Reasonable price: Despite its high performance, the NMRV Gearbox 130 has an affordable price, offering an effective investment for businesses.

Thanks to these advantages, the NMRV Gearbox 130 is an ideal choice for many devices and systems in the industrial sector.

Watch a detailed video about the NMRV gearbox product!

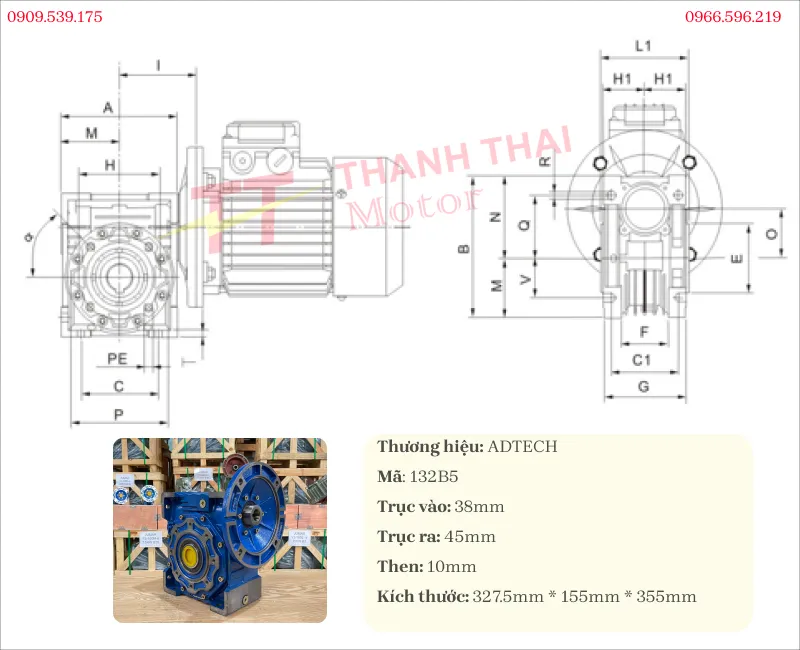

Classification of NMRV Gearbox 130

The NMRV Gearbox 130 is available in the following mounting types:

NMRV Gearbox 130 Hollow Shaft

• Flange diameter: 300mm.
• Input shaft diameter: 28mm.
• Output shaft diameter: 45mm.
• Gear ratio: 1/10, 1/20, 1/30.

NMRV Gearbox 130 Solid Shaft

• Flange diameter: 300mm.
• Input shaft diameter: 28mm.
• Output shaft diameter: 45mm.
• Gear ratio: 1/10, 1/20, 1/30.

NMRV Gearbox 130 B14 Flange

• Flange diameter: 300mm.
• Input shaft diameter: 28mm.
• Output shaft diameter: 45mm.
• Gear ratio: 1/10, 1/20, 1/30.

How to Use NMRV Gearbox 130

To ensure the efficient operation of the NMRV Gearbox 130, follow these steps:

• Remove the breather plug: Before use, remove the gearbox’s breather plug to ensure air circulation and heat dissipation.
• Install the motor: Use a B5 flanged motor to connect with the NMRV gearbox via a B5 flange or connect using a pulley or coupling, depending on the system requirements.
• Apply power: Once installation is complete, supply power to the motor. The motor will rotate and drive the gearbox to the desired speed.

Following the correct procedure will help the gearbox operate stably and durably.
