2-Stage NMRV Gearbox 63 – 110

The 2-Stage NMRV Gearbox 63 – 110 is a gearbox line combined from two NMRV gearboxes of sizes 63 and 110, delivering high transmission efficiency, smooth operation, and superior durability, suitable for various heavy industrial applications.

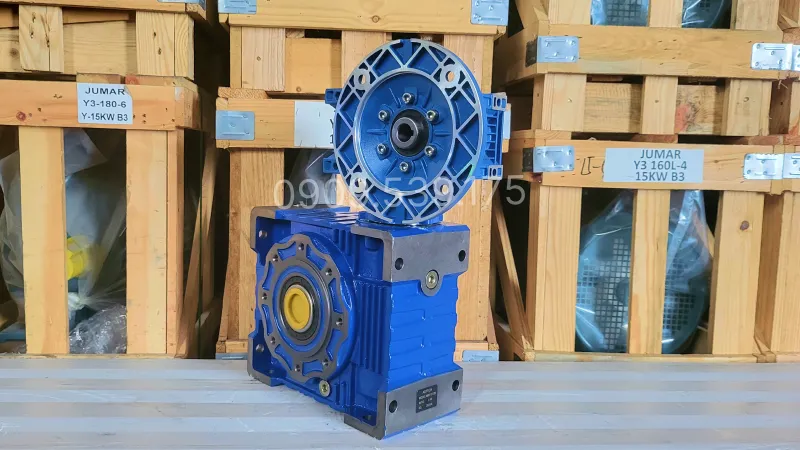

General Design of the 2-Stage NMRV Gearbox 63 – 110

As a 2-stage gearbox designed with a compact, sturdy, and highly aesthetic style, it is suitable for modern drive systems. The housing body is manufactured from solid die-cast aluminum alloy or high-grade aluminum cast iron, helping reduce weight while ensuring good rigidity and load-bearing capacity.

The housing surface is treated with anti-corrosion electrostatic powder coating, helping the product operate durably in environments with high humidity and dust. The two-stage worm gear – gear structure is precisely assembled, ensuring high concentricity, smooth operation, and minimizing noise.

Thanks to its flexible design, the combination of the NMRV 63 gearbox and NMRV 110 gearbox can be easily connected with electric motors or other drive devices, suitable for installation in various directions and working spaces.

Detailed Structure of the 2-Stage NMRV Gearbox 63 – 110

This 2-stage NMRV gearbox helps generate a much slower output speed and higher torque compared to single-stage types. The main components include:

• Worm wheel: Manufactured from high-quality bronze or brass alloy, helping resist wear and provide stable power transmission.
• Worm shaft: Made of hardened steel, polished to reduce friction and increase durability during continuous operation.
• Housing: Solid die-cast from high-grade aluminum alloy, making it lightweight, durable, and rust-resistant.
• Intermediate connector: Links the two NMRV gearboxes, facilitating concentric torque transmission, reducing vibration, and increasing stability.
• Input shaft: Standard design, easy to connect directly with an electric motor.
• Output shaft: Can be solid or hollow shaft, suitable for installation in conveyors, mixers, agitators, and machines.

Specifications of the 2-Stage NMRV Gearbox 63 – 110

The parameters below help select the appropriate gearbox for the motor and operating conditions.

Specifications of the NMRV 63 Gearbox

NMRV 63 is the first transmission stage, receiving power from the motor before transmitting it to the NMRV 110 stage.

Specifications

Specifications of the NMRV 110 Gearbox

NMRV 110 is the second transmission stage, continuing to reduce speed and increase torque before transmitting to the working equipment.

Specifications

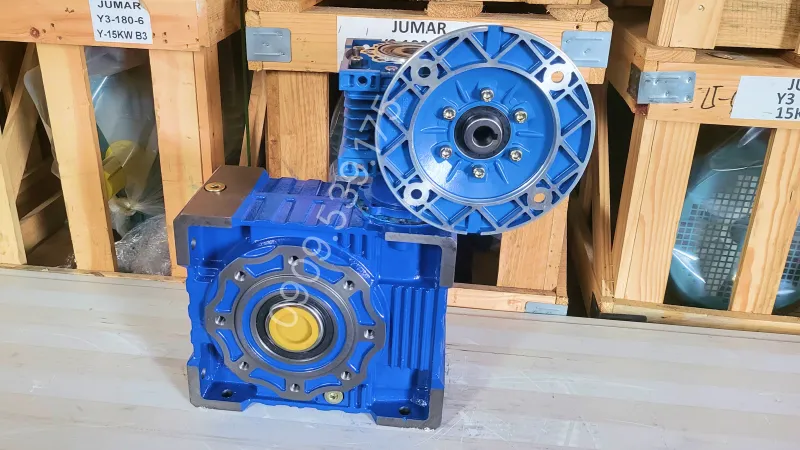

Applications of the 2-Stage NMRV Gearbox 63 – 110

Thanks to its stable operation and flexible design, the 2-Stage NMRV Gearbox 63 – 110 is used in industrial and civil equipment such as:

• Sorting conveyors, inclined conveyors in manufacturing plants.
• Pellet mills, small grinders in the animal feed processing industry.
• Bending machines, thin metal cutting machines in the precision mechanical industry.
• Automatic sliding door systems, industrial gates requiring stable torque.
• Cable winding machines, wire coiling machines, packaging machines in automated production lines.

Installation Guide for 2-Stage NMRV Gearbox

Proper installation procedures help the 2-stage NMRV gearbox operate stably and ensure power transmission capability.

Step 1: Inspect equipment before installation

Check the gearbox housing, input shaft, output shaft, flange, and connecting bolts. Ensure that parts are not damaged and are compatible with the motor to be installed.

Step 2: Couple the gearbox with the motor

Install the gearbox flange onto the motor flange, align the two shafts concentrically, and tighten the bolts evenly in sequence to secure the assembly.

Step 3: Check connection points

Recheck the tightness of the bolts, shaft concentricity, and contact surfaces between the motor and gearbox before operation.

Step 4: Test run the system

Run the motor with no load for a short time, monitor noise, vibration, and check connection points to ensure the system operates normally.

Besides this article, you can refer to the summary video on the Thanh Thai Motor channel to see more practical installation and inspection procedures. Meanwhile, the gearbox video will provide additional information on the structure, assembly instructions, and operation of various gearbox lines.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
