NMRV 63 Gearbox

In modern drive systems, the gearbox plays a pivotal role in adjusting the appropriate speed and torque for machinery. Among them, the NMRV gearbox stands out particularly for its compact design, stable operation, and flexible installation capability. Notably, the NMRV 63 Gearbox is favored in many industries such as industry and agriculture thanks to meeting the requirements for rotation speed and diverse mounting types well.

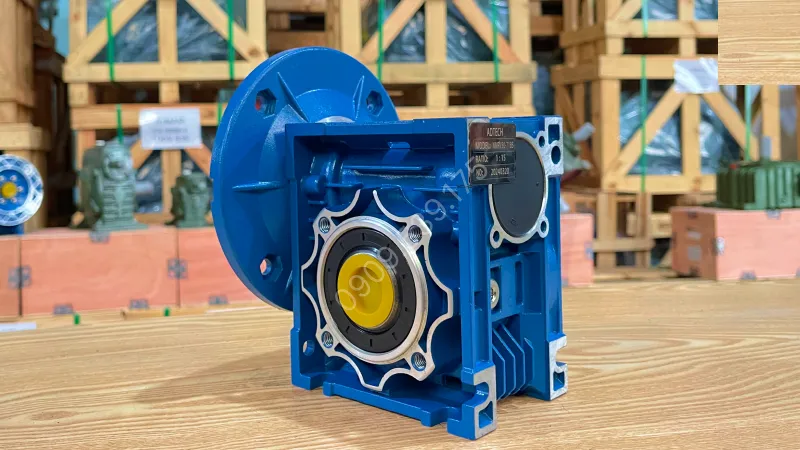

Overview Design of NMRV 63 Gearbox

The NMRV 63 Gearbox features a modern design with a characteristic blue housing, made of high-grade aluminum to help dissipate heat efficiently and reduce weight. The gears of the gearbox are heat-treated at high temperatures, providing superior durability and hardness throughout operation. This design makes the NMRV 63 an efficient transmission solution, supporting industrial equipment to operate stably and long-term.

Internal Structure of NMRV 63 Gearbox

The NMRV 63 Gearbox features a sturdy structure and compact design, suitable for various industrial and civil machinery. Inside the gearbox is a smoothly operating mechanical system, including:

• Worm shaft: The worm shaft is made of high-durability alloy steel and heat-treated to increase surface hardness. After precise machining, the worm shaft has the ability to effectively transmit power from the motor to the worm wheel, helping the system operate stably and withstand heavy loads.
• Worm wheel: The worm wheel uses copper alloy material with high wear resistance and friction tolerance. When combined with the worm shaft, the transmission creates an accurate transmission ratio, reduces rotation speed, increases torque, and ensures the gearbox operates smoothly with minimal vibration.

When combining the NMRV 63 Gearbox with an electric motor, you will have a complete gear motor, acting as an efficient transmission unit for many machinery systems.

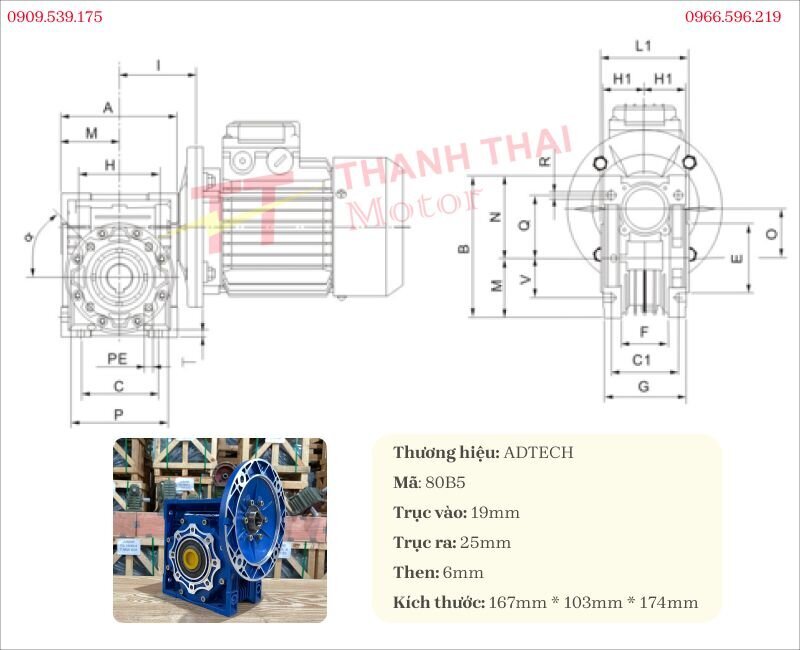

Technical Specifications of NMRV 63 Gearbox

The technical specifications below help determine installation dimensions, connection types, and select the appropriate transmission ratio for the operating requirements of each system

NMRV 63 Gearbox

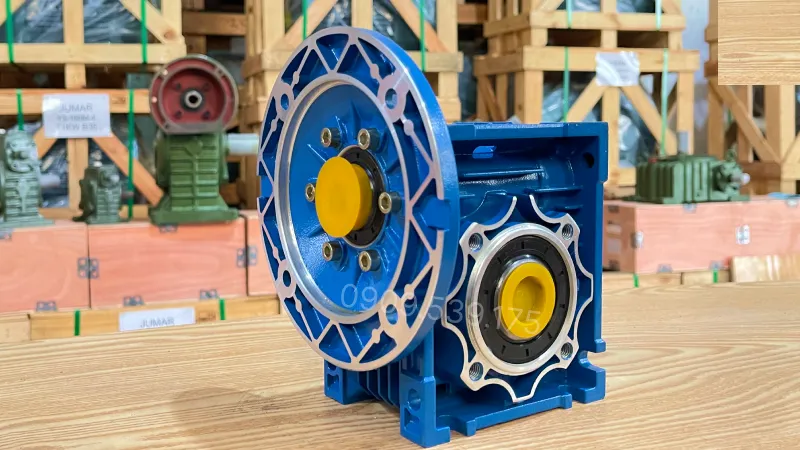

Applications of NMRV 63 Gearbox

Many machines use 1-Stagegearboxes; the key reason why this gearbox is favored lies not only in its compact design but also in its convenience and cost-effectiveness. The NMRV 63 Gearbox is widely applied, specifically:

• Pulling goods, light-load winches.
• Gearboxes are used in conveyors, mixers, and agitators.
• Construction industry such as vibratory equipment, sand sifters.
• Manufacturing agitators, food processing.
• Face mask production conveyor lines.

Guide to Adding Oil for Gearbox

Properly adding lubricating oil helps the gearbox operate stably, reduces friction, and increases the lifespan of transmission components.

• Step 1: Open the oil filler plug on top of the gearbox body and clean the surrounding area thoroughly.
• Step 2: Add the correct type of lubricating oil until the oil level reaches about 2/3 of the oil sight glass or according to the specified level.
• Step 3: Tighten the oil filler plug securely and recheck to ensure no leakage occurs.

The instruction video for gearboxes from Thanh Thai Motor will guide you through the correct oil filling procedure, checking the oil level, and understanding basic notes during maintenance, helping the gearbox operate durably and achieve high performance. Watch more through the video compilation at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
