NMRV 40 Gearbox

A gearbox (gear reducer) is an essential device in transmission systems, helping to adjust speed and increase torque for electric motors. Among them, the NMRV gearbox stands out for its compact design, ease of installation, and flexible operation, making it suitable for various working spaces. Notably, the NMRV 40 Gearbox is widely applied in conveyor systems, industrial machinery, and packaging machines due to its high durability and ability to meet diverse speed ranges.

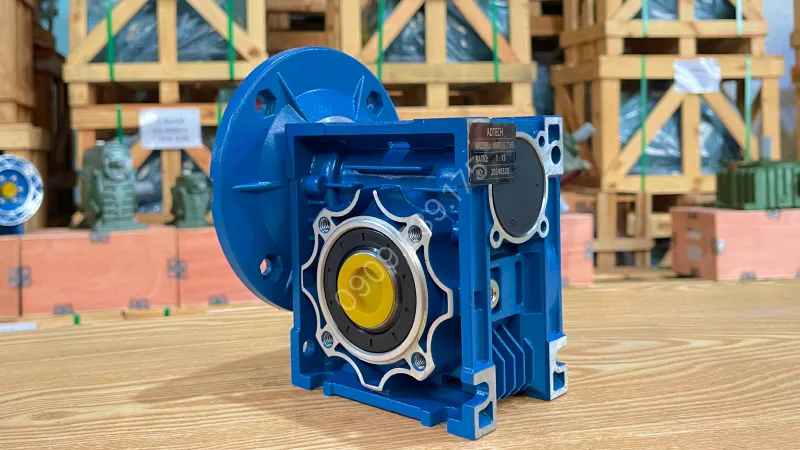

Overview design of the NMRV 40 Gearbox

The NMRV 40 Gearbox is designed with perpendicular input and output shafts, facilitating installation in systems with limited space. The gearbox housing features a prominent blue color, made from high-grade aluminum, which enhances heat dissipation and reduces equipment weight. The gear components are solidly built and capable of handling high loads thanks to advanced heat treatment technology.

This gearbox is typically combined with an electric motor to form a complete gear motor, providing stable transmission for various types of machinery such as conveyors, food processing machines, printers, and factory automation systems.

Internal structure of the NMRV 40 Gearbox

Below are the main components making up the NMRV 40 Gearbox and the function of each part:

• Gearbox body: The body is manufactured from high-pressure die-cast aluminum alloy with high hardness, helping to reduce weight while ensuring good load-bearing capacity. The cooling fin design on the surface facilitates rapid heat dissipation, suitable for continuous working conditions.
• Worm shaft: The worm shaft is machined from high-quality alloy steel, undergoing heat treatment and precision grinding to achieve high hardness and accuracy. This component directly transmits motion from the motor to the worm gear drive.
• Worm gear: The worm gear is made of wear-resistant alloy bronze, combined with the worm shaft to create a stable gear ratio. This construction helps the gearbox operate smoothly, reduces noise, and enhances transmission efficiency.
• Output shaft: The output shaft transmits torque to the working equipment after the speed has been reduced. Depending on the version, the NMRV 40 can use a hollow shaft or be combined with a solid shaft end to meet various assembly requirements.
• Bearings: The bearing system is responsible for positioning and supporting the rotating shafts during operation. As a result, the gearbox operates stably, reduces friction, and limits wear on internal components.

Technical specifications of the NMRV 40 Gearbox

The following parameters are used to select assembly dimensions and gear ratios

NMRV 40 Gearbox

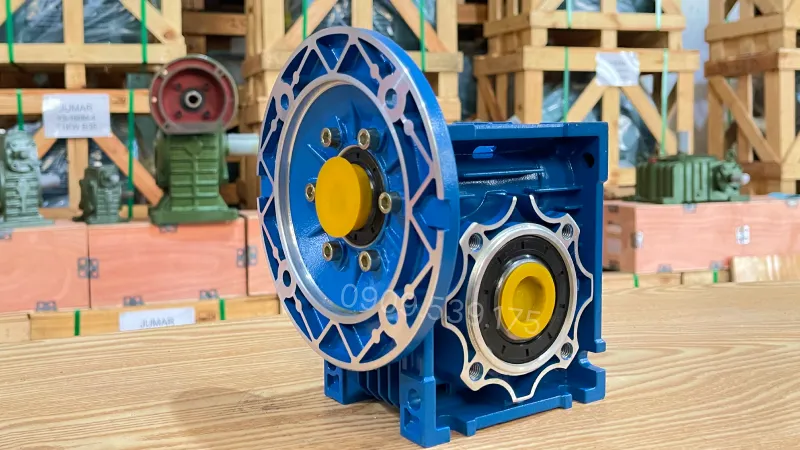

Applications of the NMRV 40 Gearbox

Thanks to its stable transmission, compact design, and ease of installation, the NMRV 40 Gearbox is widely applied in various production and automation fields. Some typical applications include:

• Driving mini conveyors and material handling conveyors in production lines.
• Installed on packaging machines, labeling machines, and automated equipment requiring low rotational speed and stable torque.
• Used for chemical agitators, paint mixers, or medium-load solution mixers.
• Combined with industrial roller shutter systems, automatic doors, and small-sized lifting mechanisms.

Instructions on how to properly add oil to the gearbox

To ensure the gearbox operates stably and the transmission components are always effectively lubricated, oil should be added according to the following procedure:

• Step 1: Locate and remove the oil filler plug on the upper part of the gearbox.
• Step 2: Slowly pour suitable lubricating oil inside until the oil level reaches about 2/3 of the oil sight glass or the manufacturer’s specified mark.
• Step 3: After completion, reinstall the oil filler plug and tighten it securely to prevent leakage during operation.

Thanh Thai Motor’s instructional gear motor video will help you easily perform the steps for adding oil and checking the oil level correctly. The content also shares important notes on selecting lubricating oil, oil change timing, and how to periodically check the oil condition. Follow other technical guidance video compilations from Thanh Thai Motor to gain more experience in using and maintaining the gearbox.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
