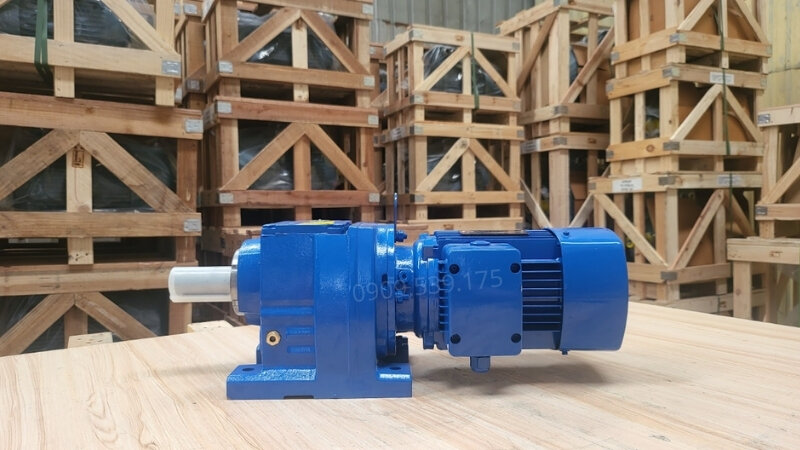

What are heavy duty gear motors?

Heavy duty gear motors are a type of gear motor specially designed with a combination of a 3-phase electric motor and various gearboxes such as K-Series Helical Bevel Gearboxes, R-Series Inline Helical Gearboxes, F-Series Parallel Shaft Gearboxes, and S-Series Helical Worm Gearboxes to operate in high-load applications. These motors feature high torque, helping machinery operate powerfully, withstand high pressure, and ensure stable performance.

Thanks to their sturdy design and high durability, 3-phase heavy duty gear motors can operate stably in harsh environments such as manufacturing plants, construction sites, industrial conveyor systems, and lifting equipment. In particular, heavy duty gear motors above 3.7kW are optimized to meet heavy-load applications requiring high torque and continuous operation, helping machinery run more efficiently, reducing wear and tear, and increasing equipment lifespan.

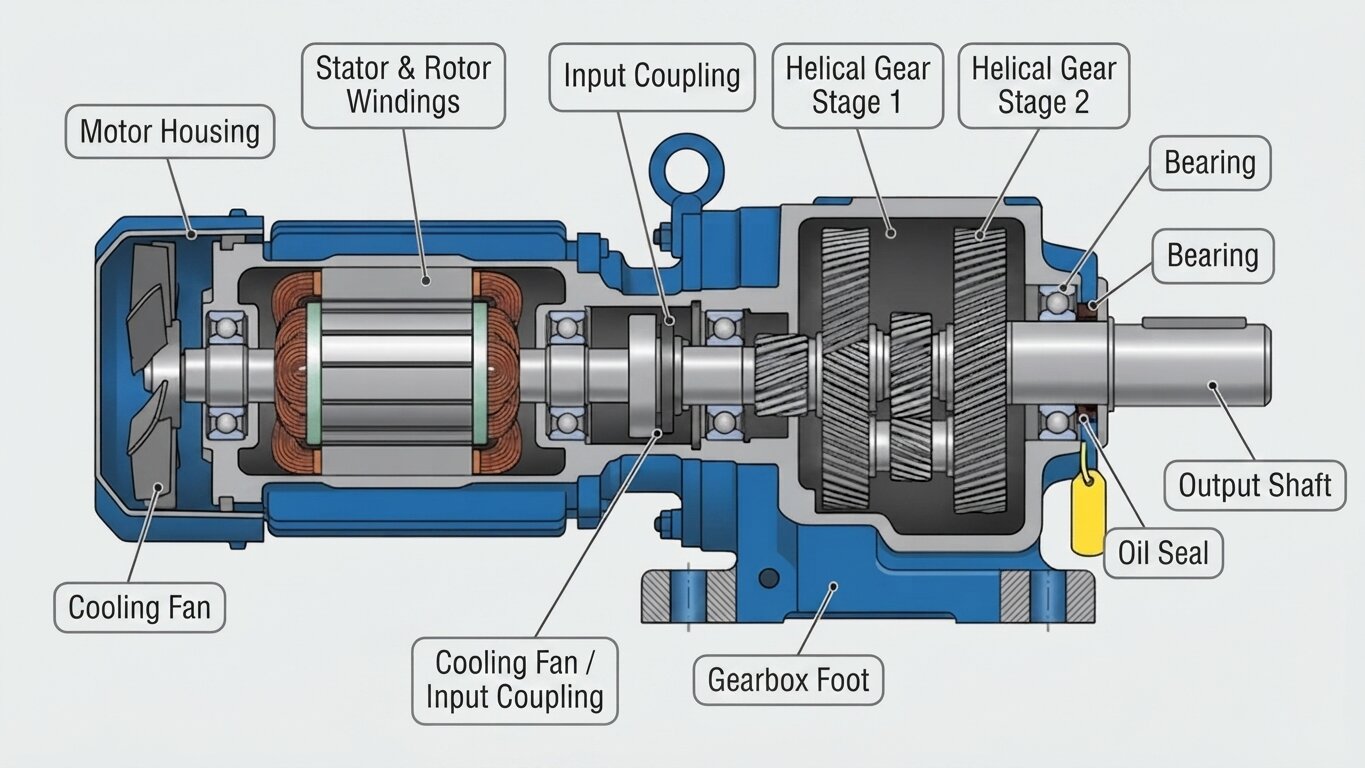

Structure of Heavy Duty Gear Motors

Heavy duty gear motors are designed with a sturdy structure to meet the capability of continuous operation, heavy load bearing, and stable performance in high-intensity industrial environments. The basic structure consists of the following main components:

• Electric motor: This is the component that generates the initial rotational movement for the entire system. The motor typically uses a 3-phase power supply with high capacity, helping the equipment operate powerfully and stably over a long period.
• Heavy duty gearbox: Inside, it features a large-sized gear system that is precision-machined to reduce rotational speed while increasing output torque to pull heavy loads more effectively.
• Drive gears: Typically made of hardened alloy steel to enhance load-bearing capacity, wear resistance, and ensure durability during continuous operation under heavy loads.
• Drive shaft: Responsible for transmitting motion from the motor to the gearbox and out to the operating equipment. The shaft is usually made of high-strength steel to withstand high torque.
• Bearings and oil seals: Help reduce friction, support stable shaft rotation, and limit lubricating oil leakage during operation.
• Gearbox housing: Made of cast iron or hard alloy with good impact resistance and heat dissipation capabilities, helping protect the entire internal system when operating in harsh industrial environments.

Operating Principle of Heavy Duty Gear Motors

Heavy duty gear motors operate based on the combination of an electric motor and a gearbox to generate a large pulling force for high-load systems. When powered, the motor creates high-speed rotational movement and transmits it directly to the gearbox via the drive shaft. Inside the gearbox is a system of gears meshing together according to pre-calculated gear ratios.

During transmission, the rotational speed gradually decreases through each gear stage, while the output torque increases significantly. Thanks to this mechanism, heavy duty gear motors can operate powerfully, stably, and withstand loads well over long periods. The equipment is commonly used in industrial conveyors, crushers, mixers, lifting systems, and many heavy-load production lines today.

Classification of Heavy Duty Gear Motors

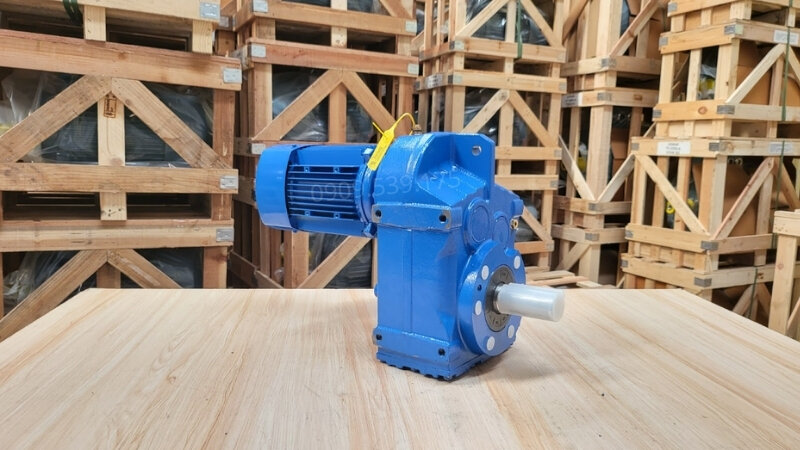

3-Phase Heavy Duty Gear Motors

3-phase heavy duty gear motors are specialized gear motor series designed for large-load industrial systems that require continuous operation. With a sturdy design, high torque, and excellent load-bearing capacity, 3-phase heavy duty gear motors are commonly applied in presses, crushers, industrial conveyors, lifting systems, and large-scale production lines. The use of a 3-phase power supply helps the motor operate stably, save electricity, and improve transmission efficiency.

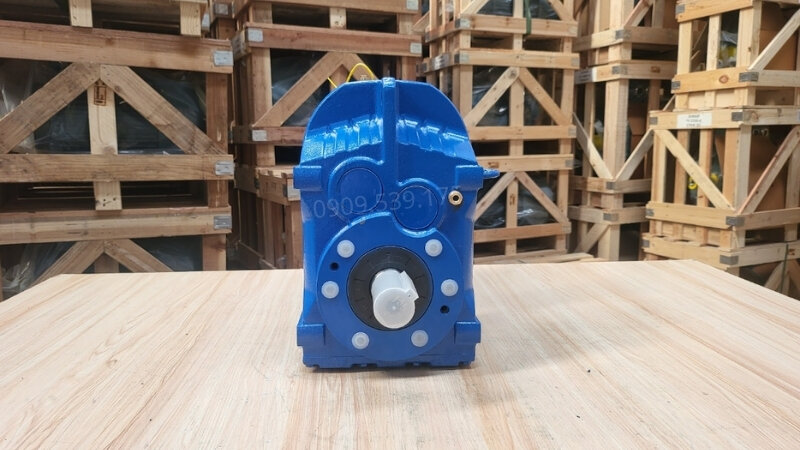

Heavy Duty Gear Motors from 1.1kW to 3.7kW

Heavy duty gear motors from 1.1kW to 3.7kW are suitable for mechanical systems with medium loads and continuous operating intensities. This heavy duty gear motor series is typically used in production conveyors, mixers, raw material blenders, or automation lines requiring stable pulling force. With a popular power range, the equipment ensures operational efficiency while optimizing investment costs for businesses.

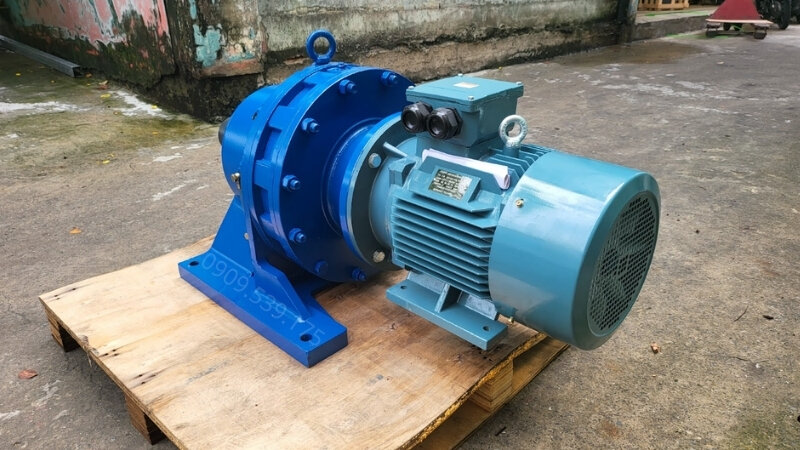

Heavy Duty Gear Motors Above 3.7kW

Heavy duty gear motors above 3.7kW are large-capacity lines specialized for mechanical systems requiring strong pulling force and high durability. With good load-bearing capacity and stable long-term operation, heavy duty gear motors above 3.7kW are highly suitable for industrial presses, heavy-duty conveyors, crushers, mixers, or continuously operating large-scale production lines. Choosing the correct power for heavy duty gear motors will help optimize performance and extend equipment lifespan.

Heavy Duty Gear Motor Prices at Thanh Thai Motor

Below is the price list for heavy duty gear motors at Thanh Thai Motor updated in 10/2026 with various inline, right-angle, and industrial heavy-duty series, suitable for conveyor systems, lifting equipment, and continuously operating machinery.

Notes on Using Heavy Duty Gear Motors

To ensure heavy duty gear motors operate stably, durably, and minimize damage during operation, users should note the following important issues:

• Do not operate under overload for a long time: It is necessary to use the motor according to its designed capacity to prevent motor overheating, reduce gear lifespan, and affect transmission efficiency.
• Periodically check lubricating oil: Gearbox oil helps reduce friction and cool the internal gears. Users should change the oil and check the oil level regularly to keep heavy duty gear motors operating more stably.
• Install securely and technically correctly: The motor needs to be fixed and balanced on a solid surface to limit vibration, noise, and shaft misalignment during operation.
• Monitor abnormal temperature and noise: If the motor overheats, vibrates strongly, or makes strange noises, it must be stopped for timely inspection to avoid serious damage.
• Ensure a stable power supply: Fluctuating power sources or incorrect voltage can affect the performance and durability of heavy duty gear motors, especially for continuously operating systems.
• Periodic maintenance: Clean the motor, inspect bearings, oil seals, and the gear system regularly to ensure the equipment always operates efficiently and extends its service life.

In addition, customers can refer to the gear motor video collection category for technical usage instructions, installation methods, practical operation, and experience in choosing the right motor for each heavy-duty requirement.

Frequently Asked Questions [FAQ]

Why should you use heavy duty gear motors?

This motor line has high load-bearing capacity, stable operation, and better durability compared to standard gearboxes, especially in continuous operating environments.

What should be noted when choosing heavy duty gear motors?

Users should determine the load, output speed, operating time, and working environment to select the correct power and appropriate gear ratio.

How often should heavy duty gear motors be maintained?

Users should inspect the gearbox oil, bearings, and vibration periodically every 3-6 months to ensure long-term stable equipment operation.
