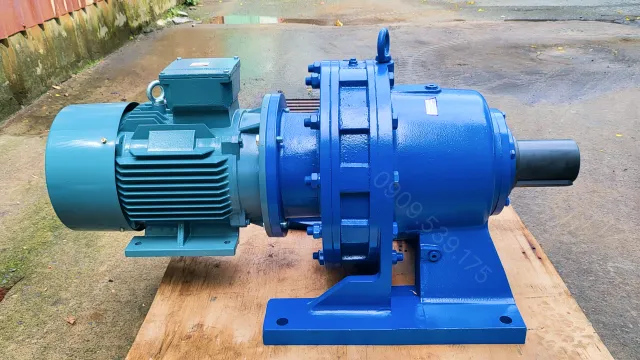

Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

The Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp is a gear motor line in machinery systems requiring high transmission force and stable speed. Designed as a combination of a powerful electric motor and a gearbox, operating durably, this motor is favored in many industrial fields such as conveyors, mixers, presses… This is an energy-saving, smooth-operating, and highly efficient solution.

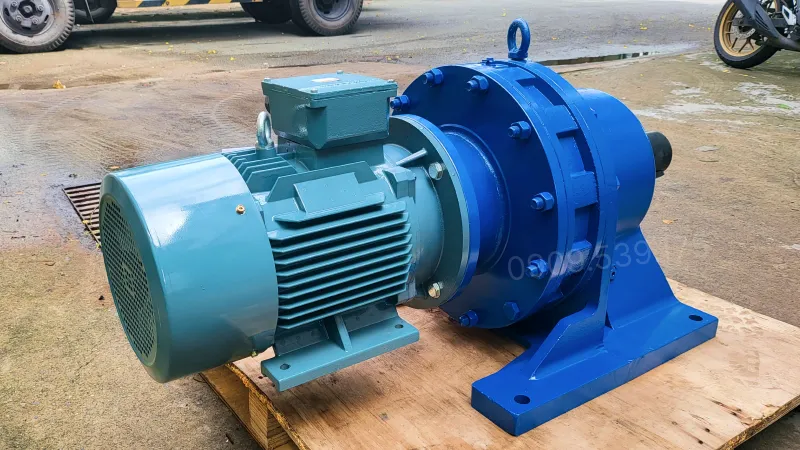

Overview of the Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

Electric Motor

• Material: Sturdy cast iron housing, with optimized heat sink ribs on the surface to help cool down quickly. The sealed housing structure protects the motor from external environmental factors.
• Function: Plays the role of providing stable torque for small drive systems. The motor is optimized for continuous operation, ensuring current and temperature are always at safe thresholds.

Gearbox

• Function: Converts speed from the motor into a much larger pulling force (Torque). Unlike conventional gearboxes, the Cycloidal Gearbox has extremely good sudden impact load resistance.
• Design: Drive mechanism based on the planetary disc principle, distributing force across multiple contact points, delivering compactness, smooth transmission, and superior mechanical durability.

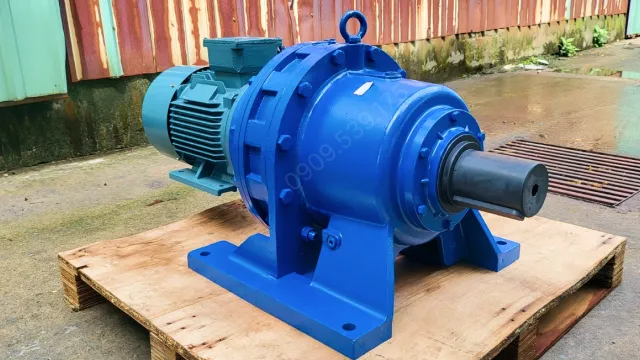

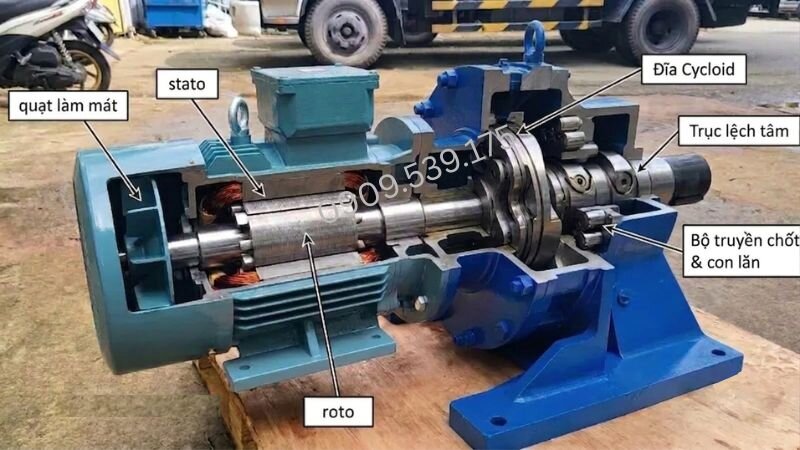

Structure of the Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

This Cycloidal gear motor 0.75kW 1Hp is a perfect combination of a 3-phase electric motor and a Cycloidal Gearbox, providing powerful transmission and efficient speed reduction.

3-Phase Electric Motor 0.75kW 1Hp (Power Generation Part)

• Stator: Uses high-grade magnetic steel combined with pure copper windings, optimizing magnetic flux to achieve the highest electrical energy conversion efficiency.
• Rotor: Precisely dynamically balanced squirrel-cage structure, completely eliminating vibrations when converting into mechanical energy at 1Hp capacity.

Cycloidal Gearbox (Transmission Part)

• Cycloidal Disc: Machined from heavy-duty alloy steel, extremely shock-resistant thanks to a planetary mechanism that distributes force evenly across multiple contact surfaces.
• Eccentric Shaft: Central component machined with absolute precision, responsible for driving the cycloidal disc to rotate stably.
• Pin & Roller Assembly: Supports reducing friction and noise, while protecting the system from wear and tear over time.
• Lubrication Chamber: Sealed oil chamber design, keeping components immersed in a protective oil film, maximizing friction reduction and extending service life.

Technical Specifications of the Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

Understanding the technical specifications is a core factor ensuring accuracy when designing and installing the system. Below is a detailed specification lookup table for each product model:

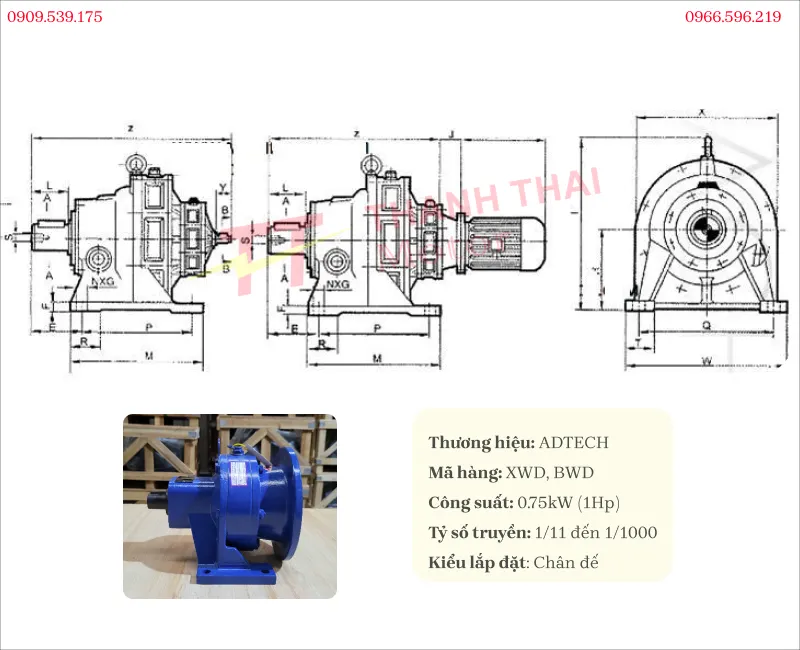

Foot-Mounted Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

This is a specialized drive equipment line for industrial systems requiring high load capacity, standing out with robust construction, stable operation, and superior lifespan. Detailed product technical specifications:

Technical Specifications:

Applications:

• Conveyor, bucket elevator, and screw conveyor systems: Provides powerful and stable pulling force to transport heavy materials, agricultural products, or minerals in factories.
• Mixing machines: Drives industrial agitators in chemical, wastewater treatment, or food industries thanks to good vibration resistance and durable operation.
• Mechanical lifting systems: Used in winches, overhead cranes, or freight elevators to transport heavy materials upward safely, limiting load slip thanks to high torque.

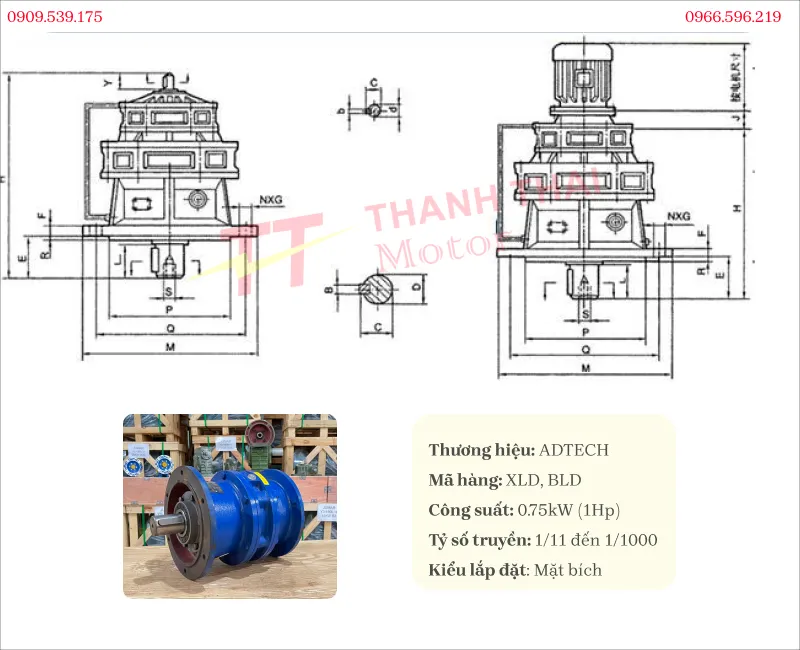

Flange-Mounted Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp

An optimal drive solution for vertical installation or direct connection systems, delivering superior load capacity and durable operation in industrial environments. Detailed product technical specifications:

Technical Specifications:

Applications:

• Industrial mixing systems: Used in chemical mixing tanks, liquid material agitation, or concrete casting. The motor provides extremely strong torque to operate agitators stably.
• Heavy-duty conveyor lines: Applied in transporting heavy materials, ore, coal, or agricultural products. The cycloidal gearbox helps conveyors run smoothly with good wear resistance.
• Lifting and winch mechanisms: Used for material winches, small overhead cranes, or elevators. Heavy-duty transmission and anti-shock capabilities help protect equipment during lifting.

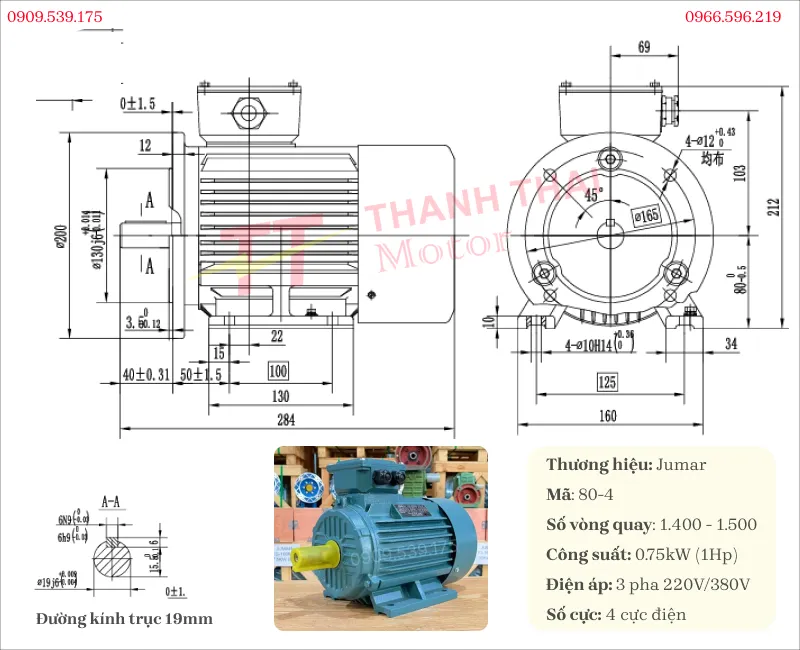

Technical Specifications of 3-Phase Electric Motor 0.75kW 1Hp 4-Pole

A standard small-capacity industrial motor line, widely applied in production systems and small-to-medium equipment thanks to its stable operating efficiency. Detailed product technical specifications:

Technical Specifications:

Guide to Installing the Heavy Duty Cycloidal Gearbox onto a 3-Phase Electric Motor

Step 1: Inspect and Prepare Contact Surfaces

• Before installation, clean the motor shaft and the shaft bore of the gearbox. Ensure that the flange surfaces of both devices are free of dirt, rust, or foreign objects to ensure concentricity during assembly.
• Check if the key on the motor shaft fits snugly into the keyway on the gearbox. If the key is too tight, you can lightly file it or apply a thin layer of lubricating grease.

Step 2: Alignment and Insertion

• When inserting the motor shaft into the gearbox, keep the shafts completely aligned. Avoid forcing it if you feel resistance. If jammed, recheck the key position or gently rotate the shaft to let the parts engage.
• After insertion, the flange surfaces of the motor and gearbox must press closely against each other completely without any gaps.

Step 3: Install Fixing Bolts

• Use the full set of bolts designed for the connecting flange. Insert the bolts into the positioning holes.
• Important note: Do not tighten a single bolt immediately. Screw the bolts in by hand until they just touch the surface to ensure the flange frame is in the correct position.

Step 4: Tighten According to the Symmetrical Rule

• When using a wrench, tighten the bolts in a “star” pattern or symmetrically across the center (e.g., tighten the first one, then tighten the opposite one).
• Divide into multiple tightening passes. The first pass should only be hand-tightened to secure, the subsequent passes should be tightened gradually and evenly to ensure uniform pressure on the flange, avoiding flange warping leading to shaft misalignment later.

The Heavy Duty Cycloidal Gear Motor 0.75kW 1Hp is a suitable drive solution for systems requiring large torque, stable operation, and energy savings. Customers can refer to additional gear motor videos to better understand the structure and operating principles of the product. In addition, Thanh Thai Motor’s comprehensive video library provides many useful technical guides. Contact Hotline 0909.539.175 for quick consultation and quoting.
