Heavy Duty Cycloid Gear Motor 3kW 4Hp

Heavy duty gear motor 3kW 4Hp is a high-power gear motor line, specialized for industrial systems requiring large torque and high stability. With a power of 3kW (equivalent to 4Hp), the product delivers powerful transmission performance, energy saving, and continuous operation in harsh environments. This is a suitable choice for heavy-duty machinery systems operating at high frequencies.

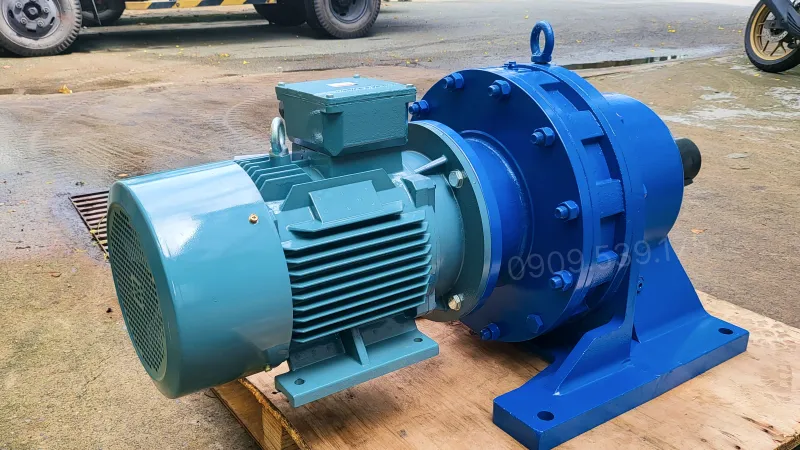

General design of heavy duty cycloidal gear motor 3kW 4Hp

The cycloidal gear motor 3kW 4Hp features a durable, modern design with an anti-oxidation electrostatic paint coating, providing good protection in industrial environments. The outer casing is made of high-quality solid cast iron, enhancing impact resistance, wear resistance, and extending service life. The compact dimensions make this heavy duty gear motor easy to install into various production systems.

Structure of heavy duty cycloidal gear motor 3kW 4Hp

The heavy duty cycloidal gear motor 3kW is composed of an electric motor and a gearbox, more precisely a 3-phase electric motor and a cycloidal gearbox:

• 3-phase electric motor 3kW 4Hp: Pure copper winding, good load capacity, stable operation with standard industrial 3-phase power supply.
• Cycloidal gearbox 3kW 4Hp: Based on the cycloidal gear transmission principle, helping to transmit force smoothly, reduce wear, and prolong equipment life.

Technical specifications of heavy duty cycloidal gear motor 3kW 4Hp

Technical information is the basis for calculating capacity, selecting models, and arranging appropriate installation.

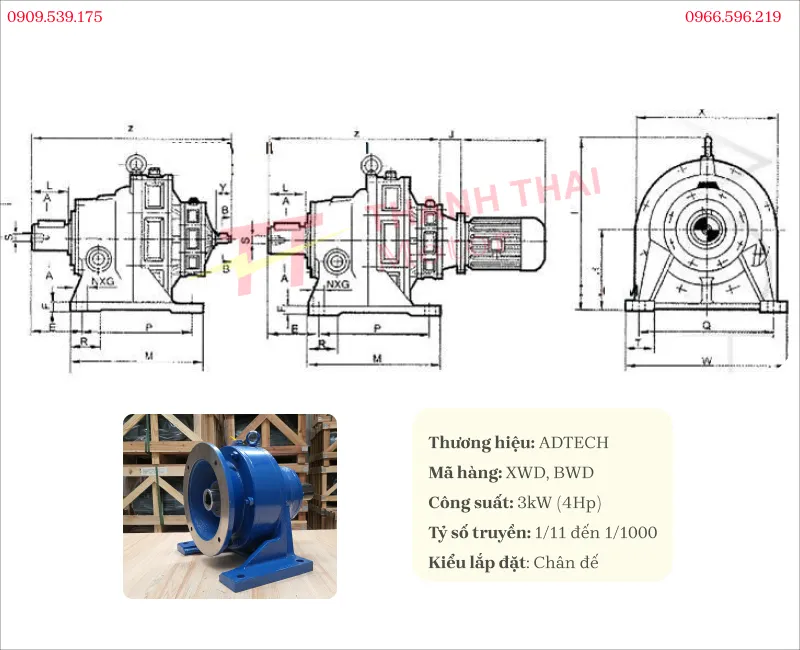

Foot-mounted heavy duty cycloidal gear motor 3kW 4Hp

The foot-mounted type is suitable for fixed systems, helping to keep the equipment stable during operation.

Technical specifications:

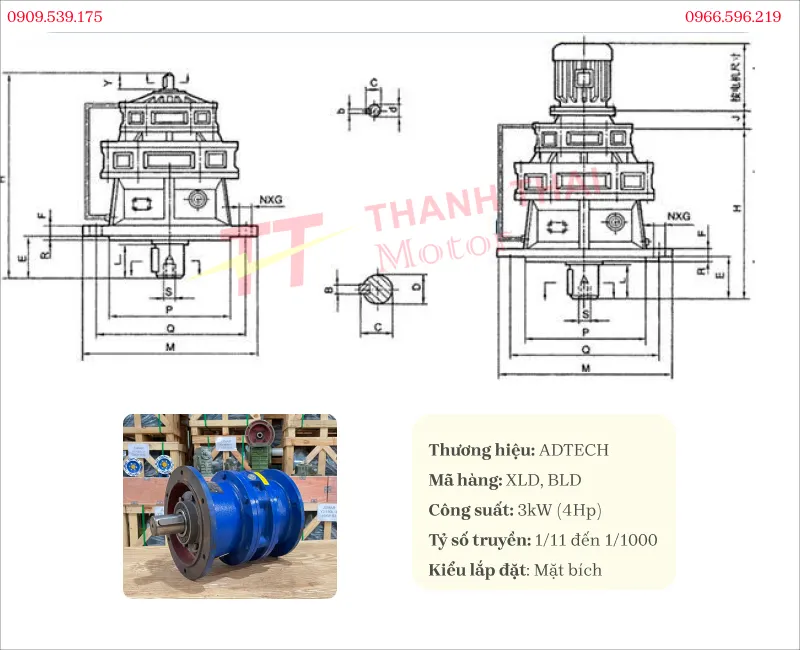

Flange-mounted heavy duty cycloidal gear motor 3kW 4Hp

The flange-mounted type is suitable for direct installation styles, helping to reduce intermediate details and keep the layout compact.

Technical specifications:

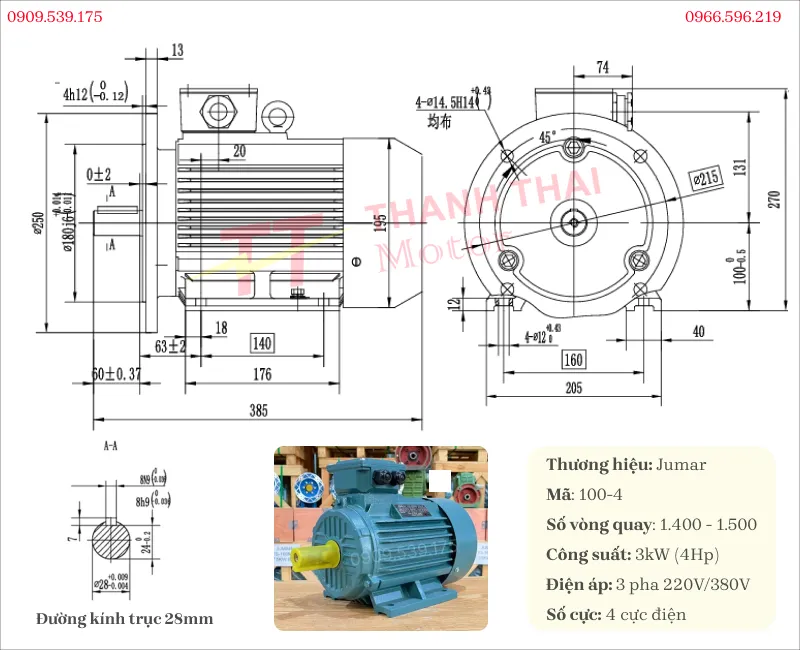

Technical specifications of 3-phase electric motor 3kW 4Hp 4-pole

This is the standard version, most widely used thanks to the balance between rotation speed and pulling force, running with low heat generation.

Technical specifications:

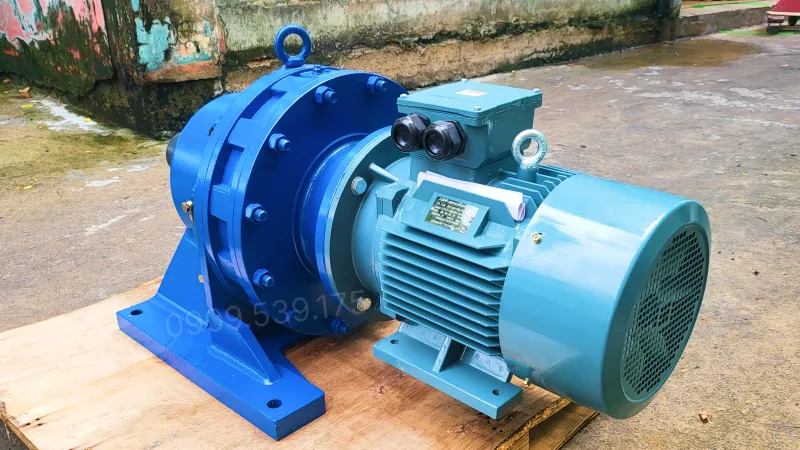

Applications of heavy duty cycloidal gear motor 3kW 4Hp

With high power, superior load capacity, and durable operation in harsh industrial environments, the cycloidal gear motor 3kW (4Hp) is a suitable choice for many heavy-duty drive systems such as:

• Industrial conveyor systems: Continuously transport raw materials, goods, and finished products in manufacturing plants, warehousing, and logistics centers.
• Concrete mixers, crushers, heavy-duty presses: Provide high torque, helping equipment operate stably under heavy loads and continuous working intensity.
• Lifting equipment, material handling, packaging: Ensure powerful drive capability, precise operation, and enhanced production efficiency.
• Continuous production lines: Suitable for systems operating 24/7, requiring high stability, low vibration, and long service life.
• Cement, mining, and building materials industries: Operate effectively in dusty environments, heavy loads, and harsh working conditions.

Instructions for installing heavy duty cycloidal gearbox onto 3-phase electric motor

To easily visualize the installation procedure, you should preview the video to understand the execution sequence clearly.

Step 1: Position alignment.

Place the motor and gearbox on the same plane, aligning the shaft with the input hole. In the gear motor video, this step also helps limit vibration and wear during operation.

Step 2: Connection.

Slowly insert the motor shaft into the gearbox until the two flanges touch tightly. According to the video, it is necessary to maintain a straight direction to avoid jamming or shaft misalignment.

Step 3: Bolt fixing.

Install bolts and tighten evenly around the flange to secure the connection, and recheck tightness after installation to ensure stability.

Conclusion: Proper technical installation helps the equipment run stably, reduces vibration, and limits damage during use. Upon completion, you should run a no-load test to check the concentricity and smoothness of the system. You should watch additional summary videos to follow all practical operations fully, thereby following the correct process and avoiding common installation errors.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
