Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

The Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp is a specialized gear motor designed for industrial machinery systems requiring heavy loads and high-frequency operation. With a powerful capacity of 4kW (equivalent to 5.5Hp), the device ensures stable power transmission, generates high torque, and maintains high performance over a long period. The heavy-duty gear motor is an ideal choice for harsh working environments that require maximum durability and stability.

Overview of the Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

Electric Motor

• Material: The housing is made of high-strength cast iron, and the surface is designed with thick heat-dissipating fins to ensure effective air circulation, keeping the machine cool under continuous working conditions.
• Characteristics: Uses high-grade insulation material with good heat resistance and stable operation. The motor delivers durable 5.5Hp power, meeting stable torque demands for heavy-duty machinery systems.

Gearbox

• Function: Converts the motor speed into a much larger torque. The device helps increase transmission efficiency and effectively meets strong pulling force requirements in heavy-duty operating systems.
• Characteristics: The cycloidal design transmits force through multiple contact points, providing high mechanical durability and significantly better resistance to impacts and vibrations compared to conventional gearboxes.

Structure of the Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

The motor consists of 2 main parts, which are the combination of a 3-phase electric motor and a Cycloidal Gearbox:

3-Phase Electric Motor 4kW 5.5Hp (Power generation part)

• Stator: High-quality magnetic steel core combined with pure copper winding, helping to optimize magnetic flux and maintain stable operating performance.
• Rotor: Squirrel-cage design with precise dynamic balancing, ensuring smooth shaft rotation and minimizing vibration when operating under a 5.5Hp load.

Cycloidal Gearbox (Transmission part)

• Cycloidal Disc: Machined from hardened alloy steel using advanced technology, capable of withstanding maximum torsional stress without deformation.
• Eccentric Shaft: Central component CNC-machined with high precision, driving the cycloidal disc to move stably and smoothly.
• Force Transmission Pin Set: Cylindrical pins coated with wear-resistant material, helping to distribute force evenly across the entire disc circumference, reducing noise and increasing component lifespan.
• Oil Chamber: Tight sealing system maintaining a continuous lubricating oil film for internal details, helping to reduce friction and protect the machine from wear over time.

Technical Specifications of the Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

Below is a summary of all detailed specifications including foot-mounted, flange-mounted types, and the accompanying electric motor, helping customers easily choose the appropriate configuration:

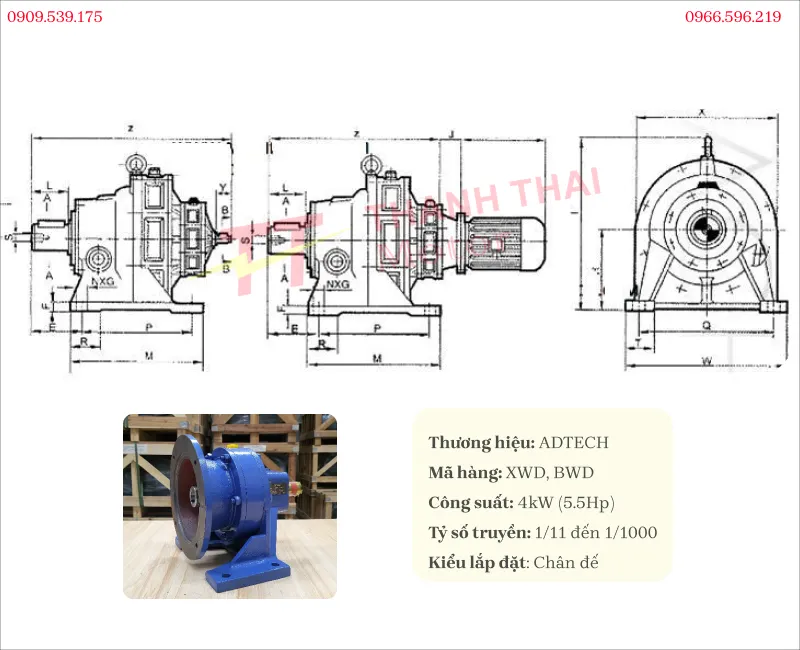

Foot-Mounted Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

This is a specialized driving device for industrial systems requiring large load capacity, outstanding with a sturdy structure, stable operation, and superior lifespan. Detailed product specifications:

Technical Specifications:

Applications:

• Industrial Conveyor and Bucket Elevator Systems: Pulling equipment for coal, mineral, cement, or agricultural conveyor lines in large-scale processing plants.
• Heavy-Duty Mechanical Agitators: Motors operating thick liquid stirring shafts, chemical mixing tanks, paint mixers, or industrial concrete mixers thanks to their ability to withstand extremely high torque.
• Environmental and Waste Treatment Equipment: Operating sludge dewatering systems, automatic trash rakes, or large-capacity waste pressing shafts in centralized wastewater treatment plants.

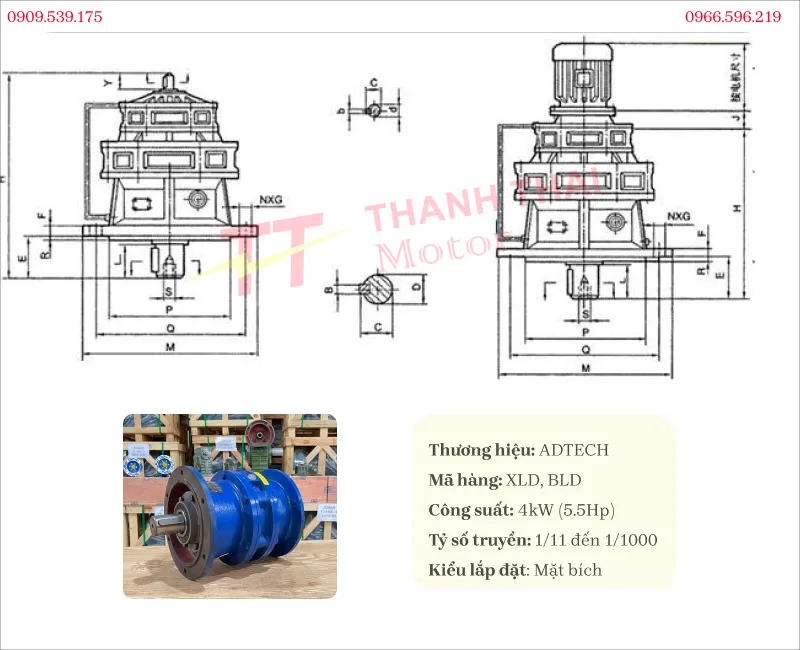

Flange-Mounted Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

The optimal transmission solution for vertical installation or direct connection systems, delivering extremely high load capacity and durable operation in industrial environments. Detailed product specifications:

Technical Specifications:

Applications:

• Chemical and Food Mixing Tanks: Vertical flange installation to rotate thick solution stirring shafts. The motor withstands high torsional force, running continuously 24/7 without load slipping.
• Heavy-Duty Conveyors and Bucket Elevators: Installed on machine walls to pull cement, coal, and mineral conveyors. Good impact resistance prevents shaft breakage during overload.
• Wastewater Sludge Dewatering Machines: Operates sludge dewatering screws or industrial trash rakes. The motor generates strong pulling force at slow speeds to prevent jamming.

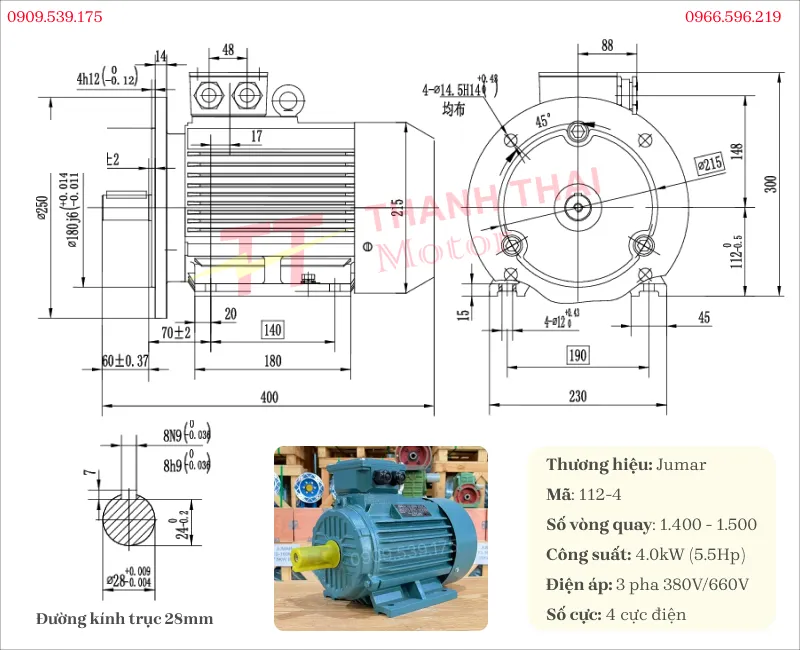

Technical Specifications of 3-Phase Electric Motor 4kW 5.5Hp 4-Pole

The device features a sturdy design, durable operation, and perfectly meets current industrial transmission needs. Detailed technical specifications:

Technical Specifications:

Applications of the Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp

• Industrial Mixers: Provides strong torque to mix high-viscosity materials such as chemicals, paint, glue, or wastewater sludge.
• Animal Feed Processing Industry: Operates heavy material mixing systems, presses livestock feed pellets, or automatically distributes feed in large farms.
• Aquaculture Systems: Drives high-capacity rotating shafts of oxygen aerators for shrimp and fish farming, operating continuously in humid environments.
• Industrial Pressing and Rolling Machines: Used in hydraulic presses, wood pellet presses, or corrugated sheet and steel rolling lines that require slow speeds but extremely strong pressing force.

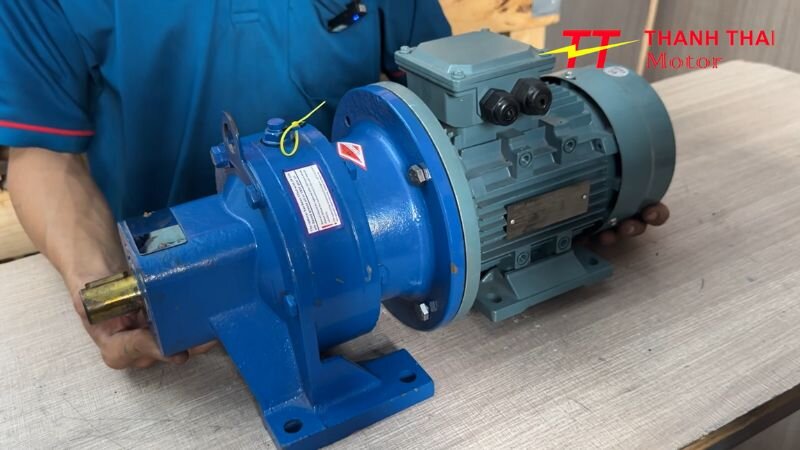

Guide to Installing the Heavy Duty Cycloidal Gearbox onto a 3-Phase Electric Motor

Step 1: Preparation

• Check the technical nameplate of the cycloidal gearbox and the 3-phase electric motor to ensure accuracy.
• Place the gearbox and the electric motor on a stable flat surface for convenient assembly.

Step 2: Connecting the Equipment

• Insert the shaft end of the electric motor into the coupling located on the flange of the gearbox.
• Push the motor slowly until its flange presses completely against the gearbox flange, ensuring no gap remains between the two devices.

Step 3: Securing with Screws

• Take the included screws, thread them through the holes on the flange and screw them in by hand to position the motor onto the gearbox.
• Use a wrench to tighten these screws, ensuring they are securely fixed, helping the entire system connect into a unified block.

The Heavy Duty Cycloidal Gear Motor 4kW 5.5Hp is a suitable transmission solution for industrial systems requiring large torque, stable operation, and high durability. Customers can refer to additional gear motor videos to better understand the structure, operating principles, and practical installation methods. In addition, Thanh Thai Motor’s comprehensive video library also provides much useful information to help choose the right product. Contact Hotline 0909.539.175 for quick consultation and quotation.
