What are Worm Gear Motors?

Worm gear motors (also known as worm reducer motors) are a type of gear motor that uses a worm and worm wheel drive mechanism to reduce rotational speed and increase output torque. This design allows the drive system to operate at a 90-degree right angle, optimizing installation space and facilitating easy arrangement in various types of machinery. Thanks to the sliding drive mechanism between the worm and worm wheel, this line of gear motors operates relatively smoothly, reduces vibration, and minimizes noise during use. Another prominent advantage is the self-locking capability, which helps hold the load fixed when power is cut off without requiring an additional auxiliary braking system.

Worm gear motors are commonly applied in conveyors, agitators, hoisting machines, automatic doors, production lines, and many mechanical systems requiring low speed but high traction force. With a compact design, high durability, and stable working capability, this is one of the most popularly used gear motor lines today.

Structure and Worm Gear Motor Specifications

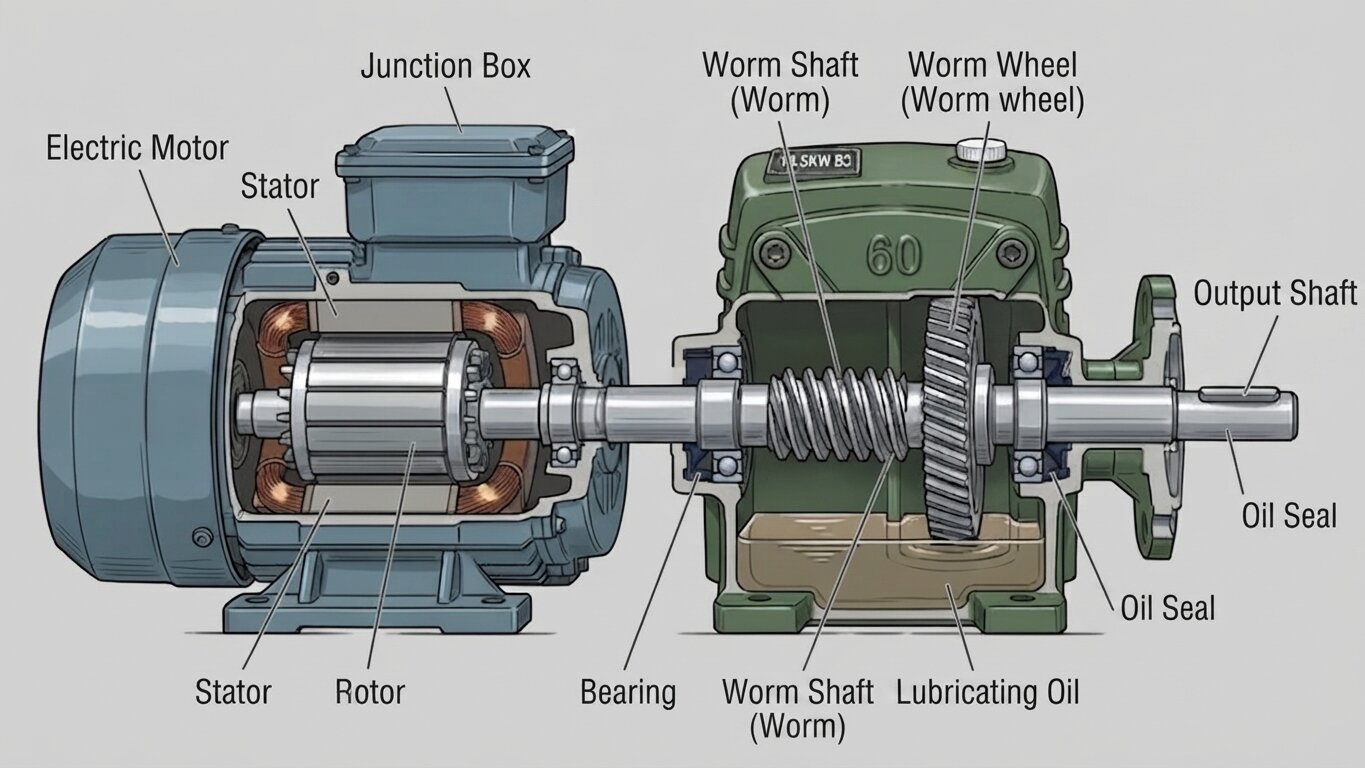

Worm gear motors are designed as integrated gear motors, ensuring stable transmission, smooth operation, and optimized installation space. The basic structure includes the following main components:

• Electric motor: The component that generates the initial rotational movement for the entire system. The motor can use 1-phase or 3-phase electricity depending on operational needs and power requirements.
• Worm shaft: Features a helical thread similar to a lead screw, usually made of hardened steel to increase load-bearing capacity and wear resistance during continuous operation.
• Worm wheel: The component that meshes directly with the worm shaft to transmit motion and reduce rotational speed. The worm wheel is typically made of copper alloy to reduce friction, ensure smooth operation, and increase the durability of the gearbox.
• Gearbox housing: Houses the entire drive system including the worm shaft, worm wheel, bearings, and lubricating oil. The gearbox casing is usually made of cast iron or aluminum alloy to increase rigidity and support heat dissipation.
• Bearings and oil seals: Help the shaft rotate stably, reduce friction, and prevent oil leakage during use, thereby increasing the lifespan of the gear motor.
• Output shaft: The component that transmits torque from the gearbox to external machinery or operating equipment.

Operating Principle of Worm Gear Motors

Worm gear motors operate based on the drive mechanism between the worm shaft and the worm wheel to reduce rotational speed and increase output torque. When the electric motor operates, the rotational movement from the motor shaft is transmitted to the worm shaft inside the gearbox. The helical-threaded worm shaft meshes with the worm wheel to transmit motion. During this process, the rotational speed decreases according to the designed transmission ratio, while the output pulling force increases significantly. Thanks to the sliding drive mechanism between the worm and worm wheel, the equipment can operate smoothly, reduce vibration, and limit noise during operation.

A prominent advantage of worm gear motors is their self-locking capability at certain transmission ratios, helping to maintain stable loads when power is cut off. Therefore, this motor line is commonly applied in conveyors, hoisting machines, automatic doors, agitators, and many mechanical systems requiring low speed but high torque.

Classification of Worm Gear Motors

WPS worm gear motors are designed with a sturdy structure, stable transmission capability, and relatively smooth operation during use. The WPS gear motor line is suitable for conveyor systems, agitators, processing machines, and many mechanical devices requiring large torque while ensuring space savings for installation.

WPO Gear Motor

WPO gear motors stand out with a compact design, smooth operation, and good self-locking capability during use. This motor line is suitable for light-load systems with limited installation space such as mini conveyors, small agitators, packaging machines, or civil mechanical equipment.

WPX Gear Motor

WPX gear motors are designed with a sturdier structure, stable load-bearing capacity, and durable long-term operation. The WPX gear motor line is commonly used for conveyor belts, material mixers, material handling systems, and medium industrial applications.

WPA Gear Motor

WPA gear motors have advantages in large torque and powerful transmission capability. With a large output shaft design and high stability, the WPA gear motor line is suitable for crushers, heavy-duty conveyors, industrial agitators, and continuous operating systems.

WPDS Gear Motor

WPDS gear motors feature a dual-shaft design for greater flexibility in connection and transmission. The WPDS gear motor line is suitable for mechanical systems that need to change transmission direction or be installed in various positions.

WPDX Gear Motor

WPDX gear motors have a rigid structure, good vibration resistance, and high load-bearing capacity during continuous operation. This motor line is commonly used in production lines, industrial conveyor systems, and high-intensity mechanical equipment.

WPDO Gear Motor

WPDO gear motors are optimized for stable operation, low noise, and installation space savings. The WPDO gear motor line is suitable for packaging machines, agitators, automation systems, and equipment requiring quiet operation.

WPDA Gear Motor

WPDA gear motors are capable of high load capacity, stable operation, and good durability in industrial environments. WPDA gear motors are typically applied in heavy-duty conveyors, presses, mixers, and drive systems requiring high torque.

Worm Gear Motor Prices at Thanh Thai Motor

Below is the price list for worm gear motors at Thanh Thai Motor featuring various WPO, WPA, WPS series… and different transmission ratios, suitable for diverse industrial and residential transmission needs.

Notes on Selecting and Using Worm Gear Motors

For worm gear motors to operate stably and achieve high efficiency, users should note the following important factors:

• Choose the correct transmission ratio and power: It is necessary to determine the output speed, load capacity, and actual operating needs to select a suitable motor, avoiding overload or insufficient traction force.
• Prioritize quality worm wheel materials: You should choose lines using copper alloy worm wheels and hardened steel worm shafts to increase durability, reduce wear, and help the motor operate more smoothly.
• Check self-locking capability: For hoisting applications or those requiring load holding, you should choose worm gear motors with good self-locking capability to ensure safety when power is cut off.
• Regularly check lubricating oil:Gearboxes need periodic oil changes to reduce friction and limit gearbox heating during continuous operation.
• Proper technical installation: Ensure the motor is installed balanced, securely, and in the correct transmission direction to minimize vibration and increase equipment lifespan.
• Choose a reputable supplier: Prioritize products with clear specifications, full warranty, and good technical support for convenience during use and maintenance.

To better visualize the operation and select the right product, customers can watch the aggregated gearbox video section shared by Thanh Thai Motor with many practical technical instruction contents.

Frequently Asked Questions [FAQ]

What are the differences between WPO, WPA, and WPS series?

The WPO, WPA, and WPS codes mainly differ in mounting styles and output shaft directions. Each type will suit different installation spaces and practical needs.

Should you use a worm gearbox or a helical gearbox?

A worm gearbox is suitable when smooth, compact operation and slow speeds are required. Meanwhile, a helical gearbox is suitable for heavy loads and higher transmission efficiency.

Can worm gear motors reverse direction?

Yes. The motor can still reverse its rotation normally if wired according to proper technical standards or combined with a suitable controller.
