3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70)

The 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70) is a gear motor assembled from an electric motor (specifically a 3-phase electric motor) combined with a gearbox (specifically a 3-stage gearbox), forming a multi-stage transmission system capable of flexible speed customization and high output pulling force. This combination allows the device to operate stably under heavy load requirements while expanding the speed adjustment range that single-stage gearboxes cannot meet.

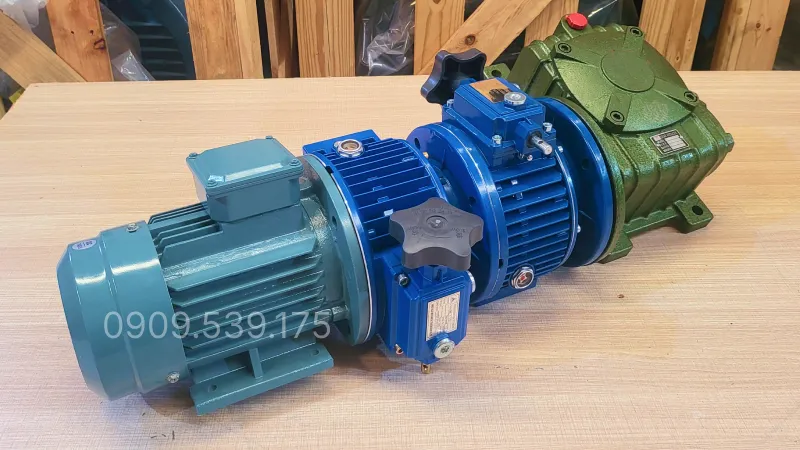

Overview of the 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70)

The 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70) features a solid cast iron or aluminum housing, coated with an electrostatic paint layer to prevent scratches during operation. It creates a multi-stage transmission system with wide speed control capability and strong torque. Thanks to the tight combination structure between stages, the device delivers high transmission efficiency, smooth operation, and excellent performance for various heavy-duty requirements in industrial environments.

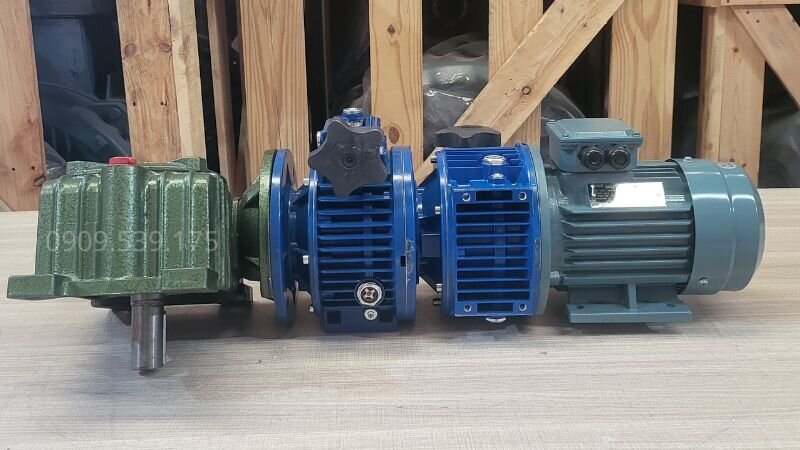

Structure of the 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70):

The 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70) is a gear motor under 1.1kW, assembled from a 3-phase electric motor 0.8kW 1Hp and a 3-stage gearbox (2 UDL 0.8kW and 1 WPDX 70) with detailed structure as follows:

Electric Motor Structure:

• Motor housing: Cast from cast iron or aluminum alloy, protecting internal components and assisting with heat dissipation.
• Rotor: Installed coaxially with the motor shaft, transmitting rotational movement to the reduction system.
• Stator: Class F insulated copper winding, meeting working requirements at rated load.
• Terminal box: Sealed design, convenient for connecting power sources and protecting terminals from dust.

Gearbox Structure:

• Stage 1 is a mechanical speed variator (UDL): Specifically, the 0.8kW 1Hp mechanical speed variator includes a friction disc – cone disc assembly, input-output shafts, and an adjustment knob, allowing stepless speed changes before entering the gearbox.
• Stage 2 is a 2-stage gearbox: Specifically, the 2-stage UDL 0.8kW – WPDX 70 gearbox consists of a hardened steel worm and a bronze worm gear, creating a large gear ratio and high torque for smooth operation.

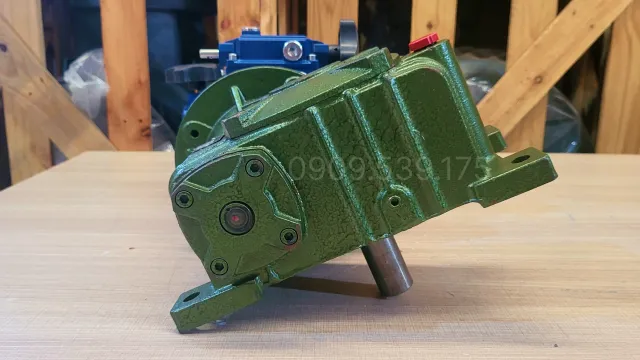

• Stage 3 is the WPDX 70 worm gearbox: Reduces output speed and generates torque suitable for the load.
• Bearings and lubrication system: Reduce friction between rotating parts, helping extend equipment lifespan.

Technical Specifications of the 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70)

The technical specifications below help determine the installation capability and select equipment suitable for the transmission system.

Technical Specifications of the 3-Phase Electric Motor 0.8kW 1Hp

The motor specifications show the mounting dimensions and basic technical standards.

Technical Specifications of the Mechanical Speed Variator 2 UDL 0.8kW 1Hp

The specifications of the two UDL units indicate the speed adjustment range before transmission to the WPDX gearbox.

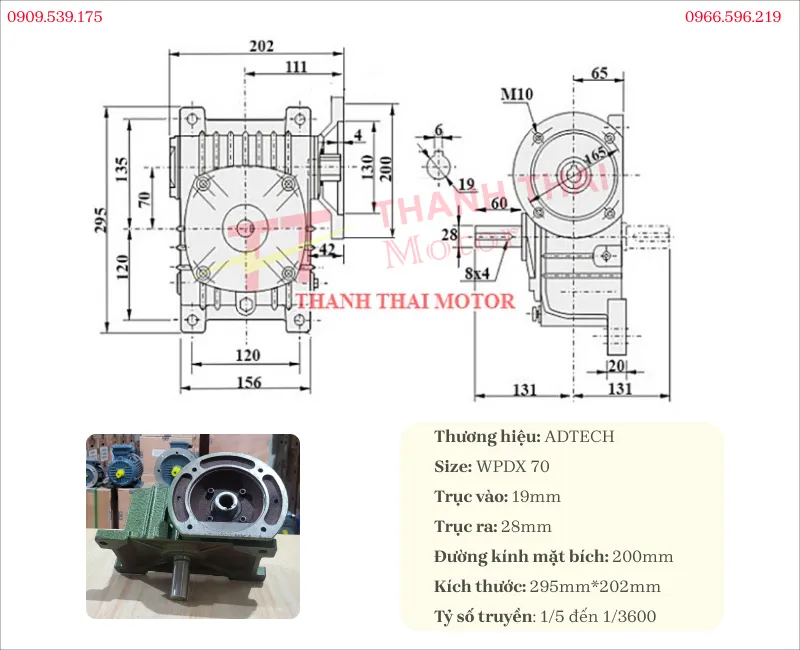

Technical Specifications of the WPDX 70 Worm Gearbox

The specifications of the WPDX gearbox assist in selecting transmission dimensions suitable for application requirements.

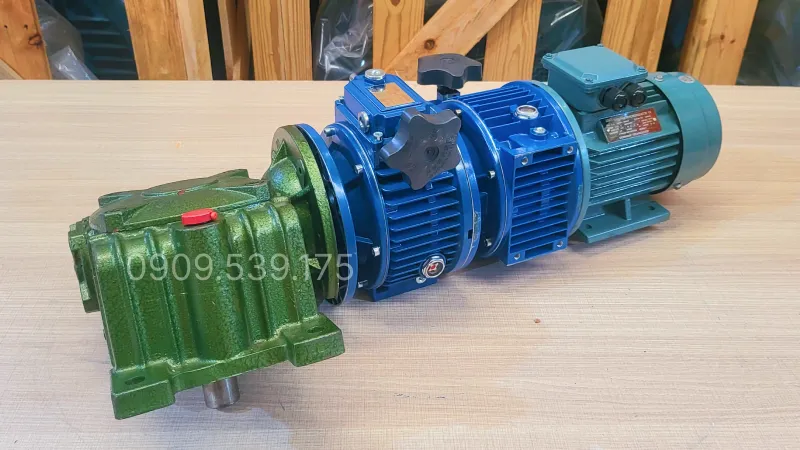

Applications of the 3-Stage Gear Motor (2 UDL 0.8kW and 1 WPDX 70)

Thanks to flexible speed adjustment capability and strong pulling force from the three-stage transmission mechanism, the device is suitable for deployment in various production fields:

• Industrial conveyor systems, material conveyors.
• Agitators, mixers, presses, or equipment requiring low speed and high torque.
• Food processing, packaging, pharmaceuticals, and precision mechanics industries.
• Production lines requiring continuous speed adjustment per stage.

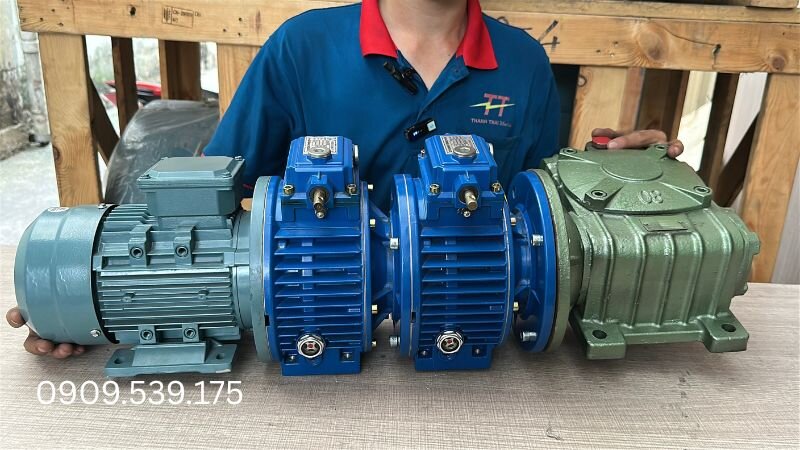

Guide on How to Install the Electric Motor with 2 UDL and 1 WPDX

To assemble the electric motor combined with 2 UDL units and 1 WPDX, technical steps must be strictly followed to ensure stable transmission system operation, minimize mechanical losses, and improve operating efficiency.

Step 1: Install the electric motor into the first UDL unit

Insert the electric motor shaft into the input of the first UDL variator unit. Check the concentricity between the shaft and the flange, then tighten the bolts in sequence to create a secure connection and limit vibration during operation.

Step 2: Connect the second UDL unit

Connect the output of the first UDL unit to the input of the second UDL unit. Precisely align the mounting positions, check the shaft’s rotational capability, and secure all bolts so the speed control assembly operates stably.

Step 3: Connect to the WPDX gearbox

Install the assembly consisting of the electric motor and two UDL units onto the WPDX gearbox. Ensure the key and shaft engage in the correct position, then tighten the flange bolts. Before powering on, rotate the shaft manually to check for smoothness and detect any deviations early if present.

Combining two UDL variators with the WPDX gearbox creates a 3-stage transmission system capable of flexible speed reduction, increased output torque, and excellent response to applications requiring low speed and high load capacity such as agitators, conveyors, mixers, presses, and other industrial equipment.

In addition to this article, you can refer to additional gear motor videos to learn in detail about the structure, operating principles, and installation techniques. Furthermore, compilation videos on the Thành Thái Motor channel will provide a lot of useful information about gear motor lines, helping you easily choose products suitable for each usage need.
