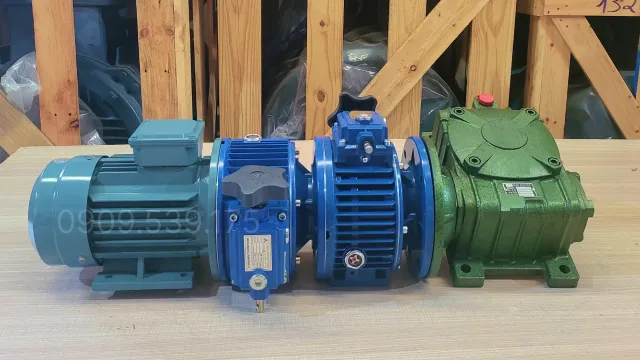

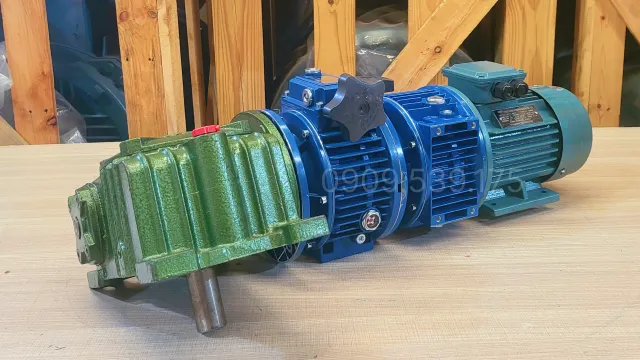

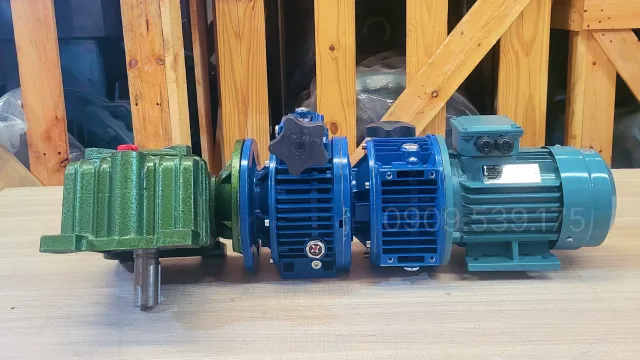

3-Stage Gear Motor (2 UDL 1.5kW and 1 WPDX 80)

3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80) is a gear motor assembled from an electric motor, specifically a 3-phase electric motor, combined with a gearbox, specifically a 3-stage gearbox. Thanks to its right-angle output shaft design and compact structure, the device is easy to install in confined spaces and suitable for systems requiring flexible directional changes of the output shaft. This motor produces a very low output speed, stable pulling force, and precise movement, perfectly meeting the long-term operation requirements of industrial machinery systems.

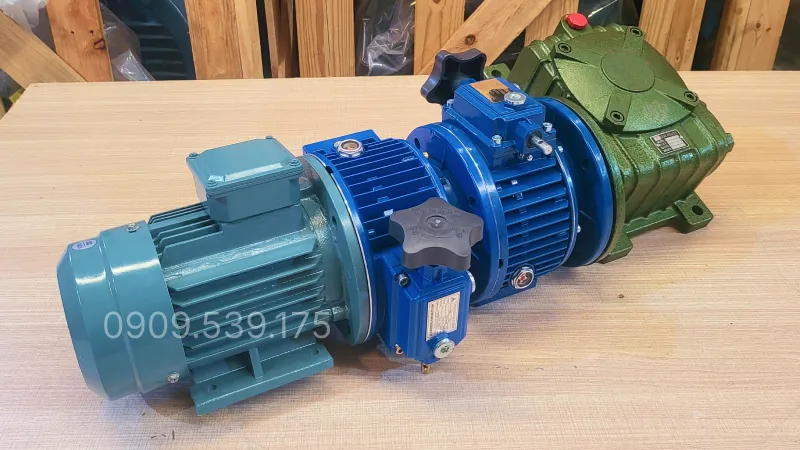

Overview of 3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80)

3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80), thanks to its 3-stage transmission structure, allows stepless speed change and deep deceleration, delivering stable operating performance even during continuous long-term operation. This is the optimal choice for agitators, mixers, screw conveyors, slow conveyors, roasters – dryers, and production lines requiring large torque. This 3-stage gear motor is highly rated for its strong load capacity – smooth operation – long lifespan – flexible installation, especially when using the WPDX 80 gearbox which helps easily change the transmission direction in machinery systems with limited space.

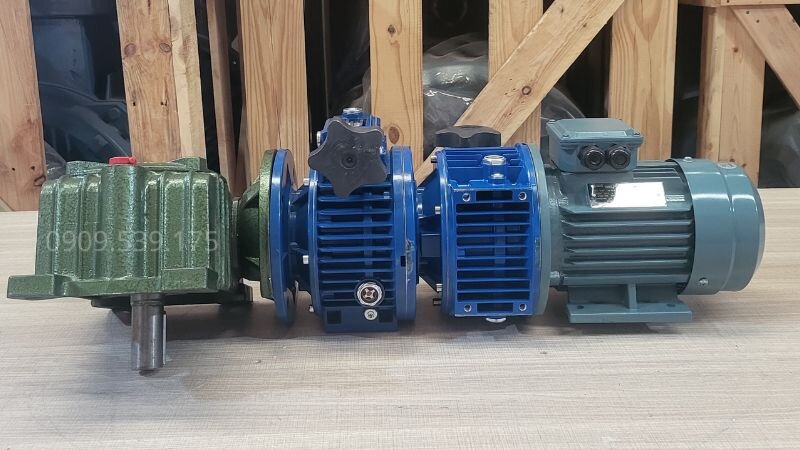

Structure of 3-Stage Gear Motor

3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80) is a gear motor ranging from 1.1kW to 3.7kW assembled from a 3-phase electric motor 1.5kW 2Hp with a 3-stage gearbox (two UDL 1.5kW and one WPDX 80) detailed in structure as follows:

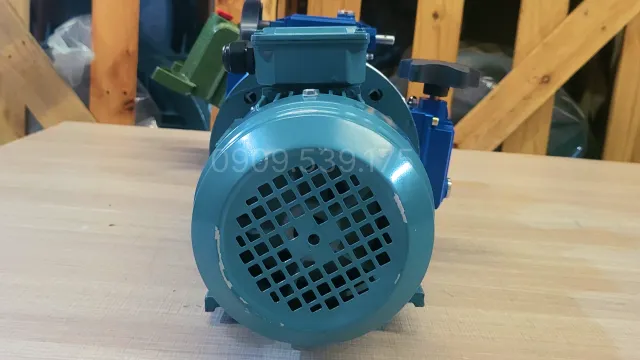

Electric motor structure:

• Stator: Made of pure copper wire to improve efficiency and increase motor lifespan.
• Rotor: Meticulously and precisely machined to help balance operation well and minimize vibration.

Gearbox structure:

• Stage 1 is a mechanical speed variator (UDL): Specifically, the 1.5kW 2Hp mechanical speed variator consisting of a friction disc – cone disc assembly, input – output shafts, and an adjustment knob, allowing stepless speed changes before entering the gearbox.
• Stage 2 is a 2-stage gearbox: Specifically, the UDL 1.5kW – WPDX 80 2-stage gearbox creating a large gear ratio and high torque, operating smoothly.

Technical Specifications of 3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80)

Referring to the complete technical specifications helps users evaluate the working capacity of the 3-stage gear motor (two UDL 1.5kW and one WPDX 80), while choosing the configuration that suits transmission requirements and actual installation conditions.

Technical Specifications of 3-Phase Electric Motor 1.5kW

The electric motor is the component that generates power for the entire transmission system, so technical specifications will help users easily select, install, and combine with other equipment in the same system.

Technical Specifications of UDL 1.5kW Mechanical Speed Variator

The UDL mechanical speed variator is responsible for flexibly adjusting the output speed before transmitting motion to the gearbox, contributing to improving equipment operating efficiency. The section below summarizes technical information for selection and installation.

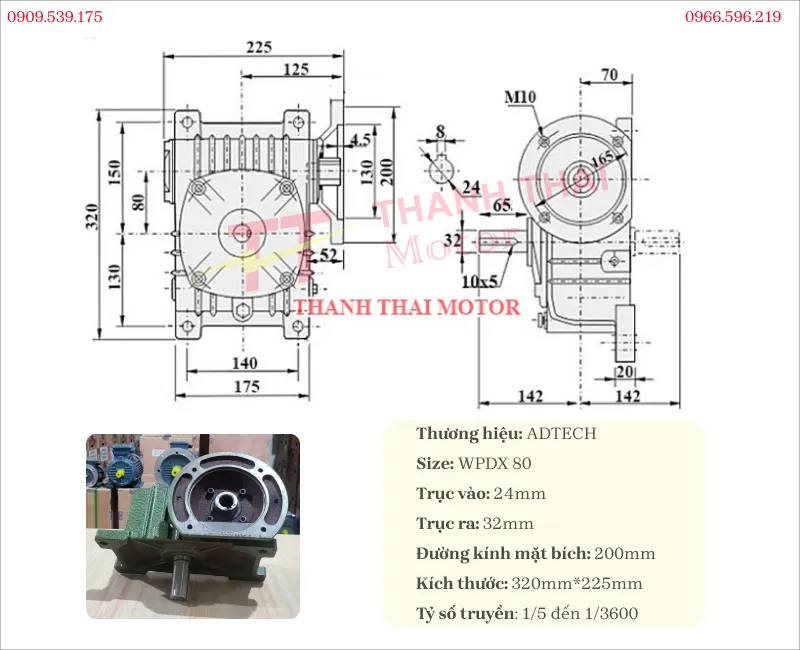

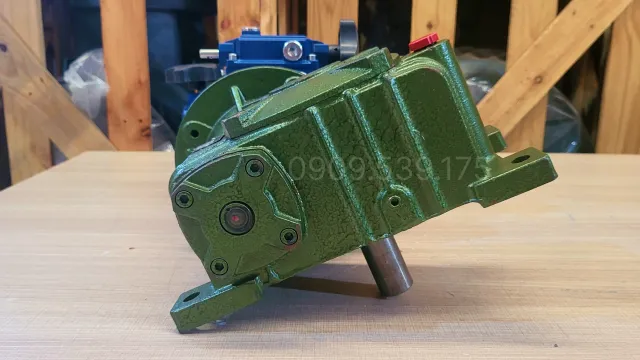

Technical Specifications of WPDX 80 Gearbox

The WPDX size 80 speed reducer gearbox is the component responsible for transmitting torque and reducing output speed, helping the system operate stably under various working conditions. Below are the technical specifications for user reference and selection.

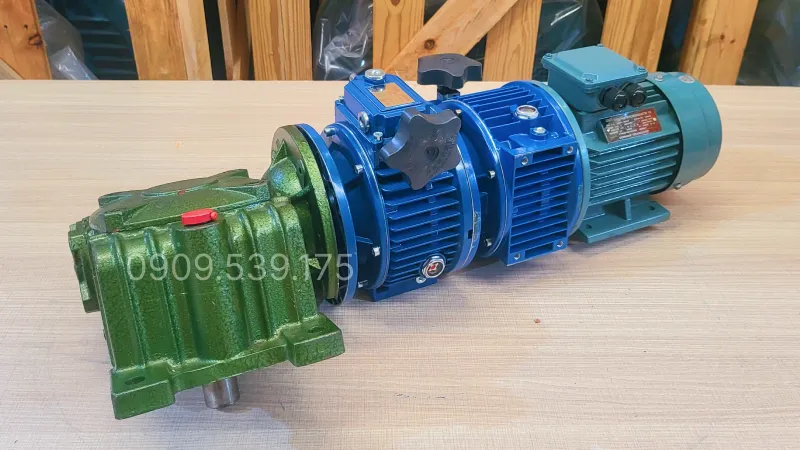

Common Applications of 3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80)

• 3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80) is widely applied in many industries:
• Industrial agitators and mixers
• Heavy-duty conveyor systems, slow-speed conveyors
• Feeding machines, dosing machines
• Mechanical machinery operating 24/7
• Food processing, packaging, wood, and plastic industries
• Machinery requiring large torque and stable low speed

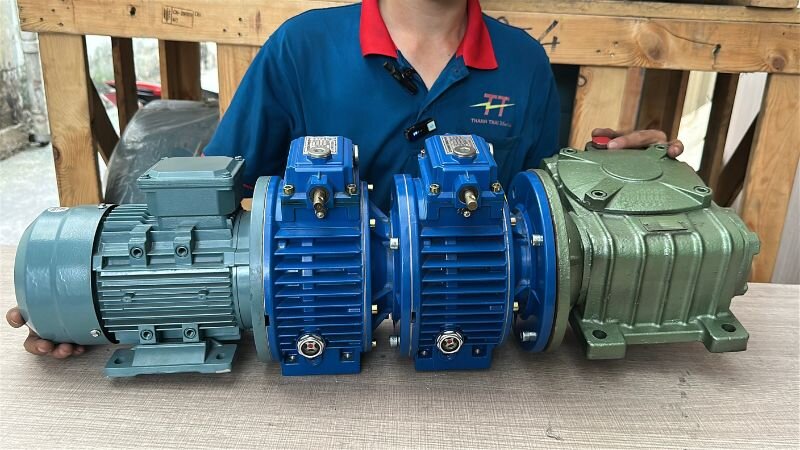

How to Install an Electric Motor with 2 UDLs and 1 WPDX to Form a WPDX 3-Stage Gear Motor

Below are concise assembly steps, getting straight to practical operations:

• Step 1: Couple the electric motor with UDL 1
  • Align the motor shaft concentrically with the input hole of the first UDL speed variator.
  • Press the flange tightly and use a wrench to tighten all bolts.
• Step 2: Assemble UDL 2 (Creating a dual speed variator assembly)
  • Insert the output shaft of the 1st UDL unit directly into the input hole of the 2nd UDL unit.
  • Tighten the flange connection screws to form a single integrated motorized speed variator assembly.
• Step 3: Attach the assembly (Motor + 2 UDLs) to the WPDX gearbox
  • Precisely align the keyway, insert the output shaft of the 2nd UDL unit to fit into the hollow shaft hole of the WPDX gearbox.
  • Ensure the shaft is not warped, seat it tightly against the flange and firmly tighten all screws to secure the machine assembly.
• Step 4: Inspection
  • Recheck the tightening force of all 3 joints (Motor-UDL1, UDL1-UDL2, UDL2-WPDX).

3-Stage Gear Motor (Two UDL 1.5kW And One WPDX 80) is the combination of two UDL speed variators and a WPDX 80 worm gearbox creating a powerful 3-stage transmission combination, thoroughly solving the requirement for extremely low output speeds for agitator systems or heavy-duty conveyors.

See more video summary systems and gear motor videos produced by Thanh Thai Motor to learn in detail about electric motors, gear motors, and many electromechanical devices being supplied.
