What is a heavy duty R-series inline helical gearbox
A heavy duty R-series inline helical gearbox (also known as a heavy duty R-series inline helical speed reducer) is a mechanical device designed to reduce the rotational speed of an electric motor while increasing torque. When this gearbox is combined with an electric motor to form a gear motor, specifically heavy duty gear motor lines, it effectively meets heavy load requirements and stable performance. With an inline structure, the R-series gearbox is commonly used in applications requiring powerful and durable transmission.

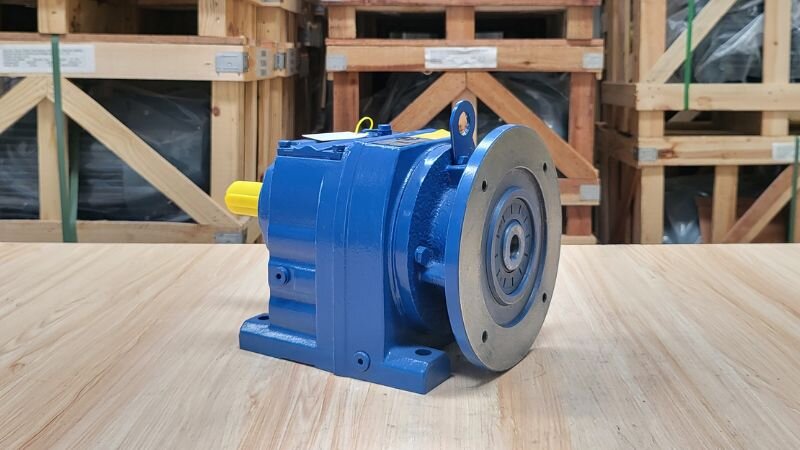

What is a heavy duty R-series inline helical gearbox?
Structure of the inline helical gearbox
The inline helical gearbox consists of the following main components:
Input shaft: Transmits power from the motor to the gear system.
Output shaft: Receives power and transmits it to the driven equipment.
Power transmission gears: Spur or helical gears, usually made of hardened steel to withstand high loads.
Housing: Cast iron, aluminum, or high-strength alloy, protecting the internal components.
Bearings and oil seals: Ensure smooth shaft rotation and prevent oil leakage, guaranteeing lubrication and gearbox lifespan.

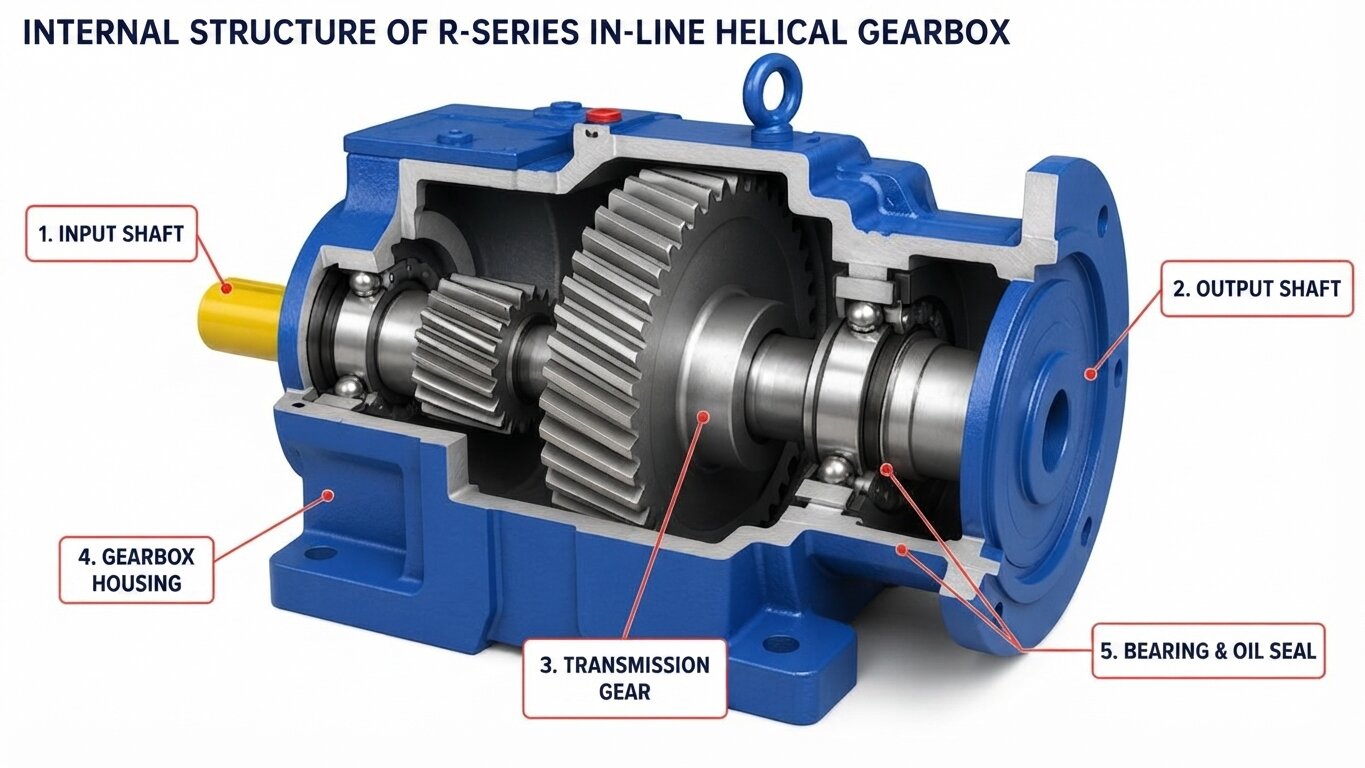

Detailed internal structure of the heavy duty R-series inline helical gearbox
Operating principle of the inline helical gearbox
The operating principle of the inline helical gearbox is quite simple:
Input shaft rotates → intermediate gear rotates → speed is reduced, torque is increased → transmitted to the output shaft in alignment with the input shaft.
The heavy duty R-series inline helical gearbox is commonly combined with 3-phase electric motor products to become a heavy duty gear motor, meeting powerful transmission demands in industry.
Classification of heavy duty R-series inline helical gearboxes
Inline helical gearboxes are classified according to various criteria:
By number of stages:
1-Stage heavy duty R-series inline helical gearbox
By output shaft type: solid shaft, hollow shaft, single or double shaft.
By installation method: foot mount, flange mount, or shaft-mounted.
By housing material: cast iron housing, corrosion-resistant aluminum alloy.
Latest heavy duty R-series inline helical gearbox price
Below is the price list for the heavy duty R-series inline helical gearbox at Thanh Thai Motor. This price list helps customers easily refer to and select products that suit their usage needs.
Price quote video for heavy duty R-series inline helical gearbox in 10/2026
Notes when purchasing a heavy duty R-series inline helical gearbox
Accurately calculate torque and safety factor: For heavy duty lines like the R-series, you must never select a gearbox based solely on motor power (kW or HP). Check the catalog table to see if the nominal torque of the gearbox can meet the starting force of the load. In particular, the service factor must reach at least 1.4 to 2.0 for applications with strong impact characteristics (such as presses, crushers) to ensure gear lifespan.
Determine the mounting structure (Foot mount or Flange mount): The R-series has many installation variant styles that you need to clearly distinguish in the product code:
R-series: Integrated cast foot mount, used for horizontal placement on machine bases.
RF-series: Output flange (B-flange), specialized for vertical installation or wall mounting.
RX / RXF series: 1-stage fast speed line (small transmission ratio), with a more streamlined housing.
Check input shaft standard (Motor connection mechanism): You need to determine how the gearbox will connect to the motor:
PAM flange (Female input shaft): A standard electric motor will insert its shaft directly into the gearbox. You need to accurately measure the motor shaft diameter and outer flange diameter to select the completely matching PAM code.
Male input shaft (Plain input shaft): The gearbox will receive drive force from the motor via a coupling, V-belt, or chain. This line requires the mounting base to be precisely aligned concentrically to avoid vibration.
Notes on installation orientation and lubrication mode: Heavy duty R-series lines strictly regulate installation orientations (M1, M2, M3, M4, M5, M6). The orientation determines the position of the breather plug, oil drain plug, and the amount of oil filled inside. For example, if you buy a gearbox designed for horizontal placement (M1) but install it vertically (M4), the oil cannot fill and lubricate the top bearings, leading to bearing burnout after just a few days of operation.
Housing material and gear heat treatment: The lifespan of the R-series gearbox depends on the quality of the gear steel blank. All internal helical gears must be made from high-grade alloy steel, undergoing carburizing and precision gear grinding processes to ensure high surface hardness while keeping the core ductile to withstand impacts. The gearbox housing must be thick cast gray iron to prevent deformation under high torsional loads.
Customers can access the gearbox video compilation category page to discover practical videos of the gearboxes currently available at Thanh Thai Motor.

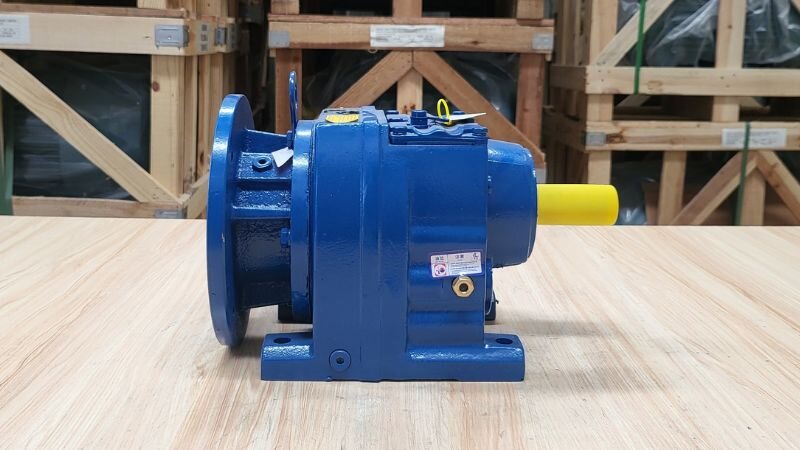

Notes when purchasing a heavy duty R-series inline helical gearbox
Frequently asked questions
Why does the R-series gearbox make a characteristic “light whining” sound when running, and is that sound an error?
Unlike worm gearboxes which run extremely quietly due to sliding friction, the R-series gearbox uses a helical gear system for high-speed meshing transmission. As the helical teeth engage, they create a continuous contact patch and produce a characteristic “whining” or light “wind howling” sound. This is a completely normal mechanical phenomenon of high-efficiency heavy duty gears. However, if the whining turns into a grinding, clanking, or piercing noise, that is a sign of shaft misalignment, bearing breakage, or chipped gears.
Why does installing contrary to the specified orientation immediately burn out the top bearings of the R-series gearbox?
Heavy duty R-series lines strictly regulate 6 installation orientations (from M1 to M6). Each installation orientation has a different oil filling level and breather plug position. For example: When installed horizontally (M1), the oil level only needs to submerge half of the gearbox chamber. But if you install that same gearbox vertically (M4), the highest top bearings and gear pairs will be starved of oil because they cannot reach the oil level at the bottom. Without switching to a dedicated vertical mounting structure, the upper section will overheat and seize up the bearings after just a few days of operation.
What is special about the impact load bearing mechanism of the R-series gearbox gears to prevent gear chipping during overload?
The helical gear system of the R-series is manufactured from high-grade alloy steel blanks (such as 20CrMnTi). After rough machining, the gears must undergo carburizing and surface quenching processes to achieve extremely high hardness (about 58 – 62 HRC), providing perfect wear resistance. However, the inner core of the gear teeth is kept in a ductile state (shock-absorbing property). This hard-outside, tough-inside structure gives the gear teeth slight elasticity when encountering sudden shock loads from crushers or stone conveyors, completely preventing brittleness, fracture, and local gear chipping.
