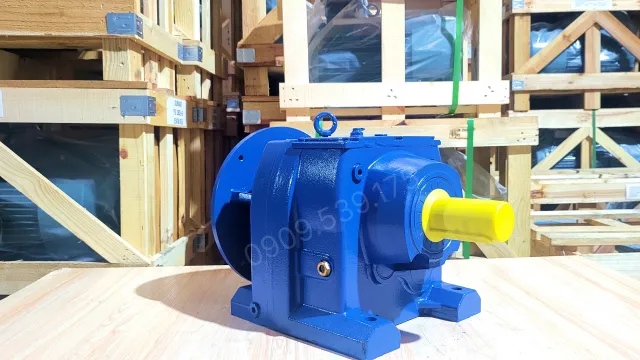

R-Series Inline Helical Gearbox 55kW 75Hp

The heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp features an inline input and output shaft design, which reduces rotational speed while increasing torque. This makes the transmission process more efficient, minimizes noise and vibration, and ensures stability and reliability throughout operation. Let’s explore this gearbox in detail with Thành Thái Motor and its practical applications across industries.

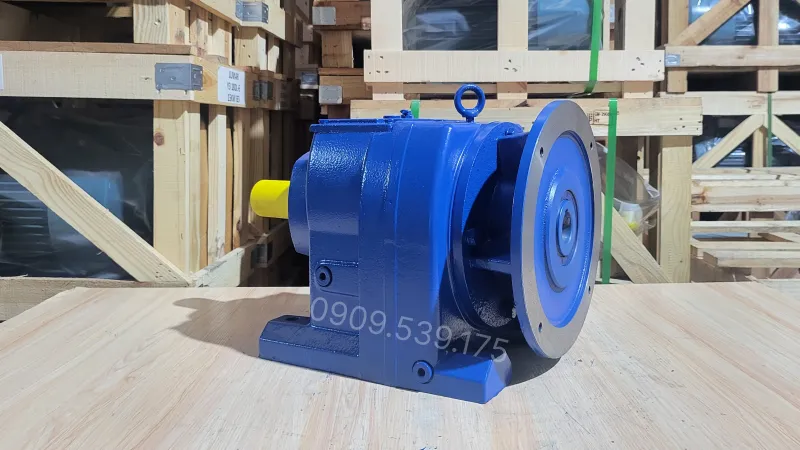

Overall design of the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp

The heavy-duty inline helical gearbox R features outstanding durability and high efficiency, making it suitable for numerous industrial applications. The exterior casing is powder-coated in blue or gray, which not only enhances aesthetics but also protects the equipment from corrosion in harsh working environments. The housing is made of sturdy cast iron with excellent load-bearing capacity, ensuring stability and durability during operation.

The input and output shafts are made of high-quality alloy steel, offering wear resistance, which helps enhance transmission efficiency and extend product lifespan. The internal gears of the gearbox are precision-machined with a high mesh ratio, minimizing friction and noise during operation. This improves operating performance and reduces equipment wear over time.

When combined with an electric motor, the gearbox creates a gear motor, which is commonly applied in heavy industrial equipment such as stone crushers, heavy-duty conveyors, high-capacity mixers, etc.

Structure of the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp

The main components of the heavy-duty R-Series Inline Helical Gearbox are as follows:

• Housing: Made of sturdy cast iron, enhancing load-bearing capacity and protecting internal components from environmental impacts.
• Shaft: Made of high-quality alloy steel, wear-resistant, and ensuring efficient torque transmission.
• Bearings: Integrated to reduce friction between moving parts, enhancing operational stability and smoothness.
• Gears: Made of hardened steel with precise mesh design, reducing speed and increasing torque to ensure smooth transmission.

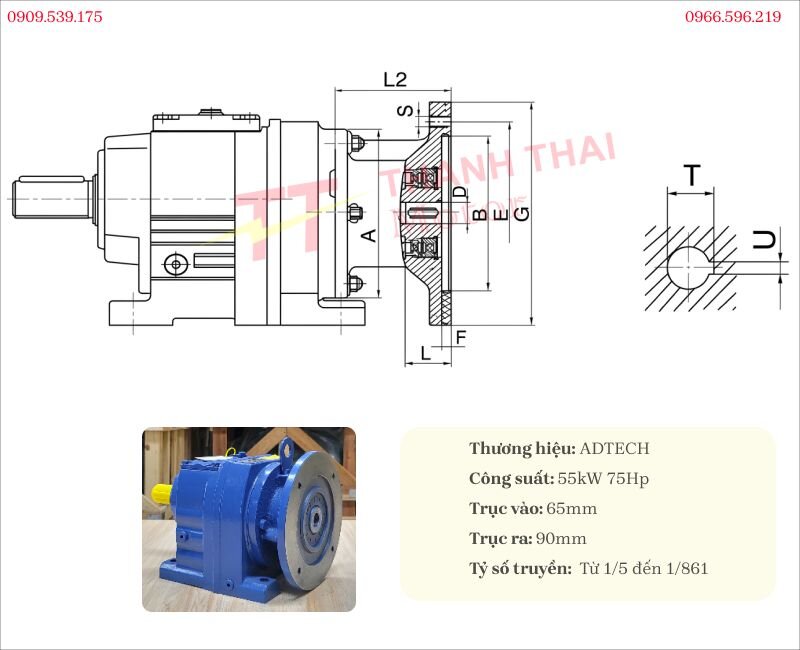

Technical specifications of the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp

Below are the basic technical specifications of the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp

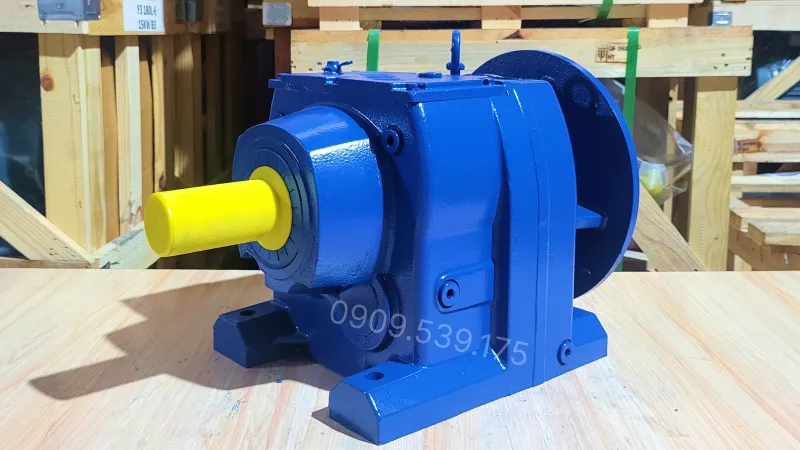

What is the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp used for?

The heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp is widely applied in various fields, including:

• In conveyor systems, helping to continuously transport goods and raw materials, increasing production line efficiency.
• It is also used in crushers and food mixers, ensuring efficient operation.
• In crane and lifting systems, the gearbox helps lift goods quickly and safely, providing strong support for the construction and transportation industries.
• Additionally, in the wood and plastics manufacturing industries, the gearbox contributes to increasing productivity and accuracy for rolling and pressing machines.

Instructions for adding oil to the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp

To ensure the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp operates stably, reduces wear on transmission components, and extends equipment lifespan, oiling must be carried out according to the procedure below.

Step 1: Disconnect the power supply and prepare lubricating oil

Completely turn off the power supply of the motor and gearbox, ensuring the equipment has completely stopped before operating. Prepare industrial gear oil with the correct viscosity grade recommended by the manufacturer along with tools such as an oil funnel, wrench, and cleaning cloth.

Step 2: Drain old oil and clean the gearbox

For used gearboxes, open the drain plug to remove the old oil. Once the oil has completely drained, thoroughly clean the drain and filler plug areas to prevent dirt or impurities from entering the gearbox.

Step 3: Add new oil

Open the oil filler plug and slowly pour new oil into the R-Series Inline Helical Gearbox 55kW 75Hp. Do not pour too quickly to allow the oil time to evenly distribute to the internal gears, roller bearings, and transmission components.

Step 4: Check oil level and test run

Observe the oil sight glass or dipstick to ensure the oil level reaches the standard. Then tightly close the oil filler plug, start the equipment to run unloaded for a few minutes, and recheck the oil level as well as sealing positions to ensure no leakage occurs.

Through the instructional video from Thành Thái Motor, you will learn how to locate the oil filler plug, drain plug, and oil sight glass on the heavy-duty R-Series Inline Helical Gearbox 55kW 75Hp. The comprehensive video also shares notes on periodic oil replacement and instructions for checking lubricating oil before putting the equipment into operation.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
