R-Series Inline Helical Gearbox 90kW 125Hp

The R-Series Inline Helical Gearbox 90kW 125Hp features a durable cast iron housing with inline input and output shafts, effectively reducing speed and increasing torque. The product operates stably, reducing noise and vibration, making it ideal for heavy-duty industrial sectors. Let’s explore this gearbox and its practical applications in industries with Thanh Thai Motor.

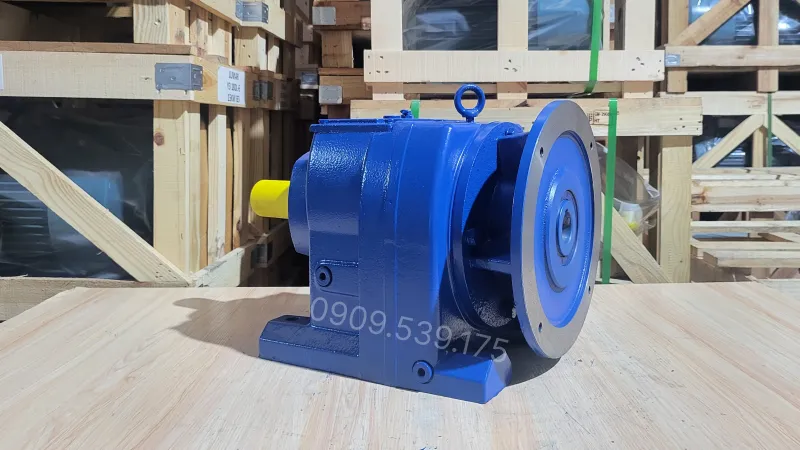

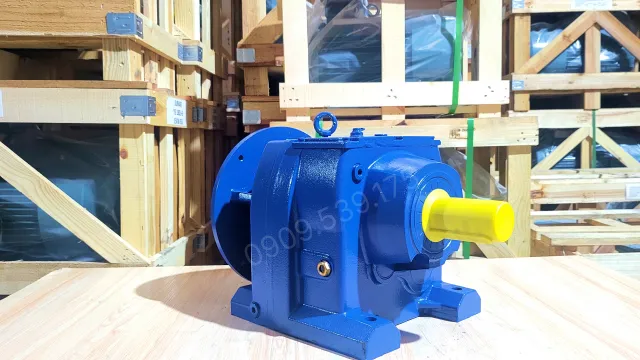

Design overview of the R-Series Inline Helical Gearbox 90kW 125Hp

The heavy-duty inline helical gearbox R has an attractive design with a blue or gray paint finish, which not only enhances aesthetics but also protects against corrosion. The housing is made of sturdy, high-strength cast iron, helping the equipment operate stably in harsh environments such as dusty or damp conditions.

The input and output shafts are made of wear-resistant alloy steel, ensuring efficient power transmission. The internal gears are precision-machined to reduce friction and noise while enhancing equipment efficiency and lifespan.

The gearbox is combined with an electric motor to form a gear motor, commonly used in production and material handling lines in factories and mechanical workshops.

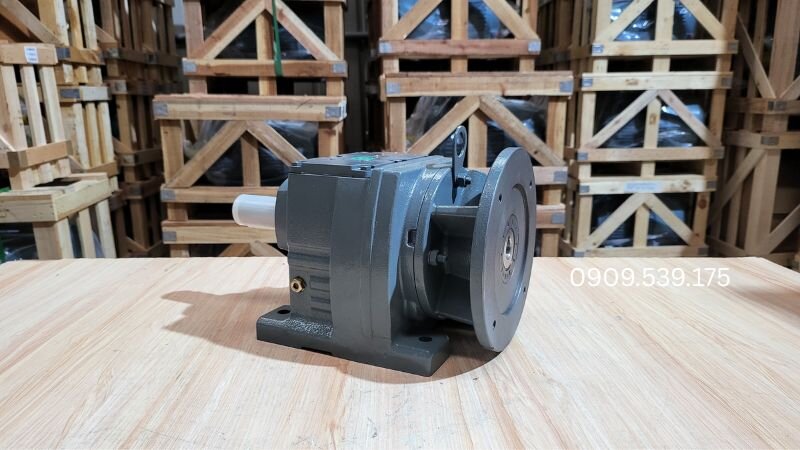

Structure of the R-Series Inline Helical Gearbox 90kW 125Hp

The R-Series Inline Helical Gearbox is constructed from high-quality components to ensure optimal working performance:

• Housing: Made of sturdy cast iron, enhancing load-bearing capacity and protecting internal components from external environmental impacts.
• Motor shaft: Made of high-grade alloy steel with good wear resistance, generating powerful rotational force and effectively increasing torque.
• Bearing: Helps reduce friction between moving parts, enabling smoother and more stable shaft rotation.
• Gears: Made of hardened steel with precise meshing design, helping reduce rotational speed and increase torque, ensuring smooth and quiet transmission.

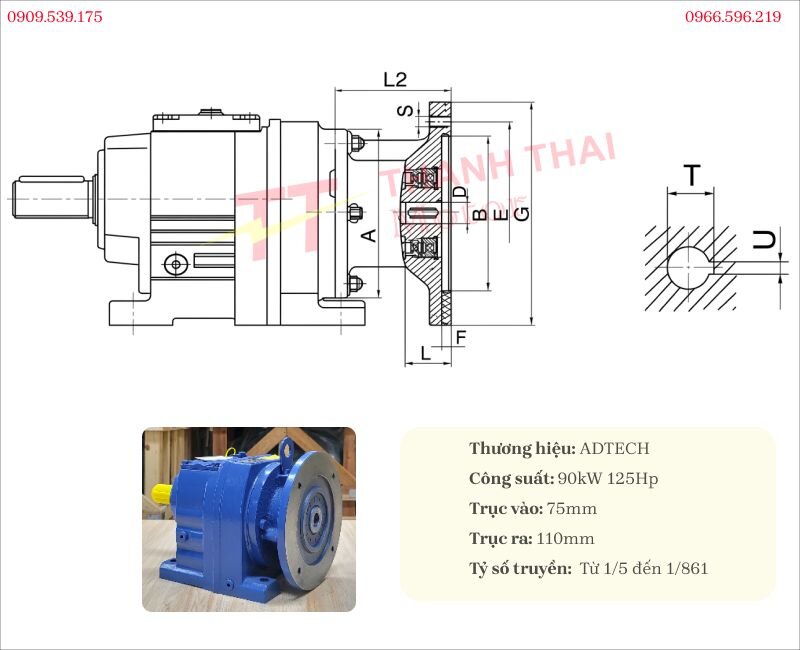

Technical specifications of the R-Series Inline Helical Gearbox 90kW 125Hp

Designed for heavy-duty applications requiring high torque and stable operation in continuous industrial environments.

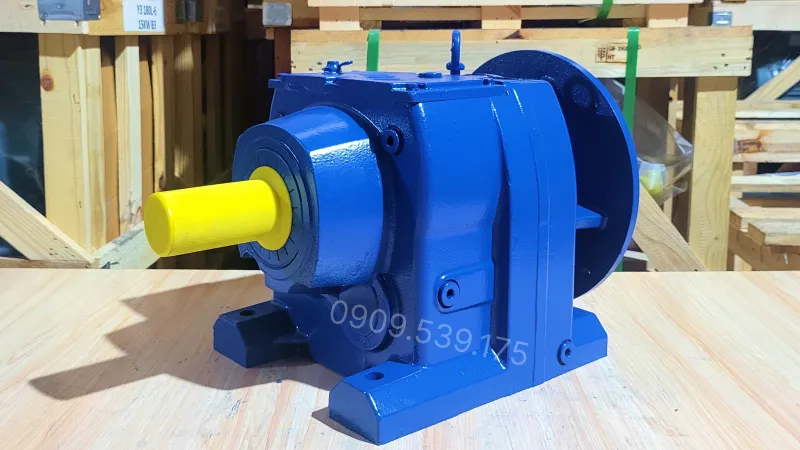

Applications of the R-Series Inline Helical Gearbox 90kW 125Hp

The R-Series Inline Helical Gearbox 90kW 125Hp is widely used in many industries thanks to its heavy load capacity and high efficiency:

• In conveyor systems, supporting the continuous transportation of goods and materials, helping to improve production efficiency.
• In crushers and food mixers, ensuring stable production processes and delivering uniform, high-quality finished products.
• Used in crane systems and hoisting machines, helping to lift heavy loads quickly and safely.
• Applied in rolling mills, presses, and crushers to process hard materials such as stone, wood, and metal, enhancing accuracy and productivity. Advantages of the R-Series Inline Helical Gearbox 90kW 125Hp

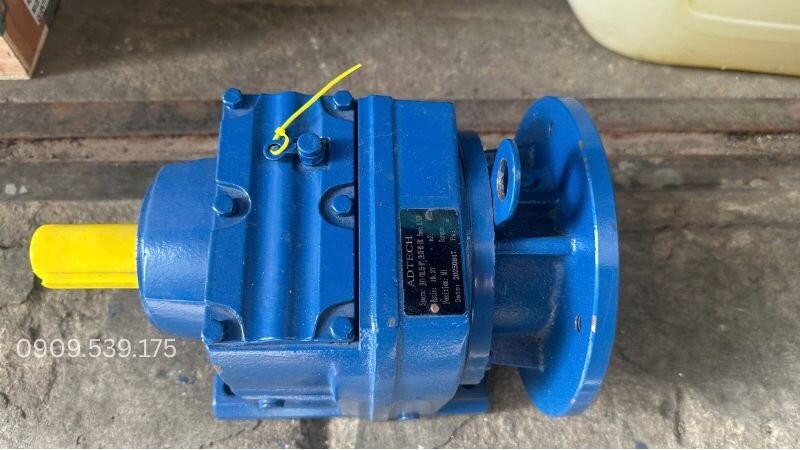

Guide to adding oil for the R-Series Inline Helical Gearbox 90kW 125Hp

To ensure the R-Series Inline Helical Gearbox 90kW 125Hp operates stably and achieves a long service life, follow these steps to add oil:

Step 1: Disconnect power and prepare lubricating oilCompletely disconnect the power supply to the motor and gearbox. Prepare industrial gear oil with the viscosity grade recommended by the manufacturer, along with an oil funnel and necessary disassembly tools.

Step 2: Drain old oil (if the gearbox has been used)Open the oil drain plug at the bottom of the gearbox to completely drain the old oil. After draining, clean the drain plug and tighten it securely. If it is a brand-new gearbox that has never been operated, this step can be skipped.

Step 3: Add new oilOpen the oil filling plug on the body of the inline helical gearbox, then slowly add oil so that it distributes evenly among the gears and bearings, avoiding pouring too fast to prevent overflowing.

Step 4: Check oil levelObserve the oil sight glass or dipstick (depending on the model) and fill to the specified level. Do not underfill as it reduces lubrication performance, and do not overfill to prevent pressure buildup and oil leakage during operation.

Step 5: Completion and inspectionTightly close the oil filling plug and wipe clean any oil adhering to the surface of the gearbox. Start and run no-load for a few minutes, then recheck the oil level and seal/gasket positions to ensure no leakage occurs before putting the system into continuous operation.

Through Thanh Thai Motor’s gearbox video, you will learn how to identify the structure, read technical specifications, and locate the oil filling position of the R-Series Inline Helical Gearbox 90kW 125Hp. In addition, the comprehensive video guides you through the proper technical oil filling process and oil level inspection before operation.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
