R-Series Inline Helical Gearbox 22kW 30Hp

The R-Series Inline Helical Gearbox 22kW 30Hp is an essential device widely applied in mechanical manufacturing plants and workshops. Its primary functions are to reduce angular velocity, adjust rotational speed, and enhance torque. Let’s explore the details with Thanh Thai Motor in the article below!

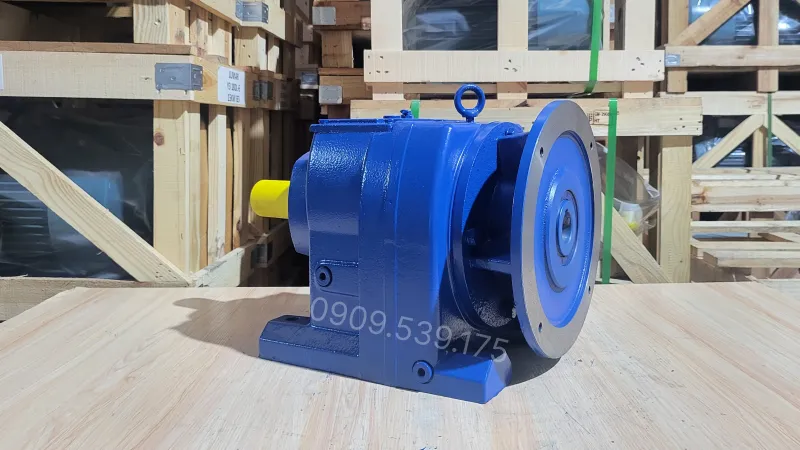

General Design of the R-Series Inline Helical Gearbox 22kW 30Hp

The exterior of the heavy-duty R-series inline helical gearbox is coated with a gray/blue powder coating to protect the equipment from rust. The motor housing is made of rigid cast iron, providing sturdiness and durability. The motor housing protects internal components from external impacts, abrasions, or operation in corrosive and rusty environments.

This is why this gearbox (reduction gearbox) is favored by many businesses for its durability and low failure rate.

Internal Structure of the R-Series Inline Helical Gearbox 22kW 30Hp

The R-Series Inline Helical Gearbox 22kW 30Hp consists of two basic parts: the motor shaft and helical gears.

• The motor shaft part in heavy-duty gearboxes is typically larger than that of medium-duty or standard-duty gearboxes.
• Helical gear part: Also known as bevel gears, these have a spiral structure, which increases the contact area between the gears and thereby enhances load-bearing capacity.

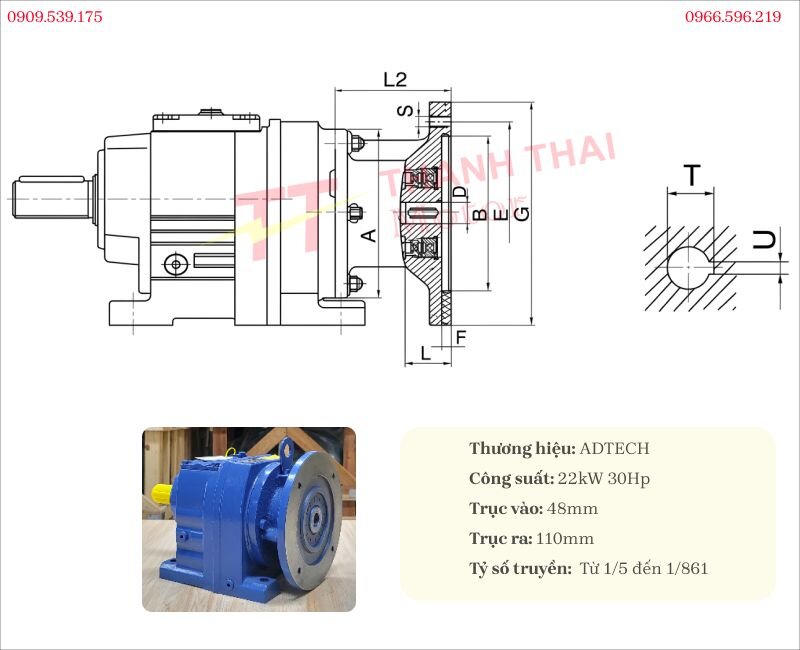

Technical Specifications of the R-Series Inline Helical Gearbox 22kW 30Hp

Below are the basic technical specifications of the R-Series Inline Helical Gearbox 22kW 30Hp

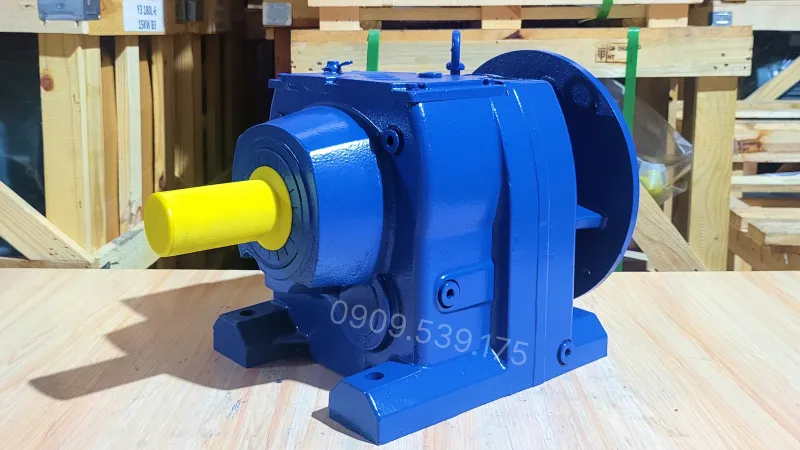

Functions and Applications of the R-Series Inline Helical Gearbox 22kW 30Hp

• Heavy-duty gearboxes are widely used in industrial production systems, machinery systems, and equipment requiring changes in the rotational direction of drive force.
• In conveyor systems: R K F 22kW 30Hp can be used for speed reduction in food processing, packaging production lines, or mixers and agitators.
• Lifting systems such as cranes and hoists, metallurgy technology, and machining.
• Used in heavy-load vehicles like trucks and container trucks in construction projects.

Instructions for Adding Oil to the R-Series Inline Helical Gearbox 22kW 30Hp

To ensure the R-Series Inline Helical Gearbox 22kW 30Hp operates efficiently, minimizes wear, and increases lifespan, oil must be added according to the following procedure:

• Step 1: Turn off the power supply, place the gearbox in a stable position, and prepare suitable lubricating oil along with necessary tools.
• Step 2: Completely drain the old oil (for used gearboxes), clean the drain plug, and reinstall it securely before adding new oil.
• Step 3: Add oil through the filling plug up to the specified level on the oil sight glass. Do not underfill or overfill to ensure effective lubrication.
• Step 4: Start the gearbox and run it at no-load for a few minutes, then recheck the oil level and sealing locations to ensure no leaks occur.

Through the instructional video by Thanh Thai Motor, you will easily identify the locations of the oil fill plug, oil drain plug, and oil sight glass on the R-Series Inline Helical Gearbox 22kW 30Hp. The comprehensive video also guides you on the correct technical oil filling method and shares maintenance notes to help the gearbox operate stably and durably, enhancing work performance.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The R-Series Inline Helical Gearbox 22kW 30Hp is the perfect solution for industrial applications, delivering superior performance and high durability. To learn more about this product and other solutions from Thanh Thai Motor, contact us today!
