What is TECO water pump?

A TECO water pump is a water pump line (water pump motor) manufactured by the Teco brand, well-known in the field of high-quality electric motors and industrial equipment. The company’s products are highly appreciated for their stable operation, energy-saving capabilities, and good durability in various working environments.

The TECO water pump is widely applied in civil, agricultural, water supply and drainage systems, and industry thanks to its diverse designs, capacities, and flow rates. In addition to stable operating performance, this pump line is also chosen by many users for its ability to operate continuously, with minimal damage and easy maintenance during long-term use.

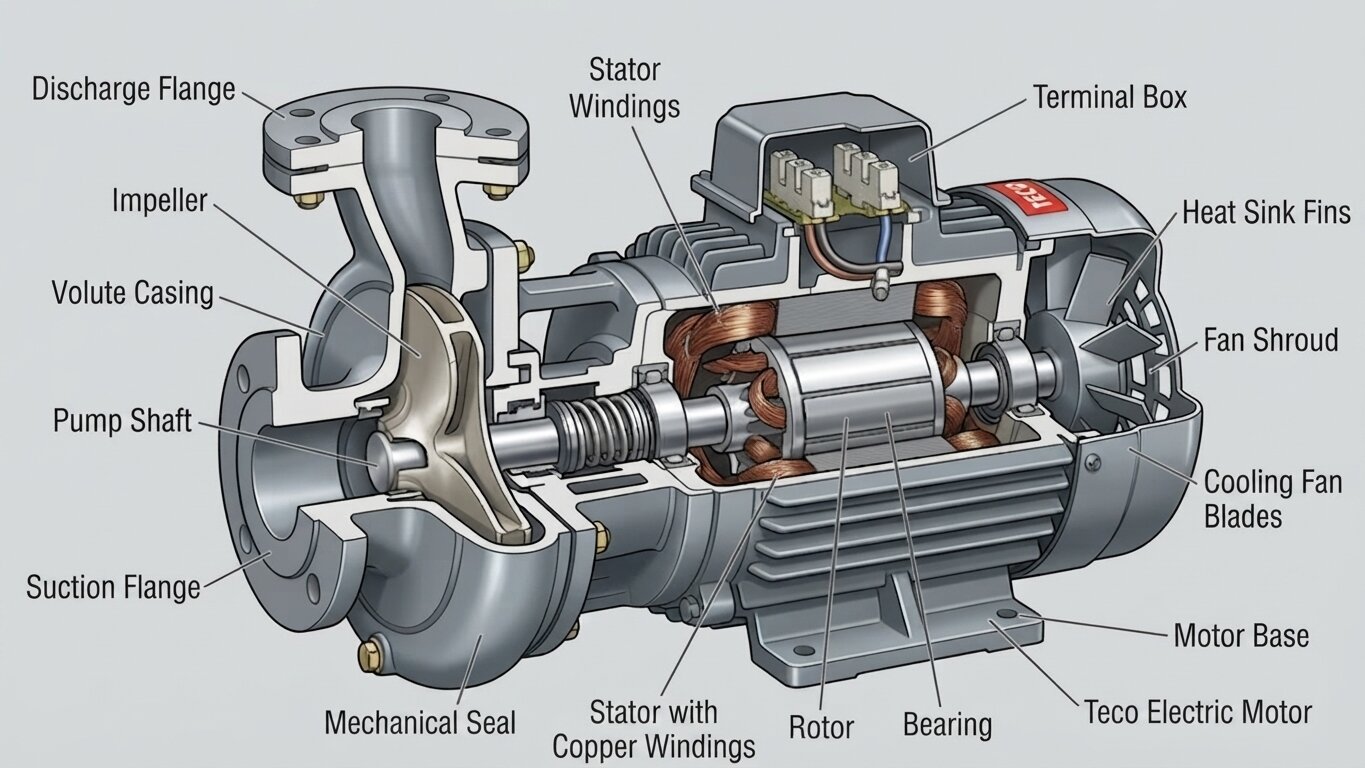

Structure of the TECO water pump series

The TECO water pump is designed with a sturdy structure, optimized for stable operation, energy saving, and durable performance in various environments. Depending on each TECO water pump model, the structure may vary, but fundamentally it consists of the following main components:

• Electric motor: This is the component that generates movement for the entire system to operate. The TECO water pump motor typically uses high-quality copper wire, helping to increase efficiency, reduce heat loss, and ensure continuous operation over a long period.
• Impeller: This component is responsible for creating centrifugal force to draw and push water. The impeller of the TECO water pump is usually made of brass, stainless steel, or engineering plastic depending on the model to increase durability and corrosion resistance.
• Pump chamber: This is where the water intake and discharge process takes place. The sealed pump chamber design helps increase water pressure, reduce loss, and enhance operating efficiency.
• Pump shaft: The pump shaft connects directly between the motor and the impeller, transmitting stable rotational motion during operation. This component is usually made of stainless steel to increase load-bearing capacity and oxidation resistance.
• Mechanical seal: Functions to prevent water leakage into the motor, while protecting internal components of the TECO water pump during continuous operation.
• Pump casing: The outer casing is usually made of cast iron, aluminum alloy, or stainless steel to increase rigidity, impact resistance, and corrosion resistance in humid environments.
• Cooling fan: This component helps dissipate heat for the motor during operation, limiting overheating when the machine runs continuously for a long time.

Operating principle of the TECO water pump

The TECO water pump operates mainly based on the principle of centrifugal force to draw and push water. When the electric motor is powered, the motor rotates and transmits movement to the pump shaft and impeller inside the pump chamber. During rotation, the impeller creates a centrifugal force that draws water in from the suction port and pushes it out strongly through the discharge port. This pressure difference helps water move continuously through the pipeline system with stable flow and pressure. Depending on the TECO water pump model such as centrifugal pump, high-head pump, submersible pump, or booster pump, the impeller structure and head capacity will vary to suit each practical application need.

Thanks to its stable operating principle, the TECO water pump motor can operate continuously for a long time, well meeting civil, agricultural, water supply and drainage, and industrial applications.

Classification of TECO water pumps

3-Phase TECO water pump

The 3-phase TECO water pump models are water pumps bearing the Teco brand designed to operate with a 3-phase power supply (380V), commonly used in large-scale industrial and agricultural applications thanks to their powerful and durable operation.

TECO water pump under 3.7kW

TECO water pumps under 3.7kW include TECO water pump models with a capacity of less than 3.7kW, suitable for civil applications, small-scale irrigation, or systems that do not require high pumping capacity.

TECO water pump over 3.7kW

TECO water pumps over 3.7kW are TECO water pump models with superior capacity exceeding 3.7kW, usually chosen for large-scale industrial and agricultural applications or systems requiring high pumping performance.

TECO water pump under 50m3/h

TECO water pumps under 50m3/h refer to TECO water pump models capable of pumping water flows of less than 50 cubic meters per hour, suitable for civil applications, moderate irrigation, or systems not requiring large flow rates.

TECO water pump over 50m3/h

TECO water pumps over 50m3/h are TECO water pump models capable of pumping water flows greater than 50 cubic meters per hour, typically used in large-scale industrial, agricultural applications, or systems requiring large water volume transportation.

TECO water pump prices at Thanh Thai Motor

Thanh Thai Motor currently supplies various TECO water pump models serving water supply, booster, and industrial system operation needs. Below is the TECO water pump prices list for customers to easily track, refer to, and choose the appropriate product.

Things to note when buying a TECO water pump

To select a suitable TECO water pump and use it efficiently for a long time, users should carefully consider factors such as capacity, flow rate, head, and practical operating environment.

• Determine the exact usage needs: It is necessary to determine whether the purpose of use is domestic pumping, boosting, high-head pumping, submersible pumping, or irrigation to choose the right model.
• Select the appropriate capacity: The machine’s capacity must correspond to the system scale and actual water usage needs to avoid overloading or unnecessary power consumption.
• Pay attention to flow rate and head: If water needs to be pumped high, prioritize models with large head capacity; if strong water flow is needed, choose a model suitable for the piping system and usage requirements.
• Check the power supply: The TECO water pump has both 1-phase and 3-phase series, so it is necessary to choose the right voltage to ensure stable and safe operation.
• Choose materials suitable for the working environment: For clean water environments, standard models can be used; whereas for alum-contaminated, chemical, or wastewater environments, anti-corrosive materials like stainless steel or high-quality cast iron should be prioritized.
• Buy from reputable suppliers: You should choose official suppliers with clear warranties and full technical support to ensure the quality of the TECO water pump during use.

If you need practical reference before purchasing, you can watch more aggregated videos in the water pump video category with various content on practical operation, technical guidance, and reviews of each water pump model.

Frequently Asked Questions [FAQ]

Why is the TECO water pump chosen by many users?

This pump line is highly appreciated for its stable operation, durable motor, easy-to-find replacement parts, and suitability for both civil and industrial applications.

Can a TECO water pump be used with a variable frequency drive?

Yes. Many systems combine a variable frequency drive to adjust flow rates and help the motor operate more energy-efficiently.

How often should a TECO water pump be maintained?

Users should periodically inspect every 3-6 months depending on usage frequency to clean the impeller, check bearings, and inspect the electrical system.
