What are F-Series Parallel Shaft Helical Gearboxes?
Heavy Duty F-Series Parallel Shaft Gearboxes are mechanical devices designed to reduce rotational speed from an electric motor and increase output torque. When this gearbox is combined with an electric motor to form a gear motor-specifically heavy duty gear motor lines-it provides exceptional load-bearing capacity.F-Series Parallel Shaft Helical Gearboxes are widely used in heavy industries where stability and high performance are required, making them the optimal transmission solution for machinery and equipment with heavy load requirements.What is an F-Series Parallel Shaft Helical Gearbox?
Structure of F-Series Parallel Shaft Gearboxes
A typical parallel shaft gearbox includes the following main components:
Input shaft: This is the component that receives power from the motor and transfers it into the gearbox.
Output shaft: The output shaft transmits the speed-reduced and torque-increased force to the load equipment, helping machinery perform work.
Gears (spur or helical): Gears, which can be spur gears or helical gears, play an intermediate role in power transmission between the input shaft and the output shaft.
Ball bearings and roller bearings: Bearings support smooth rotation, reduce friction, and increase the lifespan of the gearbox.
Housing: The housing is usually made of cast iron or aluminum, serving to protect internal components and dissipate heat, helping the gearbox operate stably.
Lubrication system: The lubrication system ensures stable gear operation, reduces wear, and extends the lifespan of the gearbox.

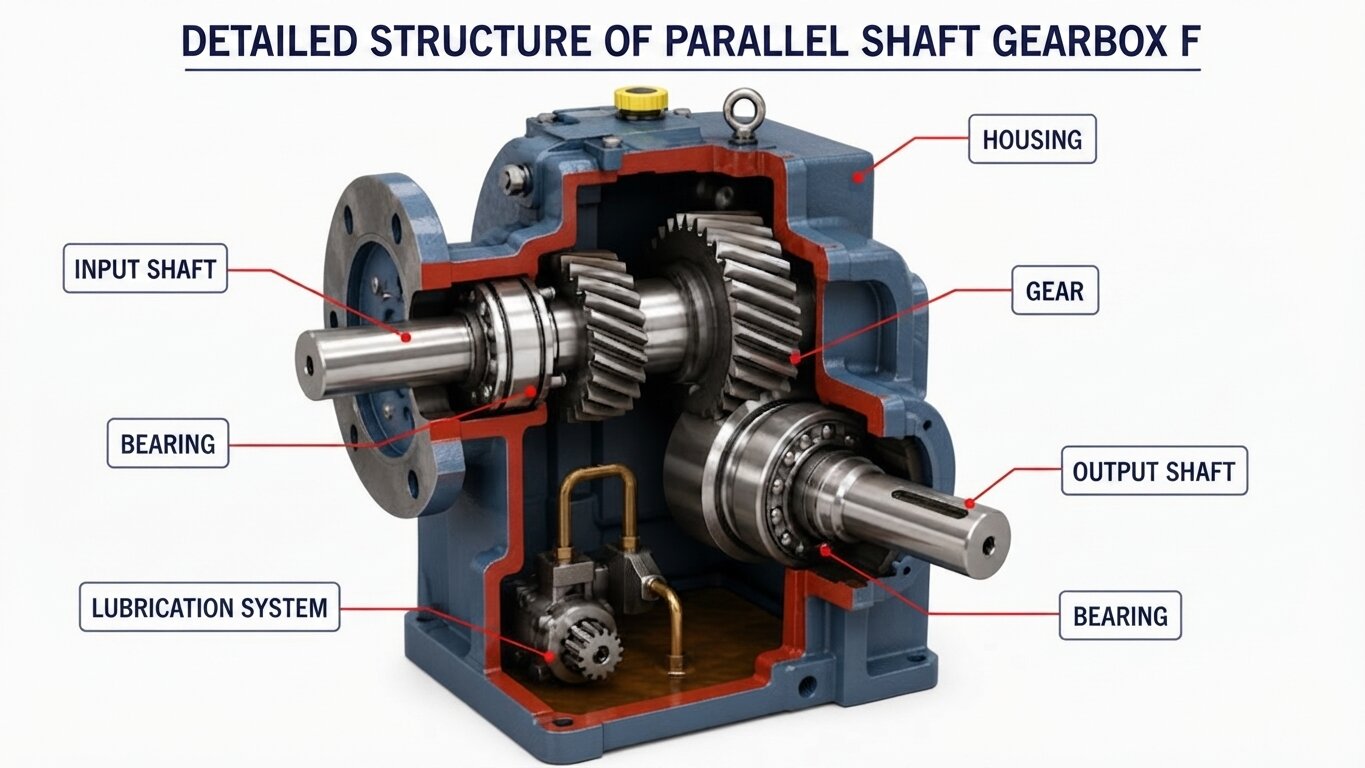

Detailed structure of F-Series Parallel Shaft Helical Gearbox
Operating principle of F-Series Parallel Shaft Helical Gearbox
The operating principle of the parallel shaft gearbox is quite simple yet effective:
When the input shaft begins to rotate, it drives the driving gear to rotate along.
This driving gear then transmits force to the driven gear on the output shaft. The direction of rotation of the output shaft can be the same or opposite to the input shaft, depending on the specific design of the gearbox.
Thanks to the gear ratio between the gears, the rotational speed is reduced, while the torque is significantly increased. This helps machinery perform heavy tasks easily.
This transmission process takes place entirely within the same plane between two parallel shafts.
When combined with electric motor products, the F-Series Parallel Shaft Helical Gearbox forms a complete heavy duty gear motor unit, meeting powerful transmission demands in industry.
Classification of F-Series Parallel Shaft Helical Gearboxes
There are many ways to classify parallel shaft gearboxes depending on different criteria:
By housing material: Cast iron, aluminum, cast steel.
By mounting type: Foot mounted, flange mounted, wall mounted.
By power rating: Diverse power ratings from 2.2kW to 45kW.
By gear type: Spur gear, helical gear, spiral gear.
Classification of F-Series Parallel Shaft Helical Gearboxes
Prices of F-Series Parallel Shaft Helical Gearboxes at Thanh Thai Motor
To help customers easily choose the right product, Thanh Thai Motor provides the price list for gearboxes, specifically the latest price list for F-Series Parallel Shaft Helical Gearboxes. This price list includes basic technical specifications and the most competitive market prices.
Parallel shaft gearboxes are widely applied in various industries:
Food and pharmaceutical production lines, where high precision and stability are required.
Straight or lifting conveyor systems, helping transport goods efficiently.
Mixers, agitators, and presses, ensuring continuous and stable production processes.
Lifting equipment and freight elevators, helping raise and lower goods safely and efficiently.
Other mechanical systems requiring parallel transmission arrangement, maximizing space and performance.
Applications of F-Series Parallel Shaft Helical Gearboxes
Frequently Asked Questions
Why do F-Series Parallel Shaft Helical Gearboxes have better centrifugal force resistance than conventional gear lines?
F-Series gearboxes are specially designed with the distance between the two supporting bearings on the output shaft much larger than that of other gearbox lines. In addition, the cast-iron housing is thickly cast with reinforcement ribs running along the body. This structure helps the F-Series gearbox withstand extremely large centrifugal and radial bending forces from chains, pulling lugs, or couplings of sludge scraper and raw material scraper systems without risking shaft deformation or bearing cracking.
How to technically handle oil leakage at the output shaft of the F-Series gearbox when installed vertically?
Unlike horizontal installation, when the F-Series gearbox is installed vertically for liquid agitation, the entire weight of the lubricating oil will press down on the oil seal at the output shaft. After a period of operation, if the seal hardens due to heat or debris adheres to it, oil leakage will occur. To thoroughly resolve this, when replacing with a new seal, customers must choose a double seal made of high-temperature fluoro-rubber material, combined with checking whether the breather plug on top of the gearbox is blocked to reduce internal air pressure.
Why must gears inside the F-Series gearbox be replaced in pairs rather than replacing a single chipped gear?
The F-Series gearbox uses a helical gear system manufactured with high mechanical precision and has undergone a running-in process together. If you only replace a chipped gear with a new one, the backlash and tooth angle will not completely match the remaining old gear. This will lead to local stress concentration, causing extremely loud whining noises during operation and shattering the new gear pair just a few days after powering on.
