F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp

The F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp features a robust structure, high torque, and a wide distribution of gear ratios, enabling precise speed tuning that closely matches machine design specifications, making it widely applied across various equipment and diverse usage needs. Let’s explore the details of this gearbox with Thanh Thai Motor!

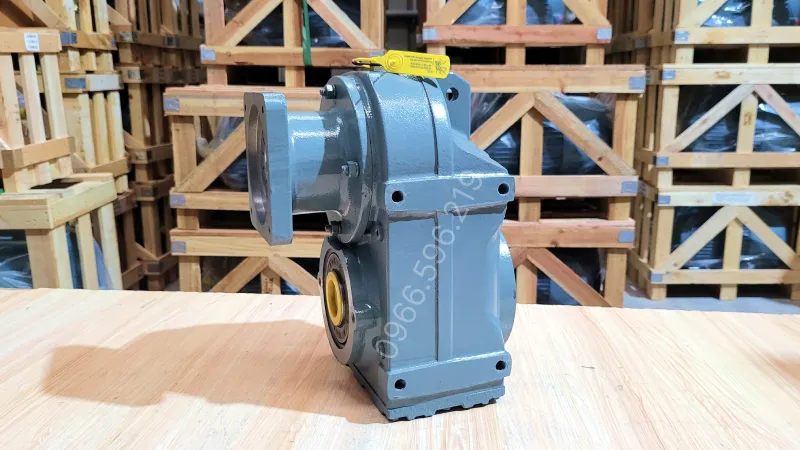

General design of the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp

The F-Series Parallel Shaft Helical Gearbox is coated with electrostatic powder painting technology to prevent rust and well protect the internal structure of the gearbox, such as the motor shaft. The F-Series Heavy Duty Parallel Shaft Helical Gearbox is trusted in heavy industries for its impact resistance and tolerance against external environmental factors, helping improve work efficiency and ensure equipment lifespan.

When combining the gearbox with an electric motor, it creates a complete gear motor used in construction projects, helping transport heavy materials and perform lifting tasks for bulky objects.

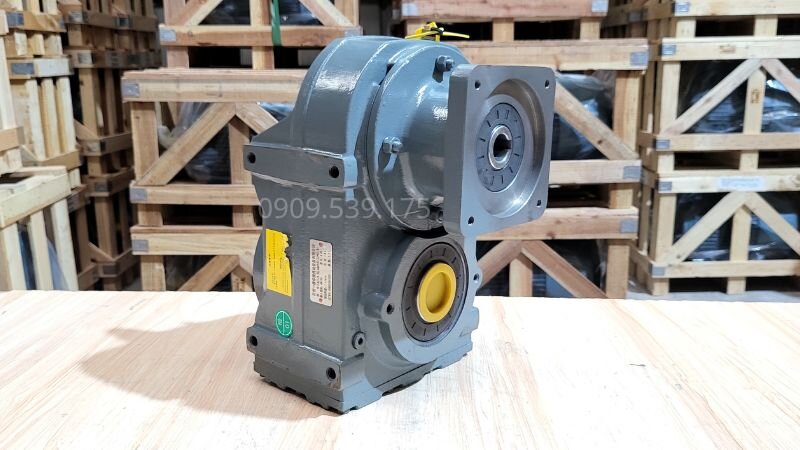

Structure of the F-Series Parallel Shaft Helical Gearbox

The F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp consists of two main parts: the motor shaft and helical gears:

• Motor shaft: Larger in size compared to the motor shafts of light-duty and medium-duty gearboxes, enhancing load-bearing capacity and durability for equipment in heavy industrial applications.
• Helical gears: Also known as bevel gears, capable of withstanding heavy loads and ensuring stable operating performance for the motor.

Specifications

• Gear ratio from 1/15, 35, 55, 75, 85, 115, 145, …, 800, 900, 1100.
• Commonly used F sizes: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157.
• Mounting type: Installed in foot-mounted or flange-mounted styles.

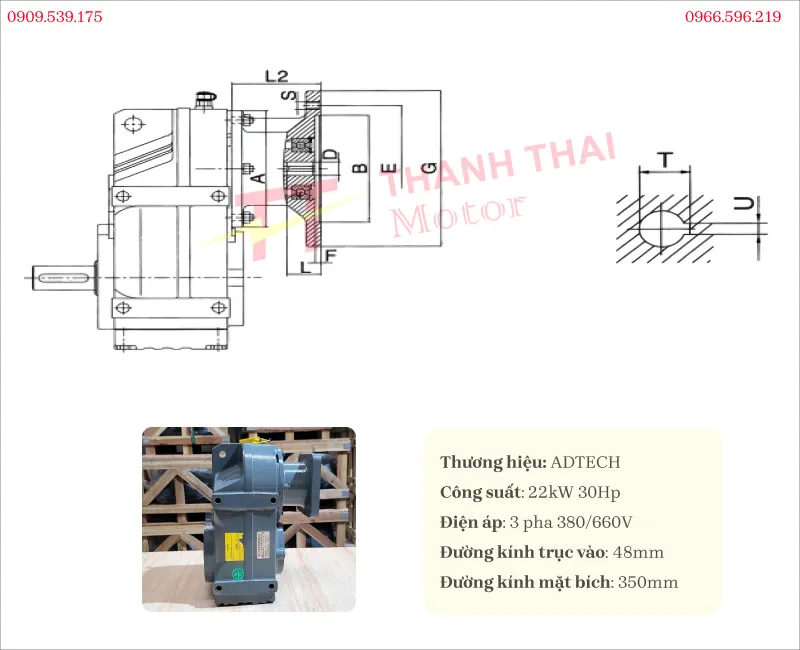

Specifications of the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp

When the F-Series Parallel Shaft Helical Gearbox is combined with a 3-phase electric motor, it forms a heavy-duty gear motor.

Specifically, the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp combined with a 3-phase electric motor 22kW 30Hp forms the F-Series Heavy Duty Parallel Shaft Helical Gear Motor 22kW 30Hp.

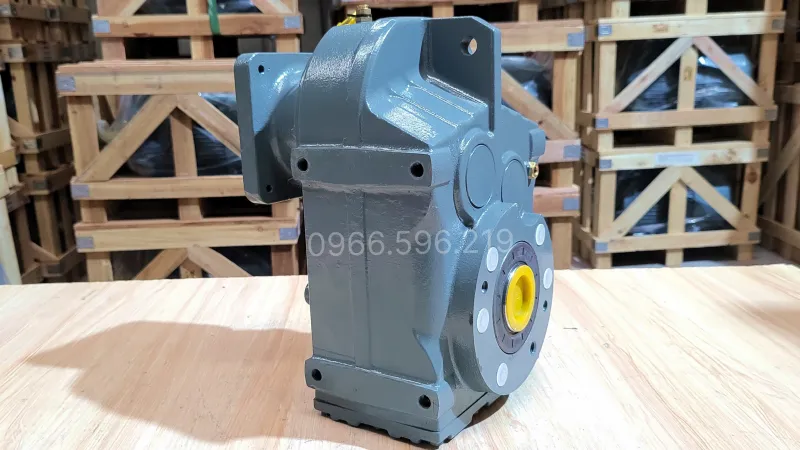

Applications of the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp

• Widely used in construction processes to move heavy objects such as concrete, steel, etc.
• Integrated into production lines to adjust speed and increase precision during manufacturing.
• Used in cranes and lifting equipment such as overhead cranes to lift and move heavy objects.
• Used for transporting goods via conveyor systems and conveyor belts. Outstanding advantages of the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp.

Guide to distinguishing the input shaft and output shaft of the F-Series Parallel Shaft Helical Gearbox

To help customers install quickly and accurately, Thanh Thai Motor guides you through 3 ways to distinguish the input shaft and output shaft of the F-Series Parallel Shaft Helical Gearbox just by looking from the outside:

Method 1: Observe the size difference. This is the most visual and easily recognizable sign as soon as you look at the device:

• Input shaft (Power receiving shaft): Always has a more compact diameter. This design aims to optimize receiving high rotational speed from the electric motor.
• Output shaft (Load shaft): Looks larger and thicker, helping the output shaft withstand extremely strong twisting force (torque) when operating heavy-duty systems.

Method 2: Look at the motor connection flange position

• Input shaft end: Always recessed or attached to a large flange (motor flange) with pre-drilled bolt holes. This is the dedicated design position to tightly mount onto the electric motor.
• Output shaft end: Located in the direction of power transmission out to the machinery system (conveyor, press, crane, etc.). This area will not have a massive motor connection flange like the input shaft end.

Method 3: Identify via shaft style

• Input shaft: Mostly designed as a standard solid shaft with a keyway to couple with the motor.
• Output shaft: Much more diverse in shape to be compatible with various types of machinery. When looking at the output shaft, you may see it as a hollow shaft, solid shaft, or load flange type.

Outstanding transmission efficiency and energy-saving capabilities are prominent characteristics of the F-Series Heavy Duty Parallel Shaft Helical Gearbox 22kW 30Hp. The gear system coordinates with the 48mm diameter input shaft to generate extremely strong torque, fully meeting the stringent requirements from specialized crane equipment.

If you need more practical images, check out the gearbox video and the comprehensive video made by Thanh Thai Motor.
