A 2-Stage Heavy Duty R-Series Inline Helical Gearbox is a mechanical drive device designed to reduce the input rotational speed from an electric motor while simultaneously increasing the output torque. Featuring an inline shaft structure and two reduction stages, this gearbox is capable of handling heavy loads and enduring harsh operating conditions, making it suitable for high-performance industrial applications.
2-Stage Heavy Duty R-Series Inline Helical Gearbox at Thanh Thai Motor.
Key Advantages of the 2-Stage Heavy Duty R-Series Inline Helical Gearbox
Large Torque Generation: The 2-stage drive design effectively reduces speed and generates high output torque, making it suitable for continuous heavy-duty systems.
Diverse Gear Ratios: The 2-stage R-series provides a variety of gear ratio options, allowing users to easily select according to the actual speed requirements of the equipment.
Stable Transmission Efficiency: Precision-machined helical gear construction minimizes energy loss and enhances the operating efficiency of the entire system.
Long-term Load Capacity: The gearbox is designed to meet industrial applications with heavy loads and high working intensity.
Smooth and Low-Noise Operation: Optimized drive components help reduce vibration and noise during operation.
High Durability and Long Service Life: Heat-treated and precision-machined gears enhance wear resistance in harsh working environments.

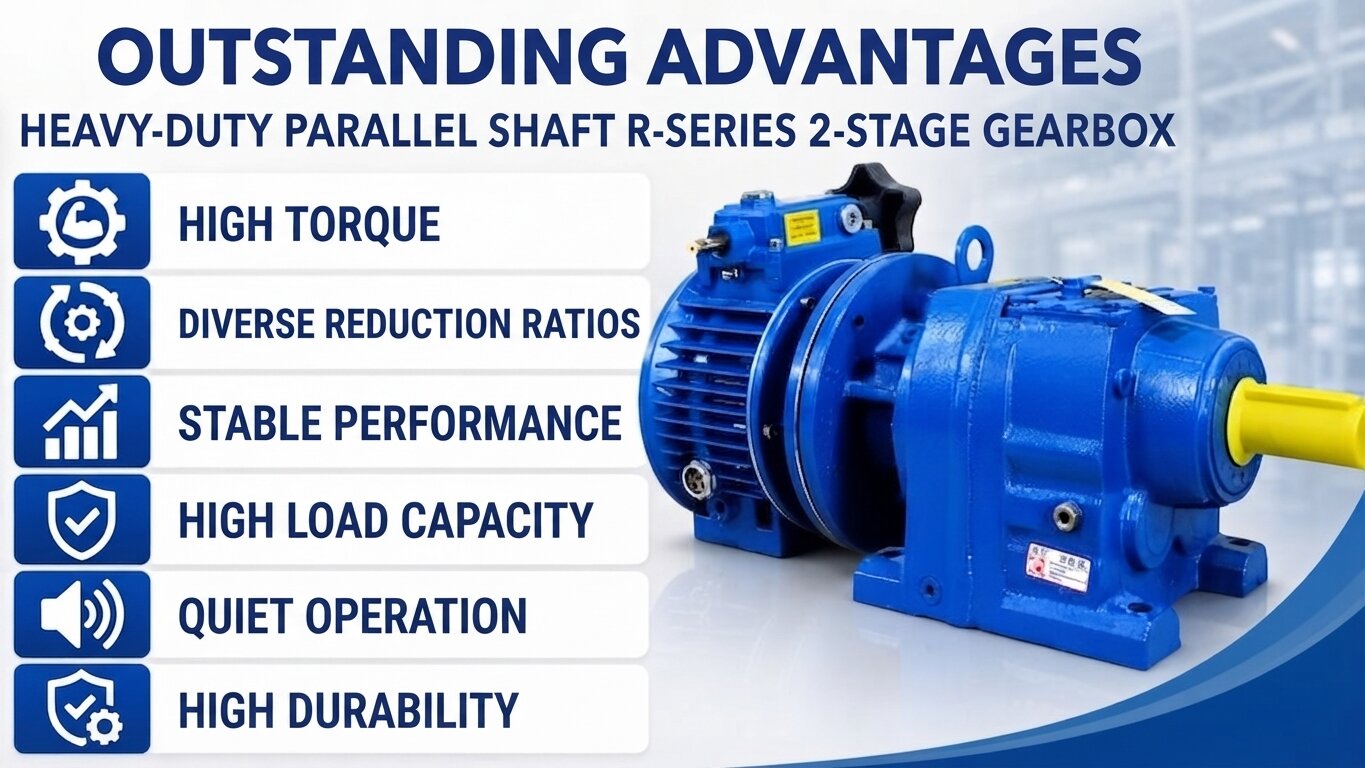

Key advantages of the 2-Stage Heavy Duty R-Series Inline Helical Gearbox.
Applications of the 2-Stage Heavy Duty R-Series Inline Helical Gearbox
Heavy-Duty Industrial Conveyor Systems: Widely used in conveyors transporting stone, coal, cement, ore, and various other production materials.
Automated Production Lines: Undertakes drive duties for multiple machine clusters requiring low speed and continuous operation capabilities.
Material Lifting Systems: Suitable for lifting and handling equipment requiring high pulling force and operational stability.
Steel and Metallurgical Plants: Supports driving for production equipment requiring large torque and continuous load-bearing capacity.
Wood and Paper Processing Industry: Used for conveyor systems, presses, grinders, and material processing equipment in plants.
Animal Feed Plants: Installed on feeding, material mixing, and product transportation lines with high operating intensity.

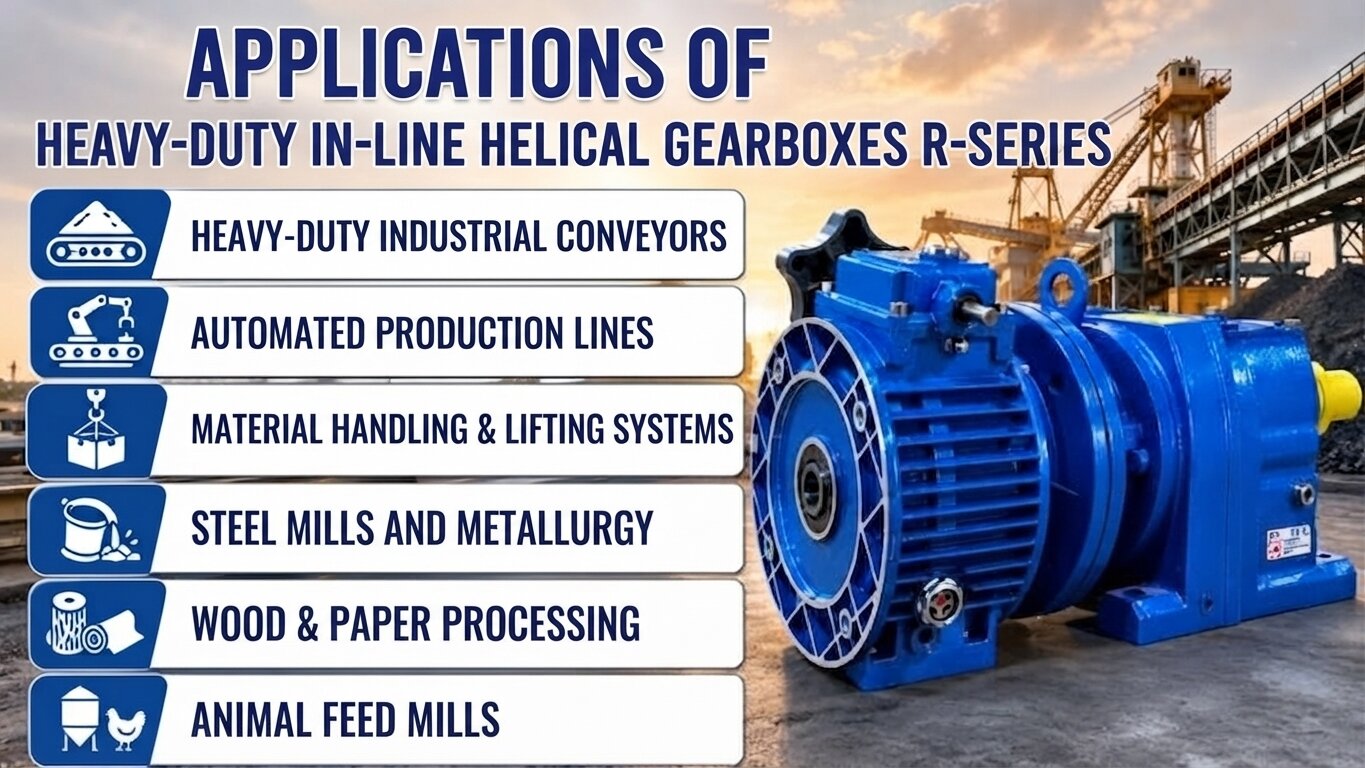

Applications of the 2-Stage Heavy Duty R-Series Inline Helical Gearbox.
Featured 2-Stage Heavy Duty R-Series Inline Helical Gearbox Price List at Thanh Thai Motor
Below is the price list for several prominent 2-stage heavy-duty R-series inline helical gearboxes at Thanh Thai Motor, chosen by many customers for industrial drive systems requiring large torque.
Notes When Choosing a 2-Stage Heavy Duty R-Series Inline Helical Gearbox
Accurately Determine Motor Power: Motor power is an important basis for selecting the appropriate gearbox model, avoiding overload or unnecessary excess.
Pay Attention to Output Torque: Do not rely solely on power; you need to check the torque capacity of the gearbox under actual working conditions.
Load Capacity: Applications such as stone conveyors, crushers, or mixers often have large impact loads, requiring the selection of a model with an appropriate safety factor.
Check Installation Type: Clearly define the foot mount, flange type, input shaft direction, and output shaft direction to ensure compatibility with the existing system.
Working Environment: For dusty, high-humidity, or high-temperature environments, products with good protection and heat dissipation capabilities should be selected.
Choose Appropriate Frame Size: The gearbox size must meet both technical requirements and actual installation space at the plant.
Prioritize High-Quality Products: Heat-treated and precision-machined gears will help the equipment operate more stably and durably.
Choose a Reputable Supplier: An experienced supplier will support calculating the correct technical parameters, helping to limit risks when investing in equipment.
In addition to the above notes, customers can refer to the summary videos at Thanh Thai Motor to better understand how to select a 2-stage heavy-duty R-series inline helical gearbox for specific applications. The video content covers everything from gear ratio calculation and torque selection to installation and operation experience in industrial environments.
Frequently Asked Questions
I am using an old gearbox with a 1/25 gear ratio, can I replace it with a 2-stage R-series with the same gear ratio?
Usually, replacement is possible if parameters such as power, torque, shaft diameter, and installation type are compatible with the current system.
If the motor runs at 1450 rpm but an output of about 50 rpm is needed, what gear ratio should be chosen?
In this case, a gear ratio of about 1/30 is typically required, though actual speed and operational requirements of the system should still be verified.
Can the 2-stage R-series inline helical gearbox be combined with a variable frequency drive?
Absolutely. This is a solution used by many plants to flexibly adjust speed and optimize the production process.
