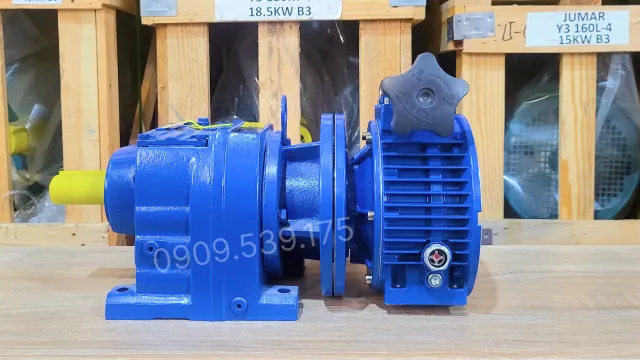

UDL 2-Stage Gearbox 0.37kW R37

The UDL 2-Stage Gearbox 0.37kW R37 features a sturdy construction. More specifically, as a 2-stage gearbox assembled from a mechanical speed variator (UDL) combined with an R-Series Inline Helical Gearbox, this 2-stage gearbox line not only helps save operating costs and ensures a long service life but also enhances the performance of the entire production system.

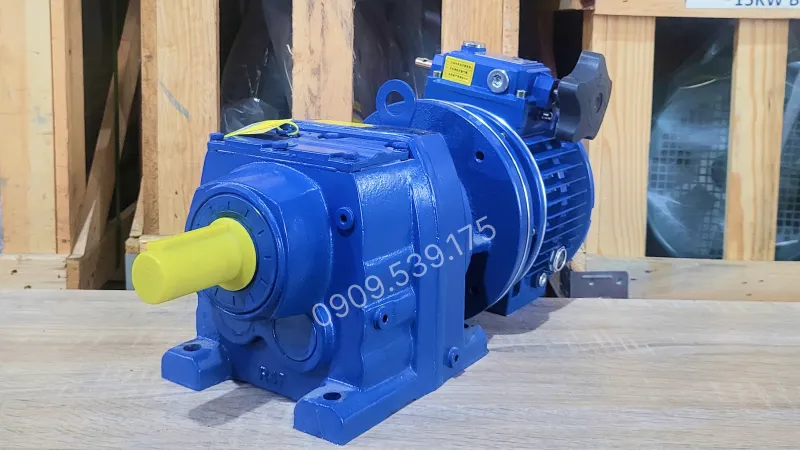

Design Overview of the UDL 2-Stage Gearbox 0.37kW R37

Thanks to its unique design, the UDL 2-Stage Gearbox 0.37kW R37 features a high-rigidity solid cast iron housing, providing excellent load-bearing capacity and minimizing deformation during operation. The exterior is coated with high-quality electrostatic paint, creating an effective anti-rust and anti-oxidation protective layer. This equipment can be assembled together with an electric motor and a 3-phase electric motor to create a gear motor product with a powerful functional structure and smoother operation.

Detailed Structure of the UDL 2-Stage Gearbox 0.37kW R37

Thanks to its unique, compact design, powerful performance, long lifespan, and smooth operation, the UDL 2-Stage Gearbox 0.37kW R37 has the following detailed structure:

• The detailed structure is a mechanical speed variator 0.8kW 1Hp device assembled with an R-series inline helical gearbox 2.2kW 3Hp, an R-series inline helical gearbox 4.0kW 5.5Hp; thanks to this unique combination, it creates a product with powerful performance.
• Detailed structure of the UDL gearbox:
  • Housing: Usually made of cast iron to protect internal parts and assist with heat dissipation.
  • Worm shaft: Made of steel, having a helical shape (similar to a pencil lead).
  • Worm gear: Made of bronze alloy or steel, meshing with the worm shaft for power transmission.
  • Input and output shafts: The input shaft receives motion from the motor, and the output shaft transmits the reduced force to the load. These two shafts are usually positioned perpendicular to each other.
• Detailed structure of the R-Series Inline Helical Gearbox:
  • Input shaft (high-speed shaft): This is the shaft that directly receives rotational motion from the motor, usually connected by a belt, chain, or rigid coupling.
  • Output shaft (low-speed shaft): This is the drive shaft for the load, having a much lower rotational speed and higher torque than the input shaft.
  • Gears: The core components for speed reduction. Gears of different sizes are arranged to mesh with each other according to a specific gear ratio, helping to reduce rotational speed from the input shaft to the output shaft.
  • Housing: Encloses all internal components, ensuring precise alignment and protecting the parts from external influences.

Technical Specifications of the UDL 2-Stage Gearbox 0.37kW R37

The UDL 2-Stage Gearbox 0.37kW R37 combines a UDL mechanical speed variator and an R37 inline helical gearbox, allowing flexible speed adjustment and meeting various transmission requirements. Below are the technical specifications of each component.

Technical Specifications of the UDL 0.37kW 0.5Hp Mechanical Speed Variator

The technical specifications of the UDL 0.37kW 0.5Hp mechanical speed variator are presented below, including dimensions, shaft diameter, gear ratio, and adjustment speed range of the product.

Technical Specifications of the R37 Inline Helical Gearbox

Below are the technical specifications of the R37 inline helical gearbox, including power, output shaft diameter, voltage, and protection standards of the product.

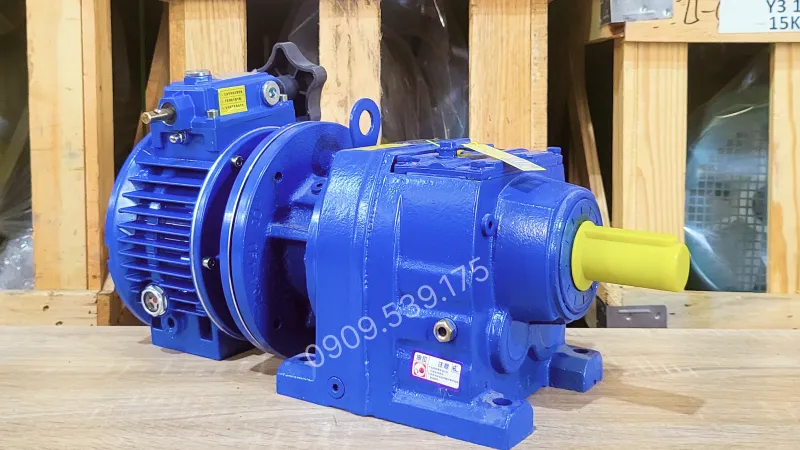

Common Applications of the UDL 2-Stage Gearbox 0.37kW R37

The UDL 2-Stage Gearbox 0.37kW R37 has diverse applications as follows:

• Conveyor belts: Used to drive conveyor belts in production lines and factories.
• Mixers and agitators: Provides powerful torque to thoroughly mix materials.
• Crushers: Operates small crushers in the food or mining industries.

If you want to see how the product actually operates, you can refer to the gearbox video produced by Thanh Thai Motor. In addition, the summary video will introduce many other gearbox models with various powers, gear ratios, and applications, helping you easily compare and select the right equipment for your system.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
