2-Stage UDL Gearbox 0.8kW – R47

The 2-Stage UDL Gearbox 0.8kW R47 is a gearbox product line featuring a unique design assembled from two distinct devices, delivering powerful performance and smooth operation without loud noise.

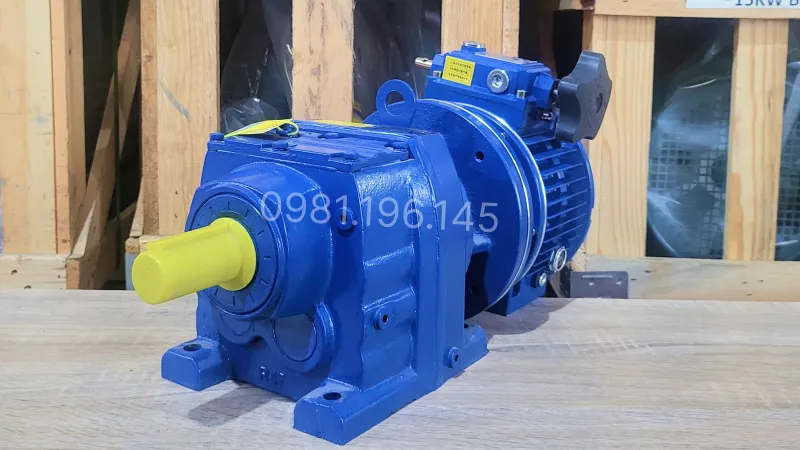

Overview of the 2-Stage UDL Gearbox 0.8kW R47 Design

As a 2-stage gearbox line with a unique design, assembled from a mechanical speed variator (UDL) combined with an R-Series Inline Helical Gearbox, its exterior is made of 100% pure cast iron combined with an electrostatic powder coating to protect the equipment from scratches during transportation and prevent fading in high-temperature environments.

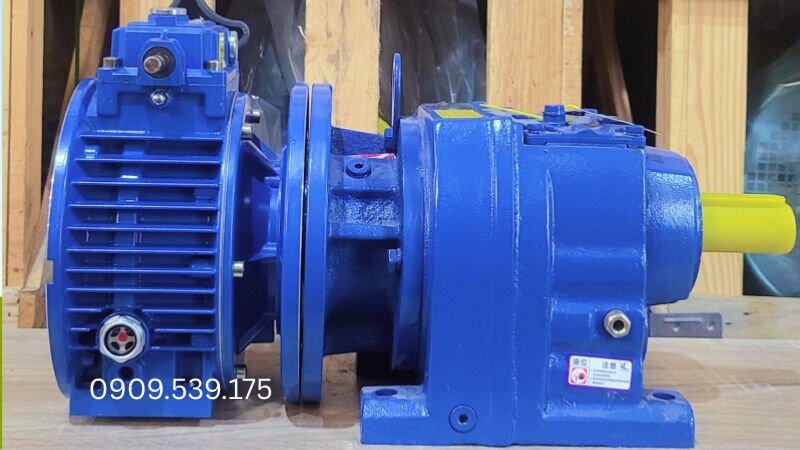

Detailed Structure of the 2-Stage UDL Gearbox 0.8kW R47

The detailed structure is a mechanical speed variator device 0.8kW 1Hp assembled with an R-Series Inline Helical Gearbox 2.2kW 3Hp, or an R-Series Inline Helical Gearbox 4.0kW 5.5Hp. Thanks to this unique combination, it delivers a product with powerful performance.

The 2-Stage UDL Gearbox 0.8kW R47 features a unique design assembled from a mechanical speed variator (UDL) combined with an R-Series Inline Helical Gearbox from two separate devices, with each part taking on a specific function to create a stable and flexible transmission system.

This device line can be coupled with an electric motor to create a gear motor product with a powerful performance structure and smoother operation.

• UDL speed variator: Uses a friction disc – adjustment cone assembly to continuously change the gear ratio, allowing for smooth and precise speed adjustment.
• Bearings – oil seals: Reduce friction, support the shaft, and prevent oil leakage during operation.
• Gearbox housing: Made of cast iron or aluminum alloy depending on the version, offering high rigidity, vibration resistance, and good heat dissipation.
• R47 reduction stage: Applies a helical gear transmission system, helping to ensure smooth transmission, reduced noise, and high efficiency.
• Input and output shafts: Concentric design, ensuring stable power transmission and easy assembly into various types of machines.

Specifications of the 2-Stage UDL Gearbox 0.8kW R47

The 2-Stage UDL Gearbox 0.8kW R47 is a combination of the UDL mechanical speed variator and the R47 inline helical gearbox, allowing flexible speed adjustment and accommodating multiple gear ratios. Below are the technical specifications for each component.

Technical specifications of the UDL 0.8kW 1Hp mechanical speed variator

Below are the technical specifications of the UDL 0.8kW 1Hp mechanical speed variator, including dimensions, shaft diameter, gear ratio, and adjustment speed range of the product.

Technical specifications of the R47 inline helical gearbox

The technical specifications of the R47 inline helical gearbox are presented below, including power, output shaft diameter, voltage, and protection standards of the product.

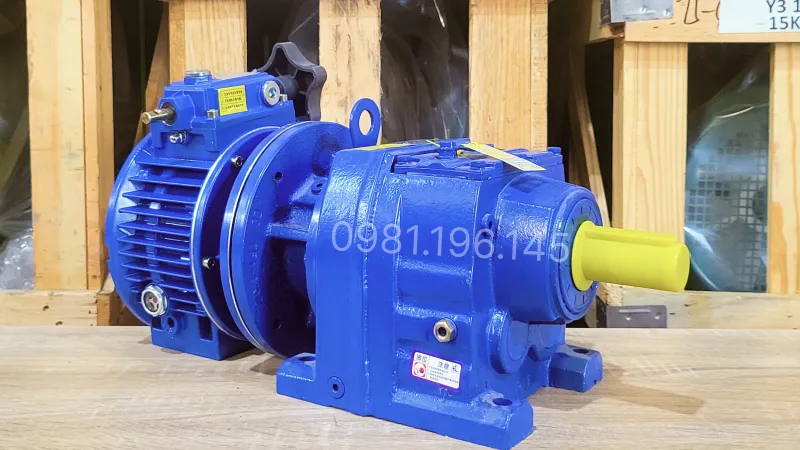

Common applications of the 2-Stage UDL Gearbox 0.8kW R47

The 2-Stage UDL Gearbox 0.8kW R47 is commonly applied in industries such as:

• Mixers, grinders, presses: Require high torque + variable mixing/working rotation speed.
• Lifting systems, jacks, pullers: R47 provides high torque, while the UDL adjusts the lifting speed.
• Food, textile, paper, printing, and plastic production lines: Where smooth speed adjustment is needed without using a variable frequency drive.
• Packaging machines & sorting conveyors: When rapid speed changes are needed according to production stages.

To better understand the installation method, operating principle, and speed adjustment capability of the product, you can refer to the gearbox video produced by Thanh Thai Motor. In addition, the comprehensive video also introduces many gearbox lines with various power ratings and transmission types, helping you easily select the equipment that suits your application needs. If you need further consultation regarding the product or technical specifications, please contact Thanh Thai Motor for assistance.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
