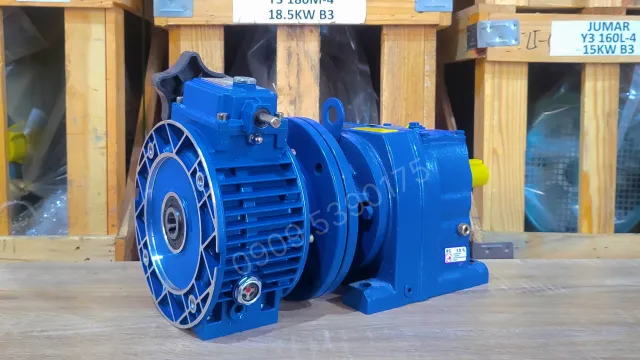

UDL 2-Stage 2.2kW R67 Gearbox

The UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox uses a two-stage gear mechanism, helping to reduce speed effectively and operate stably. The sturdy housing design withstands high loads, protecting internal components from vibration and wear. With a solid construction, specifically, it is a 2-stage gearbox assembled from a mechanical speed variator (UDL) combined with an R-series inline helical gearbox, forming a high-performance 2-stage gearbox system.

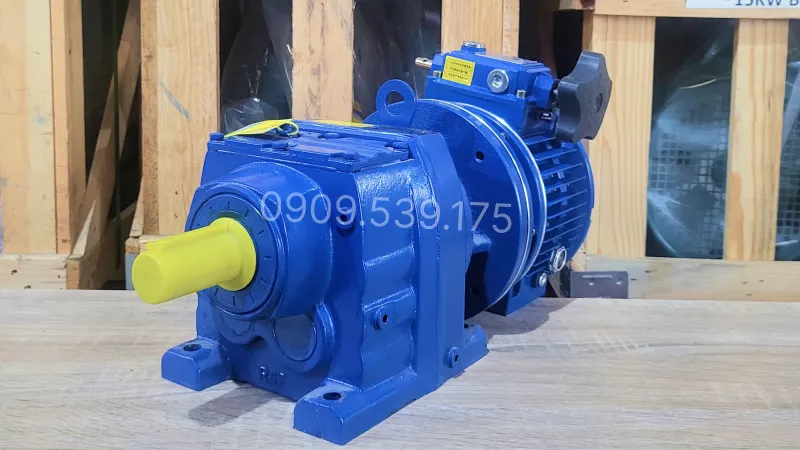

General design of the UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox

This is a worm gearbox designed with a two-stage gear mechanism for deep speed reduction and stable power transmission. The sturdy housing resists high loads, minimizes vibrations, and protects internal components. This device is assembled with an electric motor to form a gear motor unit with a powerful functional structure and smoother operation.

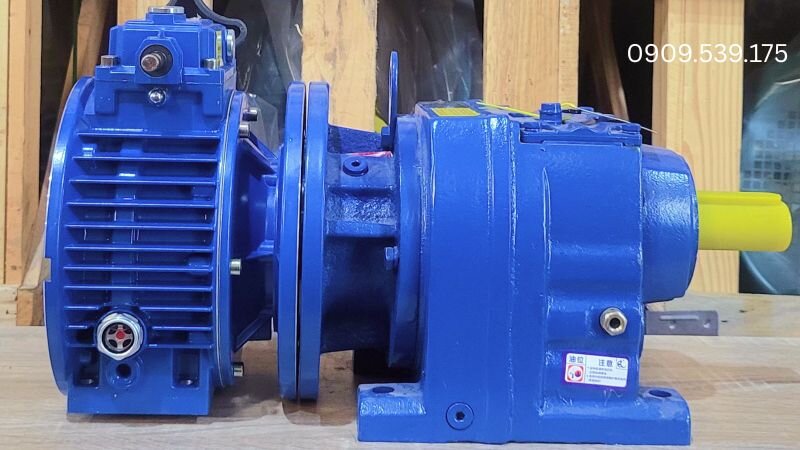

Detailed structure of the UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox

The 2-stage gearbox has a structure assembled from two different gearboxes, specifically a mechanical speed variator 2.2kW 3Hp assembled with an R-series inline helical gearbox 4.0kW 5.5Hp.

The UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox has the following detailed structure:

• Mechanical speed variator (UDL): Uses a friction disk – cone assembly to change the gear ratio continuously, allowing smooth and precise speed adjustment.
• R-series inline helical gearbox: Applies helical gear transmission, helping achieve smooth transmission, low noise, and high efficiency.
• Gearbox housing: Made of cast iron or aluminum alloy depending on the version, featuring high rigidity, vibration resistance, and good heat dissipation.

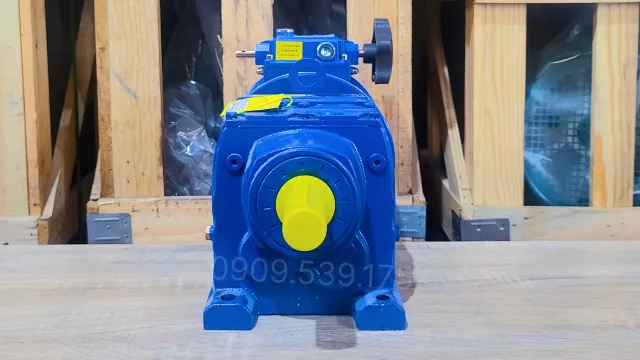

• Input and output shafts: Concentric design, ensuring stable power transmission and easy installation into various machines.
• Bearings and oil seals: Reduce friction, support the shaft, and prevent oil leakage during operation.
• Cover and sealing gasket system: Dust-proof and oil-resistant, helping the device operate durably in industrial environments.

Technical specifications of the UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox

The UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox combines a UDL mechanical speed variator with an R67 inline helical gearbox, helping adjust speed flexibly and transmit stable torque for various industrial applications.

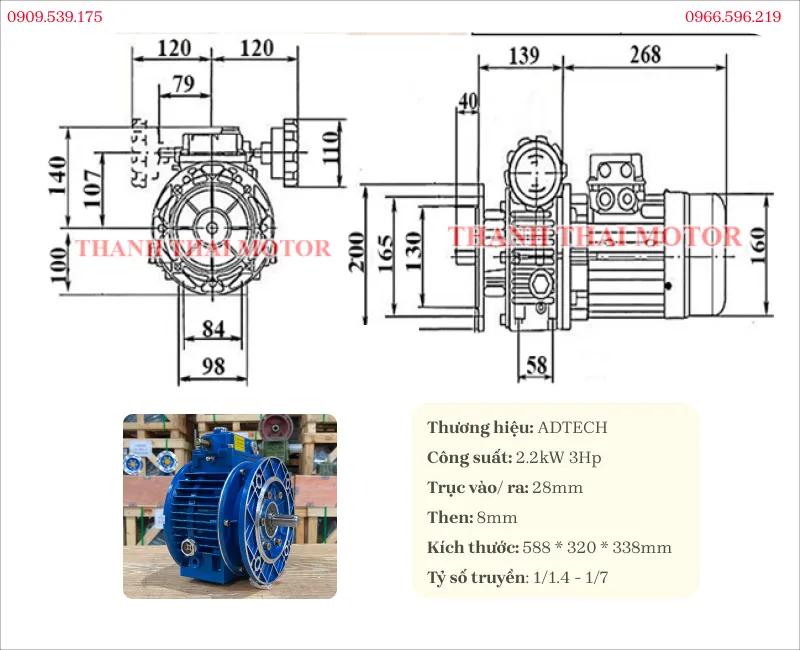

Technical specifications of the UDL 2.2kW 3Hp mechanical speed variator

The UDL 2.2kW 3Hp mechanical speed variator features a sturdy flange design, allowing stepless speed changes across a wide range to meet various operating requirements.

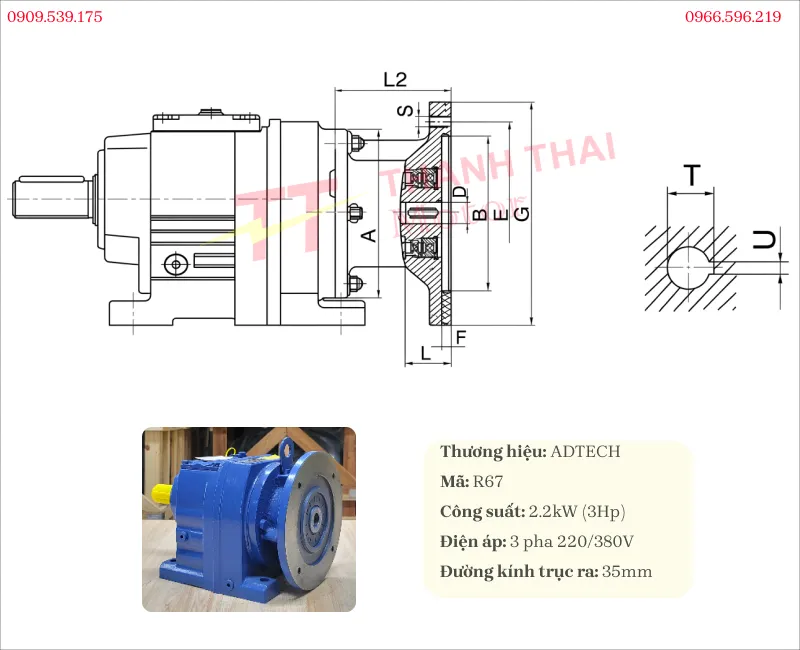

Technical specifications of the R67 inline helical gearbox

The R67 inline helical gearbox is designed for stable transmission, good load capacity, and suitability for continuously operating machinery systems.

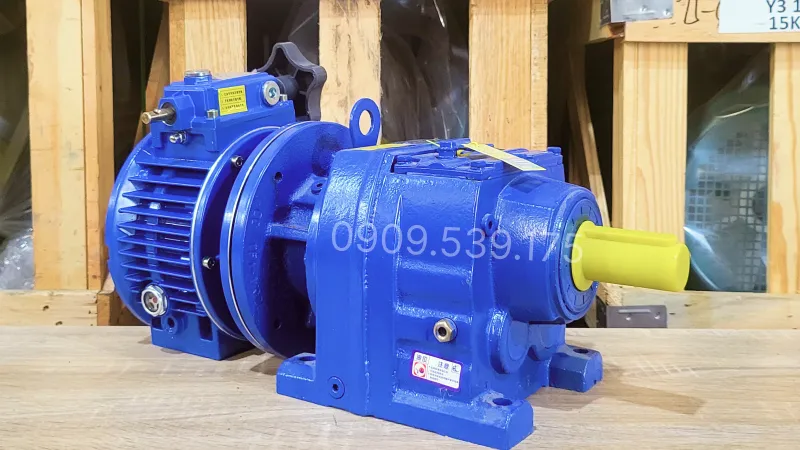

Applications of the UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox

The 2-stage gearbox is used in many systems that require both flexible speed adjustment, high torque, and stable operation:

• Adjusting conveyor speed and packaging mechanisms according to each product.
• Industrial conveyor lines: Controlling movement speed, suitable for both light and medium loads.
• Mixers, agitators: Requiring continuous speed changes to achieve uniform mixing quality.
• Food and pharmaceutical processing equipment: Smooth operation, flexible speed regulation for processes requiring high precision.
• Optimizing speed according to each production stage, minimizing vibration to increase stability.
• Suitable for mechanisms that require real-time speed adjustment and continuous operation.

To better understand the practical operation of the UDL Variable Speed 2-Stage 2.2kW R67 Helical Gearbox, customers can refer to the gearbox video produced by Thanh Thai Motor with detailed images of its structure and operation process. In addition, the comprehensive video library also updates many models of gearboxes, gear motors, and drive solutions, helping you easily compare and choose the right equipment.
