Mechanical Speed Variator 0.8kW 1Hp

The Mechanical Speed Variator 0.8kW 1Hp is a product with a function similar to a gearbox, helping to adjust the speed manually via a control knob without interrupting the machine’s operation. This is an important device in electrical and automation systems. This article will explore in more detail the features, benefits, and applications of this speed variator.

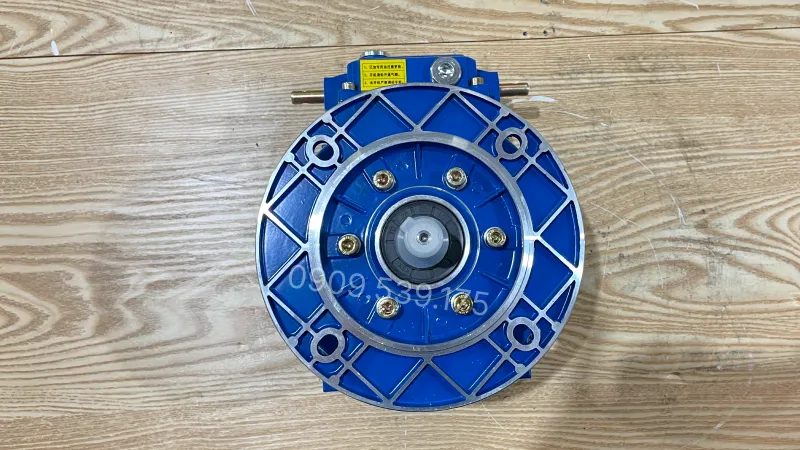

General design of the Mechanical Speed Variator 0.8kW 1Hp

The Mechanical Speed Variator is designed to provide stable operation while allowing users to easily change the motor’s rotational speed during operation.

The variator body is cast from high-mechanical-strength iron, capable of withstanding loads and vibrations in industrial environments. The anti-rust painted surface enhances the protection of the device when working in humid or dusty conditions.

The adjustment assembly is located on the outside with a hand crank or control knob, allowing quick speed changes without disassembling the device. When combined with an electric motor, the product forms a gear motor capable of meeting various transmission requirements.

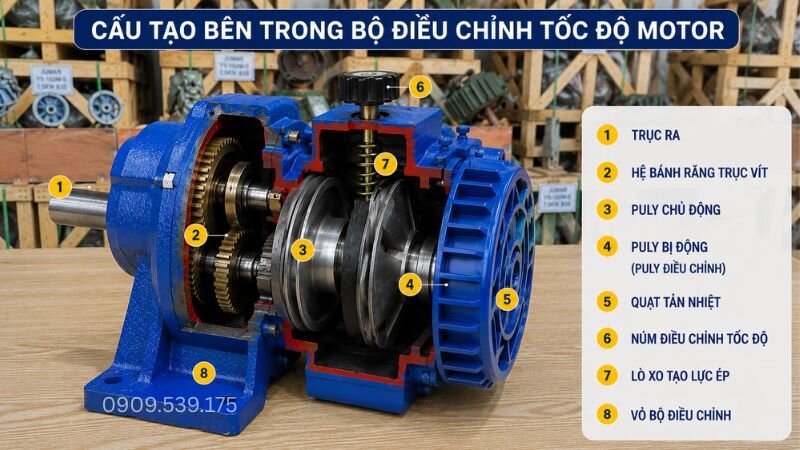

Internal structure of the Mechanical Speed Variator 0.8kW 1Hp

To create stable speed change capabilities, the Mechanical Speed Variator is composed of high-precision mechanical assemblies.

• Power transmission gear assembly: The gears are synchronously machined and mesh together to change the transmission ratio and transmit torque from the input shaft to the output shaft. This is the component that determines the reduction capability and stability of the device.
• Speed adjustment mechanism: The adjustment mechanism is designed outside the main body, allowing the distance between transmission parts to be changed via a control knob. Operators can adjust the speed as required without affecting the system’s working process.

Technical specifications of the Mechanical Speed Variator 0.8kW 1Hp

The product is available in two popular mounting types: foot-mounted and flange-mounted, meeting various connection styles with motors and machinery.

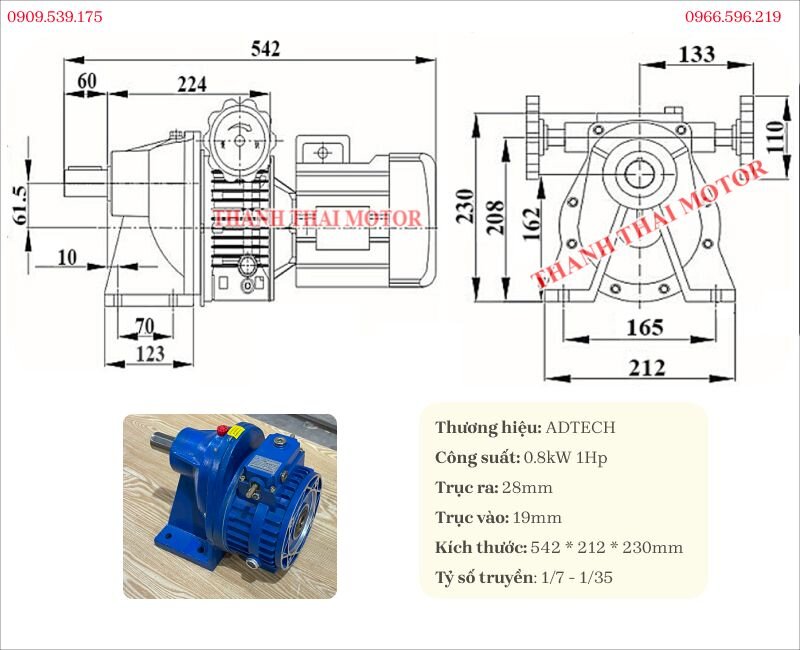

Mechanical Speed Variator 0.8kW 1Hp foot-mounted

The foot-mounted style is suitable for equipment installed on machine frames or fixed bases.

Technical specifications

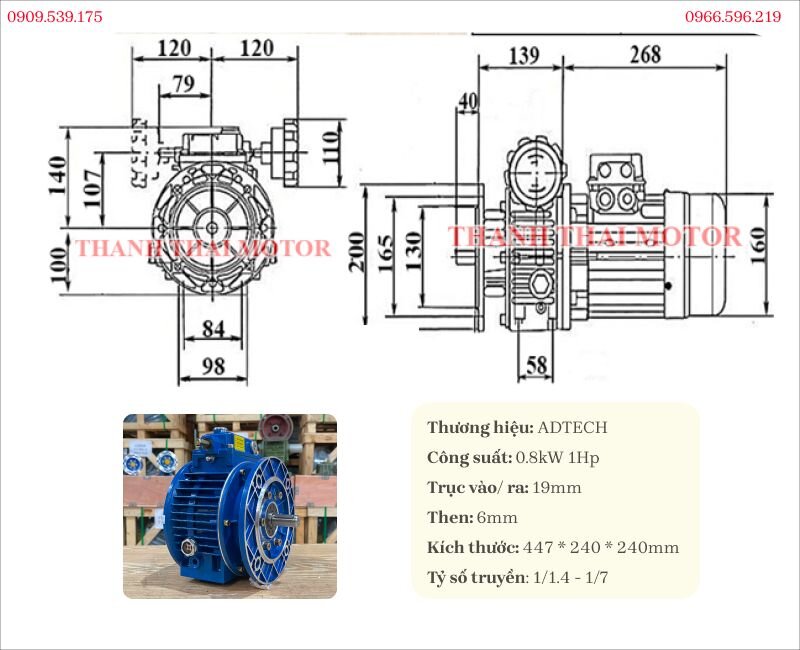

Mechanical Speed Variator 0.8kW 1Hp flange-mounted

The flange-mounted version is suitable for systems that need to be installed directly onto equipment to save space and increase rigidity.

Technical specifications

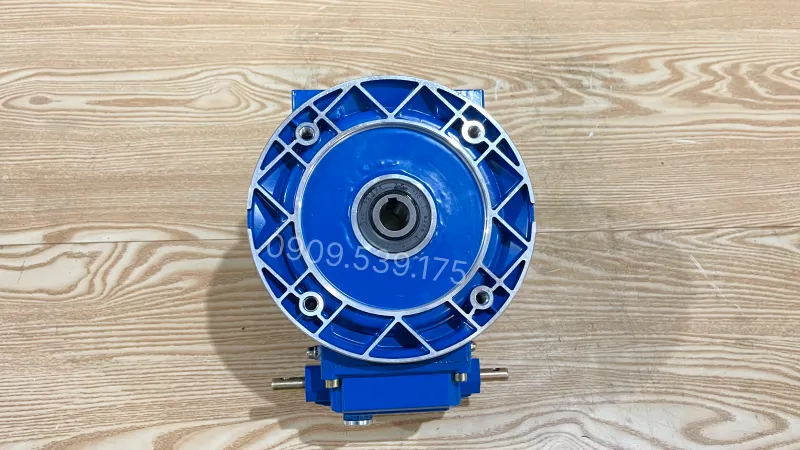

Functions and applications of the Mechanical Speed Variator 0.8kW 1Hp

The speed variator is commonly used in industries such as:

• Conveyors, finished product assembly lines,…
• Incubators, chicken feeders,…
• Water pumps, air compressors,…

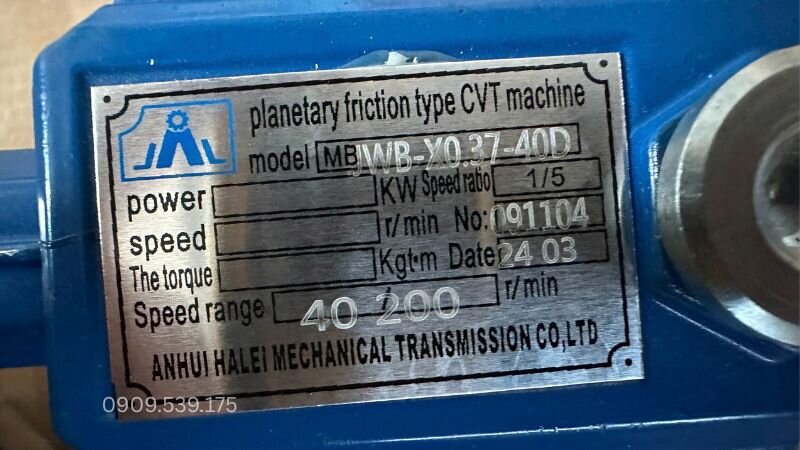

Decoding all symbols on the gearbox

To select the right product, users need to understand the parameters listed on the gearbox nameplate before installation and operation.

Step 1: Check the model

The model helps identify the product line, dimensions, mounting type, and category of the speed variator. This is the first piece of information to cross-reference to select the correct equipment according to application requirements.

Step 2: Determine the transmission ratio

Cross-reference the transmission ratio to calculate the output speed suitable for the operating requirements of the system. Choosing the correct transmission ratio helps ensure the required working speed and torque.

Step 3: Read technical parameters

Check power, input speed, output speed, torque, shaft diameter, and other technical specifications to choose the correct speed variator compatible with the motor and transmission equipment.

Step 4: Check the mounting type

Cross-reference foot-mounted, flange-mounted symbols and installation direction to ensure the variator matches the motor and machinery in use, minimizing errors during installation.

In addition to cross-referencing parameters on the nameplate, users should refer to the summary video guide on recognizing common symbols on various gearbox lines. The content in the gearbox video visually illustrates how to read models, determine transmission ratios, check mounting types, and choose the correct speed variator for each practical application.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Mechanical Speed Variator 0.8kW 1Hp is an effective solution for managing and optimizing motor operating speeds in industrial applications. With the ability to adjust flexibly via a control knob without stopping the machine, this device helps enhance productivity and save energy. Contact Thanh Thai Motor immediately for detailed consultation!
