UDL 0.37kW WPDS 60 2-Stage Gearbox

The UDL 0.37kW WPDS 60 2-Stage Gearbox is a gearbox featuring a perfect combination of a mechanical speed variator (UDL) and a worm gearbox, creating a flexible, durable, and highly efficient drive system. The product is capable of flexibly adjusting the output speed in the range from 2.3 rpm to 100 rpm, suitable for various machinery and industrial production lines.

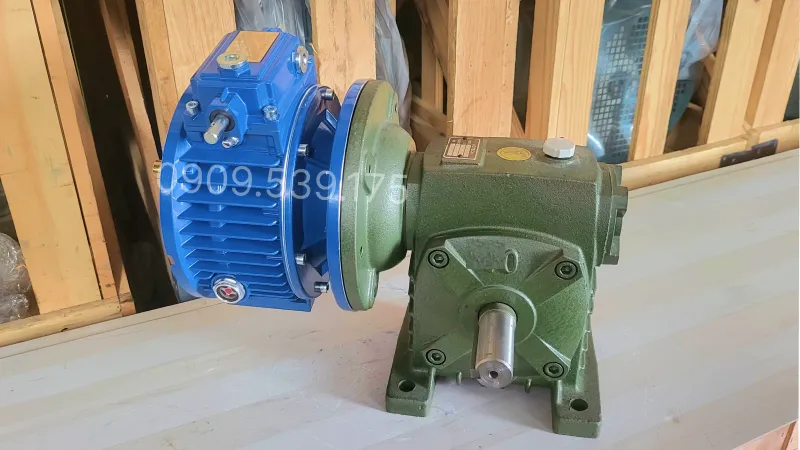

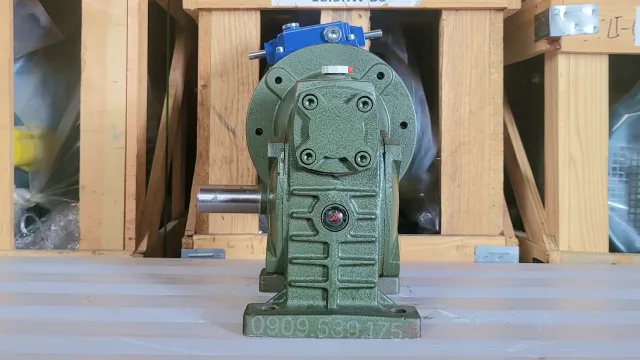

General design of the UDL 0.37kW WPDS 60 2-Stage Gearbox

The 2-stage gearbox product is designed with a sturdy, modern look, suitable for continuous industrial working environments.

The gearbox housing is made of high-quality aluminum alloy and cast iron, helping to dissipate heat quickly, resist rust, and withstand good loads. The outer surface is painted in a characteristic industrial blue, creating aesthetics while protecting the product from environmental impacts.

On the body of the UDL unit, there is a black speed adjustment knob allowing users to easily change the rotation speed without stopping the machine. The 0.37kW 0.5Hp motor controller is directly mounted with the WPDS 60 worm gearbox, forming a compact yet powerful 2-stage gearbox assembly, helping to increase torque and maintain stable output speed control.

Internal structure of the UDL 0.37kW WPDS 60 2-Stage Gearbox

The UDL 0.37kW WPDS 60 2-Stage Gearbox consists of a 0.37kW 0.5Hp motor speed variator combined with a WPDS 60 gearbox, forming a compact and flexible 2-stage drive system. Inside the gearbox, it includes the following main components:

• The UDL mechanical speed variator is attached to the electric motor, specifically a 3-phase electric motor – 3-phase electric motor 0.37kW 0.5Hp
• The worm and worm gear assembly of the WPDS 60 is made of hardened steel, ensuring high transmission efficiency and long service life.
• The mechanical speed adjustment knob helps fine-tune fast and slow speeds according to usage needs.
• The breather plug and oil cap help balance pressure, reduce heat, and extend the service life of the lubricating oil.
• The input shaft connects to the motor via the UDL unit, while the output shaft of the WPDS 60 provides high torque, stable speed, and smooth operation.

Technical specifications of the UDL 0.37kW WPDS 60 2-Stage Gearbox

Below are the detailed technical specifications of the UDL 0.37kW WPDS 60 gearbox

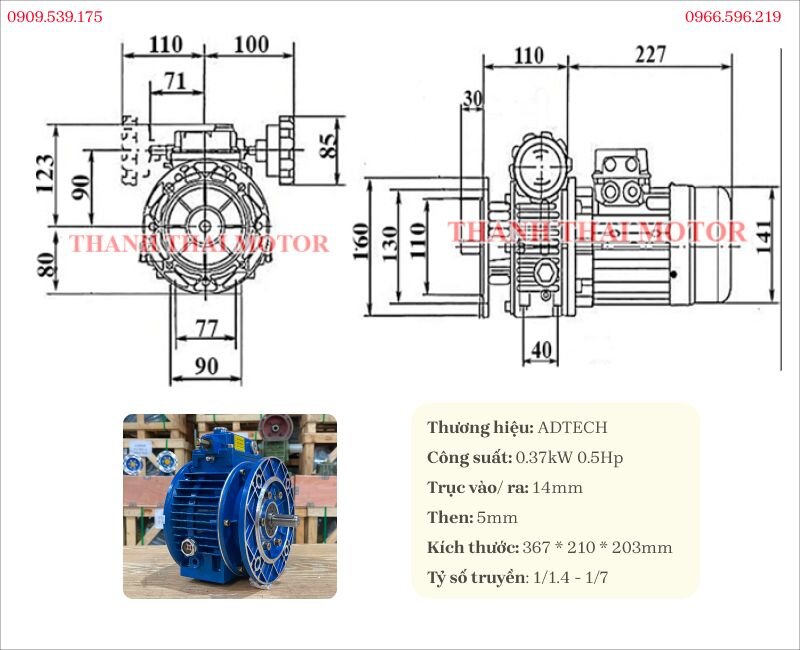

Technical specifications of the UDL 0.37kW 0.5Hp mechanical speed variator

Below is the basic technical information of the mechanical speed variator

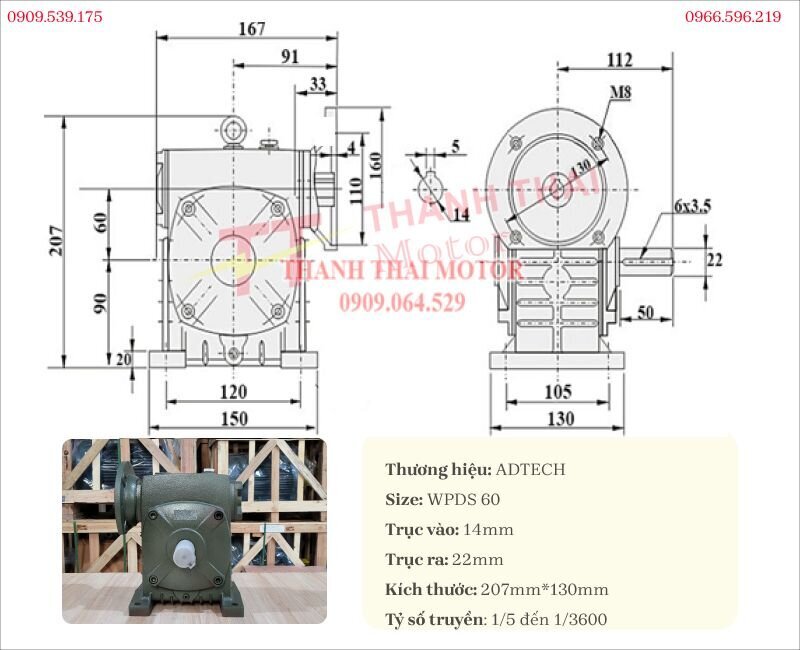

Technical specifications of the WPDS 60 worm gearbox

Below are the specifications of the WPDS worm gearbox

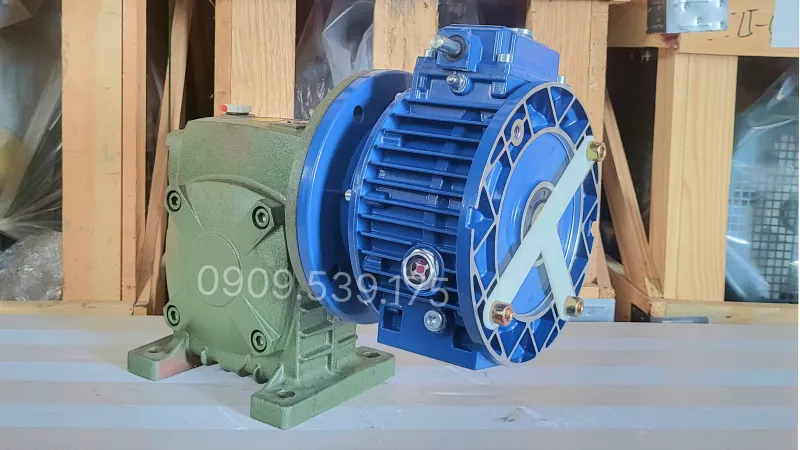

Applications of the UDL 0.37kW WPDS 60 2-Stage Gearbox

The 2-stage worm gearbox is widely applied in many fields thanks to its stable working capability and flexible speed regulation:

• Conveyors, industrial conveyor belts, and feeding systems.
• Agitators, mixers, dryers, and grinders in the food and chemical industries.
• Packaging machines, filling machines, and labeling machines in automated production lines.
• Turntables, roller conveyors, lifting equipment, and automation systems.
• Textile machines, printing machines, woodworking machines, cutting machines, and metal bending machines.
• Agricultural equipment, water treatment, and drive systems requiring continuous speed changes.

Installation guide for the UDL 0.37kW WPDS 60 2-Stage Gear Motor

For the UDL 0.37kW WPDS 60 2-Stage Gearbox to operate stably and achieve optimal performance, please install it according to the steps below:

• Step 1: Couple the UDL 0.37kW mechanical speed variator with the WPDS 60 gearbox. Insert the output shaft of the UDL into the input shaft of the gearbox, install the key correctly, and align the flange before tightening the bolts.
• Step 2: Install the 0.37kW electric motor onto the UDL variator. Ensure that the shafts are concentric and securely fixed with bolts for stable drive operation.
• Step 3: Check the assembly positions, lubricating oil level, and manually test-rotate the output shaft.

Watch the instructional gearbox video from Thanh Thai Motor to clearly understand the assembly and oiling process. Watching more through summary videos will help you operate with correct techniques, limit damage, and enhance equipment lifespan.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
