UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

The UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70 is a high-end industrial transmission device, a high-quality industrial transmission gearbox (speed reduction gearbox) combining a mechanical speed variator (UDL) and a worm gearbox (worm gear speed reduction gearbox), creating a flexible, durable, and highly efficient transmission system, providing flexible speed adjustment, smooth and stable operation. The product allows customizing the output speed from 1.4 rpm to 200 rpm, meeting needs in various applications such as conveyors, agitators, mixers, automatic packaging machines, and other industrial production lines.

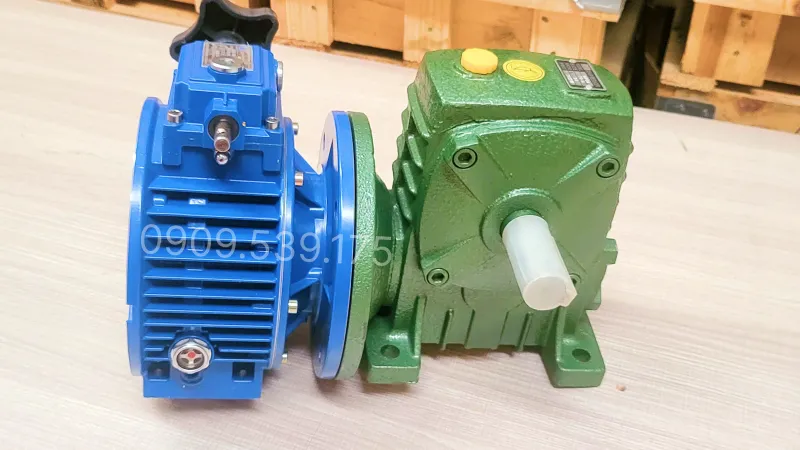

Overview design of the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

The 2-stage gearbox (2-stage speed reduction gearbox) is designed according to industrial standards, suitable for continuous and harsh working environments. The housing is precisely manufactured from aluminum alloy and cast iron, helping the product dissipate heat quickly, withstand high loads, and effectively resist rust. The industrial blue painted surface creates aesthetics while increasing oxidation resistance, protecting the equipment from dust and moisture.

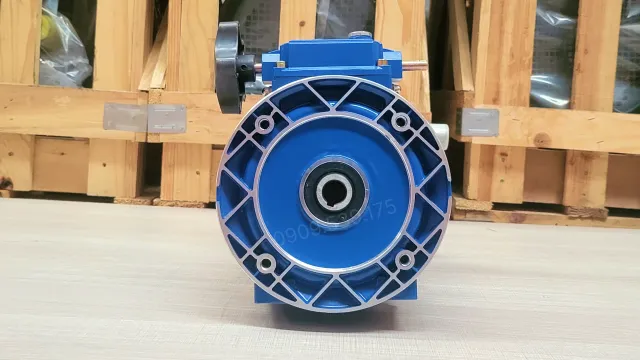

The black mechanical speed adjustment knob on the UDL unit allows changing the output speed easily without stopping the machine. The 0.8kW 1Hp mechanical speed variator is assembled directly with the WPDS 70 worm gearbox (WPDS 70 worm gear speed reduction gearbox), forming a compact yet powerful 2-stage gearbox assembly, helping to increase torque and control stable output speed.

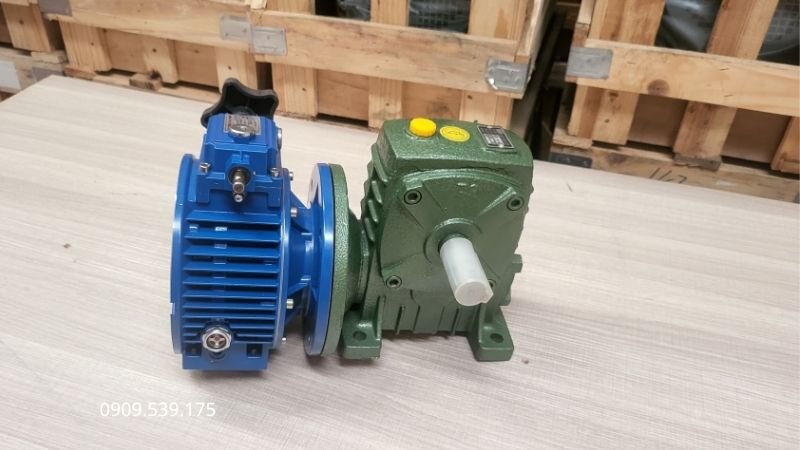

Internal structure of the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

The internal structure of the 2-stage gearbox includes:

• UDL mechanical speed variator linked directly with the 0.8kW 1HP motor.
• WPDA 70 worm gear – worm shaft assembly made from hardened steel, ensuring high transmission efficiency, durability, and large load-bearing capacity.
• Mechanical speed adjustment knob allows precise fast or slow speed change operations.
• UDL mechanical speed variator attached to the electric motor specifically the 3-phase electric motor – 3-phase electric motor 0.8kW 1Hp
• Breather plug and oil cap help balance pressure, dissipate heat, and protect lubricating oil, enhancing product lifespan.
• Input shaft connects to the motor via the UDL unit, while the WPDA 70 output shaft provides large torque, smooth operation, and stable speed.
• Thanks to its sturdy design, premium materials, and optimal transmission mechanism, the UDL – WPDA 70 2-stage gearbox operates stably, with minimal wear and easy maintenance.

Technical specifications of the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

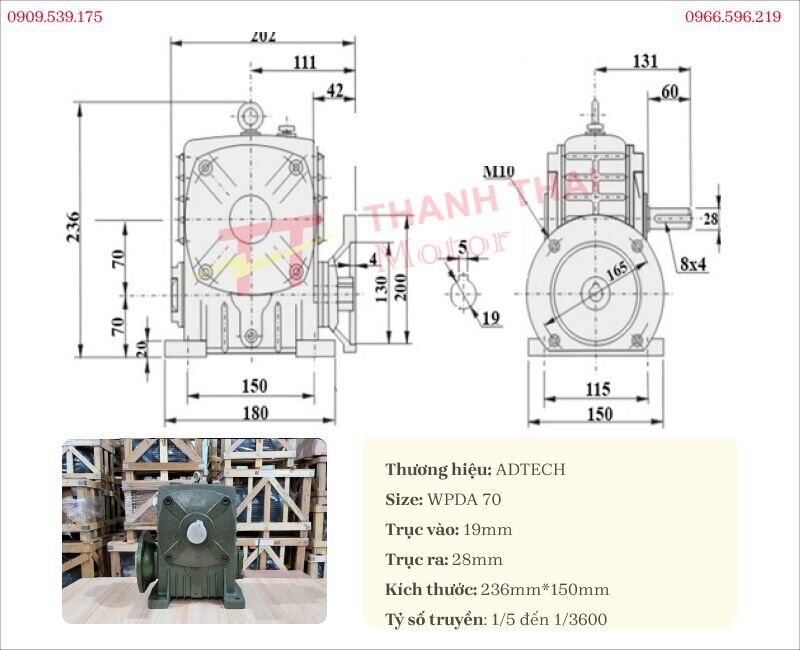

Below are the specifications and drawings of the 2-stage gearbox

Technical specifications of the UDL 0.8kW 1Hp Mechanical Speed Variator

Specifications of the mechanical speed variator:

Technical specifications of WPDA 70 Worm Gearbox

Mechanical parameters of the WPDA 70 gearbox supporting coupling selection and appropriate transmission system design.

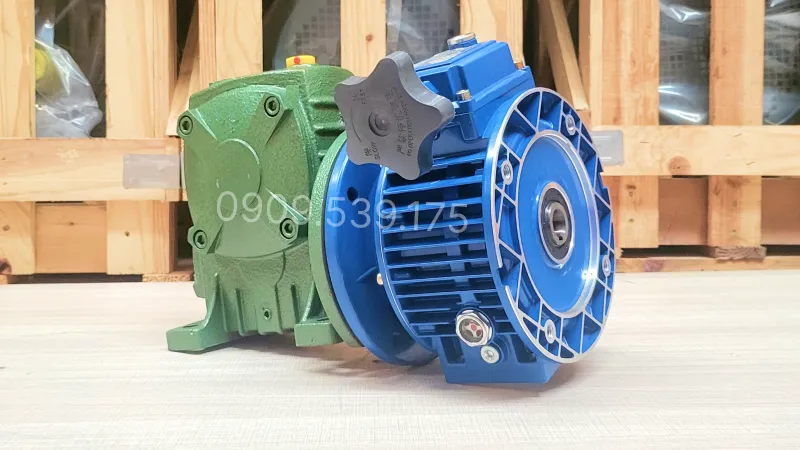

Applications of the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

Regarding the 2-stage worm gearbox (2-stage worm gear speed reduction gearbox), it is commonly applied in mechanical manufacturing industries and machinery requiring low speed and high torque such as:

• In conveyor systems and material transportation belts like Viettel post, courier companies.
• Agitators, food mixers.
• In packaging machine systems, fabric rolling machines, mask manufacturing machines.
• In Christmas tree decoration equipment systems and amusement parks.

Installation guide for the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70

For the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70 to operate stably and maximize transmission efficiency, perform the installation in the following sequence:

• Step 1: Connect the 0.8kW electric motor to the UDL mechanical speed variator. Install the shaft, key, and flange in the correct positions, then tighten the bolts to ensure the transmission assembly is firm.
• Step 2: Couple the output of the UDL variator with the WPDA 70 worm gearbox. Align the shaft centers accurately, check the tightness of the flange, and fix with bolts according to the correct tightening force.
• Step 3: Recheck the entire system, ensure the lubricating oil reaches the specified level, test-rotate the shaft to check transmission capability before supplying power for test running.

After complete installation, the UDL 0.8kW – WPDA 70 transmission unit provides flexible speed adjustment, stable torque transmission, and smooth operation, well meeting the demands in conveyors, packaging machines, agitators, mixers, and various other mechanical equipment.

Refer to the instructional gearbox video from Thanh Thai Motor for details on the assembly process, inspection, and oil filling of the UDL Variator 2-Stage Worm Gearbox 0.8kW WPDA 70. Practical instructions will help you install with correct techniques, operate safely, and extend equipment lifespan. View more through the compilation video at Thanh Thai Motor.
