2-Stage UDL 0.8kW Variator WPDO 70 Worm Gearbox

The 2-Stage UDL Variator 0.8kW WPDO 70 Worm Gearbox is a unique design formed by combining two different devices: a mechanical speed variator (UDL) and a WPDO-series worm gearbox, creating an easy-to-install 2-stage gearbox suitable for various automated mechanical systems and compact drive assemblies.

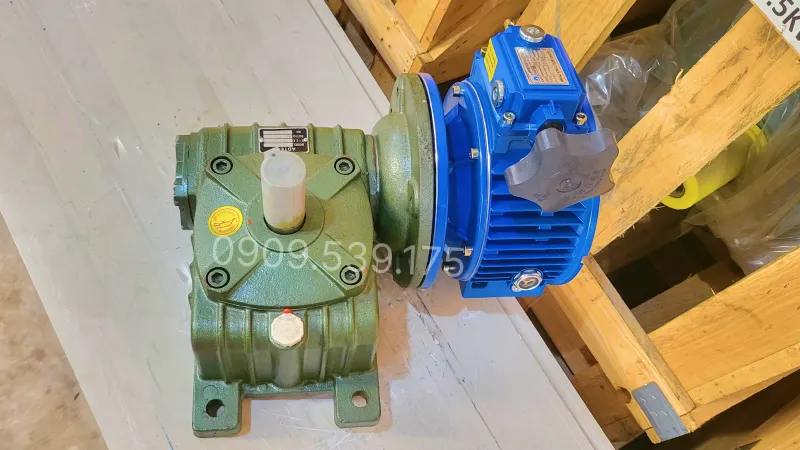

Design Overview of the 2-Stage UDL Variator 0.8kW WPDO 70 Worm Gearbox

With a solid, durable cast iron exterior combined with a powder-coated finish to prevent rust, scratches, and withstand high external environmental temperatures, the sturdy build and easy speed adjustment make the UDL – WPDO 70 an effective drive solution that saves installation space, improves performance, and enhances system durability.

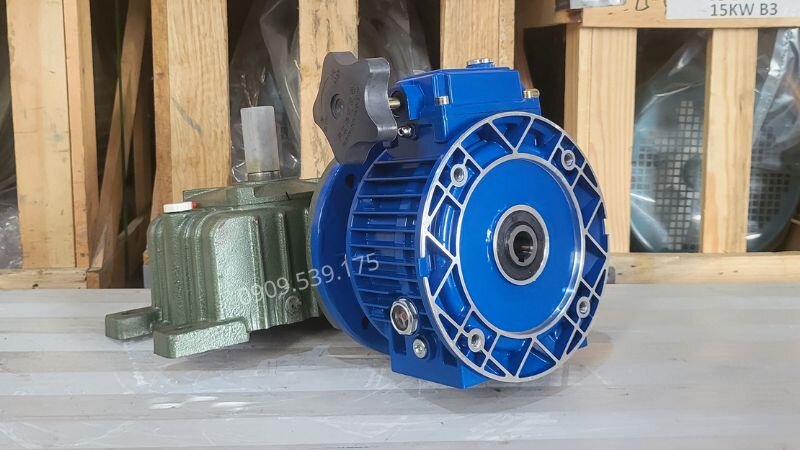

Detailed Structure of the UDL – WPDO 2-Stage Gearbox

The 2-Stage UDL Variator 0.8kW WPDO 70 Worm Gearbox is formed by combining a 0.8kW 1Hp motor speed variator with a WPDO 70 worm gearbox

• Structure of the mechanical speed variator:
  • Worm wheel: A toothed component mounted on the output shaft, meshing with the worm to reduce rotational speed.
  • Output shaft (worm wheel shaft): Connected to the worm wheel, receives rotational motion, and transmits torque to the load.
  • Housing: Contains and protects internal components, usually made of cast iron or aluminum.
  • Bearing: Supports the input and output shafts, reduces friction, and allows free shaft rotation.
• Structure of the worm gearbox:
  • Gears: Internal parts of the gearbox made of sturdy steel, enabling various gear ratios.
  • Worm shaft: Made of steel, helping the device operate more smoothly during operation.

Technical Specifications of the 2-Stage UDL Variator 0.8kW WPDO 70 Worm Gearbox

To ensure that the drive system operates accurately and meets load requirements, understanding technical specifications is extremely important. Below are the detailed specifications of this 2-stage gearbox combination, broken down by component for easy reference.

Technical Specifications of the WPDO 70 Worm Gearbox

First, let’s learn about the WPDO 70 worm gearbox – the component directly responsible for speed reduction and torque transmission to the load.

Technical Specifications of the UDL 0.8kW Motor Speed Variator

The remaining part to form a complete 2-stage system is the UDL 0.8kW mechanical speed variator, which plays the role of flexibly changing rotational speed. The following parameter table will provide details on the gear ratio range and flange (B5) dimensions for synchronous connection with the electric motor.

Common Applications of the 2-Stage UDL Variator 0.8kW WPDO 70 Worm Gearbox

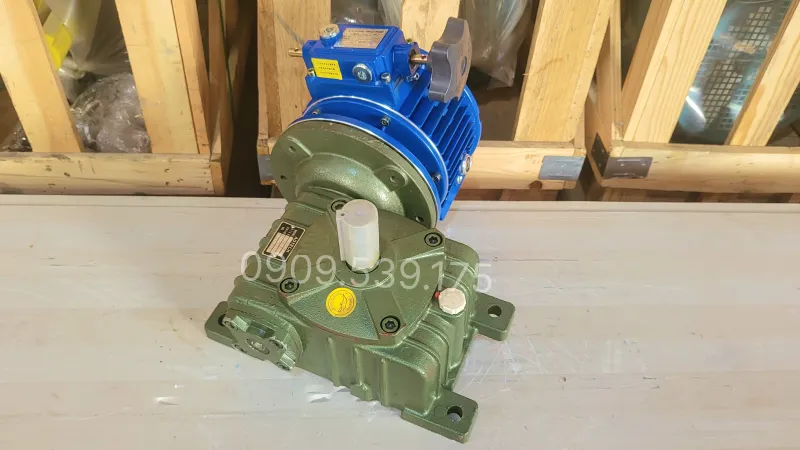

The 2-stage gearbox combined directly with an electric motor (specifically a 3-phase electric motor – 3-phase electric motor 0.8kW 1Hp) has many prominent features and is widely applied in industries such:

• Heavy mechanics such as iron and steel production, coal mining, cement.
• Pharmaceutical processing machines, fine arts, packaging, food processing machinery
• Cement mixers, wood crushers, plastic crushers.

How to Assemble the WPDO Worm Gearbox and UDL Mechanical Speed Variator into a 2-Stage Gearbox

Assembling the UDL speed variator with the WPDO worm gearbox to form a 2-stage drive system requires high technical precision to ensure durability and performance. You can follow these steps:

• Check if the shaft dimensions (keyway) and flange diameter are fully compatible (specifications must match).
• Insert the output shaft of the UDL unit to engage with the input shaft of the WPDO. Ensure the system operates smoothly without binding or shaft misalignment.
• Tighten all connecting bolts between the UDL and WPDO to prevent vibration during heavy-load operation.

Thanks to its solid cast iron construction with a powder-coated finish, the UDL – WPDO 70 gearbox ensures superior durability, good heat resistance, and effective corrosion resistance. This sturdy design not only helps extend equipment lifespan but also minimizes maintenance costs, making it a reliable choice for heavy and processing industries.

Thanh Thai Motor has produced gearbox videos to help customers look up information more visually. In addition, summary videos are regularly updated with plenty of new content.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
