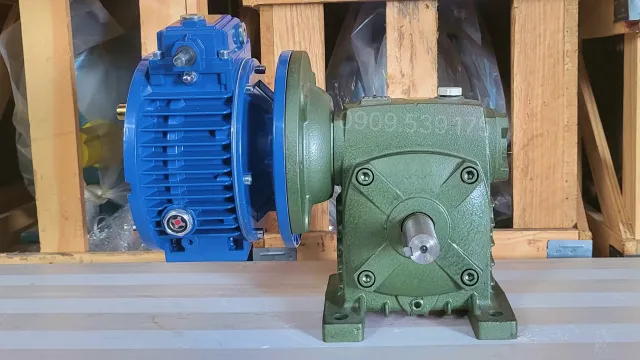

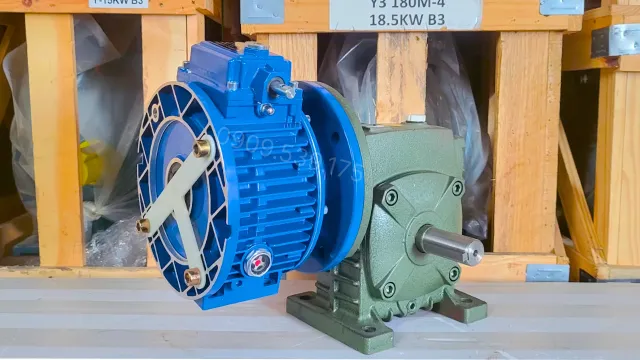

2-Stage UDL Gearbox 0.8kW – WPDS 70

The 2-Stage UDL Gearbox 0.8kW – WPDS 70 is a high-quality industrial drive gearbox, combining a mechanical speed variator (UDL) and a worm gearbox, creating a flexible, durable, and highly efficient drive system that ensures smooth operation, stable output speed, and flexible adjustment. This device allows output speed changes within the range of 2 – 100 rpm, serving various equipment in conveyors, mixers, agitators, automatic packaging machines, and other industrial production lines.

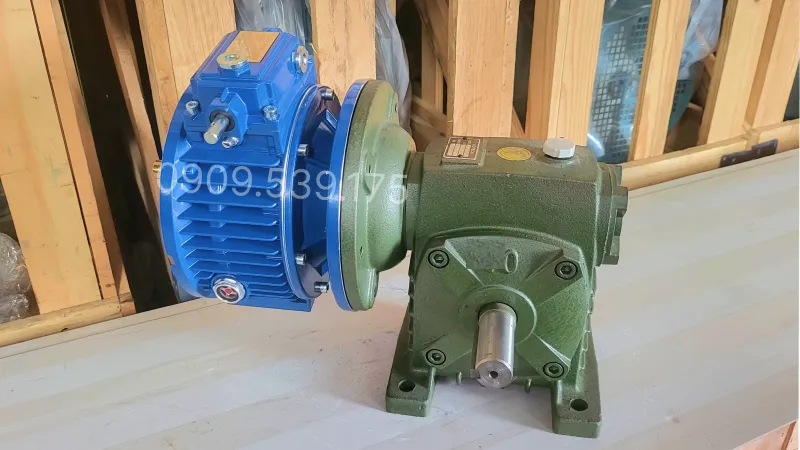

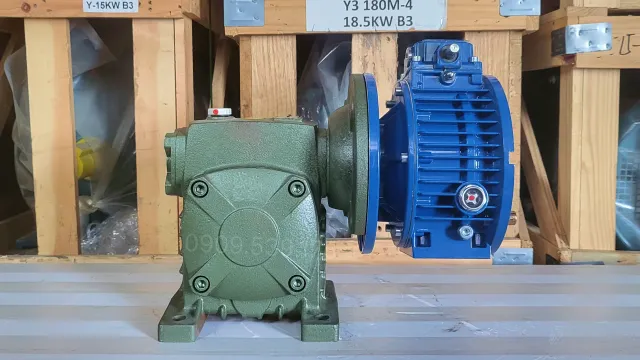

General Design of the 2-Stage UDL Gearbox 0.8kW – WPDS 70

The 2-stage gearbox is optimally designed for continuous industrial environments:

• The housing is made of aluminum alloy combined with cast iron, providing good heat dissipation, high load-bearing capacity, and effective corrosion resistance.
• The industrial blue paint finish enhances aesthetics while protecting the equipment from humid environments, dust, and mild chemicals.
• The black mechanical speed adjustment knob is located directly on the UDL unit, allowing smooth rotational speed changes without interrupting the system.

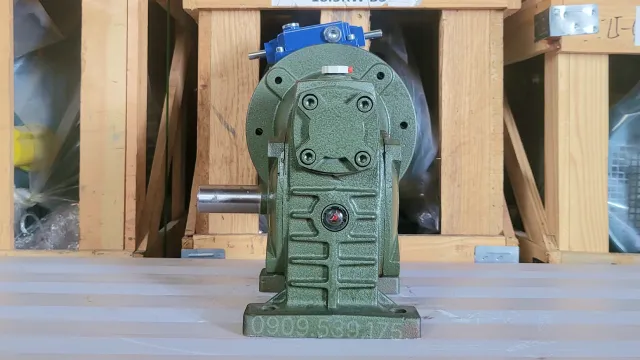

Structure of the 2-Stage UDL Gearbox 0.8kW – WPDS 70

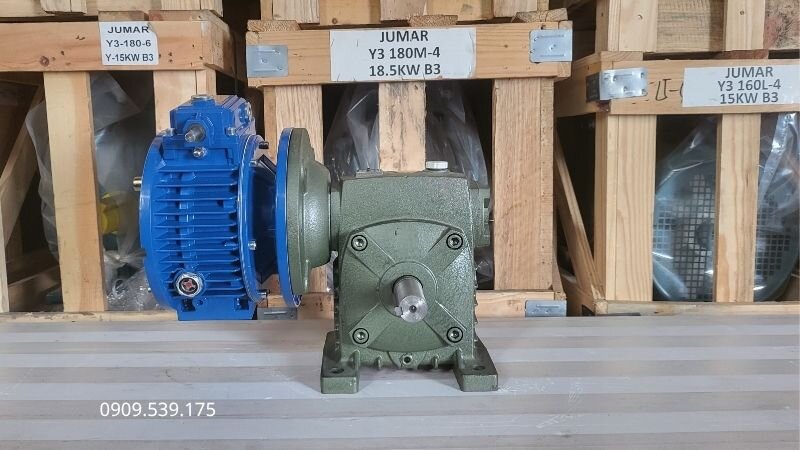

The 0.8kW 1Hp motor speed variator is directly installed with the WPDS worm gearbox (WPDS 70 worm gearbox) to form a 2-stage drive assembly, providing high torque and stable output speed, suitable for industrial applications requiring precision and durability.

The UDL mechanical speed variator is connected to the electric motor, specifically the 3-phase electric motor – 3-phase electric motor 0.37kW 0.5Hp.

• The UDL mechanical speed variator is directly linked to the 0.8kW 1HP electric motor.
• The WPDS worm gearbox gears, made of hardened steel, ensure high transmission efficiency, durability, and high load capacity.

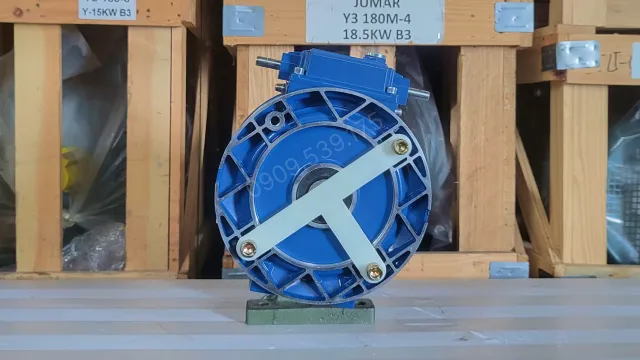

• The mechanical speed adjustment knob helps change speed quickly or slowly with high precision.
• The breather plug and oil cap support pressure balancing, heat dissipation, and lubricant protection, extending equipment lifespan.
• The input shaft connects to the motor through the UDL unit, and the WPDS 70 output shaft generates high torque for stable and smooth operation.

Specifications of the 2-Stage UDL Gearbox 0.8kW – WPDS 70

Below are the detailed specifications of the UDL 0.8kW – WPDS 70 gearbox

Specifications of the UDL 0.8kW 1Hp Mechanical Speed Variator

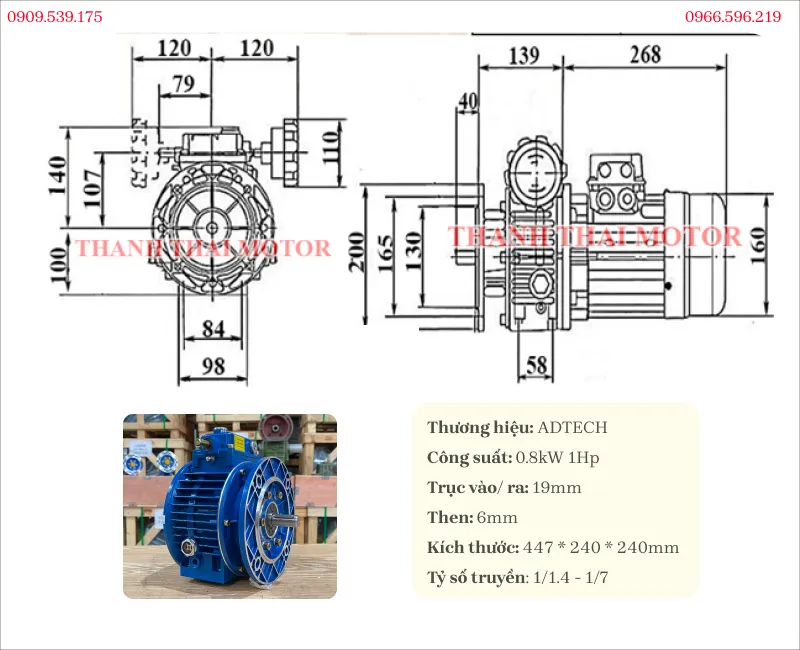

Below is the basic technical information of the mechanical speed variator

Specifications of the WPDS 70 Worm Gearbox

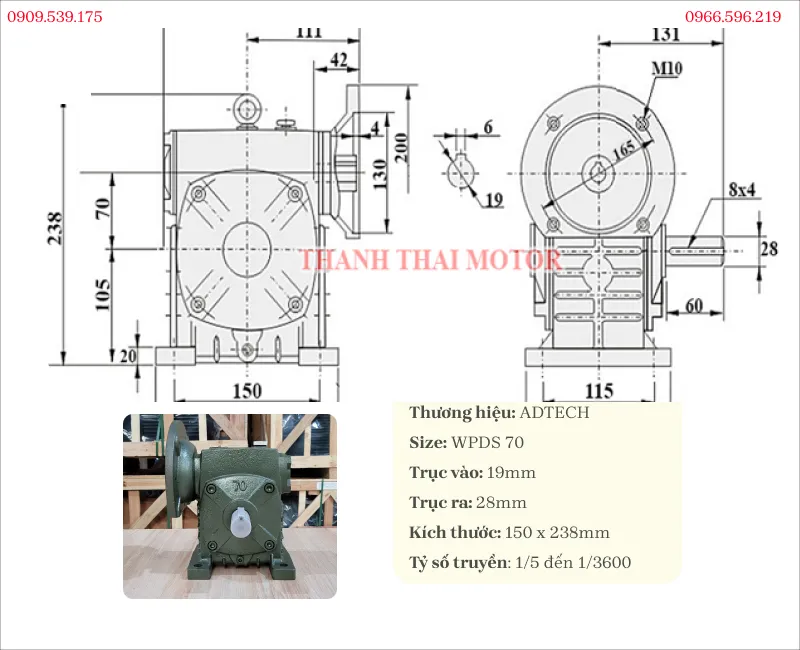

Below are the specifications of the WPDS worm gearbox

Applications of the 2-Stage UDL Gearbox 0.8kW – WPDS 70

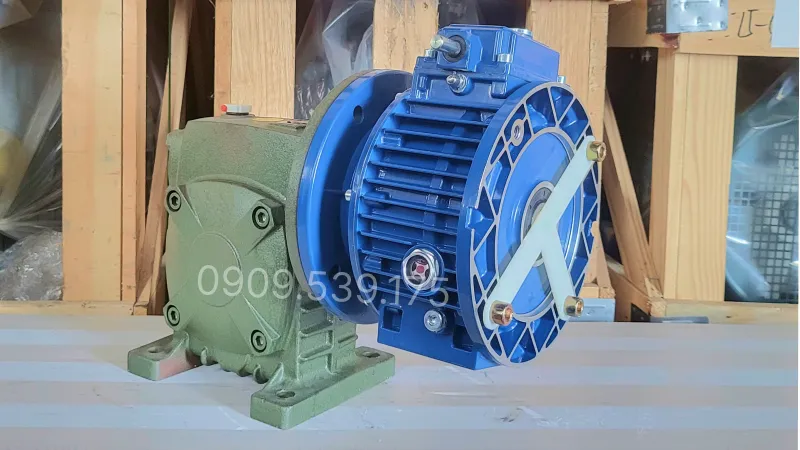

Thanks to its flexible speed adjustment capability and powerful drive torque, the 2-stage UDL 0.8kW – WPDS 70 gearbox is widely used in various industrial fields:

• The device is often integrated into conveyor systems, assembly lines, and automated material handling lines.
• In the food and chemical industries, the product is applied to agitators and mixers.
• In the textile, printing, and mechanical processing industries, the equipment is installed in cutting machines, bending machines, textile machines, and printing presses.
• In tempered glass cutting machine systems.

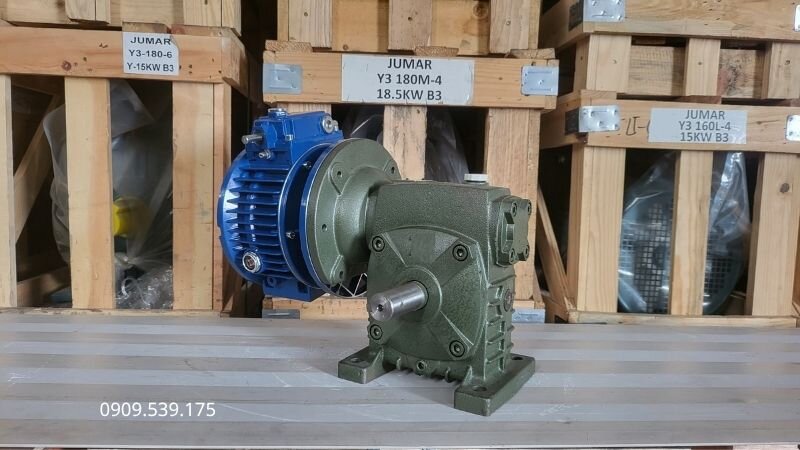

Installation Guide for the 2-Stage UDL Gearbox 0.8kW – WPDS 70

For the UDL 0.8kW – WPDS 70 drive assembly to operate stably and achieve high efficiency, follow these installation steps:

• Step 1: Install the UDL 0.8kW mechanical speed variator onto the WPDS 70 gearbox. Insert the output shaft of the UDL into the input shaft of the gearbox, install the keyway correctly, align the flange, and tighten the bolts.
• Step 2: Connect the 0.8kW electric motor to the input of the UDL speed variator. Check the concentricity between the shafts, secure the motor, and evenly tighten the bolts to ensure stable transmission.
• Step 3: Check the joints, lubrication oil level, and manually rotate the output shaft. If the system operates smoothly, proceed with power supply and no-load test running.

After complete installation, the 2-Stage UDL Gearbox 0.8kW – WPDS 70 helps easily adjust speed, increase torque, and operate smoothly, suitable for conveyors, agitators, packaging machines, and many other industrial equipment.

Watch the instructional gearbox video from Thanh Thai Motor to learn how to properly install, fill oil, inspect, and maintain the gearbox. The comprehensive video will help you use the equipment effectively, reduce incidents, and extend product lifespan.
