UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW

The UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW is a gearbox line combining a mechanical speed variator (UDL) and a worm gearbox, creating a powerful, efficient, and durable two-stage transmission mechanism. The product is optimized to create a stable, flexible transmission mechanism with high efficiency under all working conditions.

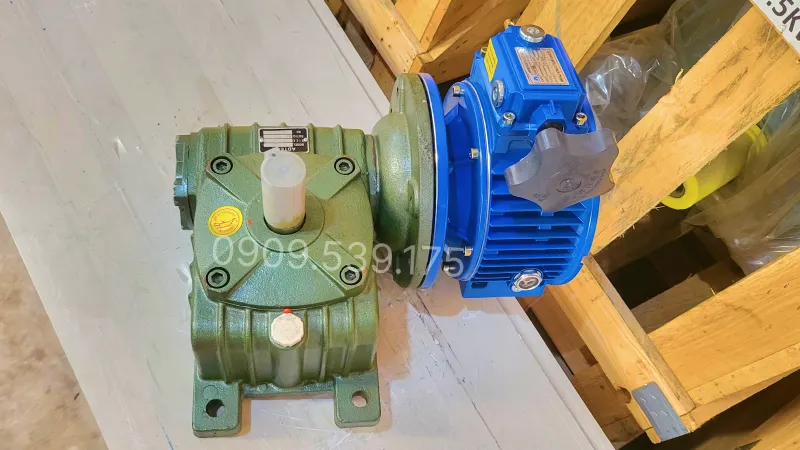

Overall design of the UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW

The 2-stage gearbox is designed with a modern, rugged style, ensuring high stability during continuous operation.

The gearbox housing is made from precise aluminum alloy and cast iron, offering light weight, fast heat dissipation, good corrosion resistance, and high load capacity.

The surface is coated with industrial blue electrostatic paint to enhance aesthetics and protect against environmental factors. The black speed adjustment knob is conveniently located on the UDL body, allowing operators to easily change speeds without cutting off the power supply or stopping the machine.

The 0.37kW 0.5Hp mechanical speed variator is directly coupled with the WPDO 60 worm gearbox, forming a compact yet powerful two-stage transmission system that increases torque, ensures stable speed reduction, and maintains high efficiency throughout operation.

Structure of the UDL – WPDO 2-Stage Gearbox

The UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW is designed with the following main components:

• UDL mechanical speed variator directly combined with an electric motor (specifically a 3-phase electric motor) – 0.37kW 0.5Hp 3-phase electric motor.
• WPDO 60 worm gearbox featuring an upward-facing output shaft design, made of hardened alloy steel to ensure long service life and smooth transmission.
• Mechanical speed adjustment knob for fast or slow speed control as required.
• Breather plug and oil cap to support cooling, balance internal pressure, and increase lubricating oil durability.
• Input shaft connected to the motor via the UDL, WPDO output shaft providing large torque, stable speed, and minimizing vibration.

Thanks to its tight structure and high-quality materials, the UDL – WPDO 60 2-stage gearbox operates durably, minimizing wear and maintenance costs.

Specifications of the UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW

To ensure that the transmission system operates accurately and meets actual load requirements, below is a summary table of detailed specifications for the UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW line.

Specifications of the WPDO 60 worm gearbox

The WPDO 60 gearbox possesses standard technical characteristics that make installation and alignment convenient. Customers can check the important parameters in the following table:

Specifications of the UDL 0.37kW motor speed variator

As a key component helping to flexibly control output speed, the UDL 0.37kW mechanical speed variator has specific technical parameters to note. Details of dimensions and gear ratios are presented below:

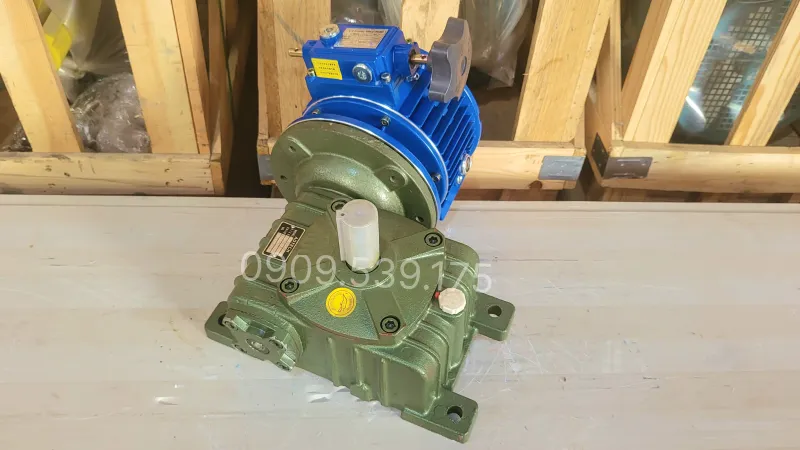

Applications of the UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW

Thanks to its durable design and flexible speed adjustment capability, the 2-stage worm gearbox is commonly used in many industrial sectors:

• Used in conveyors, restaurant conveyor belts, and light cargo transportation systems.
• Used in mixers and agitators in the food processing and pharmaceutical industries.
• Used in paper printing machine and fabric rolling machine systems.
• Used in lifting systems and display turntables.

Instructions on assembling the WPDO worm gearbox and UDL mechanical speed variator into a 2-stage gearbox

To ensure durable operation, minimize vibration and noise, you need to follow these steps:

• Inspection and cleaning: Check the flange surfaces, input/output shafts of both the UDL unit and the WPDO gearbox. Ensure contact surfaces are clean, free of rust or obstacles for the highest assembly precision.
• Connecting UDL with the WPDO gearbox: Connect the output shaft of the UDL unit to the input shaft of the WPDO gearbox. Ensure that the shaft centers of the two devices are completely concentric.
• Securing the system to the machine base: Install the connected transmission assembly onto the support base or fixed machine frame. Tighten all base bolts to avoid vibration during operation.

The perfect combination of the UDL mechanical speed variator and the WPDO 60 worm gearbox creates the UDL 2-Stage WPDO 60 Worm Gearbox 0.37kW – an optimal drive solution for machinery systems requiring high flexibility and stability.

The gearbox video will help you better visualize the structure and application of the product. Meanwhile, the summary video provides many useful reference contents on various other product lines.
