2-Stage UDL Gearbox 0.37kW – WPDX 60

2-Stage UDL Gearbox 0.37kW – WPDX 60 is a gearbox combined with a mechanical speed variator and a worm gearbox, specially designed for drive systems requiring flexible, stable, and energy-efficient speed changes. The product is a perfect combination of the UDL stepless mechanical speed variator and the WPDX 60 worm gearbox, providing precise speed adjustment, large torque, and high transmission efficiency.

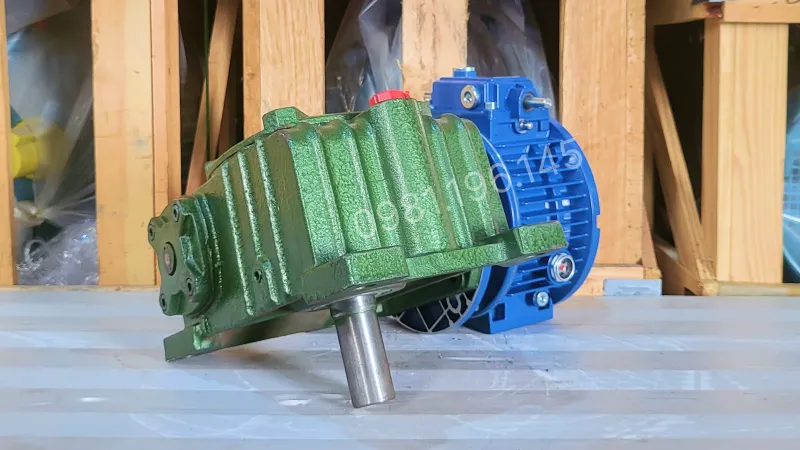

Overview design of 2-Stage UDL Gearbox 0.37kW – WPDX 60

The 2-stage gearbox is combined by a Mechanical Speed Variator 0.37kW 0.5Hp and a WPDX 60 worm gearbox with a compact, sturdy design and optimized performance. The UDL housing is made of aluminum alloy and the worm gearbox is made of high-grade cast iron housing, offering fast heat dissipation, good load-bearing capacity, and effective corrosion protection. The surface is coated with characteristic industrial blue paint, enhancing aesthetics and protecting the product from environmental factors such as dust, moisture, or industrial oil.

On the UDL body, a black speed adjustment knob is integrated, allowing operators to easily increase or decrease the rotation speed without turning off the motor.The mechanical speed variator (UDL) is directly installed with the WPDX 60 worm gearbox, creating a synchronized, powerful, and stable two-stage drive assembly, which helps increase torque and ensure accurate, smooth output speed.

Structure of UDL – WPDX 2-Stage Gearbox

The 2-Stage UDL Gearbox 0.37kW – WPDX 60 includes the following main parts:

• UDL Mechanical Speed Variator connected directly to the electric motor, specifically the 3-phase electric motor – 3-phase electric motor 0.37kW 0.5Hp.
• Worm and worm gear assembly of the WPDX 60 gearbox, made from hardened alloy steel, ensuring smooth transmission, reduced wear, and extended service life.
• Black mechanical adjustment knob allows fine-tuning speed fast – slow easily, ensuring high accuracy.
• Breather plug and oil cap support cooling, internal pressure balancing, helping the system operate stably for a long time.
• Input shaft connected to the motor via the UDL unit, while the output shaft of the WPDX 60 gearbox delivers high torque, low speed, and smooth operation.
• Thanks to the optimized structure, the product can work continuously under high load conditions, suitable for most heavy and light industries.

Technical specifications of 2-Stage UDL Gearbox 0.37kW – WPDX 60

To ensure the equipment operates correctly according to its function and matches the system installation needs, below is a summary table of the core technical specifications of the 2-stage UDL Gearbox 0.37kW – WPDX 60 assembly:

Technical specifications of WPDX 60 gearbox

As an important component determining the final output torque and speed, the WPDX 60 worm gearbox has detailed technical indices to note as follows:

Technical specifications of UDL 0.37kW Mechanical Speed Variator

Playing the role of flexibly coordinating the input speed for the entire system, the Mechanical Speed Variator has technical characteristics that help optimize working performance, specifically:

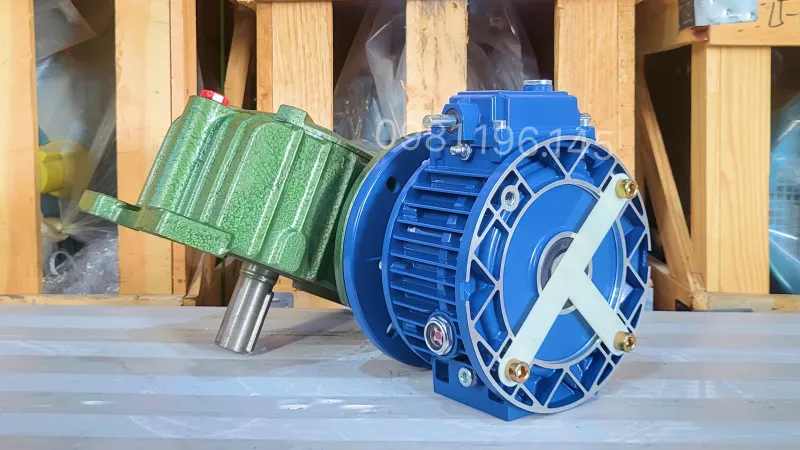

Applications of 2-Stage UDL Gearbox 0.37kW – WPDX 60

Thanks to superior performance and flexible speed regulation, the 2-stage worm gearbox is widely applied in many production fields:

• Conveyor systems and conveyor belts for restaurants, buffer conveyor belts.
• Agitators, mixers, food processing industries.
• Product packaging machinery.
• Display turntable equipment.
• Printing machines, textile machines, fabric cutting machines.

Guide to installing WPDX worm gearbox and UDL Mechanical Speed Variator to form a 2-stage gearbox

The assembly process of the Mechanical Speed Variator and WPDX 60 gearbox is very simple and quick thanks to the synchronized flange design. Below are the standard technical installation steps:

• Preparation and equipment inspection Check the synchronization of details: UDL speed variator and WPDX 60 gearbox. Ensure that shaft dimensions and flange hole match each other (connecting core diameter 14mm). Prepare screws, keys, and wrenches.
• Connect UDL to WPDX worm gearbox: Install the key into the output shaft of the UDL unit (14mm core) to prevent slipping during transmission. Insert the output shaft of the UDL unit into the input shaft hole of the WPDX 60 gearbox. Align the screw holes on the flange (160mm) to fit and tighten all bolts.

2-Stage UDL Gearbox 0.37kW – WPDX 60 with smooth speed regulation, large torque, meets diverse technical requirements from conveyor belts to industrial mixers.

If you need more actual images, watch Thanh Thai Motor’s gearbox video. Then, continue following the compilation video to discover more electromechanical equipment as ideal solutions for the food processing, packaging, printing, textile machinery and many other production fields.
