Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp

The Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp is a crucial device, widely favored in various industries such as mechanical manufacturing, machinery fabrication, continuous production lines, and lifting systems. This gearbox not only enhances efficiency but also ensures durability and stability for operating systems. Let’s explore the detailed benefits it offers with Thanh Thai Motor in the article below!

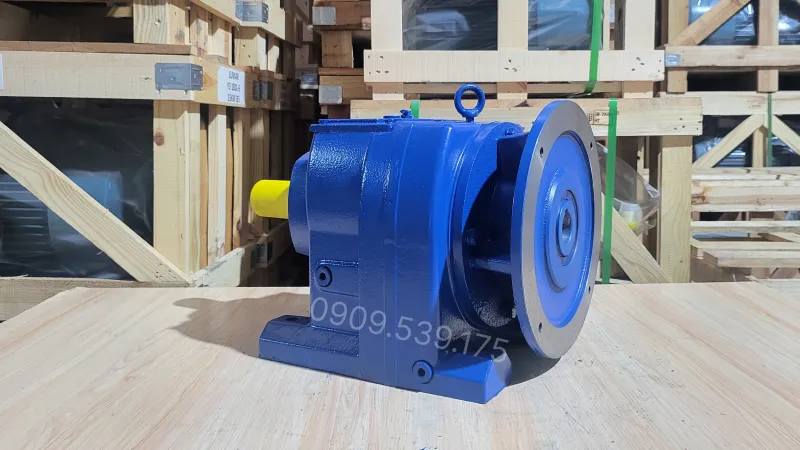

What is the design of the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp?

The R-series inline helical gearbox is designed with a focus on protection and durability. Its exterior features an electrostatic powder coating to prevent rust, which is essential for ensuring the lifespan of the equipment.

Furthermore, the outer casing is made from robust cast iron, providing both impact resistance and protection for internal components from corrosive environmental effects. Thanks to these advantages, the 15kW 20Hp geared motor is very suitable for applications in heavy industries.

What products can the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp be combined with?

This heavy-duty gearbox is often used with an electric motor to form a geared motor. Specifically, the heavy-duty gearbox is typically combined with a 3-Phase electric motor to create a heavy-duty geared motor, which provides stable and efficient power transmission for industrial machinery systems.

Therefore, the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp will be linked with a 3-Phase electric motor 15kW 20Hp to form a complete Heavy Duty R-Series Inline Helical Geared Motor 15kW 20Hp. This combination not only delivers optimal performance but also enhances durability and stability throughout operation, helping the equipment run smoothly and minimizing the risk of breakdowns.

How is the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp structured?

The internal structure of the 1-stage gearbox consists of two main parts: the motor shaft and helical gears:

• Motor shaft: The shaft of a heavy-duty geared motor is usually larger than that of a regular or medium-duty geared motor. This is to ensure the equipment’s heavy load capacity.
• Helical gears: These gears have a helical structure, increasing the contact area between the gears, thereby enhancing the load-bearing capacity of the drive system.

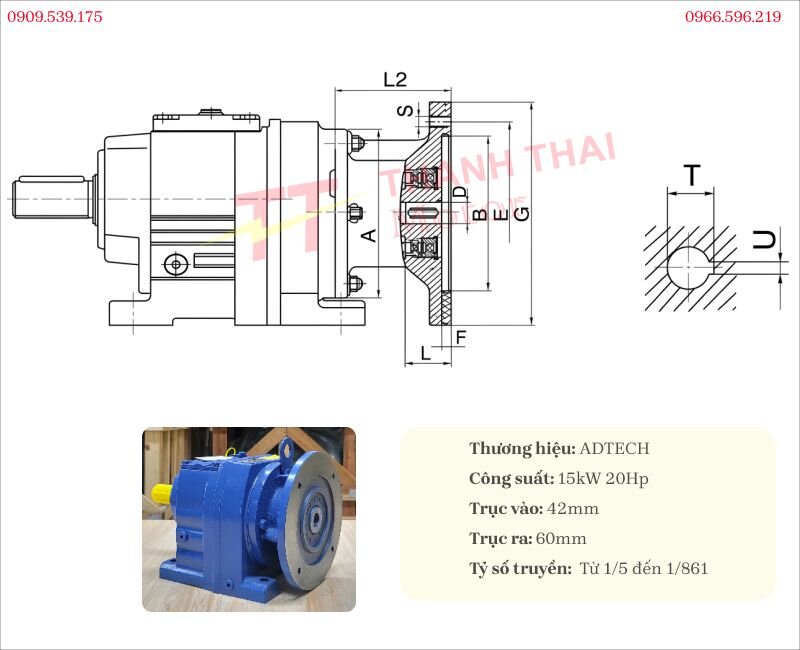

Technical specifications:

• Commonly used gear ratios include 1/15, 25, 30, 50, 60, etc.
• Mounting type: Foot-mounted, flange-mounted.

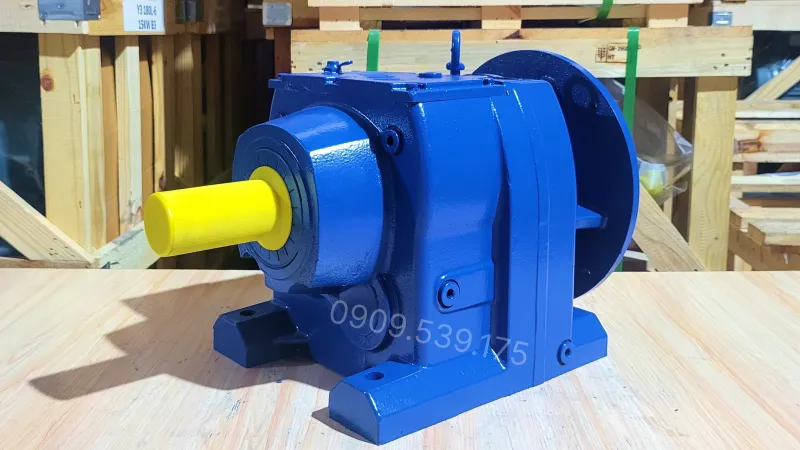

Functions and applications of the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp.

• This geared motor can be used to operate rolling doors and sliding gates in civil constructions, workshops, etc.
• It is highly suitable for driving equipment such as mixers, extruders, and presses in cement plants, chemical facilities, food processing plants, etc.
• It is integrated for use in large trucks, cranes, etc., operating on construction sites and projects.

Advantages of the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp

The Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp primarily offers the following outstanding advantages:

• Robust load-bearing capacity.
• Significant cost savings when using this gearbox.
• Long warranty and extended lifespan.

Classification of the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp

The Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp is classified into 3 types: solid shaft, hollow shaft, and flange-mounted.

Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp (Solid Shaft Type)

• Input shaft diameter: 42mm.
• Output shaft diameter: 60mm.
• Motor flange diameter: 350mm.
• Gear ratio: 1/10, 15, 30, etc.

Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp (Hollow Shaft Type)

• Input shaft diameter: 42mm.
• Output shaft diameter: 60mm.
• Motor flange diameter: 350mm.
• Gear ratio: 1/10, 15, 30, etc.

Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp (Flange-Mounted Type)

• Input shaft diameter: 42mm.
• Output shaft diameter: 60mm.
• Motor flange diameter: 350mm.
• Gear ratio: 1/10, 15, 30, etc.

Instructions for using the Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp

The Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp is an important component in drive systems, so proper use is essential to ensure its performance and durability. Below are detailed instructions:

• Read the user manual carefully: Customers should thoroughly review the user manual before proceeding with installation. If you have any questions, please contact us immediately for assistance.
• Choose the installation location: Ensure the equipment is installed in a spacious, well-ventilated area with a flat, even surface to ensure safety and operational efficiency.
• Connect the motor shaft: Proceed to connect the motor shaft to the input shaft of the gearbox. Ensure the connection process is done correctly and securely to avoid malfunctions during operation.
• Proper wiring: When wiring, choose an appropriate power source that matches the motor’s specifications to ensure efficient and safe operation of the equipment.
• Maintain equipment cleanliness: Regularly keep the gearbox surface clean and free of dust, helping the equipment operate smoothly and extending its lifespan.

Watch a detailed video about the Heavy Duty R-Series Gearbox product

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount - optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Heavy Duty R-Series Inline Helical Gearbox 15kW 20Hp is an ideal solution for industrial drive systems, offering high performance and superior durability. To learn more about the product and other solutions provided by Thanh Thai Motor, contact us today!
