R-Series Inline Helical Gearbox 11kW 15Hp

The R-Series Inline Helical Gearbox 11kW 15Hp is an essential device in mechanical workshops. This equipment helps reduce the rotational speed of the motor while increasing torque, thereby enhancing load capacity and output shaft durability. Today, let’s explore this R-Series Inline Helical Gearbox 11kW 15Hp in detail with Thành Thái Motor!

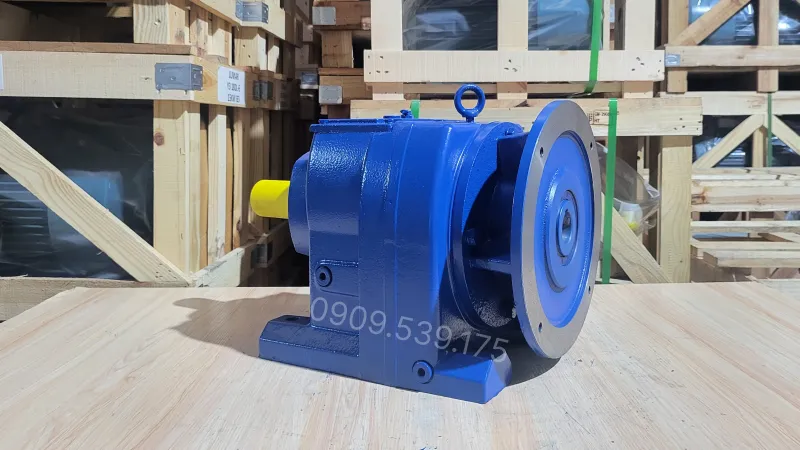

Overall Design of the R-Series Inline Helical Gearbox 11kW 15Hp

The exterior of the heavy duty inline helical gearbox is coated with a layer of paint to prevent rust. The housing is machined from rigid cast iron, making it very sturdy and responsible for protecting internal components from impacts such as strong collisions, abrasions during transportation, or environmental effects. This motor is widely favored due to its high protection capability and low susceptibility to damage.

Internal Structure of the R-Series Inline Helical Gearbox 11kW 15Hp

The R-Series Inline Helical Gearbox 11kW 15Hp consists of two main components: the motor shaft and helical gears.

• Regarding the motor shaft: This part typically has a larger size compared to motor shafts of standard-load or medium-load gear reducers.
• Regarding the gears: Helical gears are also known as bevel gears. This type of gear features a spiral structure with the outstanding advantage of increasing the contact area between the gears, thereby enhancing load-bearing capacity.

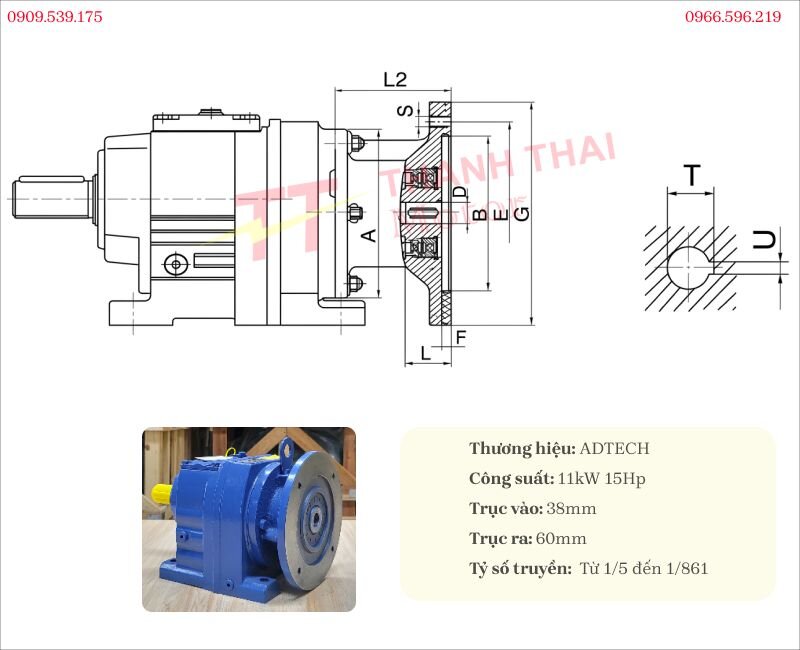

Technical Specifications of the R-Series Inline Helical Gearbox 11kW 15Hp

Below are the basic technical specifications of the R-Series Inline Helical Gearbox 11kW 15Hp

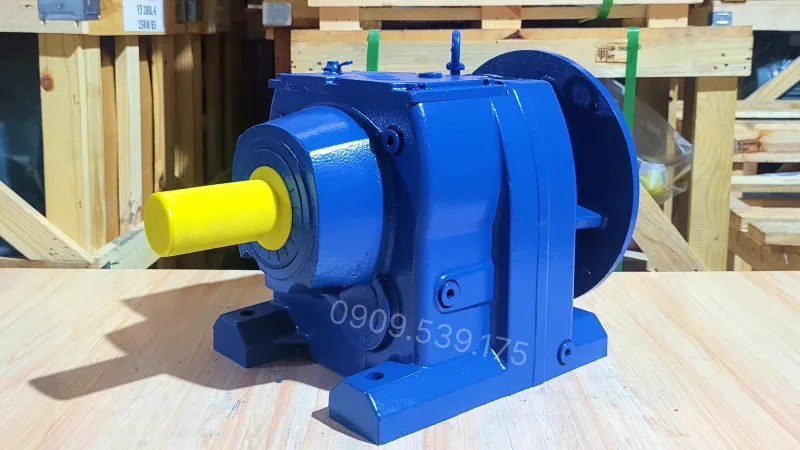

Functions and Applications of the R-Series Inline Helical Gearbox 11kW 15Hp

Heavy-duty gearboxes are widely used in industrial and handicraft production systems and lines, as well as equipment requiring a change in the rotational direction of drive force.

• Conveyor systems: used to control conveyors, animal feed production lines, finished product packaging, etc.
• Used in mechanical manufacturing, metallurgy, mixing machines, etc.
• Large transportation vehicles such as trucks, in construction sites and projects.

Oil Filling Guide for the R-Series Inline Helical Gearbox 11kW 15Hp

To ensure the R-Series Inline Helical Gearbox 11kW 15Hp operates smoothly, minimizes gear wear, and maintains stable transmission performance, follow the oil filling procedure below:

• Step 1: Completely disconnect the power supply, clean the area around the oil filling plugs, and prepare lubricating oil with the correct viscosity recommended by the manufacturer.
• Step 2: If the gearbox has been in use for a long time, open the drain plug to drain all the old oil. Then clean the drain plug and tighten it securely to prevent oil leaks during operation.
• Step 3: Open the oil filling plug, slowly add new oil until the oil level reaches the designated position on the oil sight glass. Do not overfill, as this can increase internal temperature and pressure within the gearbox.
• Step 4: Tightly close the filling and drain plugs, and run the gearbox under no-load conditions for about 5-10 minutes. Then recheck the oil level, oil sight glass, and sealing positions to ensure no leakage occurs.

Through the instructional gearbox video from Thành Thái Motor, you will learn how to accurately identify the oil fill plug, oil drain plug, oil sight glass, and breather plug on the R-Series Inline Helical Gearbox 11kW 15Hp. The comprehensive video also shares important notes on oil change cycles, how to check oil quality, and common mistakes when adding oil, helping the gearbox operate stably, reducing maintenance costs, and extending equipment lifespan.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The R-Series Inline Helical Gearbox 11kW 15Hp is an ideal solution for industrial applications requiring high performance and superior durability. To learn more about this product and other transmission solutions, visit the Thành Thái Motor store. We are always ready to help you choose the most suitable equipment for your needs!
