R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp is a crucial motor for mechanical system workshops, as it is responsible for reducing motor rotational speed and increasing torque to meet heavy-duty requirements.

Today, let’s join Thanh Thai Motor to learn specific information about this gearbox.

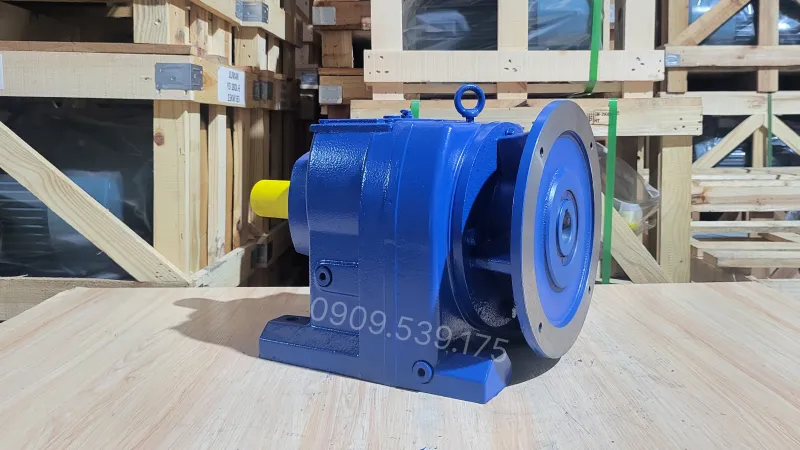

Overall design of the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

This R-Series Heavy-Duty Inline Helical Gearbox product is coated with a layer of gray or blue paint, helping protect the motor from environmental corrosion.

The housing is made of cast iron, which not only provides sturdiness for the product but also protects internal components from external impacts such as heavy shocks during transportation and harmful factors like corrosion and rust. Therefore, this heavy-duty inline helical gearbox is favored by users for its superior protection and high durability, minimizing damage during use.

Structure of the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

The R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp consists of 2 basic components: the motor shaft and the helical gear.

• The motor shaft component of a heavy-duty gearbox is typically larger than that of a medium-duty or standard-duty gearbox.
• Helical gear set component: It also has a spiral structure, which creates the advantage of increasing the contact area between the gears, thereby enhancing load-bearing capacity.

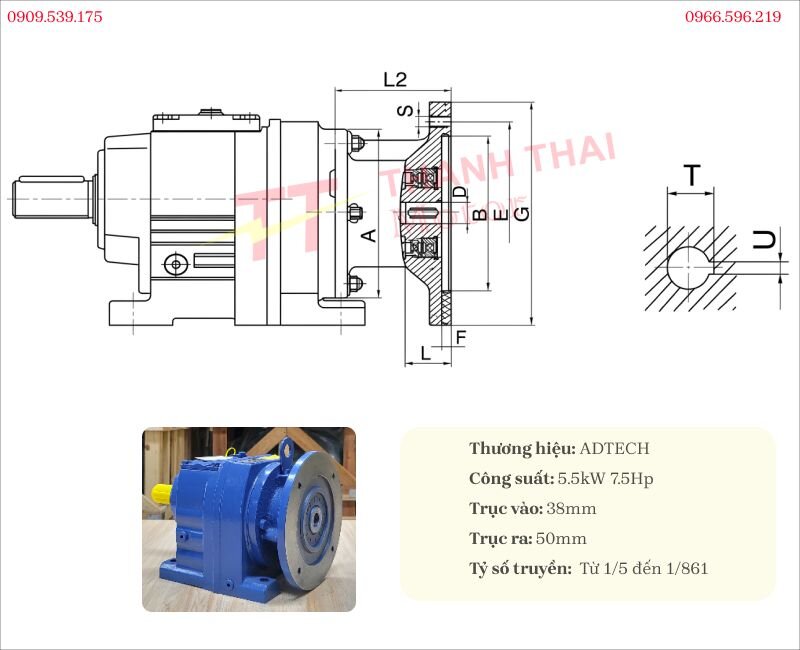

Technical Specifications of the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

Below are the basic technical specifications of the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

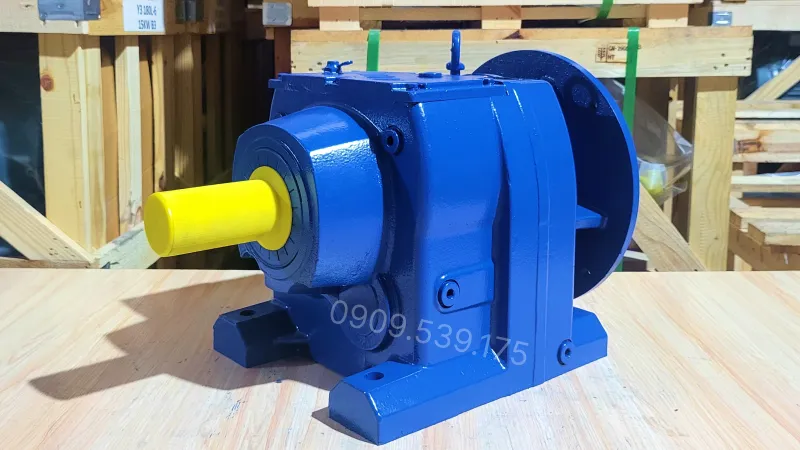

Functions and Applications of the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

• Heavy-duty gearbox products are widely used in industrial production systems, machinery systems, and equipment requiring changes in the rotational direction of drive force.
• The R 5.5kW 7.5Hp motor is applied in production lines for goods, packaging, food, animal feed, etc.
• Applied in extractive industries such as mining and oil.
• Applied in lifting and moving systems such as cranes and hoists.
• Applied in machinery such as crushers, presses, etc.

Instructions for Adding Oil to the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp

To ensure the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp operates stably, reduces friction between gears, and maintains efficient torque transmission, follow these oil filling instructions:

• Step 1: Disconnect the power source, ensure the gearbox has completely stopped. Clean the area around the oil fill plug and oil drain plug, and prepare the lubricating oil that meets technical standards.
• Step 2: For gearboxes that have been operating previously, open the drain plug to completely remove the old oil. Once drained, clean the drain plug and reinstall it securely before adding new oil.
• Step 3: Open the oil fill plug, pour oil slowly until the oil level is within the specified limits of the oil sight glass or dipstick (if applicable). Do not underfill or overfill to ensure the lubrication system operates effectively.
• Step 4: Tighten the oil fill and drain plugs, run the gearbox for a few minutes under no-load conditions. Then check the oil level and sealing positions again to ensure there are no oil leaks or losses.

Through Thanh Thai Motor’s instructional gearbox video, you will easily identify the positions of the oil fill plug, oil drain plug, oil sight glass, and breather plug on the R-Series Heavy-Duty Inline Helical Gearbox 5.5kW 7.5Hp. The comprehensive video also guides you on how to check the condition of the lubricating oil, when to perform periodic oil changes, and important notes during maintenance, helping the gearbox operate durably, minimize damage, and enhance equipment lifespan.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
