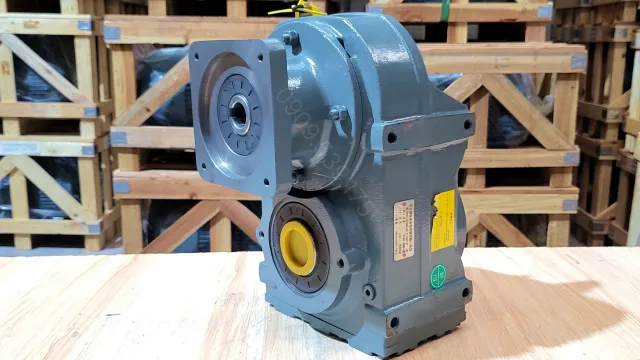

F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp

F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp is a crucial device in mechanical systems. The structure of the F-series parallel shaft heavy-duty gearbox reduces rotational speed while increasing torque. The powder-coated cast iron housing completely isolates the internal mechanical system from corrosive agents in the workshop. Let’s learn more details about this gearbox product with Thanh Thai Motor!

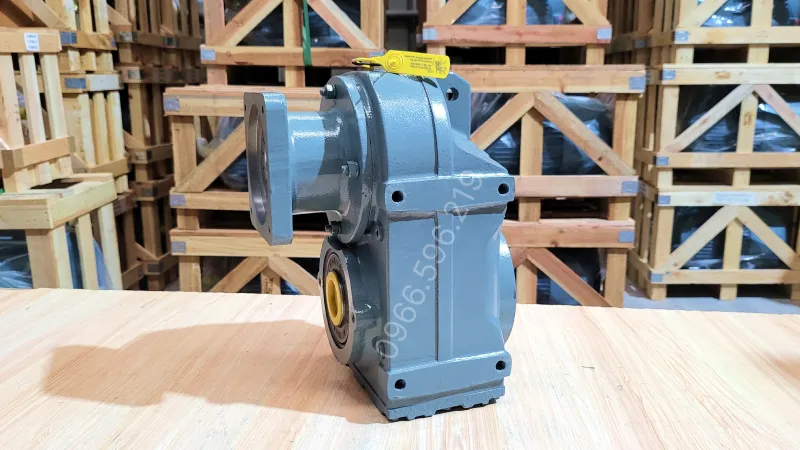

Overall design of the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp

F-series parallel shaft heavy-duty gearboxes are coated with an anti-rust paint, delivering high aesthetics and durability. The motor housing is made of rigid cast iron, protecting internal components such as the motor shaft. The product is favored for its impact resistance and corrosion immunity, ensuring stable performance over a long period.

When combining the F-series parallel shaft heavy-duty gearbox with an electric motor, it forms a complete gear motor commonly used in production lines and material handling processes at factories and mechanical workshops.

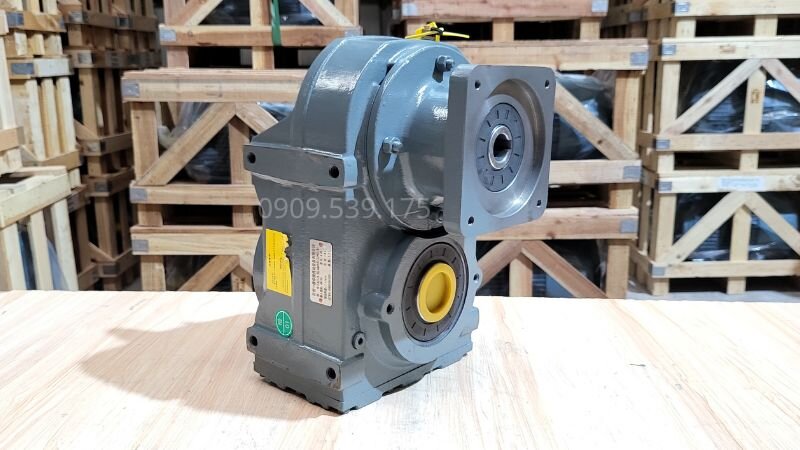

Structure of the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp

The F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp consists of two main parts: the motor shaft and helical gears:

• Motor shaft: The size of the motor shaft is larger than the hollow shaft of light-duty and medium-duty gearboxes, enhancing load-bearing capacity and durability for heavy industrial applications.
• Helical gear: Also known as inclined gears, it enhances load-bearing capacity and ensures stable operating performance for the motor.

Technical specifications

• Gear ratio: There are various gear ratios ranging from 1/15, 35, 55, 75, 85, 115, 145, …, 800, 900, 1100.
• Corresponding to the gear ratios, commonly used F-series sizes include: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157.
• Mounting type: Installed in foot-mounted or flange-mounted styles.

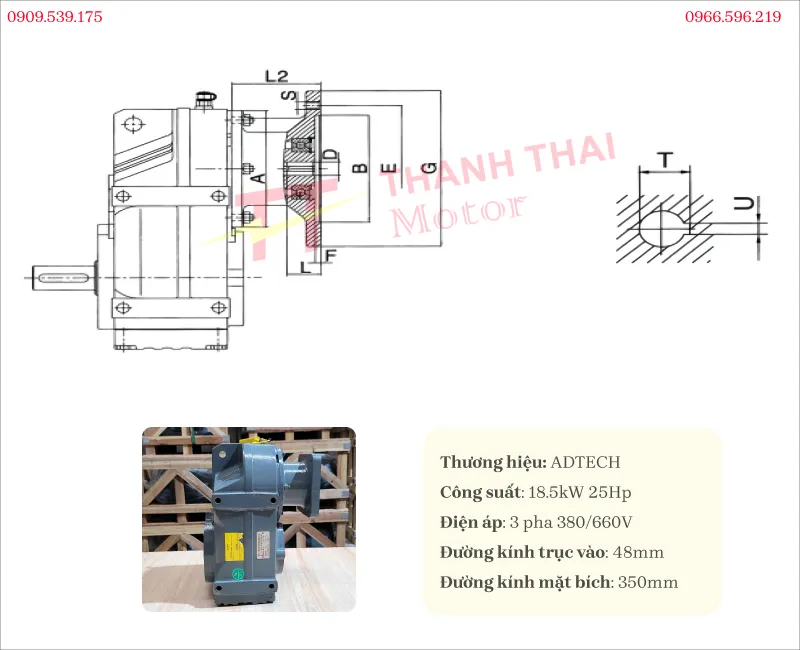

Technical specifications of the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp

Combining the F-series parallel shaft heavy-duty gearbox with a 3-phase electric motor creates a heavy-duty gear motor.

Specifically, combining the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp with a 3-phase 18.5kW 25Hp electric motor creates an F-series parallel shaft heavy-duty gear motor 18.5kW 25Hp.

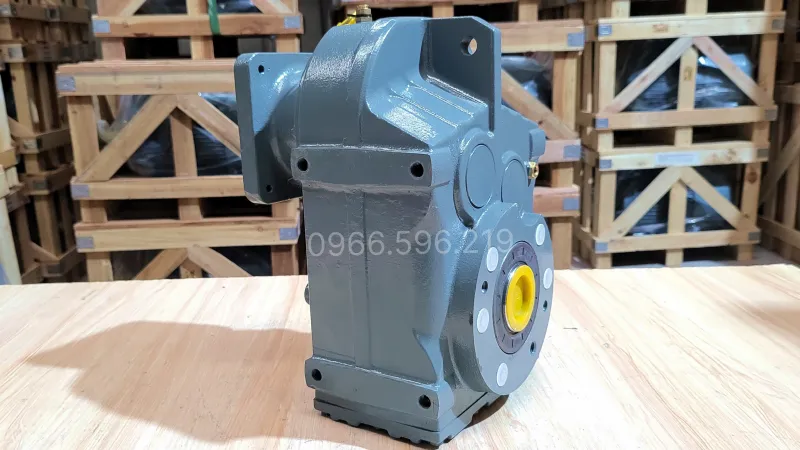

Applications of the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp

• Used in cranes and lifting equipment to lift and move heavy objects.
• Applied in construction works such as presses, crushers, and heavy-load moving equipment for concrete, steel, and other construction materials.
• Suitable for automated production lines, helping improve speed and accuracy during production.
• Used in conveyor systems to transport goods.

Guide to distinguishing the input and output shafts of the F-Series Parallel Shaft Helical Gearbox

To accurately distinguish the input and output shafts of the F-series parallel shaft heavy-duty gearbox, observe and identify them according to the guide below:

Identification by size and design:

• Input shaft: Has a rated diameter of 48mm.
• Shaft design: The gearbox supports shaft installation styles such as hollow shaft, solid shaft, or flange. Specifically, the motor shaft section is designed with a larger size compared to the hollow shaft of light-duty and medium-duty gearbox lines to enhance load-bearing capacity.

The physical advantage of the parallel shaft design helps the F-Series Parallel Shaft Helical Gearbox 18.5kW 25Hp easily assemble into narrow spaces at material mixing stations. The synchronization between the 48mm drive shaft and the rigid cast iron housing maximally eliminates the risk of mechanical gear wear. Watch more gearbox videos and summary videos to better understand the technical characteristics of each product from Thanh Thai Motor.
