F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp

The heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hpgear motor is a device widely used in mechanical systems and machine structures, serving to reduce the rotational speed of 3-phase gear motors and increase torque. Let’s explore the details of this gearbox with Thanh Thai Motor!

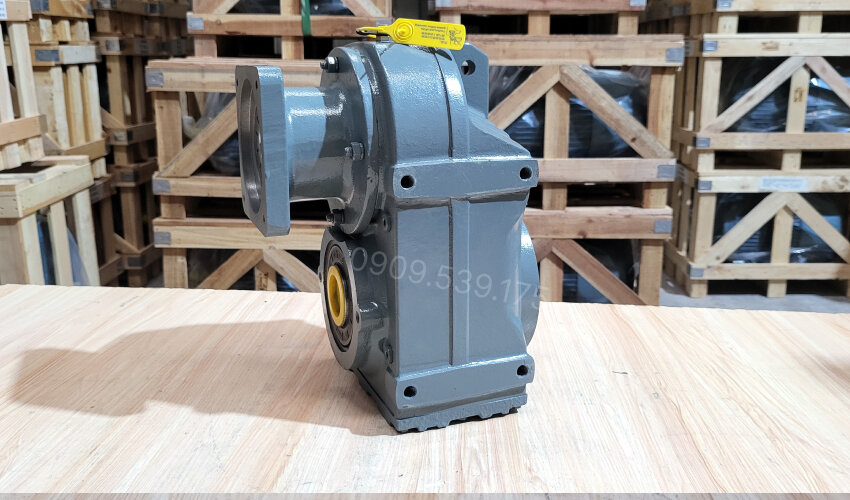

General design of the F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp

In general, the F-Series Parallel Shaft Helical Gearbox has an outer shell coated with anti-rust paint for greater durability. The motor housing is made of rigid cast iron material, responsible for protecting internal parts such as the motor shaft. This F-Series Parallel Shaft Helical Gearbox is favored by users for its practicality, good protection, impact resistance, and minimization of environmental damage.

When combined with an electric motor, the gearbox creates a complete gear motor, with functions such as reducing the motor’s rotational speed and simultaneously increasing torque, suitable for applications requiring high pulling force such as conveyors and hoisting machines.

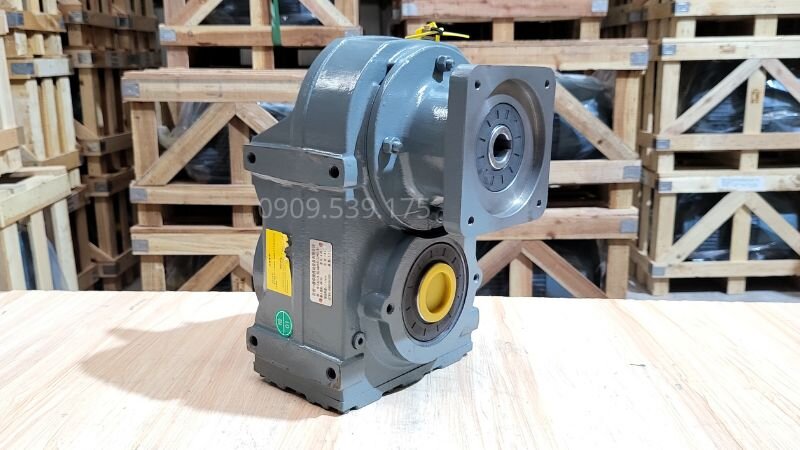

Structure of the heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW

The internal structure of the F-Series Parallel Shaft Helical Gearbox consists of 2 basic parts: the motor shaft and helical gears.

• Motor shaft: The motor shaft of the heavy duty F-Series Parallel Shaft Helical Gearbox is usually larger than the motor shafts of standard or medium load gearboxes.
• Helical gears: Also commonly referred to as bevel gears. With the advantage of increasing the contact area between the gears, thereby enhancing load-bearing capacity and better resistance.

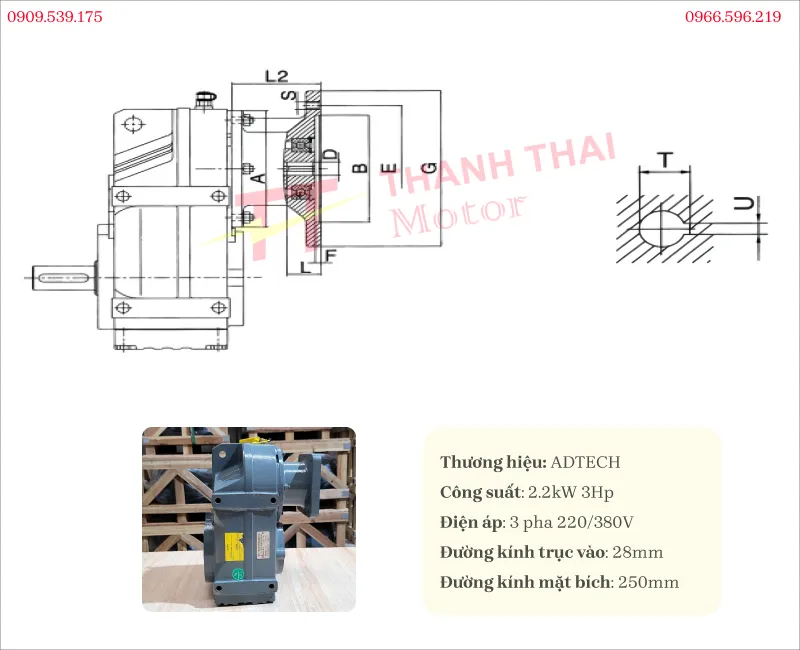

Specifications of the heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp

The heavy duty F-Series Parallel Shaft Helical Gearbox combines with a 3-phase electric motor to form a heavy duty gear motor.

Specifically, the heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp is combined with a 3-phase 2.2kW 3Hp electric motor to form the heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp gear motor.

Specifications:

• Common gear ratios widely used in the market: 1/15, 1/30, 1/50, 1/60, 1/70, …
• Mounting type: Foot mount, flange mount.

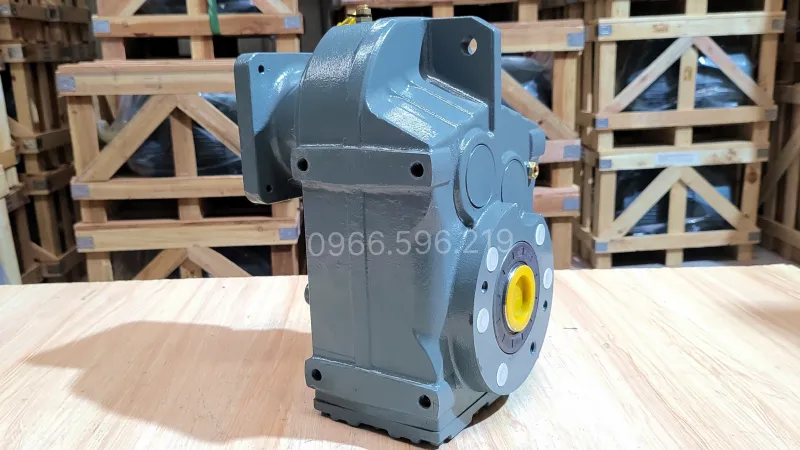

Applications of the heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp

The heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp is widely used in industrial production systems, machinery manufacturing systems, construction projects, etc.

• Conveyor systems: Production and material handling lines in machinery industries and mechanical workshops.
• Crane hoisting, car lifting in parking lots, vehicle repair, and car wash.
• Specialized trucks, heavy-weight material handling equipment for construction projects and lifting heavy items.

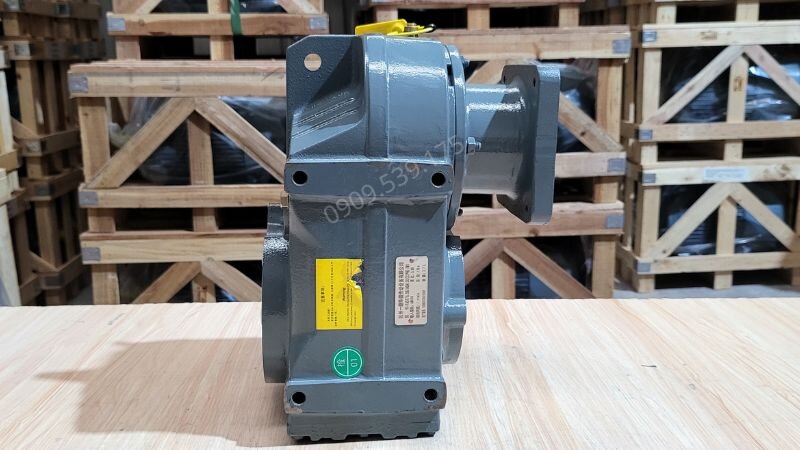

Guide to distinguishing input and output shafts of the heavy duty F-Series Parallel Shaft Helical Gearbox

To ensure precise mechanical installation and avoid system damage risks, mechanics can quickly distinguish between the input and output shafts of the gearbox based on the shaft diameter difference:

• Input shaft: The end of the shaft that connects directly to the electric motor. Since it rotates at high speed but bears low torsional force, this shaft always has a smaller diameter. Specifically in the 2.2kW 3Hp model, the input shaft diameter is 28mm.
• Output shaft: The end of the shaft that connects to the load (conveyor, hoisting machine). Although the rotational speed has been reduced, this shaft must withstand the entire pulling force and extremely large torque. Therefore, the output shaft is always cast large, sturdy, and has a significantly larger diameter than the input shaft.

The heavy duty F-Series Parallel Shaft Helical Gearbox 2.2kW 3Hp is an ideal mechanical component for systems requiring a balance between compactness and load-bearing capacity. With a power of 3Hp, this is a transmission device particularly suitable for medium-scale production lines, garage lifting systems, or material handling equipment in mechanical workshops.

Don’t forget to visit Thanh Thai Motor’s gearbox video system and compilation videos to learn more details about the most popular transmission equipment lines today.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
