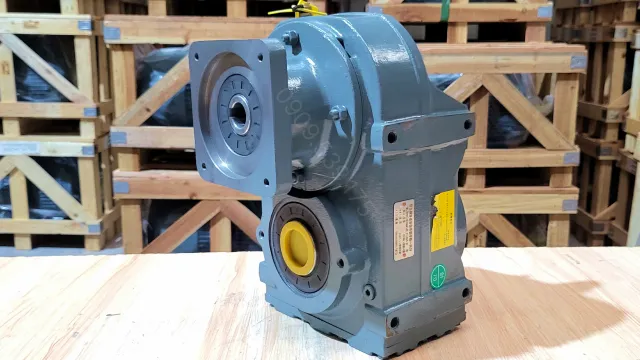

F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp

The F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp is an essential equipment for power-demanding applications such as crushers, presses, etc. Now, let’s explore the structure, functions, and applications of this gearbox with Thanh Thai Motor!

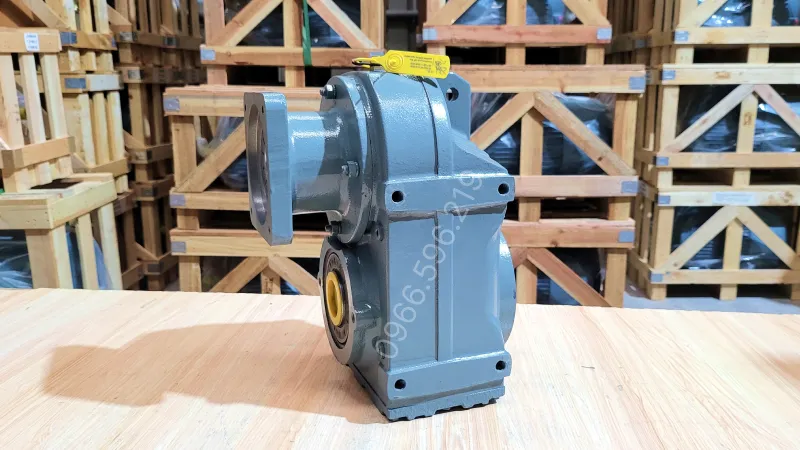

Overall design of the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp

The exterior of the F-Series Parallel Shaft Helical Gearbox is coated with a durable and aesthetically pleasing anti-rust electrostatic paint layer. Made of cast iron-a tough material-the gearbox can withstand impacts and well protect the internal components. In addition, the product is favored for its resistance to external environmental factors, clay, etc.

Combining the gearbox with an electric motor creates a complete gear motor, which is used in lifting equipment such as cranes, specialized trucks, and car lifts in parking lots or repair stations.

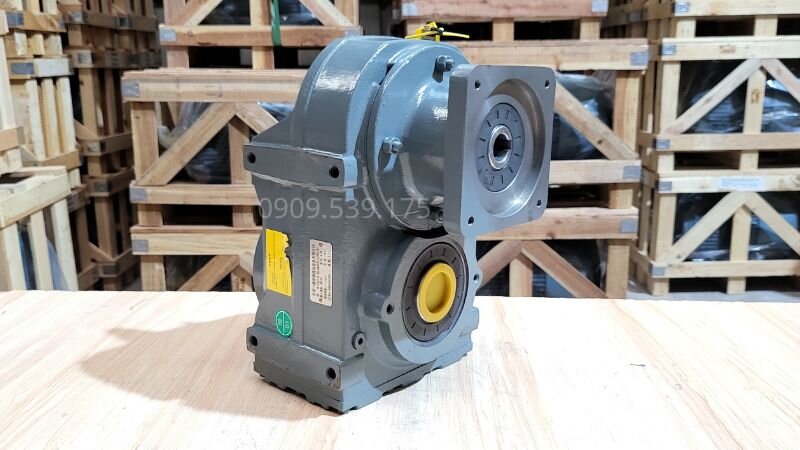

Structure of the F-Series Parallel Shaft Helical Gearbox

The F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp consists of two main components:

• Motor shaft: The motor shaft in the F-Series 5.5kW 7.5Hp gearbox features a robust design, ensuring excellent load-bearing capacity and high durability in heavy industrial applications. The shaft size and structure are optimized to transmit high power efficiently.
• Helical gear (bevel gear): Helical gears help transmit force more smoothly and efficiently while evenly distributing the load across the teeth.

Specifications of the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp

The F-Series parallel shaft heavy-duty gearbox is combined with a 3-phase electric motor to form a heavy-duty gear motor.

Specifically, the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp is combined with a 3-phase electric motor 5.5kW 7.5Hp to create the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp gear motor.

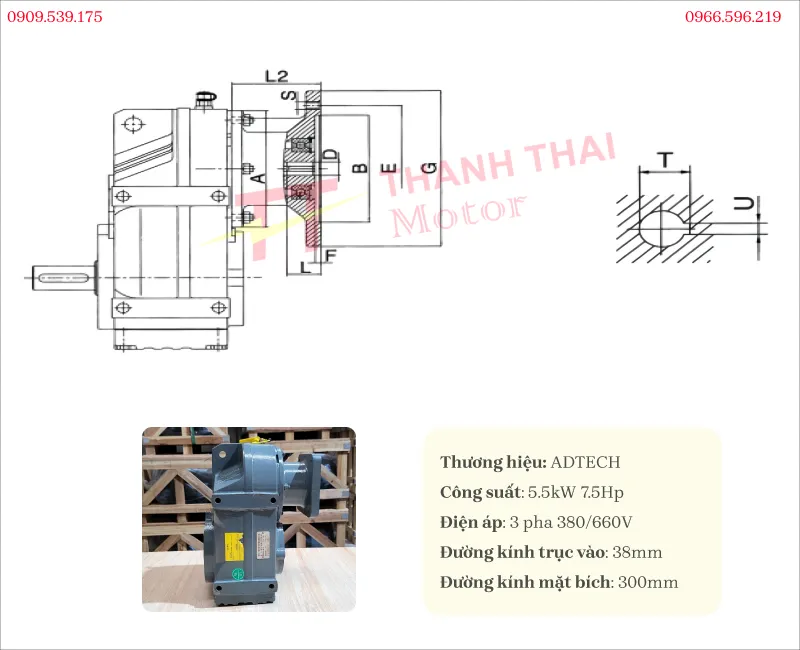

Technical specifications

• Various gear ratios available from 1/15, 35, 55, 75, 85, 115, 145, … 800, 900, 1100.
• Commonly used F sizes: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157.
• Mounting type: Foot-mounted or flange-mounted.

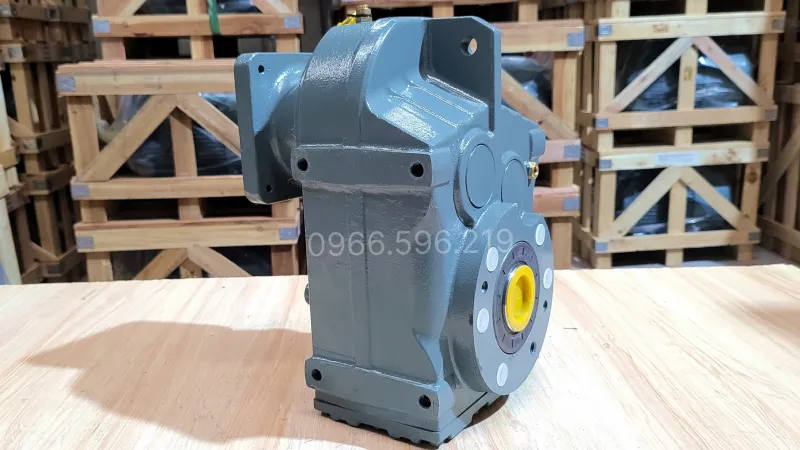

Applications of the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp

• Applied in lifting equipment to move heavy objects such as in cranes, hoists, etc.
• Used in conveyor systems to transport goods.
• Used in presses, crushers, and equipment handling cement, concrete, steel, etc., in construction.
• Suitable for production lines, helping to adjust speed and optimize operating performance.

Easily distinguish input and output shafts of the F-Series Parallel Shaft Helical Gearbox

For equipment such as presses and conveyors to operate properly, determining the correct installation direction of the gearbox is mandatory. The fastest and most accurate way to distinguish these two shaft ends is to compare their shaft diameters:

• Input shaft (High-speed shaft): The end directly connected to the electric motor. Because it rotates at high speed but bears low torsional force, this shaft is always smaller in size. For the F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp line, the input shaft has a diameter of 38mm.
• Output shaft (Low-speed shaft): The end that transmits pulling force to machinery. Although rotating slowly, this shaft must bear the entire load and extremely high torque. Therefore, to prevent cracking under heavy loads, the output shaft is always designed larger and has a much larger diameter than the input shaft.

The F-Series Parallel Shaft Helical Gearbox 5.5kW 7.5Hp is specially designed to optimize torque transmission. The core point lies in the helical gear (bevel gear) which differs from standard spur gears. Do not miss the gearbox videos and compilation videos if you want to understand more about transmission devices at Thanh Thai Motor such as: gearboxes, gear motors, electric motors, water pumps, etc.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
