F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp

F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp is an important device in mechanical systems. The structure of the F-Series Parallel Shaft Helical Gearbox reduces rotational speed while increasing torque. Let’s explore the details of this gearbox product with Thanh Thai Motor!

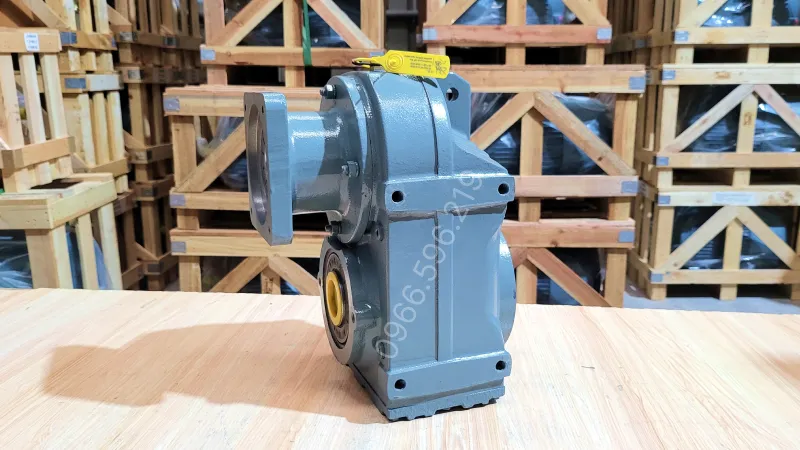

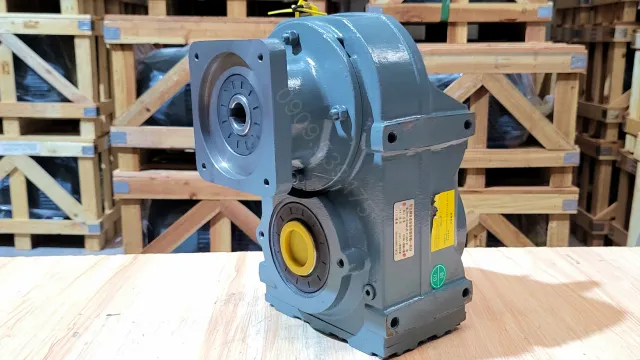

Overview Design of F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp

The F-Series Parallel Shaft Helical Gearbox is coated with an anti-rust paint layer, providing aesthetics and high durability. The motor housing is made of rigid cast iron to help protect internal parts such as the motor shaft. The product is favored for its impact resistance and corrosion immunity, ensuring stable performance over a long period.

Combining the gearbox with an electric motor creates a complete gear motor, commonly used in production lines and material handling at factories and mechanical workshops.

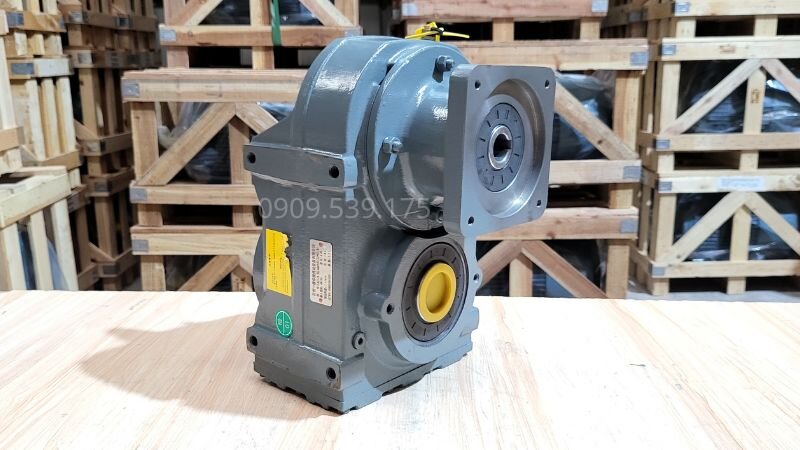

Structure of F-Series Parallel Shaft Helical Gearbox

The F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp consists of two main parts: the motor shaft and helical gears:

• Motor shaft: The size of the motor shaft is larger than that of light-duty and medium-duty gearboxes, enhancing load-bearing capacity and durability for equipment in heavy industrial applications.
• Helical gears: Also known as bevel gears, they enhance load-bearing capacity and ensure stable operating performance for the motor.

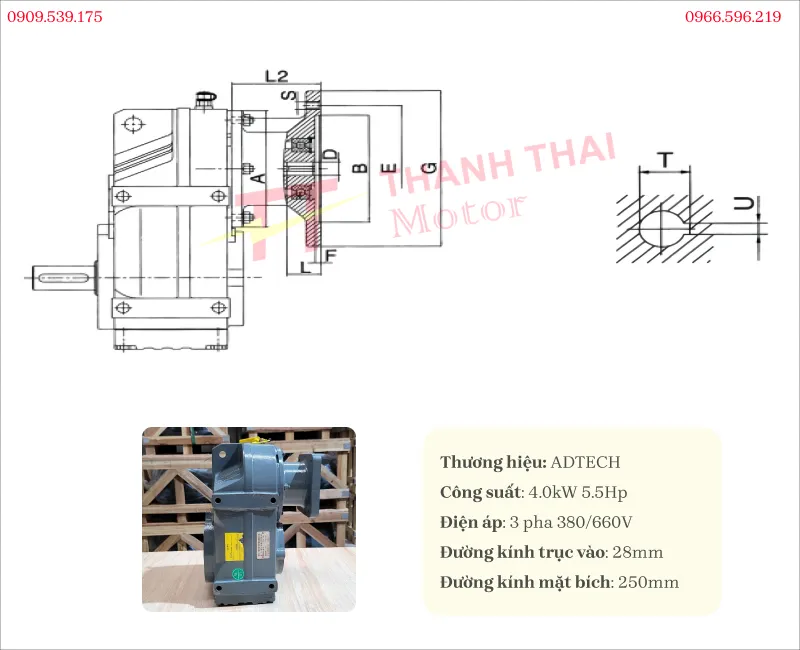

Specifications of F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp

The F-Series Parallel Shaft Helical Gearbox combines with a 3 phase electric motor to form a heavy-duty gear motor.

More specifically, the F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp will be combined with a 3 phase electric motor 4.0kW 5.5Hp to form an F-Series Parallel Shaft Helical Gear Motor 4kW 5.5Hp.

Specifications

• Gear ratio: There are various gear ratios ranging from 1/15, 35, 55, 75, 85, 115, 145, …, 800, 900, 1100.
• Corresponding to the gear ratios, commonly used F-series models include: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157.
• Mounting type: Installed as foot mount or flange mount.

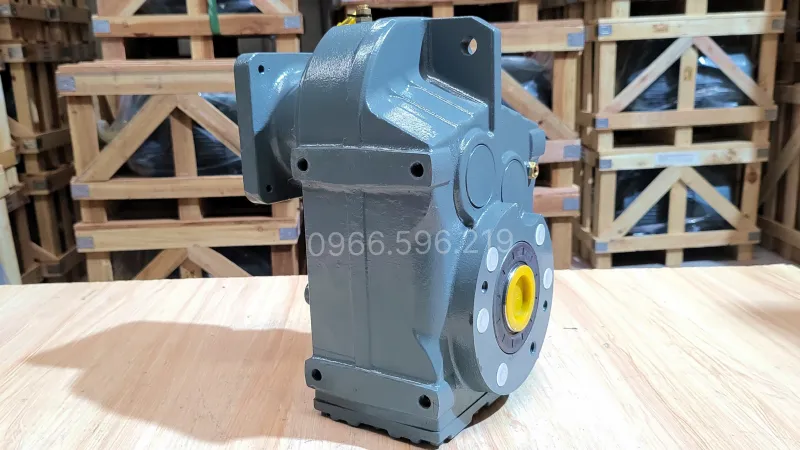

Applications of F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp

• Used in cranes and lifting equipment to help lift and move heavy objects.
• Applied in construction projects such as presses, crushers, and equipment moving heavy loads like concrete, steel, and other construction materials.
• Suitable for automated production lines, helping improve speed and accuracy during production.
• Used in conveyor systems to transport goods.

Simple Guide to Distinguishing Input and Output Shafts of F-Series Parallel Shaft Helical Gearbox

The simplest way to distinguish the input and output shafts of the F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp is based on the shaft diameter of the gearbox:

• Input shaft: Has a smaller diameter specification, specifically 28mm.
• Output shaft: Supports various flexible assembly options including hollow shaft, solid shaft, or flange. In particular, the motor shaft is designed larger than light-duty and medium-duty series to enhance durability and heavy load-bearing capacity.

The F-Series Parallel Shaft Helical Gearbox 4.0kW 5.5Hp with an impact-resistant cast iron housing combined with a bevel gear system helps the equipment maintain maximum torque, bringing stability to industrial lifting systems.

In addition, please refer to the gearbox video and compilation video from Thanh Thai Motor for more information before making a purchase decision.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
