2-Stage UDL 2.2kW – WPDA 120 Gear Motor

The 2-Stage UDL 2.2kW – WPDA 120 Gear Motor is a gear motor line combined from two devices: a gearbox, specifically a 2-stage gearbox, combined with an electric motor, specifically a 3-phase electric motor. This combination helps create a large transmission ratio, smooth operation, good heat dissipation, and is suitable for applications such as industrial conveyors, mixers, agitators, winding-pulling systems, and automated production lines in manufacturing plants.

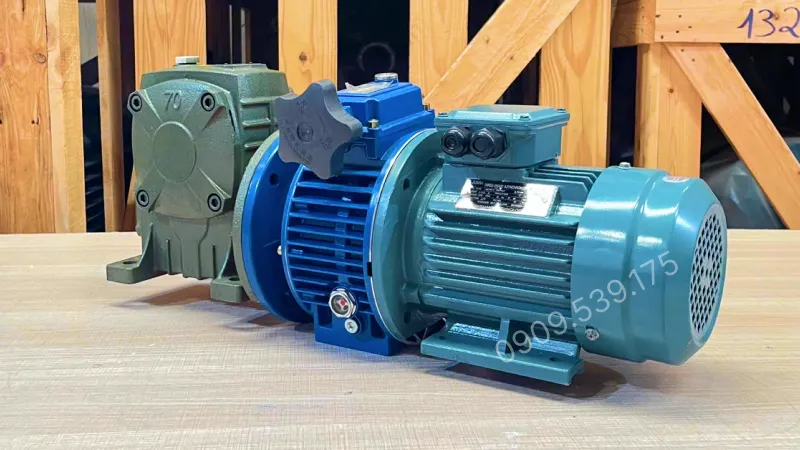

Design Overview of the 2-Stage UDL 2.2kW – WPDA 120 Gear Motor

The 2-Stage UDL 2.2kW – WPDA 120 Gear Motor product is compactly designed, making it easy to install in space-restricted locations. Featuring an international standard flange, the motor can be quickly coupled with various electric motors, facilitating system maintenance or upgrades.

Structure of the 2-Stage UDL 2.2kW – WPDA 120 Gear Motor

The 2-Stage UDL 2.2kW – WPDA 120 Gear Motor is assembled from a 3-phase 2.2kW 3Hp electric motor and a 2-stage UDL 2.2kW – WPDA 120 gearbox (UDL 2.2kW – WPDA 120 gear reducer). Its detailed structure includes:

Electric Motor Structure:

• Stator: The inner part of the motor, solidly designed and made of pure copper
• Rotor: The rotating part of the motor, constructed from thin laminated steel sheets.
• Bearing: Helps the system rotate smoothly, supporting radial and axial loads.

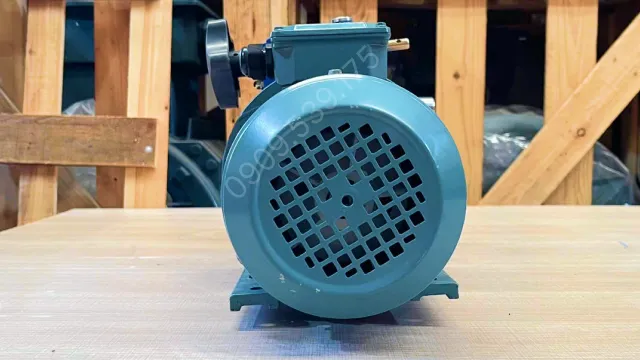

• Fan: A component attached to the rear of the motor, used to create a continuous cooling airflow, reducing the temperature of the Stator and Rotor, ensuring stable motor operation and extending lifespan.

Gearbox Structure:

• Stage 1 – Mechanical Speed Variator 2.2kW 3Hp changes the input speed via a friction mechanism or gears before transmitting it to the next stage.

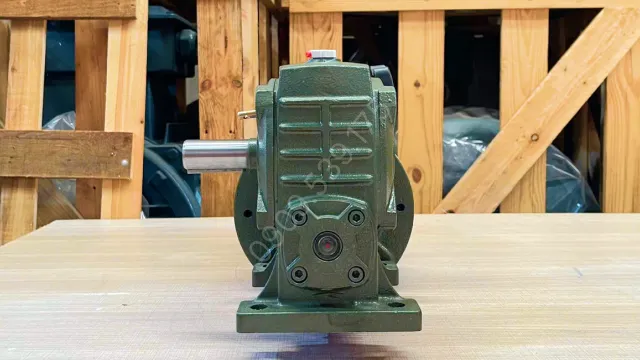

• Stage 2 – Worm gearbox, specifically the WPDA 120 worm gearbox, made of solid, sturdy, and durable cast iron, combined with an electrostatic powder coating to prevent rust.
• Input shaft – Output shaft: The input shaft receives power from the motor; the output shaft transmits the decelerated power to the driven machine.

Technical Specifications of the 2-Stage UDL 2.2kW – WPDA 120 Gear Motor

Below are the basic technical specifications of the UDL 2.2kW – WPDA 120 gear motor

Technical Specifications of the 3-Phase 2.2kW 3Hp Electric Motor

These parameters determine the electrical characteristics, input power rating, and protection level of the power supply for the entire drive system

Technical Specifications of the UDL 2.2kW 3Hp Gearbox

The data below shows the control and fine-tuning capabilities of the rotation speed before transmitting power to the final gearbox

Technical Specifications of the WPDA 120 Worm Gearbox

These parameters describe the mechanical characteristics at the final output, directly determining the connection capability and ultra-heavy load-pulling capacity of the system

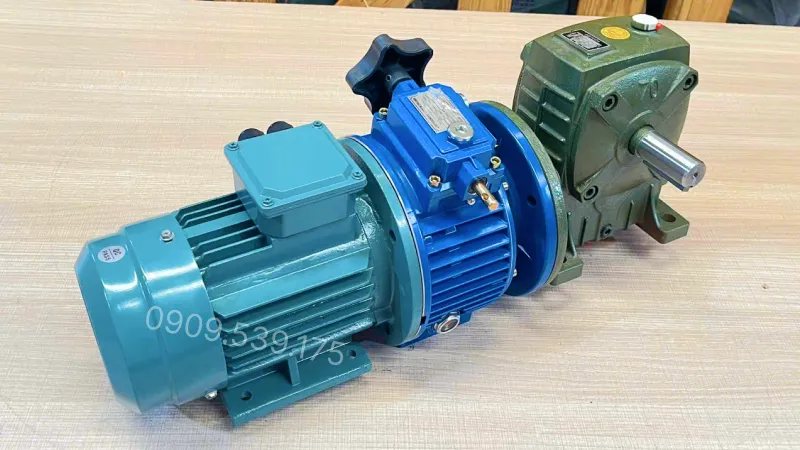

Applications of the 2-Stage UDL 2.2kW – WPDA 120 Gear Motor

The basic applications of the 2-stage UDL 2.2kW – WPDA 120 gear motor include:

• Industrial conveyors (cargo conveyors, sorting, food, components).
• Agitators – mixers requiring speed adjustment per stage.
• Packaging and processing lines requiring continuous speed adjustment.
• Punching machines, press machines, and extrusion machines requiring high torque.
• Light lifting systems requiring deep deceleration and stable operation.
• Food processing machines (dough mixing, ingredient stirring, batching).
• Wood – plastic – metal processing lines requiring medium to low speeds with heavy load capacity.
• Dryers – feeders requiring speed customization suitable for each material type.

Assembly Instructions for the WPDA Drive System

To complete the WPDA drive system, users need to follow the assembly steps in the correct sequence to ensure stable equipment operation and minimize operational errors.

• Step 1: Check and identify the input and output positions of the WPDA gearbox. Ensure installation positions are precisely determined before connecting components.
• Step 2: Install the mechanical speed variator onto the input shaft of the gearbox. Align the details to fit each other and check the firmness of the installation position.
• Step 3: Attach the electric motor to the mechanical speed variator, then tighten the fixing bolts. Recheck the entire drive assembly, ensuring that all parts are correctly linked before putting them into use.

Thành Thái Motor‘s gear motor video guiding the assembly of the electric motor, mechanical speed variator, and WPDA gearbox helps viewers follow each step in practice. The content demonstrates how to identify components, connection positions, and the basic assembly process. The video is suitable for beginners, technicians, and customers who need to reference how to install the WPDA drive system. Check out more compiled videos at Thành Thái Motor to learn more about gear motors, gearboxes, and industrial drive equipment.

Warranty Policy and Shipping Commitment at Thanh Thai Motor

• Motor warranty up to 24 months: Each line of 220V gear motor (220V gear motor) or 380V gear motor is covered by a long-term 24-month warranty.
• Fast Shipping: Nationwide delivery, ensuring that gearboxes coupled with motors and foot-mounted gear motor, flange-mounted gear motor lines are securely packaged for maximum protection during transport.
• Quality Gear Motor – Advanced Technology: 220V or 380V gear motor products are manufactured according to German technology and European quality standards.
• Competitive Prices – Attractive Discounts for Bulk Orders: Thanh Thai Motor specializes in trading gear motors directly from manufacturers, providing gear motors at the lowest prices on the market.
• Transparent Trading – Full CO and CQ Provided: Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ).
