WPO 40 Gear Motor 0.18kW 0.25Hp

WPO 40 Gear Motor 0.18kW 0.25Hp is a gear motor product line formed by combining an electric motor and a gearbox. Specifically, a 1-phase electric motor or a 3-phase electric motor is assembled with a worm gearbox. Combining these two devices helps adjust and reduce the rotational speed of the equipment, increases torque, and enhances operational productivity.

Overall design of the WPO 40 Gear Motor 0.18kW 0.25Hp

The worm gear motor features a solid cast iron outer housing coated with electrostatic paint to minimize scratches and damage. The external shaft is meticulously and smoothly machined, ensuring a smooth and quiet transmission process.

Detailed structure of the gear motor

This 1-phase gear motor or 3-phase gear motor consists of the following components:

• Electric motor: It is either a 1-phase electric motor 0.18kW 0.25Hp or a 3-phase electric motor 0.18kW 0.25Hp
  • Stationary part – Stator: Constructed from copper wires wound into coils; when current flows through, it creates a rotating magnetic field, supplying power for the system to operate.
  • Rotating part – Rotor: A steel block made of thin laminated steel sheets pressed together, which rotates under the influence of the magnetic field and transmits force directly to the motor shaft.

• WPO 40 worm gearbox:
  • Worm wheel: To ensure smooth transmission, the internal worm wheel system is meticulously machined and precisely meshed.
  • Worm shaft: Made of high-temperature refined steel with excellent hardness and heat resistance. Smoothly designed for seamless power transmission.

Specifications of the WPO 40 Gear Motor 0.18kW 0.25Hp

The mechanical data sheet is an essential technical basis for processing the base and synchronously assembling the gear motor onto the production line. Below are the precise overall dimensions of the WPO 40 unit.

Specifications of the 3-Phase Electric Motor 0.18kW 0.25Hp

The specific data of the 3-phase electric motor 0.18kW 0.25Hp regarding the shaft diameter of 11mm, IP55 protection class, and Class F insulation will serve as an important reference for safe electrical wiring.

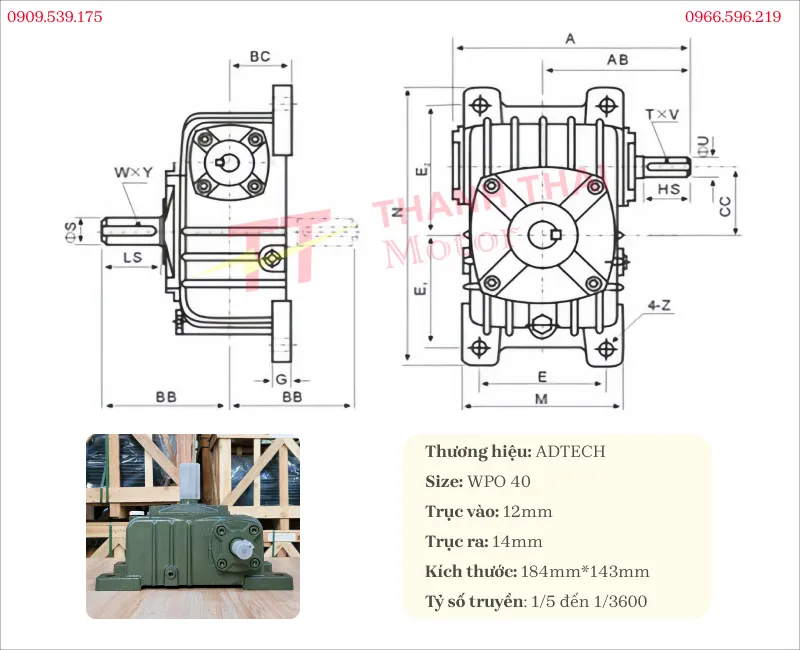

Specifications of the WPO 40 gearbox

Detailed data on the WPO gearbox with an input shaft diameter of 12mm and output shaft diameter of 14mm below will ensure smooth operation when the equipment connects directly to the load.

Common applications of the WPO 40 0.18kW 0.25Hp gear motor

As a device belonging to the gear motor under 1.1kW product line, this WPO 40 0.18kW 0.25Hp gear motor is applied in activities such as:

• Used for transporting goods on conveyors and cargo conveyor belts.
• Agitators and material mixers in the food industry.
• Rotisserie chicken, duck roasting machines, etc.
• Lifting equipment and cargo cranes.

Thanks to its compact design and sturdy solid cast iron housing, the WPO 40 0.18kW 0.25Hp gear motor perfectly meets the transmission requirements for light-duty agitator systems or conveyor belts.
