WPX 40 Gear Motor 0.18kW 0.25Hp

WPX 40 Gear Motor 0.18kW 0.25Hp is a gear motor line combining an electric motor and a gearbox. This combination helps adjust the output speed of attached devices, supporting increased productivity for operational lines.

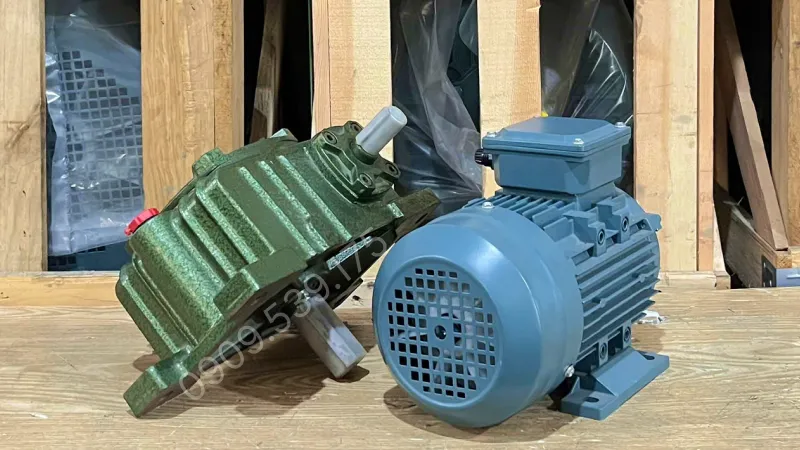

Overview of WPX 40 Gear Motor 0.18kW 0.25Hp

The worm gear motor is designed with a sturdy cast iron housing, providing rigidity for the equipment. The exterior is coated with electrostatic paint to minimize corrosion caused by working environment influences. The gear components of the worm gearbox are meticulously machined and mesh precisely with other parts.

Detailed structure of the gear motor

The WPX 40 Gear Motor 0.18kW 0.25Hp has a structure consisting of the following parts:

• Electric motor:
  • Stator – Stationary part: Made of pure copper wires wound together. When current passes through, the winding generates a rotating magnetic field, providing energy to the equipment.
  • Rotor – Rotating part: Made of laminated technical steel sheets pressed tightly into a block, rotating and moving smoothly under the influence of the magnetic field generated by the stator.

• WPX 40 worm gearbox (WPX 40 worm gearbox):
  • Worm wheel: The worm wheels are made of stainless steel, providing rigidity during operation. This structure creates a variety of gear ratios and high load-bearing capacity.
  • Worm shaft: The shaft is sturdily constructed from heat-treated steel, meticulously machined to ensure smooth equipment operation, high temperature resistance, and heavy load capacity.

Technical specifications of WPX 40 0.18kW 0.25Hp gear motor

The WPX 40 0.18kW 0.25Hp gear motor set is the perfect combination of an electric motor and a worm gearbox.

Technical specifications of 3-Phase Electric Motor 0.18kW 0.25Hp

Below are the specifications of the 0.18kW 3-phase motor line:

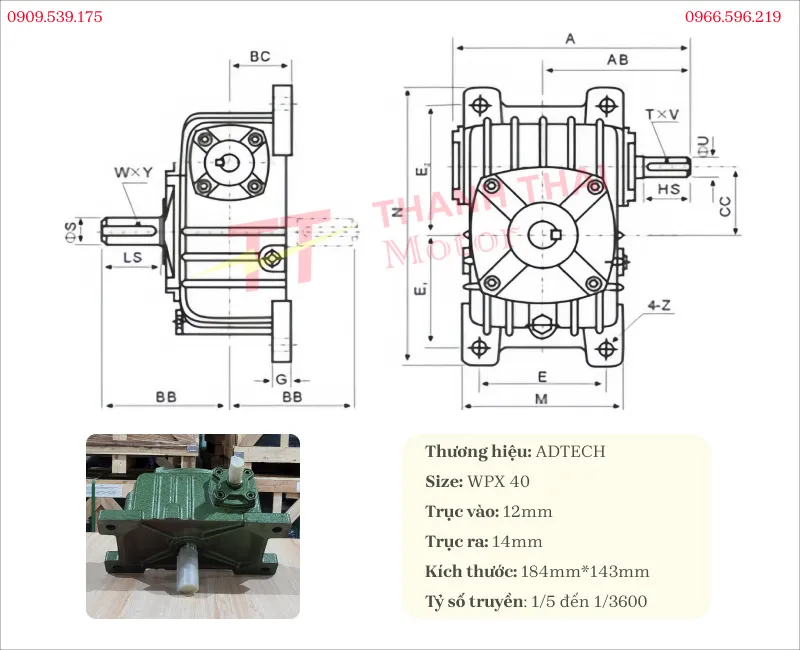

Technical specifications of WPX 40 gearbox

The 0.18kW motor mentioned above will be directly installed with the WPX size 40 worm gearbox to form a complete machine assembly. Below are the specifications of this gearbox part:

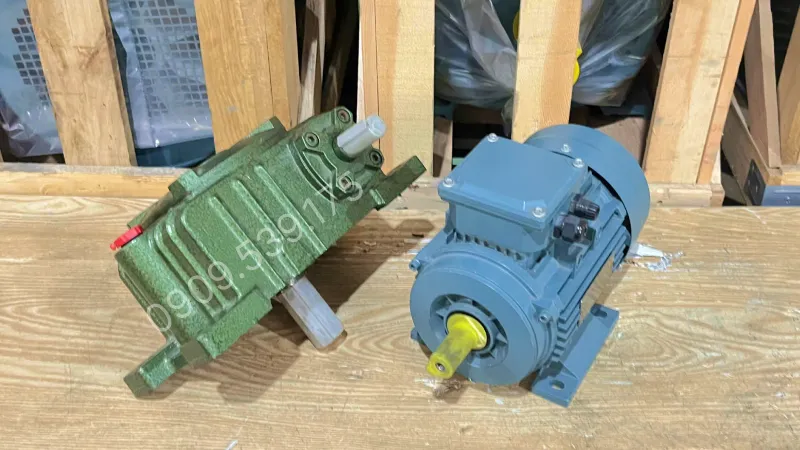

Common applications of WPX 40 0.18kW 0.25Hp gear motor

As a device belonging to the gear motor under 1.1kW line, this 1-phase gear motor or 3-phase gear motor possesses many strengths such as:

• Used in material conveyors and cargo conveyor belts in small-scale factories and workshops.
• Used in small food stirring and mixing machines.
• Rotisserie equipment for chicken, duck, etc.
• Various types of presses, crushers, etc.

With efficient deceleration capability and sturdy construction, the WPX 40 0.18kW 0.25Hp gear motor meets numerous power transmission demands in conveyor systems, mixers, presses, and various other mechanical devices. Before putting it into operation, users should carefully check technical requirements to ensure the product operates at the correct capacity and achieves the highest efficiency.

To view more visual content and stay updated on new power transmission solutions, follow Thanh Thai Motor, access gear motor videos and compilation videos for a more comprehensive perspective of the product.
