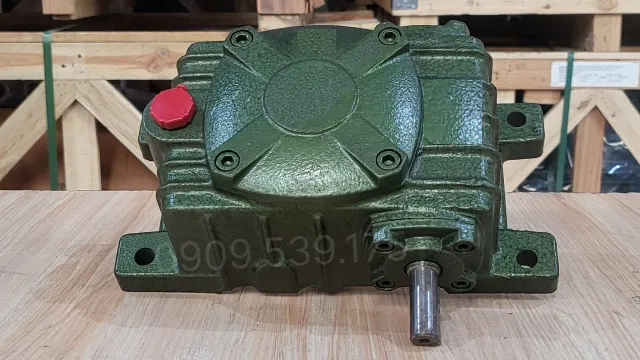

WPX 40 Worm Gearbox

The WPX 40 Worm Gearbox is a popular product thanks to its perpendicular input and output shaft structure, delivering high transmission efficiency in a variety of industrial applications. With outstanding advantages such as superior durability, stable operation, and reasonable pricing, this gearbox line is becoming a transmission solution chosen by many businesses. Let’s explore this product line in detail with Thanh Thai Motor below!

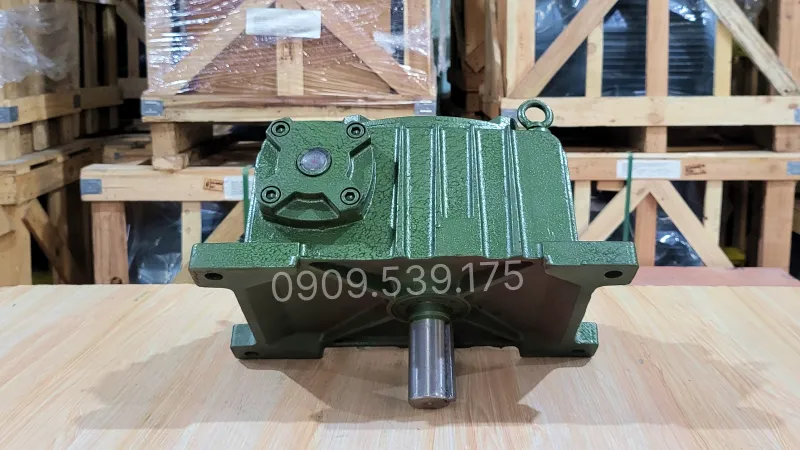

General design of the WPX 40 Worm Gearbox

The WPX 40 Worm Gearbox features a monolithic cast iron outer casing, increasing rigidity and impact resistance in harsh working environments. The transmission shaft is machined from stainless steel, providing high durability and ensuring stable, long-term operational efficiency.

Worm gearboxes are usually coupled with an electric motor or a sprocket system via flexible couplings, creating a complete gear motor. This combination helps the system operate smoothly, increases torque, and controls rotational speed according to the requirements of each application.

In addition, the WPX gearbox is coated with a high-quality electrostatic paint layer, helping to resist environmental impacts such as moisture, chemicals, or dust, while contributing to extending lifespan and keeping the equipment operating stably.

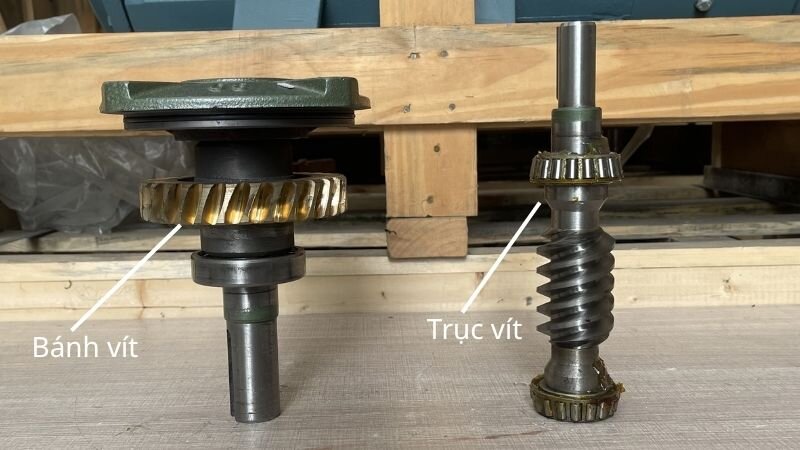

Structure of the WPX 40 Worm Gearbox

The WPX 40 Worm Gearbox is designed with a worm and worm wheel transmission mechanism, helping to reduce the rotational speed of the electric motor while increasing output torque. Internal details are precisely machined and synchronously assembled to ensure stable transmission capability, smooth operation, and extended equipment lifespan.

• Worm shaft: The worm shaft is the component that receives motion from the electric motor or transmission system via pulleys, couplings, or belts.
• Worm wheel: The worm wheel is meshed directly with the worm shaft to create the speed reduction mechanism. This component is usually manufactured from high-quality bronze alloy to reduce friction, limit heat generation, and increase load-bearing capacity during continuous operation.
• Output shaft: The output shaft has a diameter of 14 mm, undertaking the function of transmitting torque from the gearbox to working equipment such as conveyor belts, mixers, packaging machines, or other industrial machinery.
• Bearing system: The bearing system is arranged at the input and output shaft positions to reduce friction during rotation, keeping the shafts operating stably and accurately.
• Oil seal: The oil seal has the task of keeping lubricating oil inside the gearbox, while preventing dust, water, or external impurities from entering the transmission mechanism. This helps maintain lubrication capability, reduce component wear, and extend the lifespan of the WPX 40 gearbox.

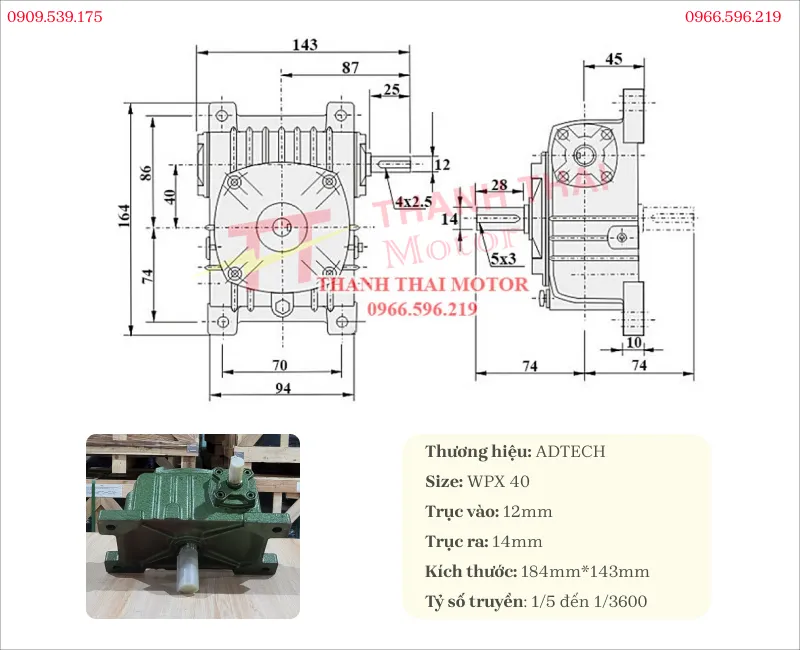

Technical specifications of the WPX 40 Worm Gearbox

The WPX 40 Worm Gearbox with a downward-facing input shaft style and various gear ratios: 50, 30, 25, 40, 10, 60, 15, 20, … can be combined with a 3-phase electric motor with a power of 0.12kW via pulleys, couplings,…

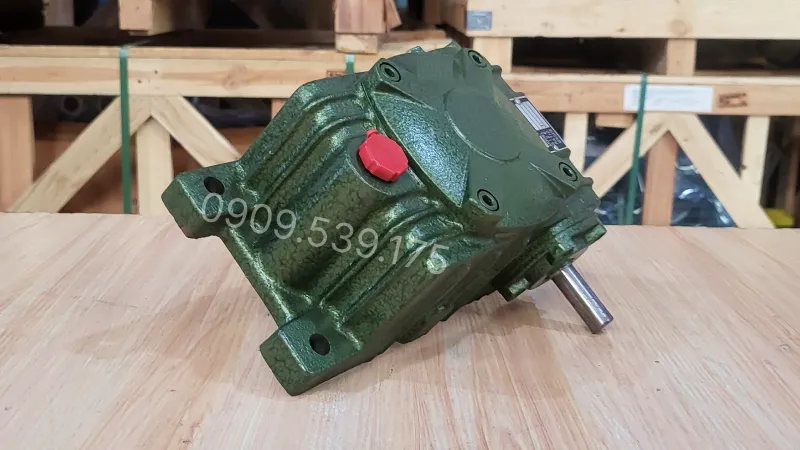

Applications of the WPX 40 Worm Gearbox

The WPX 40 Worm Gearbox is commonly used in many types of industrial equipment thanks to its flexibility and stable performance, specifically:

• In heavy industry: The WPX 40 gearbox is often installed in transportation systems such as conveyors, heavy-duty conveyor belts, lifting equipment like winches, cranes, rolling mills, metal pressing machines,…
• In food production and processing: This equipment is present in automated lines such as packaging machines, printing machines, textile machines, and industrial food production systems,…
• In civil and household applications: The WPX 40 gearbox is also integrated into high-capacity water pumps, industrial car washers, and cleaning support equipment,…
• In manufacturing industry: The WPX 40 gearbox plays an important role in mechanical processing equipment such as CNC machines, lathes, glass cutting machines, and other specialized machines serving the production process.

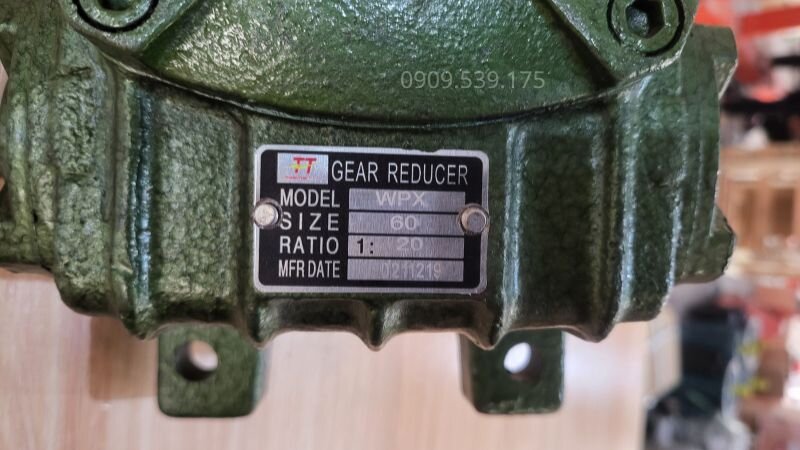

Decoding the parameters on the WPX worm gearbox nameplate

Accurately reading and understanding the parameters on the nameplate is the most important step to help you choose the right gearbox for your transmission system.

• MODEL: Worm gearbox series with downward-facing output shaft.
• SIZE: The distance between the input shaft center and the output shaft center is 60mm.
• RATIO: Gear ratio 1/20 (output rotational speed is reduced 20 times compared to the input).
• MFR DATE/NO: Batch code or manufacturing date of the equipment.

Possessing many outstanding advantages in both design and features, the WPX 40 Worm Gearbox affirms its position as an important component in current industrial transmission systems. Thanks to the durable monolithic cast iron housing structure, smoothly operating worm and worm wheel mechanism, and powerful torque optimization capability, this WPX 40 gearbox line flexibly meets all demanding requirements from heavy industrial conveyor belts, food packaging machines to precision mechanical equipment.

Explore gearbox videos and compilation videos from Thanh Thai Motor to access a lot of useful information, supporting more accurate and efficient equipment selection.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
