WPO 50 Worm Gearbox

The WPO 50 Worm Gearbox is a reliable and optimal transmission solution for applications requiring reduced rotational speed and increased torque. With a special design allowing the output shaft to point vertically upward, the product is ideal for space-constrained installations. Join Thanh Thai Motor in exploring the following article to learn more about this gearbox!

General design of the WPO 50 Worm Gearbox

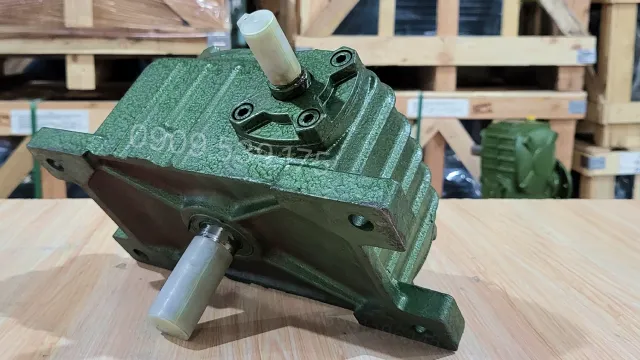

The worm gearbox features a cast-iron housing. The worm and worm wheel transmission set is enclosed within a sealed housing. The input shaft is positioned horizontally, while the output shaft points upward. The WPO 50 Worm Gearbox housing includes bolt mounting holes, oil filling plugs, oil drain plugs, and an oil sight glass.

Detailed structure of the WPO 50 Worm Gearbox series

Inside the WPO gearbox is a combination of premium materials and precision manufacturing technology:

• Worm shaft: Made of heat-treated alloy steel, offering corrosion resistance, wear resistance, and the ability to withstand heavy loads for long periods without deformation.
• Worm wheel: Crafted from bronze or brass alloy, helping to minimize friction, enhance transmission efficiency, and limit overheating during continuous operation.
• Worm and worm wheel transmission pair: Precisely meshed to reduce vibration and working noise while generating high output torque for heavy loads.
• Lubrication oil system: Maintains smooth operation among mechanical components, cools the system, and extends equipment lifespan.

Technical specifications of the WPO 50 Worm Gearbox

The following parameters are used to select installation dimensions and gear ratios.

Functions and applications of the WPO 50 Worm Gearbox

The WPO 50 worm gearbox is widely applied in various production and mechanical fields thanks to its stable transmission and compact design:

• In building materials production: Installed in mixers, small crushers, brick pressing machines, and concrete screw conveyors.
• In the food and packaging industry: Combined with conveyors, packaging conveyor lines, and automatic weighing systems.
• In mechanical manufacturing: Used for CNC machines, metal bending machines, and mechanical assembly lines.
• In irrigation and water supply systems: Installed in water pumps, water conduit equipment, and industrial pumping stations.
• In the environmental sector: Applied in sludge dewatering machines, wastewater agitators, and industrial waste conveyors.

Guide to distinguishing the input and output shafts of a gearbox

To correctly identify the input and output shafts of a gearbox, you can follow these steps:

Step 1: Observe the exterior of the gearbox

Place the gearbox in a fixed position and inspect the overall sides of the equipment to identify the locations of the shafts, flanges, and bases.

Step 2: Identify the input shaft

Locate the motor installation position on the gearbox. The shaft directly connected to the motor is the input shaft, which receives speed from the motor.

Step 3: Identify the output shaft

Observe the remaining shaft end of the gearbox. This is the output shaft, used to transmit torque and reduced speed to the driven machine or mechanism.

Step 4: Check connection points

Check flanges, bolts, oil filling holes, oil drain holes, and connection points to ensure the gearbox meets installation requirements.

Step 5: Confirm before operation

Re-verify the positions of the input shaft, output shaft, and mounting style of the gearbox against drawings or specifications before connecting to the motor and equipment.

In addition to this article, you can check out the gearbox video for a visual view of the structure, component differentiation, and installation process. Furthermore, the compilation video on the Thanh Thai Motor channel will provide more content regarding motors, gearboxes, and industrial transmission solutions.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

We hope this article has provided you with useful information about the WPO 50 Worm Gearbox. For more detailed consultation and to select the right product for your specific needs, do not hesitate to contact Thanh Thai Motor immediately. We are committed to delivering quality transmission solutions and the best support services.
