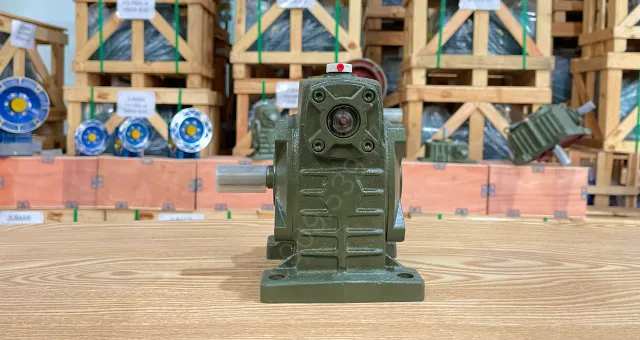

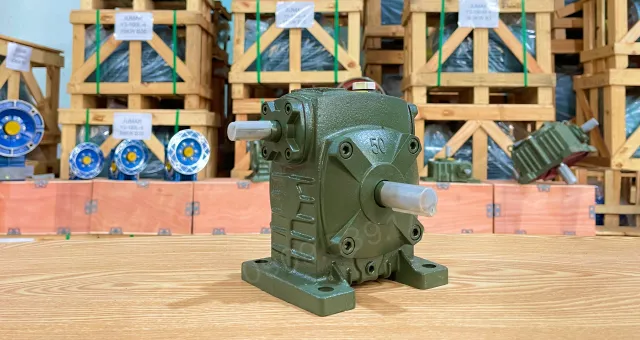

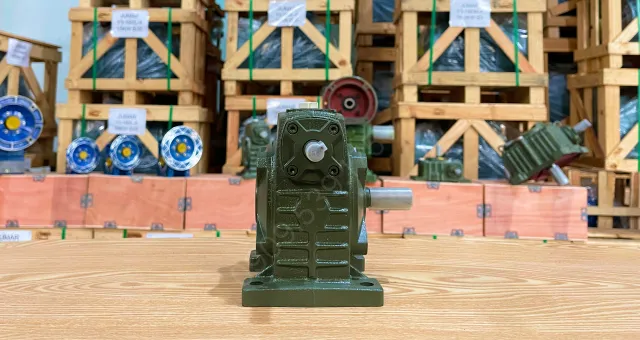

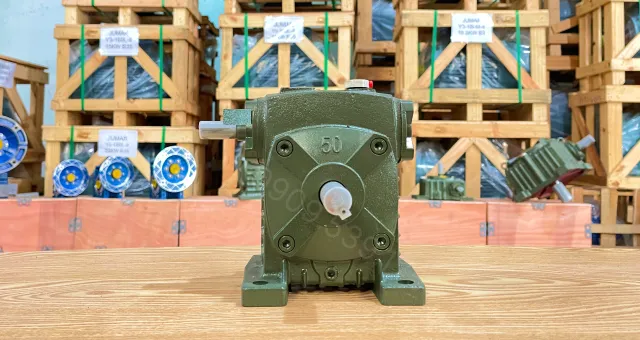

WPS 50 Worm Gearbox

The WPS 50 Worm Gearbox is an efficient transmission solution with a right-angle input and output shaft design, helping to optimize transmission performance in various industrial applications. With high durability, stable operating capacity, and reasonable pricing, this product is increasingly chosen by many customers in Vietnam. A gearbox is an ideal choice for systems requiring high precision, cost savings, and long-term durability, ensuring operational efficiency.

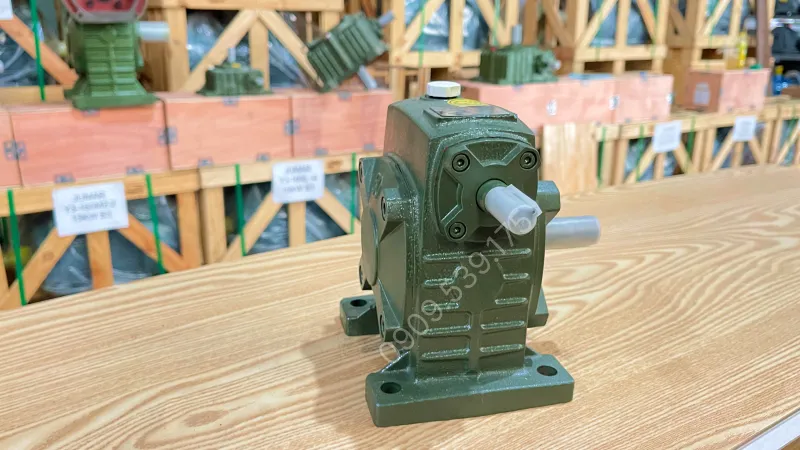

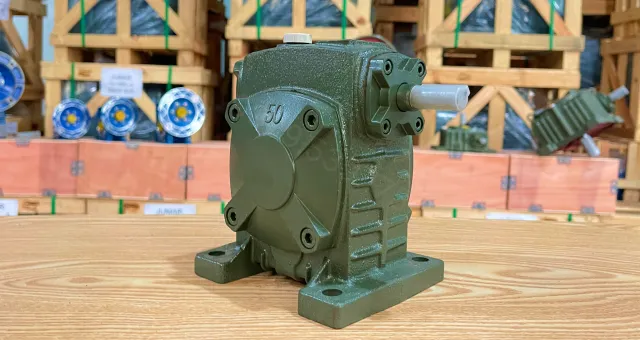

General design of the WPS 50 Worm Gearbox

The worm gearbox is designed with a sturdy structure, and an outer housing made of solid cast iron, ensuring high load-bearing capacity and protecting internal components from external impacts. The input and output shafts of the device are at a right angle to each other, making it easy to install in confined spaces.

In addition, the internal mechanical parts are made of wear-resistant materials, ensuring stable working performance and long service life. The equipment is also coated with anti-corrosion powder coating, protecting it from harsh environmental factors such as moisture and chemicals. The flexible coupling system allows easy connection with electric motors to form a gear motor that delivers optimal transmission efficiency.

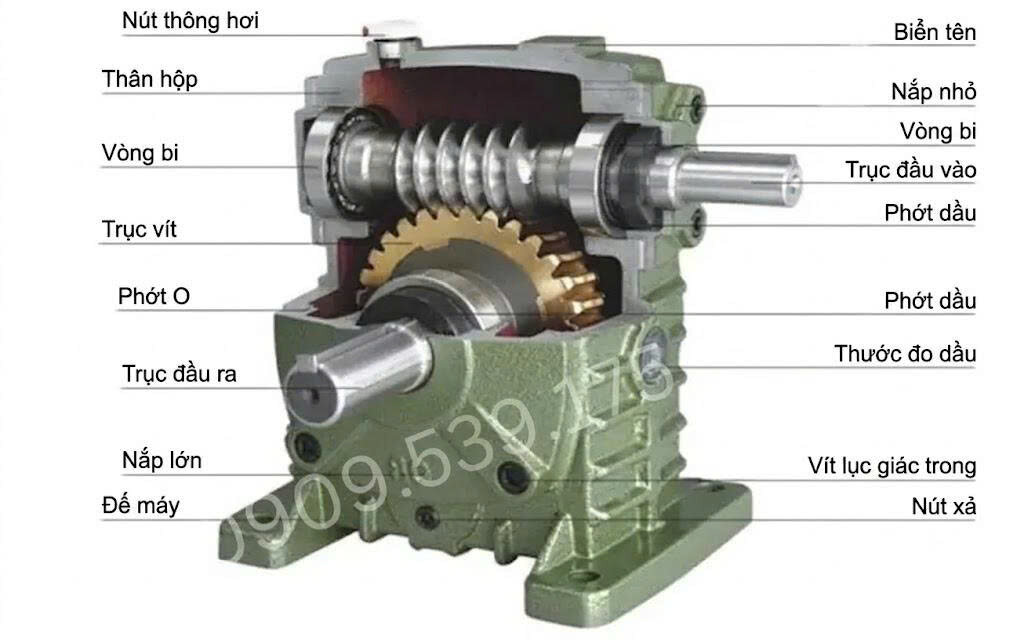

Internal structure of the WPS 50 Worm Gearbox

The internal structure of the WPS 50 gearbox is meticulously designed with a stainless steel worm shaft and a bronze alloy worm gear. These components are closely connected to generate high torque and reduce rotational speed effectively.

• Worm shaft: Made of high-quality stainless steel, the worm shaft has a high load capacity, durability, and good corrosion resistance during long-term operation.
• Worm gear: Cast from high-durability bronze alloy, helping to reduce friction, improve transmission efficiency, and extend the service life of the equipment.
• Transmission mechanism: The worm shaft and worm gear are precisely manufactured to mesh together, creating strong torque, supporting efficient and safe rotational speed reduction.
• Optimal operating capability: Thanks to this special structure, the gearbox provides high reduction efficiency, helping machinery operate stably, smoothly, and adapt to various industrial environments.

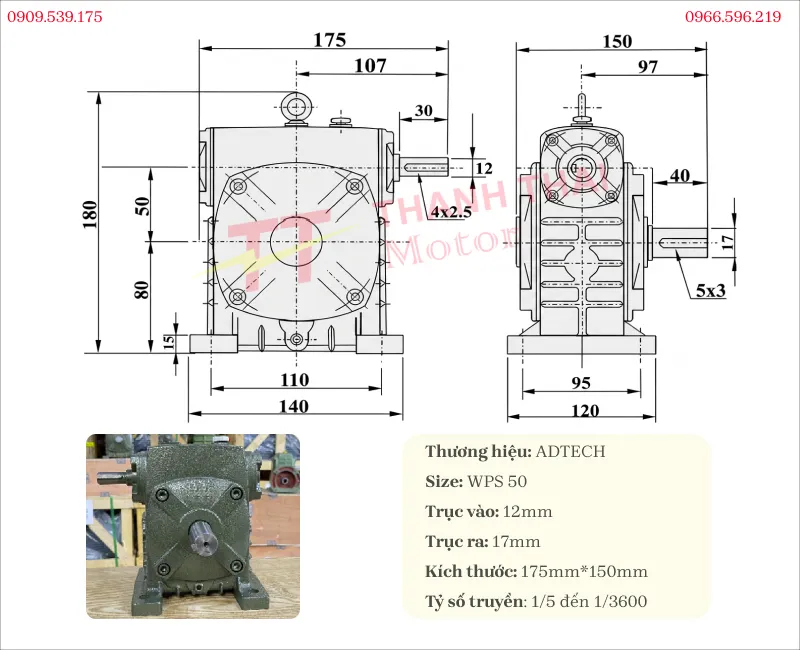

Technical specifications of the WPS 50 gear motor

The technical specifications of the WPS 50 gear motor are presented below, including overall dimensions, input shaft diameter, and output shaft diameter to assist in selecting and installing the equipment.

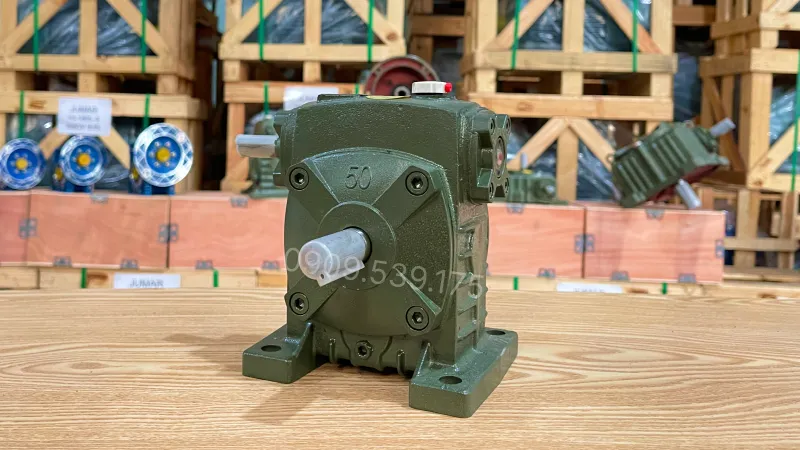

Applications of the WPS 50 Worm Gearbox

The WPS 50 Worm Gearbox is an important transmission device that functions to reduce rotational speed from the input motor while increasing output torque, helping machinery operate more efficiently and stably.

• Used in stone crushers and raw material grinders to control crushing speed and improve efficiency.
• Integrated into conveyor systems to move products evenly, save energy, and easily adjust speed.
• Used in automatic watering systems to effectively control flow rate and operating time, saving electricity and water.
• Used in the production of construction glass and interior materials, helping to control the speed of conveyors and rotating shafts, enhancing precision in the processing procedure.

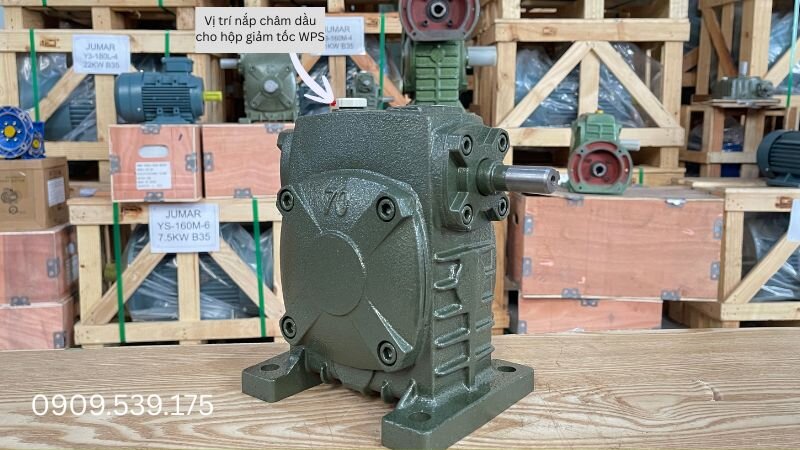

Guide on adding oil for WPS worm gearboxes

• Stop the machine: Disconnect all power sources to ensure safety.
• Drain old oil (if replacing): Place a catch pan under the drain plug. Open the drain plug and breather plug to let all the oil drain out. Tighten the drain plug back.
• Determine oil quantity: The gearbox requires an oil amount corresponding to 1/6 to 1/3 of its volume. For example: A size 120 WPS gearbox requires about 3.2 liters of oil. Smaller gearboxes (sizes 70-80) require about 0.8 – 1.5 liters.
• Add new oil: Open the breather plug or oil sight plug at the top. Slowly pour in lubricating oil (usually mineral or synthetic gear oil with viscosity ISO VG 320 or 460).
• Check oil level: Look through the oil sight glass (small glass tube on the side). The ideal oil level is at the center of the oil sight glass. The oil amount must not exceed the 1/3 threshold to avoid leakage.
• Completion: Tighten all plugs and restart the machine. Change oil periodically after 3,000 – 5,000 hours of operation.

The WPS 50 Worm Gearbox well meets the transmission needs of many types of machinery thanks to its simple structure and stable operation. Customers can refer to gearbox videos to view each product line directly. At the same time, the comprehensive video category also shares much more content on the structure, installation, and application of transmission devices.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
