WPX 50 Worm Gearbox

The WPX 50 Worm Gearbox is an efficient transmission device specialized in reducing rotational speed and increasing torque for industrial mechanical systems. With a sturdy right-angle input-output shaft design, the worm gearbox delivers stable, durable operation and is suitable for various machinery such as conveyors, mixers, and food processing equipment. This is an ideal choice for businesses requiring a reliable transmission solution with optimized maintenance costs.

Overview design of WPX 50 Worm Gearbox

The gearbox features an integrated solid cast iron outer housing, providing high rigidity and excellent load-bearing capacity under harsh working conditions. The drive shaft is made of stainless steel with superior hardness and durability, ensuring stable and long-lasting performance over time.

Typically, the gearbox is connected to an electric motor or gear drive system via flexible couplings, forming a complete gear motor assembly. This configuration helps increase torque, reduce rotational speed to meet the technical requirements of each specific application, and ensure smooth operation.

In addition, the surface of the WPX worm gearbox is coated with premium electrostatic paint, protecting the equipment from moisture, chemicals, and dust while enhancing durability and lifespan during long-term use.

Internal structure of WPX 50 Worm Gearbox

Inside the WPX 50 worm gearbox is a precisely designed transmission system consisting of a stainless steel worm shaft and a copper alloy worm wheel, meshing together to generate high torque and reduce rotational speed effectively.

• Worm shaft: Machined from high-quality stainless steel, the worm shaft offers high load capacity, superior durability, and excellent corrosion resistance during long-term use.
• Worm wheel: Utilizing premium copper alloy, the worm wheel helps reduce contact friction, improve transmission efficiency, and extend equipment lifespan.
• Transmission mechanism: The worm shaft and worm wheel are designed for precise meshing, creating stable transmission force while supporting effective and safe rotational speed reduction.
• Performance optimization: Thanks to the optimized transmission structure, the WPX 50 ensures quiet equipment operation, reduced vibration, and sustained efficiency across various industrial environments.

Technical specifications of WPX 50 Worm Gearbox

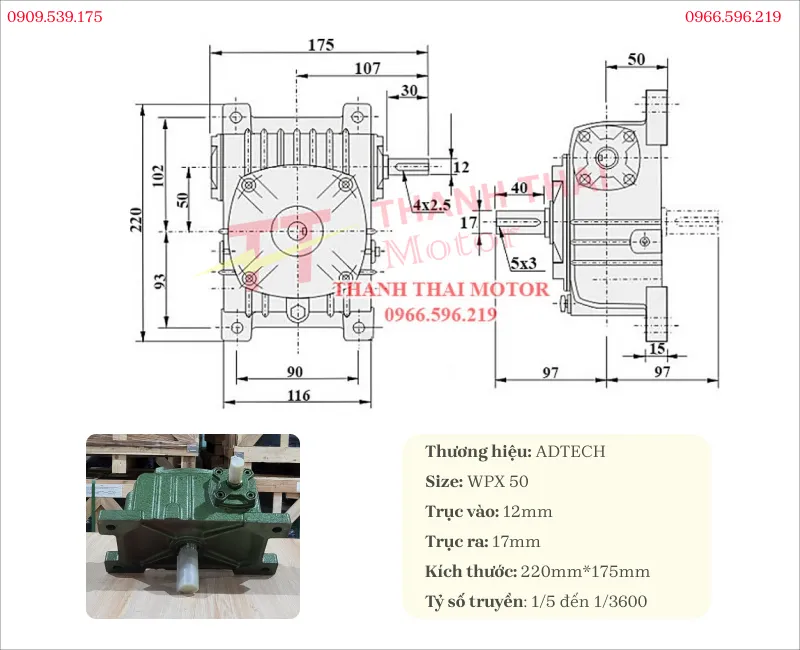

The technical specifications of the WPX 50 worm gearbox feature a compact size and right-angle shaft design, allowing the gearbox to be easily integrated into various machinery systems with limited space, and can be coupled with a 3-phase electric motor 0.18kW 0.25HP via pulleys, couplings, etc.

Applications of WPX 50 Worm Gearbox

The WPX 50 worm gearbox plays an important role in adjusting rotational speed and increasing torque for mechanical systems, helping equipment operate stably and save energy.

• Heavy industry: Applied in conveyor systems, material handling equipment, presses, and production lines requiring high pulling force and slow rotational speed.
• Food processing and packaging industry: Used in mixers, packaging machines, material blenders, or continuous operation equipment requiring stable transmission.
• Mechanical and machining equipment: The WPX 50 worm gearbox is integrated into lathes, cutting machines, drilling machines, and CNC machines to adjust spindle speed and optimize working performance.
• Water treatment and environmental industry: Applied in industrial pumps, aeration systems, and wastewater treatment equipment, where durable operation and vibration reduction are required.
• Civil and automated equipment: Can be used in automatic gate systems, freight elevators, or electromechanical control devices in buildings and factories.

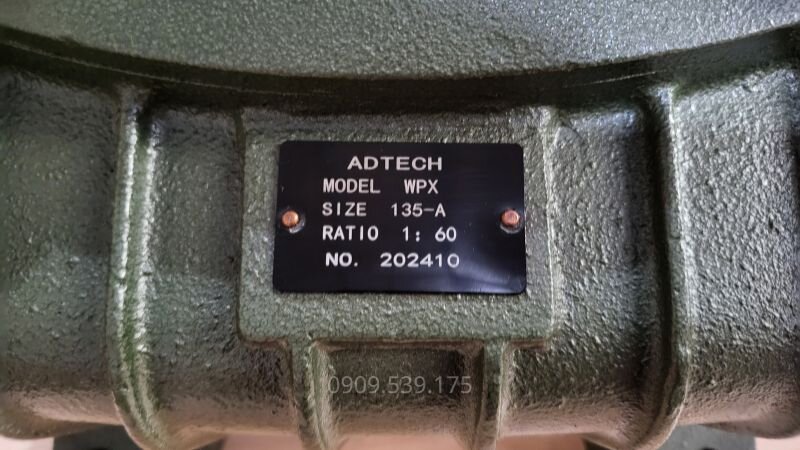

Decoding nameplate parameters of WPX worm gearbox

To select, assemble, and operate the transmission system accurately, it is necessary to clearly understand the technical specifications recorded on the nameplate of the WPX worm gearbox

• Model / Design: The symbol “WPX” indicates that this is a hollow/solid shaft worm gearbox series featuring a vertically downward-pointing output shaft design.
• Size: Typically represented by standard numbers such as 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250. This is the distance from the center of the input shaft (worm) to the center of the output shaft (worm wheel) measured in millimeters (mm). The larger the size, the larger the shaft and the stronger the heavy-load capacity.
• Ratio / i: This parameter determines the speed of the equipment, typically available in levels: i = 10, 15, 20, 30, 40, 50, 60.
  • Example: If the nameplate states i = 60 (or 1/60), it means that when the input motor rotates 60 revolutions, the output shaft of the WPX gearbox rotates 1 revolution. The larger the ratio, the slower the output speed, but the generated torque (pulling/mixing force) will be greater.
• NO/ Date: Manufacturing date and production batch information

The WPX 50 Worm Gearbox is a perfect transmission solution that well meets strict requirements for speed adjustment and torque increase in modern industrial environments. With a sturdy integrated solid cast iron housing, a stainless steel worm shaft, and a high-grade copper alloy worm wheel, the product ensures smooth, durable operational performance while optimizing maintenance costs for businesses.

Watch the gearbox video and summary video now to better understand the structure, characteristics, and applications of each product line.
