WPDA 40 Worm Gearbox

The WPDA-Series Worm Gearbox 40 is a compact power transmission device, notable for its convenient flange design, which allows for easy coupling with an electric motor. With stable speed reduction capability and efficient torque generation, this product is suitable for light industrial applications such as mini conveyors, packaging machines, small stirrers, and is an ideal choice for limited installation spaces. Let’s explore this product in detail with Thanh Thai Motor!

Overview of the WPDA-Series Worm Gearbox 40 Design

A gearbox is a power transmission device designed with an input flange, specifically used to save space and optimize installation area. The housing is made from a solid cast iron block, offering high mechanical strength, resistance to heavy loads, and preventing deformation during continuous long-term operation. The input shaft and output shaft are arranged orthogonally, supporting efficient power transmission in systems requiring a change in rotation direction.

When an electric motor is combined with a worm gearbox, it creates a complete geared motor drive system, helping to reduce the motor’s rotational speed and increase output torque. This not only saves energy but also reduces stress on the power transmission device, ensuring smooth operation with minimal vibration and extending the system’s lifespan.

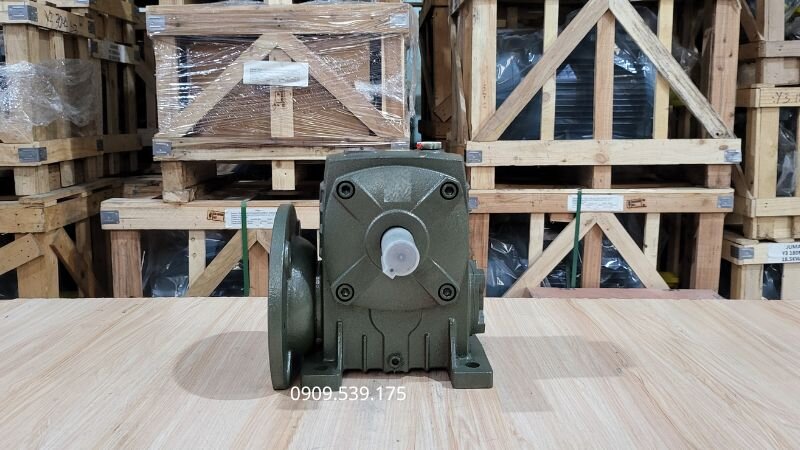

Internal Structure of the WPDA-Series Worm Gearbox 40

The WPDA-Series Worm Gearbox 40 is manufactured with a precise mechanical structure, comprising the following main components:

• Worm Shaft: Made from alloy steel or hardened steel, offering good load-bearing capacity, wear resistance, and durable operation under continuous working conditions.
• Worm Wheel: Uses high-grade bronze alloy, which helps reduce friction, dissipate heat effectively, and extend the equipment’s lifespan.
• Bearings: Installed at key load points, ensuring smooth and stable shaft rotation.
• Oil Seals: Prevent lubricant leakage and dust ingress, contributing to more durable system operation.
• Precise Meshing Structure: The worm shaft and worm wheel are precisely machined to ensure stable speed reduction according to the predetermined gear ratio, high accuracy, and reduced wear.

Outstanding Advantages of the WPDA-Series Worm Gearbox 40

• Compact Design: Suitable for various locations, including those with limited space.
• Quiet Operation - Reduced Noise: Thanks to the precise worm and worm wheel structure, the device operates smoothly without vibration.
• Excellent Load Capacity - Long-lasting Durability: Made from high-grade materials with a robust cast iron housing, effectively resisting impact and rust.
• Simple Maintenance - Cost Savings: Easy to disassemble for lubrication, cleaning, or component replacement when needed.
• High Compatibility: Can be flexibly combined with various electric motors, pulleys, or couplings depending on the application.
• Optimized Performance - Energy Saving: The stable drive system ensures efficient operation with low energy consumption.
• 24-Month Warranty: Guarantees customer rights and peace of mind when using the product.

Functionality and Applications of the WPDA-Series Worm Gearbox 40

The WPDA-Series Worm Gearbox 40 is an ideal choice for small to medium power transmission systems, with diverse applications in many industries, such as:

• Food Industry - Packaging: Dough mixers, food conveyors, semi-automatic packaging machines.
• Textile Industry: Fabric winding machines, fiber presses, auxiliary equipment for dyeing machines.
• Wood Processing and Furniture: Cutting machines, panel presses, component conveyors.
• Wastewater Treatment and Environmental Management: Chemical stirrers, sludge presses, water circulation systems.
• Light Conveyors - Automated Electromechanical Systems: Applications in electronic component production lines, light product packaging.

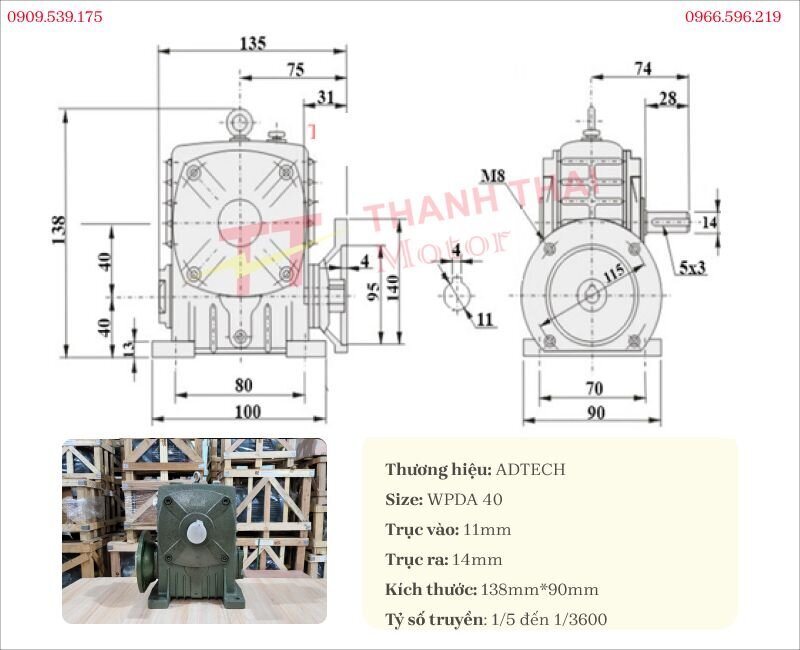

Technical Specifications of the WPDA-Series Worm Gearbox 40

• Gearbox Size: 40.
• Gear Ratios: 10, 20, 30, 40, 50, 60, 15, 25.
• Mounting Style: Underslung Input Shaft.
• Recessed Input Shaft Diameter: 11mm.
• Output Shaft Diameter: 14mm.
• Gearbox Width and Length: 100 x 90mm.
• Installation Method: Directly coupled with a 3-phase electric motor 0.18kW 0.25HP.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount - optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
