WPA 70 Worm Gearbox

The WPA 70 Worm Gearbox offers a compact yet powerful power transmission solution. Its right-angle shaft design optimizes torque during operation. This gearbox boasts high durability and stable operation. Its cost is also very reasonable for the efficiency it delivers. Discover the advantages of this product with Thanh Thai Motor!

Overview of the WPA 70 Worm Gearbox Design

The WPA 70 Worm Gearbox features a compact structure with a square-box design, cast from high-quality alloy. The housing is coated with anti-corrosion paint to protect the equipment when used in high-humidity or dusty environments. The simple worm gear gearbox structure allows the device to easily connect with various types of electric motors.

Flange mounting and a right-angle output shaft save space and are convenient for machinery layout in workshops. When the WPA gearbox is combined with a corresponding electric motor, it forms a complete geared motor, ensuring stable operation and easy maintenance.

Internal Structure of the WPA 70 Worm Gearbox

The WPA 70 gearbox operates based on the power transmission principle between a worm shaft and a worm wheel. The meshing of these components ensures effective torque generation and speed reduction.

• Worm Shaft: Manufactured from high-quality stainless steel, ensuring durability and good load-bearing capacity.
• Worm Wheel: Made from copper alloy, which reduces friction and enhances transmission efficiency.
• Meshing Mechanism: The worm shaft and worm wheel precisely mesh, generating powerful torque and effective speed reduction.
• Optimized Transmission: This design not only ensures optimal speed reduction efficiency but also enables the equipment to operate smoothly and stably in various applications.

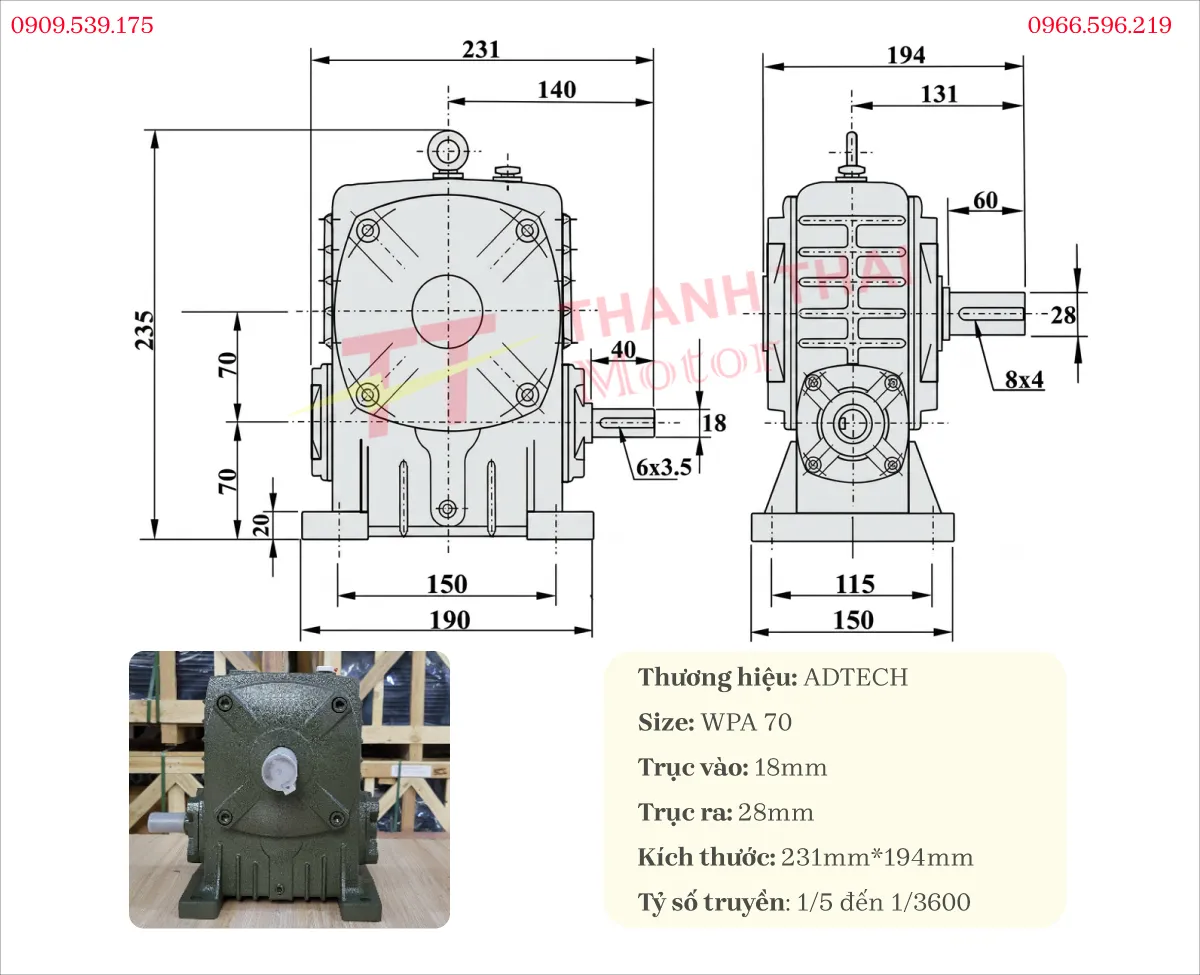

Technical Specifications of the WPA 70 Worm Gearbox

• Gearbox Size: 70.
• Gear Ratios: 25, 50, 10, 15, 60 , 20, 40, 30.
• Design: Input shaft at the bottom.
• Input Shaft Diameter: 18mm.
• Output Shaft Diameter: 28mm.
• Gearbox Width and Length: 190 x 150mm.
• Installation Method: Installs with 3-Phase Electric Motor 0.55kW 0.75Hp and 3-Phase Electric Motor 0.75kW 1HP via pulley, coupling, etc.

Functions and Applications of the WPA 70 Worm Gearbox

The WPA 70 Worm Gearbox is an optimal choice for applications requiring stable transmission, moderate pulling force, and continuous operation. Some common applications include:

• Mixers, stirrers in the food and chemical industries

• Light conveyor lines in warehouses, factories

• Lifting and lowering systems in household or light industrial equipment

• Packaging machines, labeling machines, textile machines, etc.

With its compact size, easy assembly, and replacement, the product helps save investment and maintenance costs.

Outstanding Advantages of the WPA 70 Worm Gearbox

Here are the strengths of the WPA 70 gearbox:

• Compact design, flexible installation for various spaces

• Efficient speed reduction, energy saving during operation

• Smooth operation, low vibration, no significant noise

• Sturdy materials, good load resistance, long lifespan

• Low maintenance cost, easy oil change and periodic inspection

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount - optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• Call hotline: 0909.539.175
• Zalo: 0902530445
• Email: codienthanhthai@gmail.com

The WPA 70 Worm Gearbox is a reliable choice for small to medium-sized machinery systems requiring stable and flexible power transmission. With its sturdy design, smooth operation, and high durability, this product is suitable for many modern manufacturing sectors. If you are looking for an efficient, economical, and user-friendly power transmission solution, do not overlook the WPA 70 Worm Gearbox series from Thanh Thai Motor.
