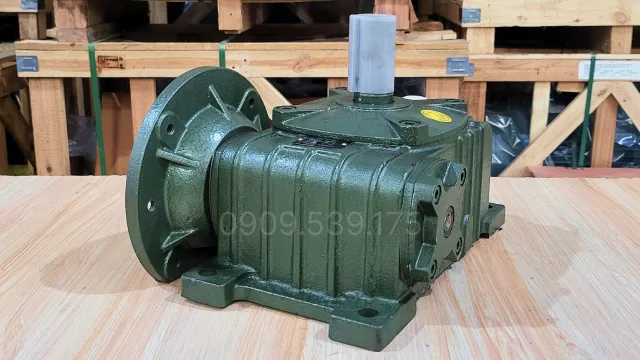

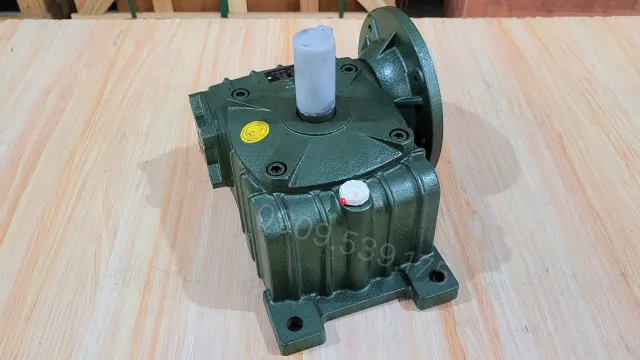

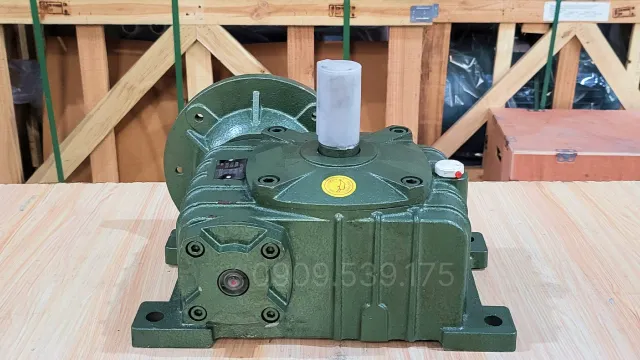

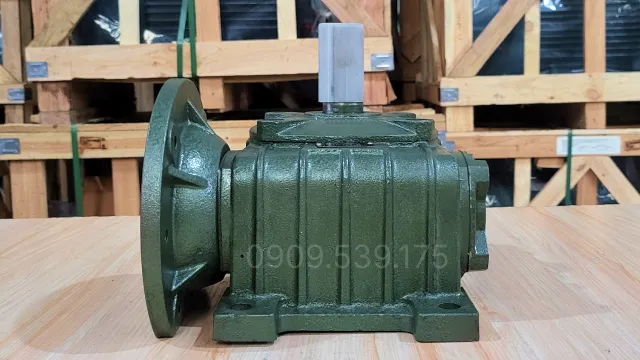

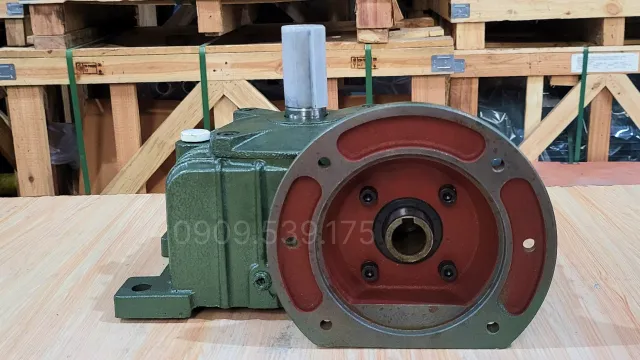

Worm Gearbox WPDO 50

Are you looking for a compact, energy-saving gearbox that still ensures operational efficiency? Worm Gearbox WPDO 50 is a perfect choice for small-capacity drive systems. With a sturdy design, flexible installation capability, and proven durability, this product will help you optimize machinery performance without spending too much cost. Follow the article below to discover details about the structure, advantages, applications, and technical specifications of the WPDO gearbox series!

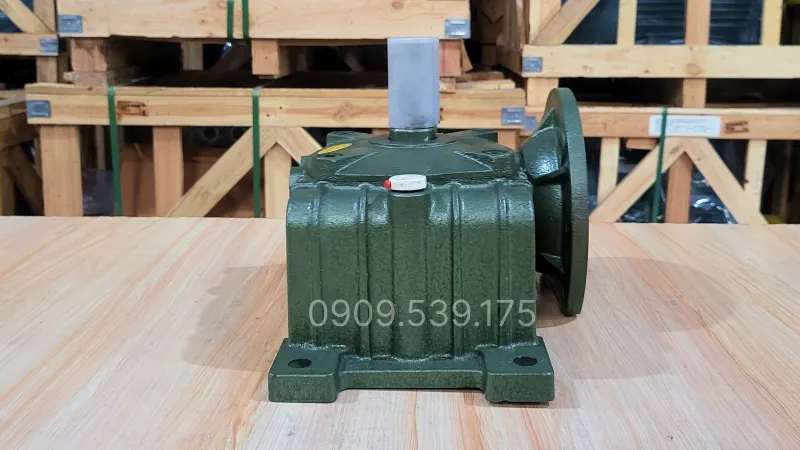

Overview Design of Worm Gearbox WPDO 50

Right from its appearance, the WPDO 50 gearbox has demonstrated high flexibility and applicability in space-constrained environments.

The worm gearbox is made of thick monolithic cast iron material, with good impact resistance and heat dissipation. The entire outer shell surface is powder-coated, anti-oxidation and mild corrosion resistant, helping to extend the lifespan of the equipment even when operating in humid or dusty conditions.

When combined with an electric motor, specifically a low-capacity 3-phase electric motor, the device forms a complete gear motor, helping to transmit force smoothly, reduce output rotational speed, and increase torque as required.

Main Structure of Worm Gearbox WPDO 50

Precise mechanical design and durable transmission structure help the gearbox operate stably for a long time.

• Worm shaft: Machined from hardened alloy steel, featuring high mechanical durability and good wear resistance during continuous operation.
• Worm gear: Made of specialized copper alloy, featuring self-lubricating properties, reducing friction and increasing power transmission efficiency.
• Bearings and bushings: Precisely installed, helping the shaft rotate smoothly, minimizing vibration and reducing wear.
• Oil seals & protective covers: Prevent lubricating oil leakage and protect the equipment from dust and water intrusion.
• Lubricating oil chamber: Reasonably designed to optimize the cooling process and maintain continuous lubrication for the worm gear and worm shaft.

Technical Specifications of Worm Gearbox WPDO 50

The parameters below help select the product that suits the usage requirements.

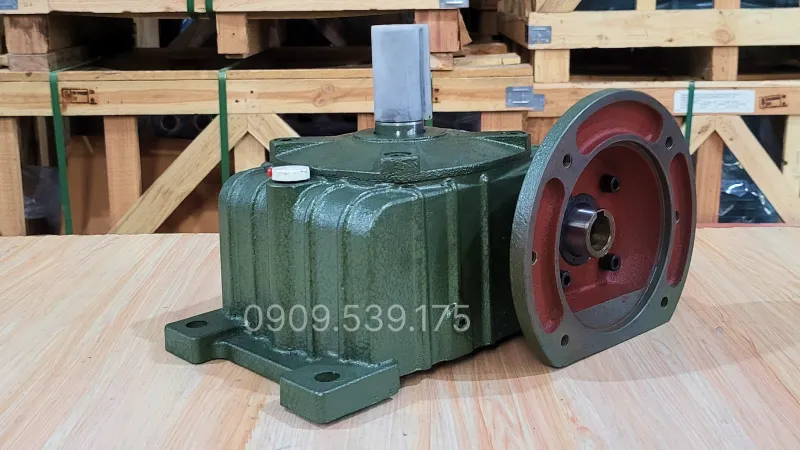

Practical Applications of WPDO 50 Gearbox

Worm Gearbox WPDO 50 is used in various drive systems requiring stable speeds and compact installation structures.

• Packaging machines: Drives conveyors, feeding mechanisms, and dosing units in production lines.
• Material mixers: Suitable for flour mixers, animal feed mixers, chemicals, and granular materials.
• Industrial conveyors: Controls product transportation speed in processing plants and warehouses.
• Food processing machines: Applied on mixing, rolling, and material transportation equipment.
• Automation equipment: Installed in drive systems of assembly machines, sorting machines, and automated production lines.

Guide to Choosing a Gearbox According to Motor Power

To choose a gearbox according to motor power, follow these steps:

Step 1: Check motor power

Determine the rated power on the motor nameplate or in the technical documentation. This parameter is used to select a gearbox with corresponding working capacity.

Step 2: Determine operating parameters

Gather parameters such as input speed, required output speed, torque, and system load to determine the appropriate gear ratio.

Step 3: Compare gearbox specifications

Compare the motor power with the allowable power, torque, and gear ratio of each gearbox series. Choose the model that exactly meets the technical requirements of the system.

Step 4: Check connection compatibility

Compare shaft dimensions, bore diameter, flange, and mounting type between the motor and gearbox to ensure standard-compliant assembly.

In addition to this article, you can refer to gearbox videos to learn more about the structure, selection methods, and installation procedures of gearbox series. Furthermore, compilation videos on the Thanh Thai Motor channel will provide additional content on motors, gearboxes, and industrial drive applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

Worm Gearbox WPDO 50 is an efficient, durable, and flexible drive solution for many small and medium-scale industrial applications. With its unique eccentric output shaft design and stable operating capacity, this product will certainly be a worthwhile consideration for your machinery system. Contact Thanh Thai Motor immediately for detailed consultation and to choose the most suitable product for your needs!
